Nickel alloys are essential materials in the aviation and aerospace fields. They have excellent mechanical strength, corrosion resistance, high temperature and oxidation resistance, especially excellent stability and durability at high temperatures. They are the best materials for high-temperature and high-pressure parts in the aerospace industry.
Nickel alloys can still maintain high strength and good creep resistance in high-temperature environments, and are particularly suitable for key components such as turbine blades, disks and combustion chambers of aircraft engines. During the operation of aircraft engines, the temperature can reach more than 1100°C. Normal materials often have greatly reduced strength and short life in this environments, while nickel alloys can work under such extreme conditions for a long time without failure.
Nickel alloys are commonly used in the aerospace industry due to their high strength and resistance to heat. They are often used to manufacture critical components, such as engine components, exhaust systems, fasteners, landing gear springs, turbine blades, discs, and rings, etc.
Application Scenarios
Aerospace Engine Components
Heat Exchanger Components
Structural Components
Why Nickel Alloys Dominate Aerospace
A modern turbofan is a controlled explosion contained by metal. At full power the combustion gas reaches 1400–1700°C, and even the cooled metal surfaces of the hot section sit well above 650°C for tens of thousands of hours. Ordinary steel oxidizes and creeps; titanium loses strength past ~600°C; only nickel-based superalloys retain useful strength, creep resistance and oxidation resistance across this range while staying tough at the cryogenic temperatures of liquid-fuel and high-altitude service.
That combination is why nickel alloys appear in nearly every critical engine and airframe system: turbine blades, discs and shafts, combustor and afterburner sheet metal, exhaust ducts, fasteners, springs, landing-gear components and structural brackets. They are chosen not for one property but for the full package — strength, temperature capability, corrosion resistance, fatigue life and fabricability.
Alloy selection in aerospace is driven by temperature first, stress second. The hotter the zone, the more the chemistry shifts toward solid-solution strengthening (Mo, W, Co) and oxidation resistance (Cr, Al); the colder, high-stress zones favor precipitation-hardened alloys like Inconel 718.
A jet engine is a stack of temperature zones, each demanding a different alloy. Reading the engine from front to back (cold to hot) shows exactly where each nickel alloy earns its place:
Engine Zone
Metal Temp (approx.)
Typical Alloy Family
Representative Grades
Fan & low-pressure compressor
Ambient – 450°C
Ti alloys / PH stainless
Ti-6Al-4V, 17-4PH
High-pressure compressor
450 – 650°C
Precipitation-hardened Ni
Inconel 718, Waspaloy
Turbine discs & shafts
550 – 700°C
Precipitation-hardened Ni
Inconel 718, 625 (low-temp)
Combustor & liners
900 – 1100°C
Solid-solution superalloy
Hastelloy X, Inconel 625, 601
Turbine blades (HPT)
1000 – 1200°C
Single-crystal / wrought superalloy
(CMSX, René, Inconel 718 structurals)
Exhaust & afterburner
800 – 1050°C
Solid-solution superalloy
Inconel 625, Hastelloy X
Airframe & structures
Ambient – 600°C
PH stainless / Ni-Cu
17-4PH, Monel K500
The takeaway: Inconel 718 owns the cool, high-stress end (discs, shafts, fasteners); Hastelloy X and Inconel 625 own the hot sheet-metal end (combustor, exhaust, ducts); and the very hottest blades use specialized cast superalloys outside the corrosion-resistant bar/plate product range most suppliers stock. JN Alloy focuses on the wrought, fabricable grades — 718, 625 and Hastelloy X — that make up the bulk of engine and airframe procurements.
Reading the table left to right also reveals a design truth: the gas gets monotonically hotter from intake to nozzle, but the metal temperature does not — modern engines cool their hottest parts with film and convection cooling so the superalloy surface stays hundreds of degrees below the local gas temperature. That cooling margin is what lets a 1200°C gas path run on a Hastelloy X liner rated nearer 1000°C, and it is why material selection is always a joint problem of alloy, geometry and cooling design rather than a single temperature number.
About -423°F to 1300°F (-253°C to 704°C). Strength peaks around 1200°F (650°C) thanks to gamma-prime (γ′) and gamma-double-prime (γ″) precipitation; above ~650°C it gradually softens, so it is not used in the combustor or blade hot gas path.
Inconel 718 (UNS N07718) is the workhorse precipitation-hardened nickel alloy of the industry — arguably the most specified superalloy in aerospace. Its delta-phase-stabilized chemistry gives it outstanding strength, fatigue and creep resistance up to ~650°C, plus good weldability and a well-understood heat-treatment window, which is why it is trusted for flight-critical rotating parts.
Where 718 is used
Turbine discs and shafts — the highest-value application; 718 carries the centrifugal loads of the rotating assembly at disc temperatures of 550–700°C.
Compressor cases and seals — strength and dimensional stability in the 450–650°C compressor zone.
Landing-gear components and flaps — high strength-to-weight and fatigue resistance at ambient temperature.
Fasteners, bolts and studs — 718 fasteners hold engine and nacelle assemblies together where steel would creep.
Springs and cryogenic parts — it stays tough to -253°C, suiting liquid-oxygen and fuel-system hardware.
Procurement follows AMS 5662 (bars/forgings, solution treated + aged), AMS 5663/5664 and AMS 5597 (sheet/strip). JN Alloy supplies 718 in bar, forging, sheet, plate and machining stock with full 3.1 certification.
Continuous oxidation resistance to about 1800°F (980°C); useful strength to ~1000°C in sheet form. Niobium-strengthened, fully austenitic, non-magnetic, and exceptionally fabricable and weldable.
Inconel 625 (UNS N06625) is a solid-solution, niobium-stabilized nickel-chromium-molybdenum alloy. Unlike 718 it is not precipitation-hardened, so it is chosen where fabricability, weldability and fatigue life matter more than peak strength — exactly the profile of an engine's sheet-metal and exhaust systems.
Where 625 is used
Exhaust ducts, tail cones and transition pieces — continuous 650–980°C service with good oxidation resistance.
Bellows, flexible joints and expansion compensators — 625's fatigue life and formability make it the standard for engine and airframe flex elements.
Afterburner and augmentor sheet metal — resists the cyclic 1000°C+ of military augmentation.
Ducting, shrouds and brackets — weldable with matching ERNiCrMo-3 filler, formable into complex shapes.
Aircraft exhaust manifolds and ECS (environmental control) ducts — corrosion plus heat resistance in one grade.
625 is specified under AMS 5599 (sheet/strip/plate), AMS 5666 (bar/forging) and AMS 5581 (seamless tube). See our Inconel 625 Guide for the full property and standards reference.

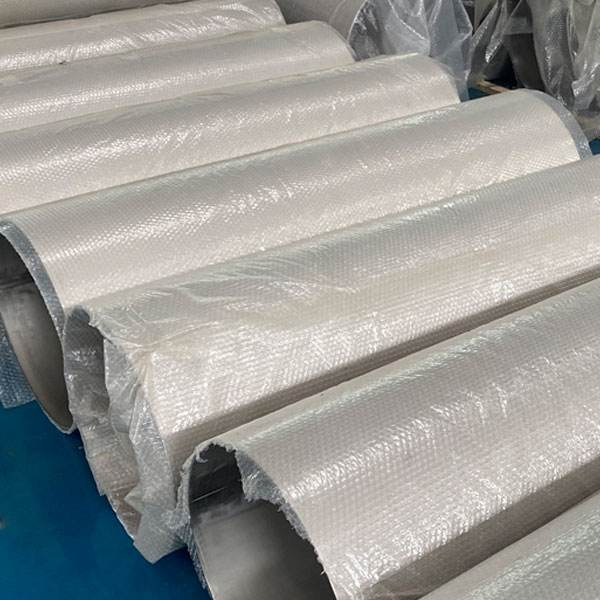

Outstanding high-temperature strength and oxidation resistance to about 2200°F (1200°C) — the highest of the three grades covered here. The classic combustor-liner alloy.
Hastelloy X (UNS N06002) is a nickel-chromium-molybdenum-iron superalloy strengthened for the hottest sheet-metal zones of the engine. Its high chromium and molybdenum, plus cobalt, give it the best combination of creep strength and oxidation resistance above 1000°C of any alloy in JN Alloy's stock — which is why it has been the combustor-liner material of choice for decades across commercial and military engines.
Where Hastelloy X is used
Combustor liners and transition liners — the primary application; long creep life at 900–1100°C in the flame zone.
Turbine exhaust casings and tail pipes — oxidation and thermal-fatigue resistance in the hottest downstream gas.
Afterburner components and spray rings — survives repeated 1000°C+ cycling.
Auxiliary power unit (APU) and ducting — compact, hot, weight-sensitive sheet metal.
Hastelloy X is specified under AMS 5536 (sheet/strip) and AMS 5754 (bars). It is readily welded with matching ERNiCrMo-2 filler.
JN Alloy stocks X in sheet, plate, bar and forged forms.
Aerospace material is only as good as its paper trail. Beyond chemistry and mechanicals, airworthy nickel alloy must satisfy the controlling military, SAE and quality specifications:
Specification
Scope
Typical Alloy
MIL-N-6840
Nickel-alloy bars and forgings (corrosion/heat resistant)
Inconel 718-type
MIL-N-46021
Nickel-alloy forgings, quality-assured
Inconel 718-type
MIL-N-7786
Corrosion- and heat-resistant nickel-alloy sheet
625 / 600 / X type
MIL-N-24211
Nickel-copper alloy bars/forgings
Monel K500-type
QQ-N-286
Nickel-copper alloy bars/forgings (superseded by ASTM)
Legacy MIL specs (MIL-N-6840, MIL-N-7786) are still cited on older drawings, but most new programs reference SAE AMS documents and require the supplier to hold AS9100 certification with NADCAP-accredited special processes. When a drawing shows a MIL spec, confirm whether an AMS or ASTM equivalent is permitted before ordering — JN Alloy can supply to either and provide the certificate of conformance (EN 10204 3.1 / 3.2).
Not every aerospace application is hot. Liquid-fuel rockets, satellites and high-altitude airframes stress the opposite end of the temperature scale, and the same nickel family answers:
Cryogenic tanks and lines: Inconel 718 and austenitic nickel alloys stay ductile to -253°C, avoiding the ductile-brittle transition that defeats many steels — essential for LOX and LH2 plumbing.
Rocket engine ducts and manifolds: Inconel 625's formability and weldability make it a staple for fabricated propulsion hardware that sees both cryogenic fill and hot firing.

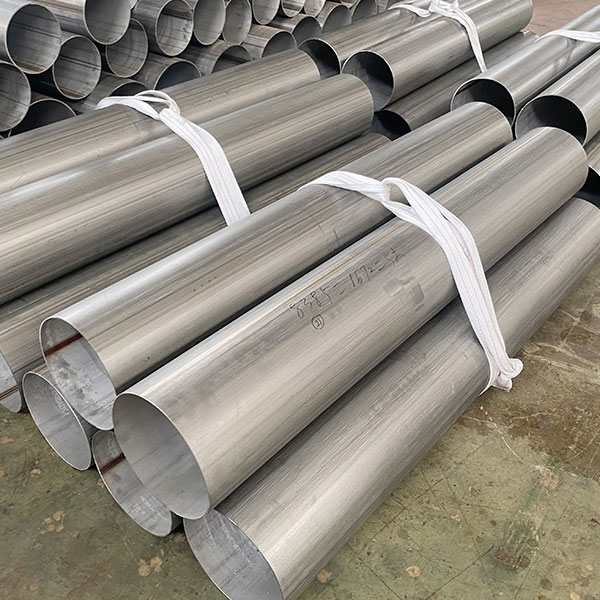

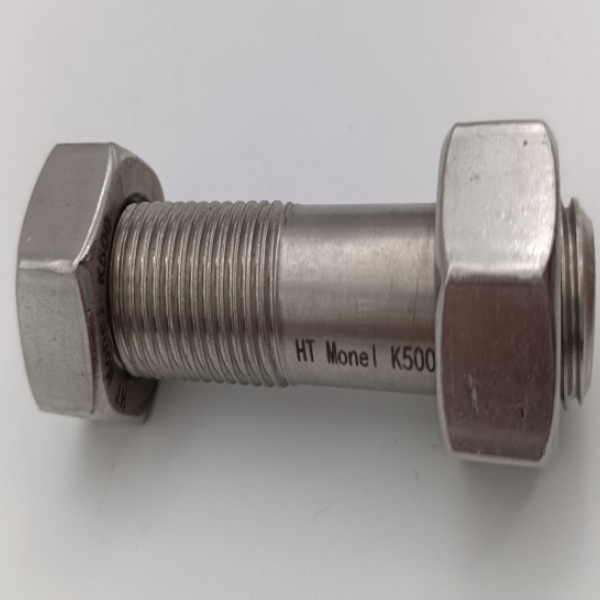

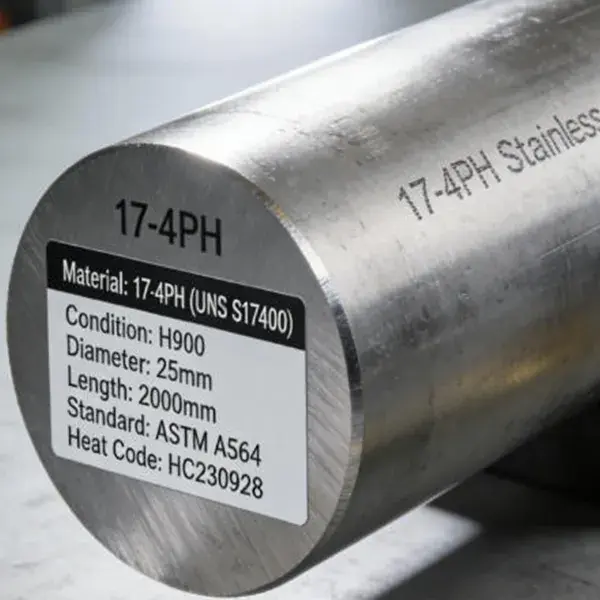

Spacecraft structures: 17-4PH and non-magnetic Monel K500 serve brackets, fasteners and instrument mounts where weight, strength and non-magnetism matter.
Exhaust and plume hardware: Hastelloy X and 625 handle the short, intense thermal spikes of launch and maneuvering thrusters.
The through-temperature behavior — tough at -253°C, strong at 1000°C — is precisely what makes nickel superalloys the unifying material of both aircraft and spacecraft.
FAQs
What temperature can Inconel 718 withstand in a jet engine?
Inconel 718 is a precipitation-hardened nickel alloy used mainly in the cooler, high-stress section of the engine. Its useful service range is about -423°F to 1300°F (-253°C to 704°C). Above roughly 650°C its strength begins to fall, so it is selected for turbine discs, shafts, seals, fasteners and landing-gear parts rather than for combustor liners or hot turbine blades, where solid-solution or single-crystal superalloys are used.
What is Hastelloy X used for in aircraft engines?
Hastelloy X is a nickel-chromium-molybdenum-iron superalloy optimized for high-temperature strength and exceptional oxidation resistance up to about 2200°F (1200°C). It is the classic material for combustor liners, transition liners, turbine exhaust casings, afterburner components and tail-pipe structures — the hottest sheet-metal parts of the engine where long creep life and oxidation resistance matter more than peak strength.
What MIL-SPEC covers aerospace nickel alloys?
Common U.S. military specs include MIL-N-6840 and MIL-N-46021 (nickel-alloy bars/forgings, Inconel 718-type), MIL-N-7786 (corrosion- and heat-resistant nickel-alloy sheet), and MIL-N-24211 / QQ-N-286 (nickel-copper, Monel-type) forgings and bars. In modern aerospace, however, SAE AMS specifications (e.g., AMS 5662 for 718, AMS 5596 for 625, AMS 5536 for Hastelloy X) are more widely referenced, and suppliers must also hold AS9100 quality certification and NADCAP special-process approvals.
Which alloy is best for aircraft exhaust and ducting?
For exhaust ducts, tail cones, bellows and afterburner sheet metal, Inconel 625 and Hastelloy X are the leading choices. Inconel 625 handles continuous service to about 1800°F (980°C) with excellent fabricability and fatigue resistance, while Hastelloy X goes higher (to ~2200°F / 1200°C) for the hottest combustor-adjacent zones. Both are weldable with matching filler metals.
Why are nickel alloys used instead of titanium or steel in engines?
Titanium loses strength above ~600°C and steel oxidizes and creeps at engine temperatures, so nickel superalloys are required where metal temperature exceeds roughly 650°C. Nickel alloys retain strength and creep resistance to 1000°C+, resist oxidation and hot corrosion, and stay tough at cryogenic temperatures — making them the only family that covers both the cold (fuel/structural) and hot (combustor/turbine) ends of an engine.
Can Inconel 625 replace Hastelloy X in a combustor?
Only in the cooler portions. Inconel 625 is oxidation-resistant to ~980°C and is widely used for ducts and bellows, but Hastelloy X is stronger and more oxidation-resistant above 1000°C, so the flame-zone combustor liner itself is normally Hastelloy X. Substituting 625 into the hottest liner zone would shorten creep life; keep 625 for downstream and flex components and reserve X for the liner.
Do you supply aerospace alloys with full certification?
Yes. JN Alloy supplies Inconel 718, Inconel 625 and Hastelloy X (plus 600, 601, 825, Monel K500, 17-4PH and 254SMO) in bar, plate, sheet, forging, tube and fitting forms, with mill test reports to EN 10204 3.1 / 3.2 and traceability to the controlling AMS or ASTM specification. We support AS9100-governed supply chains and can provide NDE and dual-certification on request.
