Stainless Steel 316L

Material: 316L, UNS S31603, 1.4404, 1.4435
316L stainless steel is a low carbon austenitic chromium-nickel-molybdenum stainless steel. 1.4435 is used as a medical grade stainless steel due to its excellent resistance to various corrosions. It is a highly alloyed variant of 1.4404. AISI 316L is more resistant to carbide precipitation and has good oxidation resistance at temperatures up to 870°C in intermittent operation and up to 925°C in continuous operation.


Availability:
Inquire Add to Basket

Stainless Steel 316L Introduction:

316L is a variant of 316 stainless steel, belonging to low carbon austenitic chromium-nickel-molybdenum stainless steel. The main difference is that the carbon content is lower, usually not more than 0.03%, reducing the risk of intergranular corrosion during welding. Due to the reduced carbon content, 316L can still maintain good corrosion resistance after welding. In addition, 316L shows better corrosion resistance after heat treatment.


SAE 316L grade stainless steel, also known as A4 stainless steel or marine grade stainless steel, is the second most common austenitic stainless steel after 304/A2 stainless steel. Since 316L has a lower carbon content than 316, it has better resistance to intergranular corrosion and is the best choice for high corrosion and high temperature applications.


316L Stainless steel Chemical Composition


Grade

C≤

Mn≤

P≤

S≤

Si≤

Cr

Mo

N≤

Ni

316L

0.03

2.0

0.045

0.03

0.75

16.0-18.0

2.00-3.00

0.1

10.0-14.0


Stainless Steel 316L Mechanical Properties


  • 316L Tensile Strength: 485MPa

  • 316L Yield Strength: 170MPa

  • 316L Elongation: 40%

  • 316L Hardness: 217HB


316L Physical Properties


Density: 7.98 g/cm³


Melting point range: 1375~1450 ℃


Resistivity: 73-74 μΩ·cm


Specific heat capacity: 0.502 J/(g·K) (20℃)2 / 0.45 J/(g·K)


Elastic modulus: 193 GPa


Thermal Properties



Properties Value
Average thermal expansion coefficient 15.9 μm/m·℃ (0-100℃)
16.2 μm/m·℃ (0-315℃)
17.5 μm/m·℃ (0-538℃)
Thermal conductivity 16.3 W/m·K (100℃)
21.5 W/m·K (500℃)
Thermal conductivity (W/(m·K)) 15.1 (100℃) / 18.4 (300℃) / 20.9 (500℃)



Stainless Steel 316L Equivalent Grades



  • WERKSTOFF NR.: 1.4404 / 1.4435

  • UNS: S31603

  • JIS: SUS316L

  • BS: 316S11 / 316S13

  • GOST: 03Ch17N14M3 / 03Ch17N14M2

  • AFNOR: Z3CND17-11-02 / Z3CND18-14-03

  • EN: X2CrNiMo17-12-2 / X2CrNiMo18-14-3



316L Stainless Steel Standard And Products



Products Standard Show

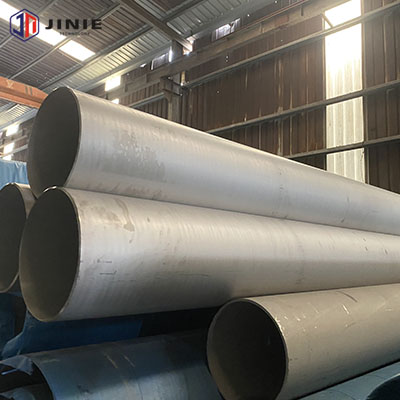

316L SMLS and Welded Pipe ASTM A312 316L SMLS and Welded Pipe

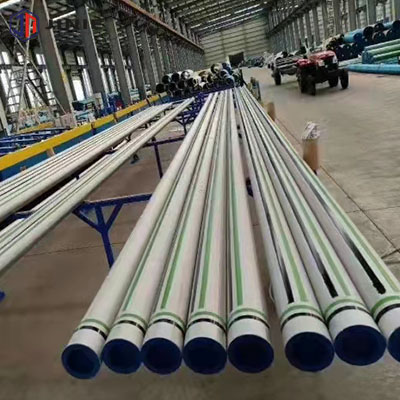

316L SMLS and Welded Tube ASTM A269/ASTM A213 316L SMLS and Welded Tube

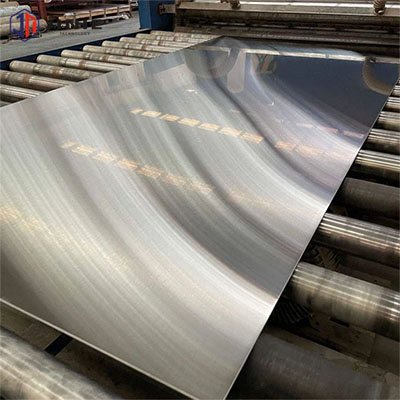

316L Sheet And Plate ASTM A240 316L Sheet And Plate

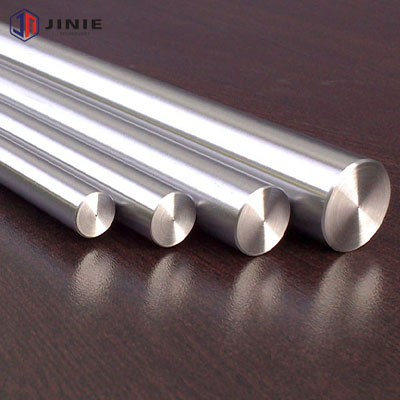

316L Bars/Rods ASTM A276/A479 316L Bars

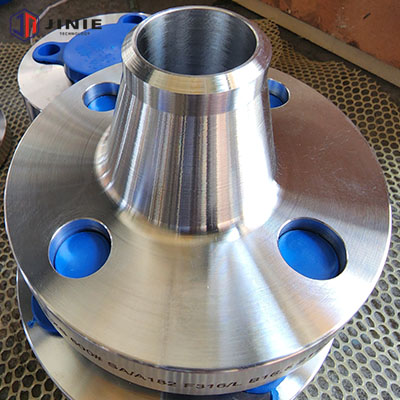

316L Forging/Flanges ASTM A182 316L Flanges

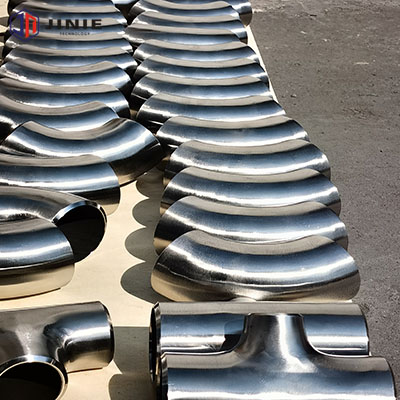

316L BW Fittings ASTM A403 316L BW Fittings



Stainless Steel 316L Application


  • Furnace parts

  • Pressure vessels

  • Tanks Industrial boilers

  • Pulp and paper processing equipment

  • Textile processing equipment

  • Offshore marine applications

  • Storage and handling of acetic acid

  • Pharmaceutical and chemical process equipment

  • Heat exchangers


Stainless Steel 316L Material Standards


ASTM A312.pdf

ASTM A269.pdf

ASTM A213.pdf

ASTM A240.pdf

ASTM A276.pdf

ASTM A479.pdf

ASTM A182.pdf

ASTM A403.pdf
