Inconel 601

Inconel 601(UNS N06601,2.4851) is a nickel-chromium alloy, it is highly resistant to oxidation through 2200°F.  Alloy 601 alloy gives outstanding resistance to hot corrosion resistance under oxidizing conditions. The most important property of Inconel 601 is resistance to oxidation at very high temperatures up to 1250°C.

 Even under severe conditions such as, cyclical heating and cooling. This is possible due to Inconel 601 having a tightly adherent oxide layer which is resistant against spalling. Resistance to carburization is good, also resistant to carbon nitriding conditions. Due to high chromium and some aluminum content, good resistance in oxidizing sulfur bearing atmospheres at elevated temperatures is demonstrated.

Inconel 601 Chemical Composition

Inconel 601 Mechanical Properties

Inconel 601 delivers tensile strength ≥550 MPa, yield ≥205 MPa, and elongation ≥30% in the annealed condition — maintaining useful strength well above 900°C where most stainless steels have lost structural integrity.

Alloy 601 Equivalent Grades

UNS N06601 Specifications

Product	Standard	Show

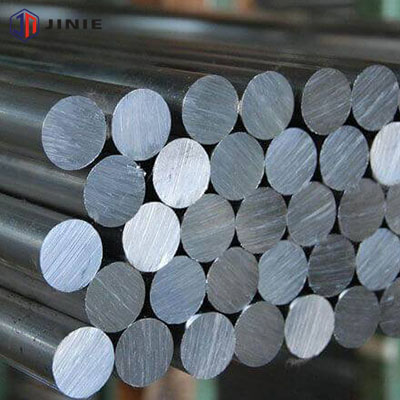

Inconel 601 Bars	ASTM B166  AMS 5665  Din 17752

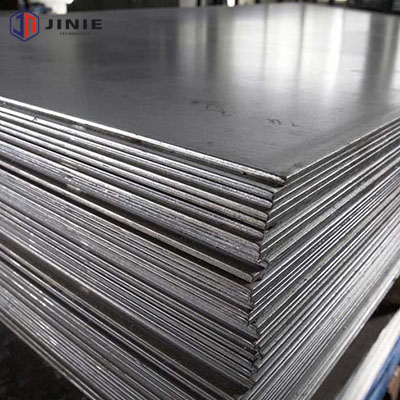

Inconel 601 Sheets	ASTM B168  AMS 5540  Din 17750

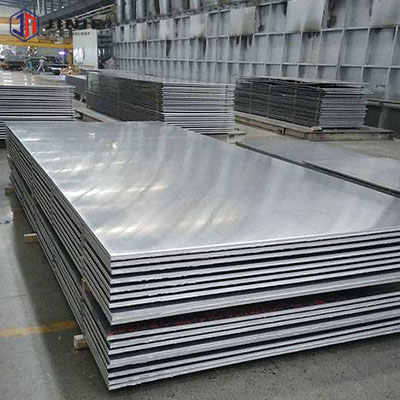

Inconel 601 Plates	ASTM B168  AMS 5540  Din 17750

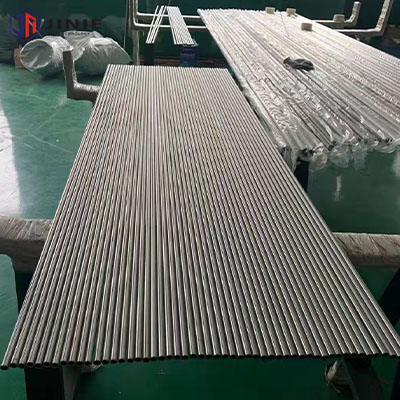

Inconel 601 Tubes	ASTM B163
Inconel 601 Pipes	ASTM B474
Inconel 601 Fittings	ASTM B366

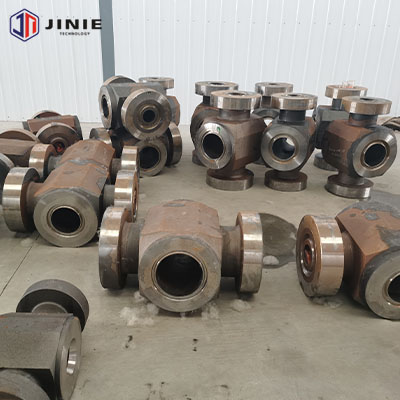

Inconel 601 Forgings	ASTM B564  Din 17754

UNS N06601 Applications

• Alloy 601 in Aerospace

Used for blades and safety rings of gas turbines, lining of combustion tanks, igniters, seals and burners and diffuser assemblies for jet engines.

• Alloy 601 in the field of power generation

Inconel alloy 601 is also used in ash treatment systems, power grid barriers and superheater tube brackets in the power generation industry.

• Application of Alloy 601 in Petrochemical Industry

Inconel alloy 601 is used in the manufacture of air preheater and catalyst regenerator for polyethylene in petrochemical processing plants.

• Alloy 601 in hot working equipment

In industrial furnaces, Cr-Ni-Fe 601 is used for a variety of applications, such as radiation tubes, flame shields, retorts, chain curtains, burner nozzles, stranded annealing tubes, braided wire conveyors and resistance heating elements. They can also be used in thermal applications such as furnace generators, infrared radiation screens and thermocouple protection tubes. Industrial thermal applications, such as pallets and fixtures, can also make use of Inconel alloy 601.

• Alloy 601 in pollution control device

Inconel alloy 601 can also play a role in exhaust systems and thermal reactors of gasoline engines.

How Does Inconel 601 Achieve Superior High-Temperature Oxidation Resistance?

Inconel 601's 1.0–1.7% aluminum addition creates a dual-layer oxide scale — outer Cr₂O₃ + inner Al₂O₃ — where the Al₂O₃ sub-scale provides 10× slower growth, superior thermal-cycling adhesion, and zero volatilization, enabling oxidation resistance to 1250°C that is 3–7× superior to Inconel 600 in both static and cyclic conditions.

This is the most important section for understanding why Inconel 601 outperforms all competing alloys at extreme temperatures. The mechanism differs fundamentally from alloys that rely solely on Cr₂O₃ protection.

The Dual-Layer Oxide Scale System

During high-temperature exposure (>600°C), Inconel 601 forms two oxide layers simultaneously:

• Outer layer — Cr₂O₃ (chromium oxide): Formed by the 21–25% chromium content. Provides the primary barrier against oxygen diffusion, exactly like Inconel 600. Adequate protection up to ~900°C in static conditions.

• Inner layer — Al₂O₃ (aluminum oxide / alumina): Formed by the 1.0–1.7% aluminum at the metal-oxide interface. This thin, continuous sub-scale is the critical innovation that transforms oxidation performance above 900°C.

Why Al₂O₃ Changes Everything

Three properties of Al₂O₃ make it vastly superior to Cr₂O₃ alone in extreme-temperature service:

• Near-zero growth rate: Al₂O₃ grows approximately 10× slower than Cr₂O₃ at the same temperature. After thousands of hours, the scale remains thin (typically <5 μm), adherent, and mechanically stable. Thin scales generate less thermal mismatch stress, reducing spalling tendency.

• Extreme adhesion: Al₂O₃ bonds tightly to the nickel-based substrate with better thermal expansion matching than Cr₂O₃. Even under severe thermal cycling (rapid quench from 1100°C to room temperature, repeated hundreds of times), the Al₂O₃ inner layer remains intact. If the outer Cr₂O₃ spalls, Al₂O₃ continues protecting the substrate until Cr₂O₃ re-forms from the high chromium content.

• No volatilization: Al₂O₃ is thermodynamically stable in air and oxygen-containing atmospheres at all temperatures encountered in industrial service (up to and beyond 1250°C). This eliminates the chromium depletion mechanism (CrO₃ volatilization) that limits Inconel 600 above 1000°C. In 600, once Cr drops below ~13%, the scale cannot self-heal, and oxidation accelerates catastrophically. In 601, Al₂O₃ prevents this cascade entirely.

Quantitative Oxidation Data: 601 vs 600

Critical Temperature Thresholds

• Below ~600°C: Both Inconel 600 and 601 perform comparably — Cr₂O₃ scale on 600 is stable and adherent.

• Above ~600°C: 601's Al₂O₃ sub-scale begins providing measurable advantage over 600.

• Above ~900°C: The divergence becomes dramatic — 600's Cr₂O₃ scale begins cracking and spalling under thermal cycling.

• Above ~1000°C: Inconel 600 is no longer viable for continuous oxidation exposure due to CrO₃ volatilization — Inconel 601 is the correct specification.

• Up to 1250°C: Inconel 601 maintains controlled, stable oxidation with <1.5 mg/cm² mass gain even after 500h cyclic exposure.

Additional Corrosion Resistance

• Carburization resistance: The Cr₂O₃/Al₂O₃ dual scale constitutes a physical and chemical diffusion barrier against carbon atoms, significantly inhibiting surface carbide network formation and subsurface carbon concentration buildup.

• Sulfidation resistance: Good resistance in oxidizing sulfur-bearing atmospheres (SO₂ ≤0.5%) at elevated temperatures. The Al₂O₃ layer resists sulfur penetration more effectively than Cr₂O₃ alone.

• Nitriding resistance: Resistant to carbon nitriding conditions in endothermic atmospheres, methanol cracking gas, and partial combustion products.

• SCC immunity: High nickel content (>58%) provides inherent resistance to chloride stress corrosion cracking — unlike stainless steels which are susceptible above 60°C in chloride environments.

What Heat Treatment Is Required for Inconel 601?

Solution annealing at 1150°C followed by rapid cooling (water quench or air cool) is the standard treatment — this dissolves carbides, restores full ductility, and ensures the grain size needed for optimal creep-rupture performance; no aging or precipitation hardening is applicable to this solid-solution alloy.

Inconel 601 is a solid-solution strengthened alloy — there is no precipitation-hardening phase. The only heat treatment is solution annealing:

• Temperature: 1150°C (2100°F) — high enough to dissolve all carbides and homogenize the microstructure.

• Time: 1–2 hours depending on section thickness — sufficient for complete carbide dissolution and grain size control.

• Cooling: Water quench for thick sections; air cool acceptable for thin sheet. Rapid cooling prevents carbide re-precipitation during the cooling traverse.

• Result: Full austenitic microstructure with controlled grain size (typically ASTM 3–5), maximizing creep-rupture strength and ensuring uniform Al₂O₃ scale formation during subsequent high-temperature service.

• Stress relief: If required after welding or forming, 900°C for 1 hour followed by air cool is sufficient — this does not significantly alter the solution-annealed microstructure.

Where Is Inconel 601 Used in Furnace Tube Applications?

Inconel 601 is the industry-standard alloy for furnace components operating above 900°C with thermal cycling — radiant tubes, retorts, furnace rollers, flame shields, and thermocouple protection tubes — where its Al₂O₃ anti-spalling mechanism provides 3–5× longer service life than Inconel 600 or stainless steel alternatives.

Furnace applications represent the largest single use category for Inconel 601, because these components face the exact conditions where 601's dual-scale mechanism delivers maximum value: temperatures above 900°C, oxidative atmospheres, and frequent thermal cycling.

Key Furnace Components in Inconel 601

• Radiant tubes: Heating elements enclosed in tubular sheaths that transfer heat by radiation. Inconel 601 radiant tubes operate continuously at 900–1100°C in combustion atmospheres. The Al₂O₃ sub-scale prevents spalling-induced wall thinning — a documented case showed only 0.3 mm wall thinning after 6 years continuous operation, with projected remaining life exceeding 15 years (vs. Inconel 600 tubes that failed within 3 years).

• Retorts / muffle furnaces: Enclosed chambers that isolate the workpiece from direct flame contact. 601's oxidation resistance and carburization resistance make it ideal for carburizing, nitriding, and annealing retorts that cycle between 800–1100°C.

• Furnace rollers / roller hearths: Support and transport workpieces through continuous heat treatment furnaces. These rollers experience repeated thermal cycling (heating to 1000°C+, cooling to room temperature during maintenance shutdowns) — exactly the condition where 601's anti-spalling scale provides 7× lower oxidation mass gain than Inconel 600.

• Flame shields / flame traps: Components that protect burner assemblies from direct flame impingement. 601 maintains structural integrity and surface protection at flame-front temperatures exceeding 1100°C.

• Burner nozzles: Direct combustion gas flow in furnace systems. 601 resists oxidation and sulfidation from combustion products simultaneously.

• Thermocouple protection tubes: Sheaths that shield temperature sensors from corrosive furnace atmospheres while maintaining thermal response. 601's thin, stable oxide scale does not insulate the thermocouple — maintaining accurate readings.

• Stranded annealing tubes: Wire annealing furnace components that must resist oxidation without contaminating the wire surface with spalled oxide particles.

• Braided wire conveyors / chain curtains: Continuous-process furnace transport systems requiring flexibility and oxidation resistance simultaneously.

• Resistance heating elements: Electrical heating components operating at surface temperatures above 1000°C. 601's stable scale prevents progressive thinning and electrical resistance drift.

Application Sectors Beyond Furnaces

• Aerospace: Gas turbine blades, safety rings, combustion tank linings, igniters, seals, burner assemblies, and diffuser assemblies for jet engines — where thermal cycling between cruise and ground idle temperatures is extreme.

• Power generation: Ash treatment systems, grid barriers, superheater tube supports — operating continuously above 600°C in combustion gas environments.

• Petrochemical: Air preheaters, catalyst regenerator components for polyethylene production — where oxidation and carburization occur simultaneously.

• Pollution control: Automotive exhaust systems, thermal reactors, waste incinerator internals — where thermal cycling and corrosive exhaust gases combine.

• Glass & ceramic manufacturing: Sintering trays, kiln furniture, glass melting furnace components — requiring contamination-free operation where spalled oxide particles would defect the product.

Inconel 601 vs Incoloy 800H — Which Alloy for Your Application?

Inconel 601 wins when oxidation resistance above 1000°C and thermal-cycling durability are the primary requirements; Incoloy 800H wins when long-term creep-rupture strength under sustained stress at 600–900°C and cost-effectiveness are the priorities — these alloys cannot be directly substituted because they serve fundamentally different failure-mode constraints.

Inconel 601 and Incoloy 800H are both high-temperature alloys, but they address different dominant failure modes. Understanding which failure mode governs your application is the key to correct selection.

Composition Comparison

Property Comparison

Selection Decision

Failure Mode Determines Alloy Choice

The selection rule is simple: identify which failure mode will kill your component first.

• Oxidation/spalling kills it first → Inconel 601. This applies when temperature exceeds 1000°C, thermal cycling is frequent, and the component is not under sustained internal pressure. Examples: radiant tubes, furnace rollers, flame shields, combustion liners.

• Creep-rupture kills it first → Incoloy 800H. This applies when the component operates under sustained internal pressure at 700–900°C (e.g., reformer tubes, cracking furnace tubes, steam piping). At these temperatures, creep deformation accumulates until the tube bursts — 800H's Ti+C stabilization provides superior creep resistance.

Both failure modes present → consult specialist. Some applications (e.g., pressurized radiant tubes at >900°C) face both creep and oxidation simultaneously. In these cases, either 601 or 800H may need design modifications (thicker wall, shorter design life), or a more specialized alloy may be required.

Frequently Asked Questions

What Is the Difference Between Inconel 601 and Inconel 600? When Should I Choose 601?

Inconel 601 is the improved version of Inconel 600 with 1.0–1.7% aluminum addition that creates an Al₂O₃ + Cr₂O₃ dual oxide scale — this raises the long-term oxidation limit from ~1093°C (600) to 1250°C (601) and prevents oxide spallation under thermal cycling; choose 601 when service exceeds 1100°C, thermal cycling is frequent, or longer oxidation-limited life is required; choose 600 for dry chlorine resistance ~650°C, nuclear pure-water applications, or cost-sensitive applications below 1000°C.

Why Does Inconel 601 Resist Oxide Spallation Better Than Inconel 600?

The 1.0–1.7% aluminum forms a thin, dense Al₂O₃ inner oxide layer that (1) grows 10× slower than Cr₂O₃, remaining thin and mechanically stable; (2) bonds tightly to the substrate with better thermal expansion matching; (3) never volatilizes at any industrial temperature — when the outer Cr₂O₃ spalls, Al₂O₃ continues protecting the substrate until Cr₂O₃ re-forms from the 21–25% chromium reservoir.

Can Inconel 601 Be Used in Sulfur-Containing Atmospheres?

Yes — Inconel 601 demonstrates good resistance in oxidizing sulfur-bearing atmospheres (SO₂ ≤0.5%) at elevated temperatures due to the Al₂O₃ layer's resistance to sulfur penetration; however, in reducing (H₂S-dominant) sulfur environments, the protective scale cannot form effectively and alternative alloys should be considered.

What Is the Maximum Continuous Service Temperature for Inconel 601?

Inconel 601 can operate continuously in air up to 1250°C (2282°F) with controlled, stable oxidation — this is the highest continuous oxidation limit among standard commercial nickel alloys, achieved by the Al₂O₃ + Cr₂O₃ dual scale that does not volatilize or spall at this temperature.

Is Inconel 601 Magnetic?

Inconel 601 is non-magnetic in the annealed condition per ASTM B168/B167, but cold working may induce slight magnetic permeability due to strain hardening — full non-magnetic properties are restored after solution annealing at 1150°C.

What Welding P-Number Is Inconel 601?

Inconel 601 is classified under P-Number 43 in ASME Section IX — all welding procedures and qualifications must comply with this classification; we supply ASME-compliant materials with PQR (Procedure Qualification Record) support.

What Filler Metal Should I Use for Welding Inconel 601?

ERNiCr-3 (Inconel 82, AWS A5.14) is the standard GTAW filler for general service; ERNiCrMo-3 (Inconel 625) provides superior pitting resistance for chloride-exposed applications — never use Inconel 601 bare wire as filler metal.

How Do I Estimate the Remaining Service Life of an Inconel 601 Furnace Tube?

Measure wall thickness reduction by ultrasonic testing, compare against the original wall thickness and minimum design thickness — the oxidation thinning rate for Inconel 601 at 1000–1100°C is typically 0.05–0.10 mm/year in static air, giving predictable remaining life calculations; in thermal-cycling service, add a spalling allowance of 0.02–0.05 mm per cycle to the calculation.
