347H stainless steel is a very stable austenitic stainless steel. In addition to high chromium and nickel, 347H also contains niobium. 347h stainless steel pipe is widely used in large boiler superheaters, reheaters, steam pipes, and heat exchanger pipes in petrochemicals. Finally, 347H stainless steel has higher strength and oxidation resistance than 316.
JN is a stainless steel 347H material supplier and factory. We produce 347H stainless steel pipes, plates, flanges, pipe fittings, forgings, butt welding pipe fittings, fasteners and other products. JN has no minimum order quantity requirements, can provide free samples, and supply worldwide. Welcome to inquire!
Stainless steel 347H has higher amounts of carbon than standard 347, the “H” in 347H stands for "high carbon" content. Due to its higher carbon content, 347H stainless steel provides better stress rupture properties than the standard version, AISI 347H has increased tensile strength and creep resistance at elevated temperatures. It also offers excellent resistance to oxidation in intermittent service up to 1600F and continuous service up to 1700 degrees F.
Grade | C | Mn≤ | P≤ | S≤ | Si≤ | Cr | Ni | Fe | Nb |
347H | 0.04-0.10 | 2.0 | 0.045 | 0.03 | 0.75 | 17.0-19.0 | 9.0-13.0 | 62.38-73.64 | 8*C-1.0 |
Grade | Tensile, min, ksi[MPa] | Yield, min, ksi[MPa] | Elongation, %(min) | Hardness, HB（max） |
347H | 75【515】 | 30【205】 | 40 | 201 |
Density: 7.98 g/cm3
Melting point: 1398–1446°C
Thermal conductivity: 14.2 W/(m·K) 100℃
Linear expansion coefficient: 16.6 ×10⁻⁶ K⁻¹ 20-100℃
Resistivity: 0.78 μΩ·m
Longitudinal elastic modulus: 195 GPa 20℃
Hardness: ≤192 HBW
Magnetic properties: NOT magnetic
High temperature resistance: 347H stainless steel has added stabilizing elements such as titanium and niobium, which makes it have good oxidation resistance and corrosion resistance at high temperatures. When used at high temperatures, its performance is stable and its service life is long.
Corrosion resistance: 347H stainless steel has added molybdenum elements, which makes it have good corrosion resistance. It is widely used in chemical, pharmaceutical and other fields.
Fatigue resistance: 347H has high fatigue resistance and can remain stable under heavy load and high strength conditions.
Processing performance: 347H has good processing performance and can be cold processed, hot processed, welded and other processes. It is also easy to cut and polish.
High strength and toughness: 347H stainless steel has high strength and toughness at high temperatures, so it is not easy to deform or break when used at high temperatures.
STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
347H | 1.4961 | S34709 | SUS347H | X6CrNiNb18-12 |
Product Name | Standard | Show |

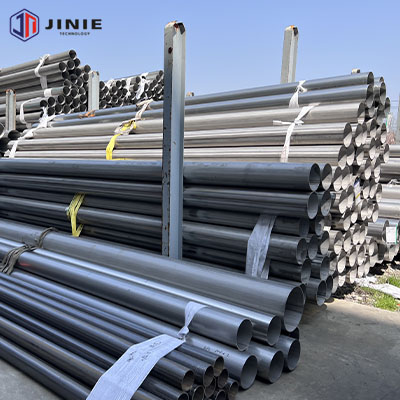

347h Stainless Steel Pipes | ASTM A312 / A213 |  |

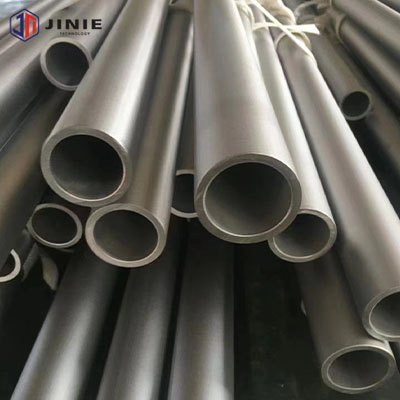

347h Stainless Steel Tubes | ASTM A269/ASTM 249 |  |

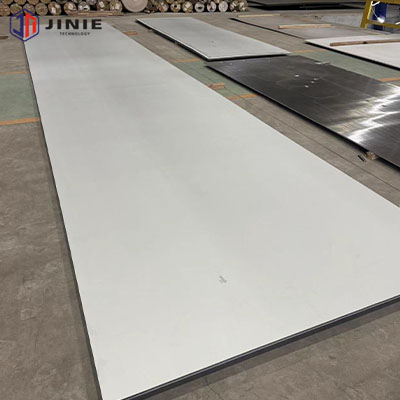

347h Stainless Steel Sheet Plate | ASTM A240 |  |

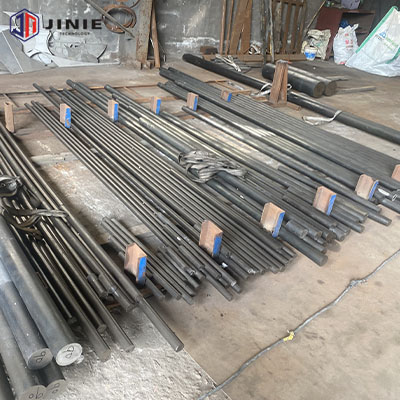

347h Stainless Steel Bars/Rods | ASTM A276/A479 |  |

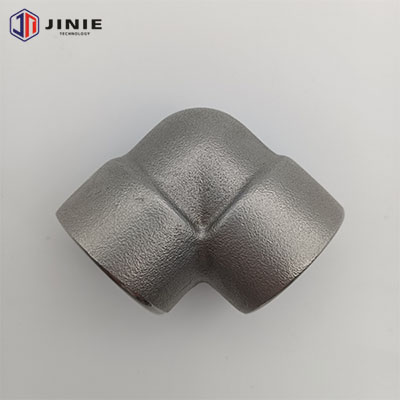

347h Stainless Steel Forgings | ASTM A182 |  |

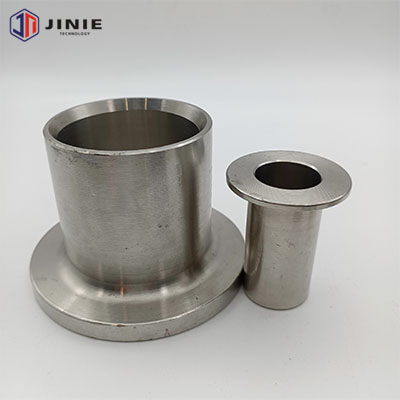

347h Stainless Steel BW Fittings | ASTM A403 |  |

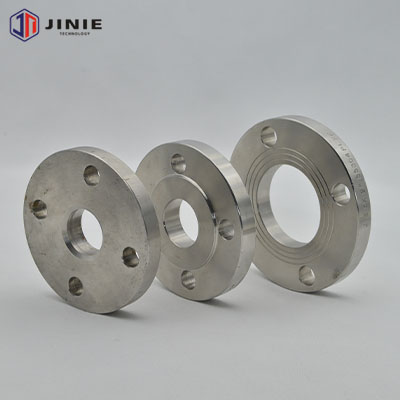

347h Stainless Steel Flanges | ASTM A182 |  |
High temperature gaskets
Rocket engine parts
Aircraft collector rings
Exhaust manifolds
Chemical production equipment
Pollution control equipment
