Incoloy 800

Material: Incoloy 800, Alloy 800, N08800, 1.4876
Incoloy 800 is a nickel high temperature alloy that is widely used in a variety of high temperature environments due to its good high temperature strength, oxidation resistance and corrosion resistance. JN is an Incoloy 800 bars, sheets, pipes, tubes, welded fittings, forgings manufacturer and supplier, high quality products, custom specifications and standards, global supply.
Availability:
Incoloy 800 IntroductionIntroduction

Incoloy 800 is a nickel-iron-chromium superalloy designed for high-temperature and corrosive environments. It belongs to the family of "Incoloy" alloys and is standardized under UNS N08800. Incoloy 800 has good strength and excellent resistance to oxidation and carburization in high-temperature atmospheres. Alloy 800 has excellent resistance to stress corrosion cracking in chloride and high-temperature and high-pressure water, so it is used to manufacture stress corrosion cracking resistance equipment.



Incoloy 800 Properties


Excellent Oxidation Resistance: Performs exceptionally well in continuous service up to about 1100°F (593°C) and intermittently up to 1800°F (982°C) in air. Forms a protective chromium oxide scale.


Good Carburization and Nitridation Resistance: Resists attack in carburizing and nitriding furnace atmospheres better than many stainless steels.


Good Sulfidation Resistance: Resists sulfur-bearing atmospheres like refinery environments.


High-Temperature Strength: Maintains good mechanical strength and creep resistance at elevated temperatures.


Corrosion Resistance: Resists corrosion by


  • Aqueous corrosion.

  • Chloride stress corrosion cracking—significantly better than 300-series stainless steels.

  • Nitric acid, phosphoric acid, and organic acids.

  • Alkaline solutions.

  • Steam and steam/hydrocarbon mixtures.


Good Fabricability: It can be readily formed, machined, and welded using matching filler metals such as Inconel 82/182/625 and standard techniques like GTAW, GMAW, and SMAW.

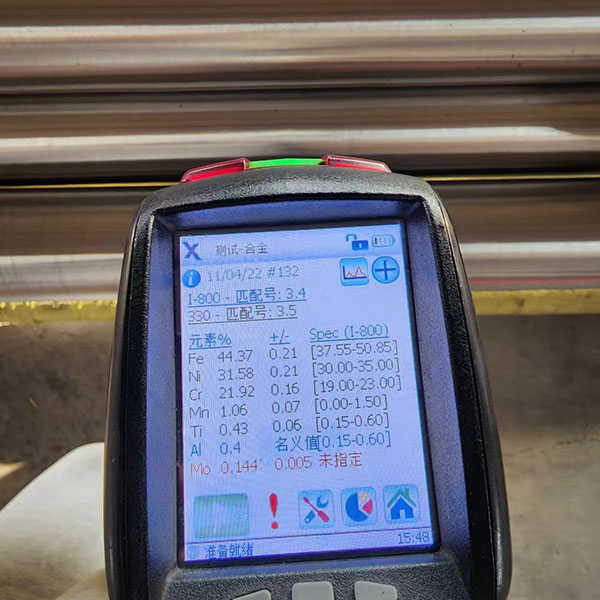

Incoloy 800  Chemical Composition


Grade

Ni

Cr

Fe≥

Al

C≤

Mn≤

Si≤

S≤

Cu≤

P≤

Al

Incoloy 800

30.0-35.0

19.0-23.0

39.5

0.15-0.60

0.10

1.50

1.00

0.015

0.75

0.045

0.15-0.6


Incoloy 800 Physical Properties


Density

Melting Range

Specific Heat

Electrical Resistivity

7.94g/cm3

1357-1385°C

2475-2525°F

460J/kg. k

0.11Btu/lb.°F

989µΩ·m


Incoloy 800 Mechanical Properties


Tensile Strength, min.

Yield Strength, min.

Elongation,min.

520Mpa

75ksi

205Mpa

30ksi

30%



International Equivalents


STANDARD

WERKSTOFF NR.

UNS

JIS

BS

GOST

AFNOR

EN

OR

Incoloy 800

1.4876

N08800

NCF 800

NA 15

ЭИ670

Z8NC32-21

X10NiCrAlTi32-20

XH32T


Incoloy 800 Product And Standads


Product

Standard

Show

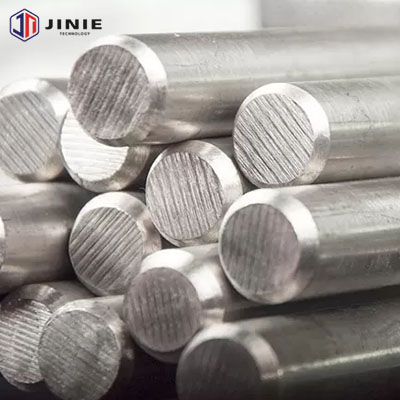

Incoloy 800 bars

ASTM B408, EN 10095

Incoloy 800 bars

Incoloy 800 sheet plate

ASTM A240, A480, ASTM B409, B906

Incoloy 800 sheet plate

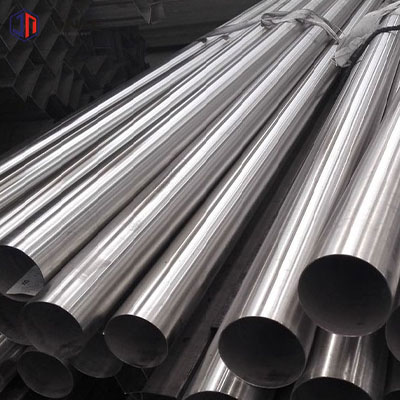

Incoloy 800 seamless pipe

ASTM B829, B407

Incoloy 800 seamless pipe

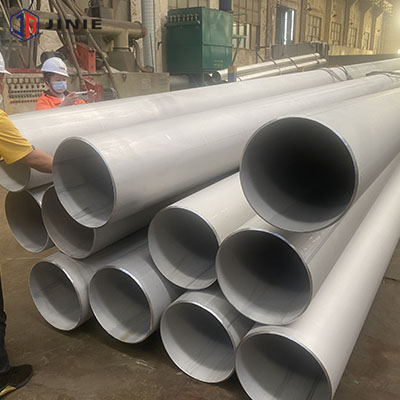

Incoloy 800 welded pipe

ASTM B514, B515, B751, B775

Incoloy 800 welded pipe

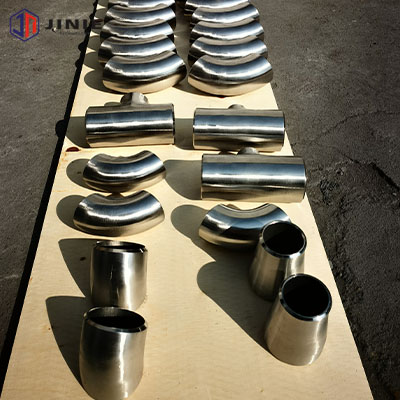

Incoloy 800 welded fittings

ASTM B366

Incoloy 800 welded fittings

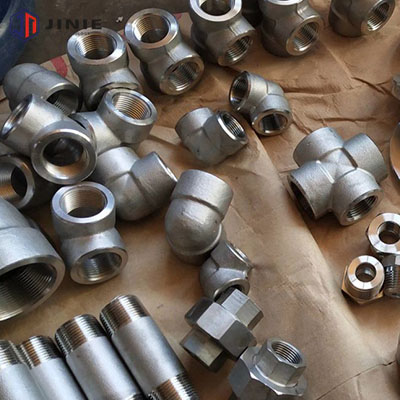

Incoloy 800 forgings

ASTM B564, DIN 17460

Incoloy 800 forgings



Incoloy 800 Applications


  • Chemical industry.

  • Nuclear generator.

  • Nitric acid cooler, acetic anhydride cracking tube.

  • Heat exchange equipment, heat exchange tubes.


Incoloy 800 Industry Standard


ASTM B408.PDF

ASTM A240.pdf

ASTM B409.PDF

ASTM B829.pdf

ASTM B407.pdf

ASTM B514.PDF

ASTM A515.pdf

ASTM B366.pdf

ASTM B564.pdf

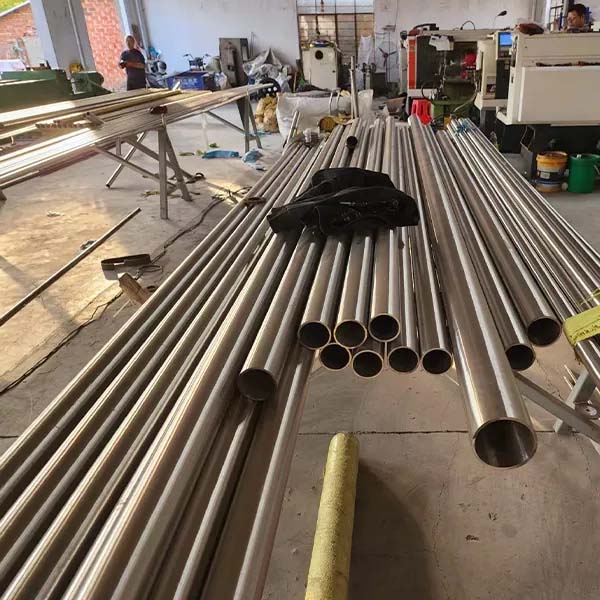

Incoloy 800 Products
