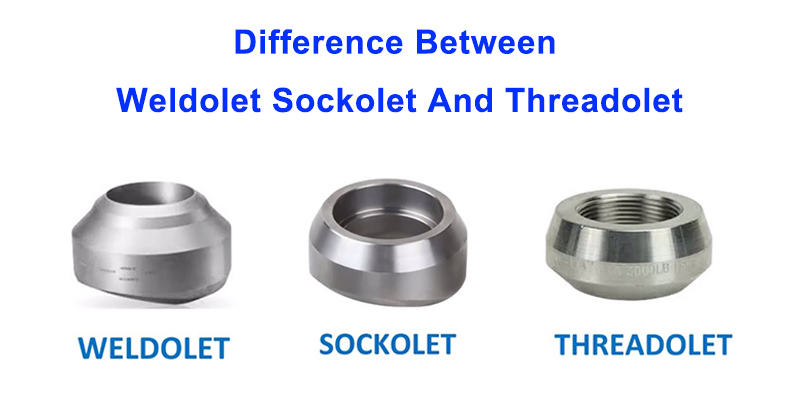

Difference Between Weldolet Sockolet And Threadolet

Weldolet, Sockolet, and Threadolet are all branch-connection fittings manufactured to MSS SP-97 that join a branch pipe to a run (header) pipe, but they differ fundamentally in how the branch attaches — Weldolet uses a butt-weld, Sockolet a socket-weld, and Threadolet a screw thread — which determines their pressure capability, size range, inspectability, and best-use case.

All three are forged outlet fittings covered by MSS SP-97 and referenced in ASME B31.3 (Process Piping) and ASME B31.1 (Power Piping). Choosing the wrong type causes unnecessary cost, failed radiography, or — worse — a leak path in corrosive or high-pressure service. This guide compares them across six dimensions and ends with a step-by-step selection decision tree.

Quick reference: For branch sizes above NPS 4, or any service requiring radiographic inspection (RT), fatigue resistance, or high pressure/temperature — the answer is almost always a Weldolet. Socket- and thread-type outlets are reserved for small-bore, lower-criticality lines.

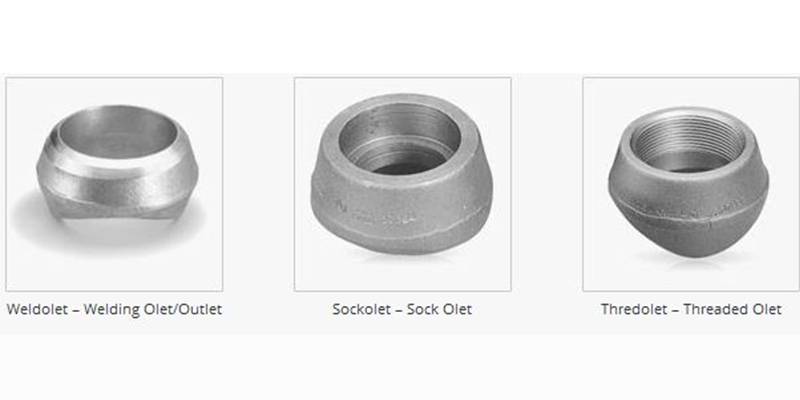

Difference in Connection Geometry and Method

The branch interface defines everything else — a Weldolet has a beveled end for a full-penetration butt weld, a Sockolet has a recessed socket for a fillet weld, and a Threadolet has female threads for a screwed connection, so only the Weldolet produces a truly smooth, crevice-free bore.

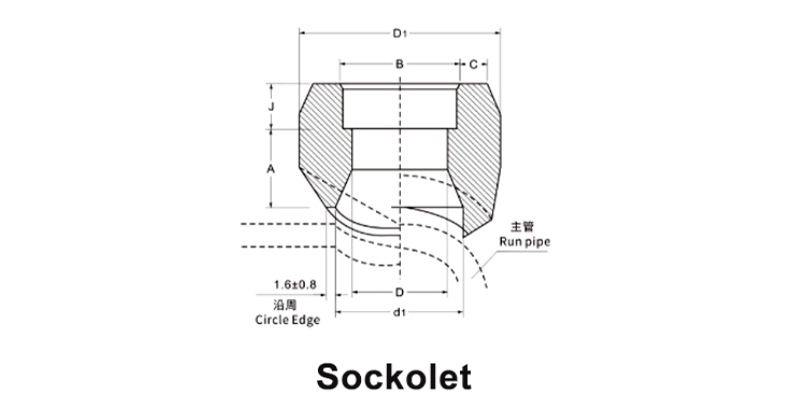

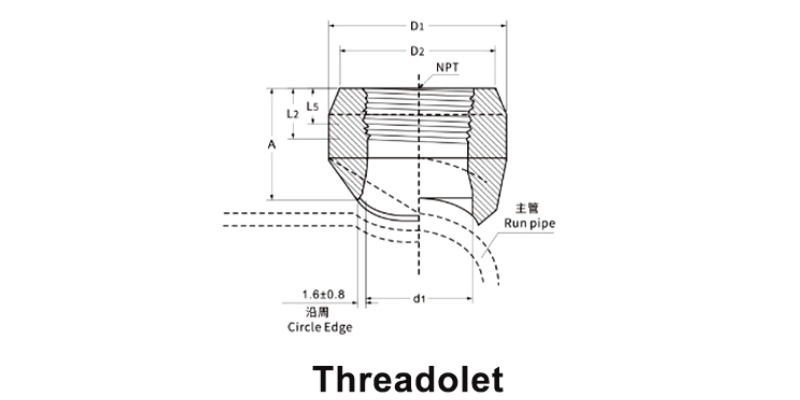

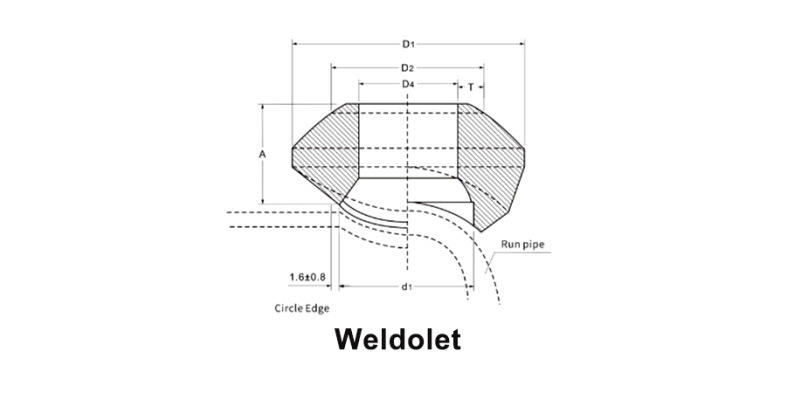

The connection method drives stress distribution, inspectability, and corrosion behavior. A butt-weld (Weldolet) fuses the branch and fitting into one continuous member with aligned internal diameters. A socket-weld (Sockolet) inserts the branch pipe into a counterbore and seals with an external fillet weld, leaving a gap at the socket bottom. A threaded connection (Threadolet) screws the branch into internal NPT or BSP threads, with the fitting itself still welded to the header.

Feature	Weldolet	Sockolet	Threadolet
Branch interface	Beveled end (butt-weld)	Socket (counterbore)	Female threads (NPT/BSP)
Weld type	Full-penetration butt weld	Fillet weld (external)	Fitting welded to header only
Branch pipe prep	Bevel required	Square cut + 1/16" gap	Threaded end, no weld
Internal bore	Smooth, aligned	Step + cavity	Thread discontinuity

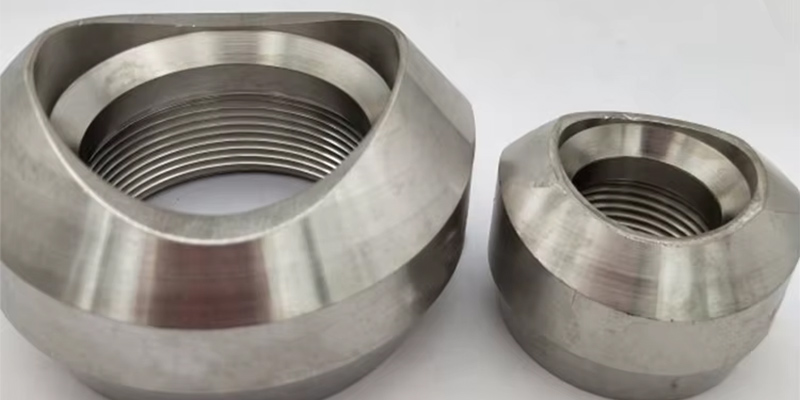

Difference in Pressure Capabilities and Criticality

Weldolets are the only type approved for critical, high-pressure, high-temperature, and radiographed branch connections, whereas Sockolets and Threadolets are restricted to lower-criticality or small-bore lines because their fillet-weld or thread-root geometry creates stress risers.

A full-penetration butt weld minimizes stress concentration and — critically — can be examined by radiographic (RT) or ultrasonic (UT) testing, which is mandatory for many ASME B31.3 fluid services (Category D excluded). A fillet weld (Sockolet) and a thread root (Threadolet) concentrate stress at the toe and cannot be fully radiographed, making them unsuitable for cyclic service, severe vibration, or toxic/flammable fluids where a leak is unacceptable.

Capability	Weldolet	Sockolet	Threadolet
Radiography / UT allowed	Yes (full)	Limited	No
High-pressure / high-temp	Standard choice	Moderate only	Low only
Cyclic / vibration service	Excellent	Poor (stress riser)	Poor (stress riser)
Typical use	Steam, corrosive chem, large bore	Utility, instrument taps	Instrument, temporary

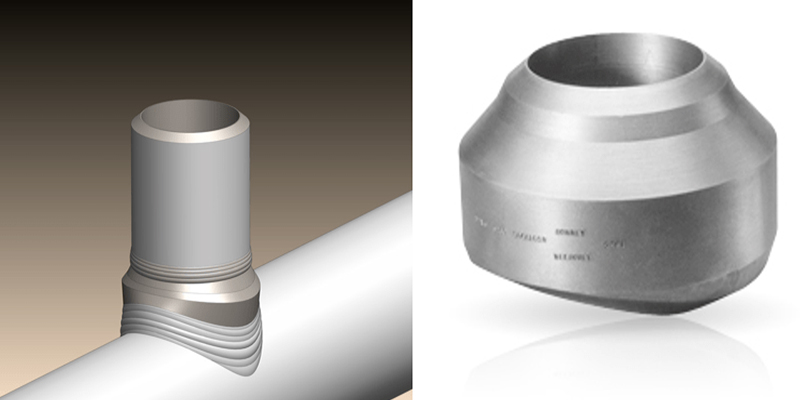

Difference in Installation and Welding Requirements

Weldolets demand the most skilled welding (alignment + bevel + butt weld), while Sockolets simplify prep with a square-cut pipe and a fillet weld, and Threadolets require no branch welding at all — making Threadolets ideal where the branch must be disconnected regularly.

Installation effort scales with joint quality. A Weldolet welder must bevel the branch, align it precisely, and make a full-penetration weld — slower but strongest. A Sockolet needs only a square-cut branch inserted to a strict 1/16″ (1.6 mm) expansion gap at the socket bottom to avoid trapped-solder/expansion cracking, then a fillet weld. A Threadolet is screwed on with sealant or thread locker; the branch side is never welded, so it can be un screwed for maintenance without cutting the pipe.

Step	Weldolet	Sockolet	Threadolet
Branch prep	Bevel	Square cut	Threaded
Alignment tolerance	High	Moderate	Low
Weld difficulty	High	Low–moderate	None on branch
Disassembly	Cut weld	Cut weld	Unscrew

Difference in Nominal Pipe Size Limitations

Weldolets are available in every branch size from NPS 2 up to NPS 48 and beyond, while Sockolets and Threadolets are almost exclusively manufactured for outlets of NPS 4 and smaller, because fillet-weld and thread loads become unmanageable in larger diameters.

The mechanical limit is the fillet weld or thread root. As diameter grows, the bending moment on a fillet weld or the sealing load on threads rises faster than the joint can safely carry. MSS SP-97 therefore lists socket- and threaded-outlet fittings mainly in the small-bore range, whereas welded-outlet (Weldolet) sizes extend to the largest header dimensions used in refineries and power plants.

Size range	Weldolet	Sockolet	Threadolet
Minimum outlet	NPS 1/2	NPS 1/2	NPS 1/2
Maximum outlet	NPS 48+	NPS 4 (typical)	NPS 4 (typical)
Large-bore OK?	Yes	No	No

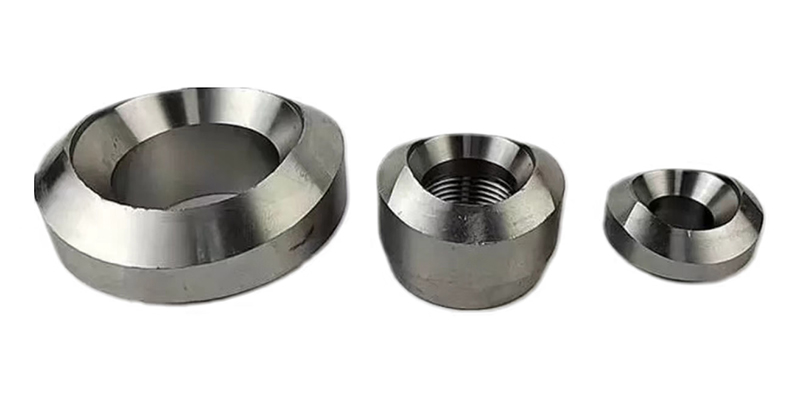

Difference in Flow Characteristics

Weldolets give the least flow resistance and lowest erosion-corrosion risk because the bore stays continuous, whereas Sockolets (socket-bottom cavity) and Threadolets (thread steps) create internal discontinuities that promote turbulence and crevice corrosion — a real concern in stainless and nickel-alloy lines.

In a properly welded Weldolet the internal diameter matches the branch pipe, so flow stays laminar with minimal turbulence. A Sockolet leaves a dead cavity between the pipe end and the socket bottom that can trap process fluid and trigger crevice corrosion, especially in chloride-bearing or acidic service. A Threadolet's threaded interface similarly interrupts the wall, creating points where deposits and corrosion initiate.

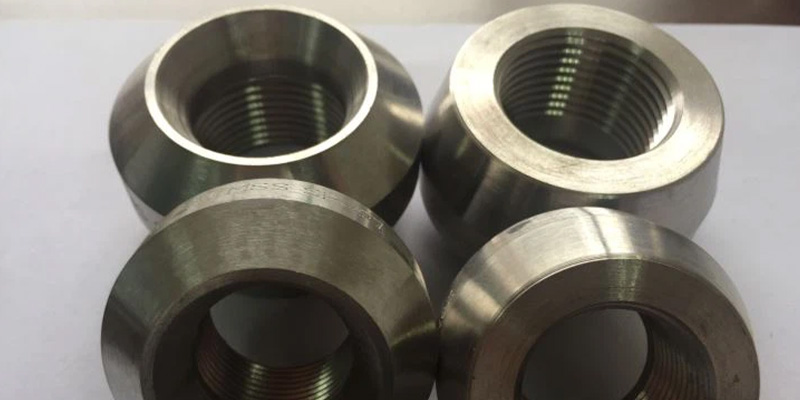

Difference in Maintenance, Durability, and Cost

Weldolets and Sockolets form a monolithic, low-maintenance joint with higher fabrication cost, while Threadolets trade some integrity for easy disassembly and lower install cost but incur ongoing leak-inspection burden — so the cheapest fitting is rarely the cheapest over the asset lifetime.

A welded outlet (Weldolet or Sockolet) becomes part of the pipe with no loose parts, resisting fatigue and corrosion in harsh service and lowering lifecycle cost despite higher initial welding. A Threadolet's advantage is serviceability — instruments and temporary lines can be unscrewed without hot work — but threads need periodic inspection for corrosion or sealant breakdown, and in corrosive stainless/nickel service a threaded path is a known leak risk.

Branch Fitting Selection Decision Tree

Follow the decision tree below: start from branch size and criticality, then test for RT requirement, cyclic load, disassembly need, and corrosion risk — at every "yes" that favors integrity, choose a Weldolet; only when all integrity tests are "no" may you drop to Sockolet or Threadolet.

Rationale: The tree converts the six comparisons above into a binary path so a designer can justify the selection against code and service conditions. It deliberately biases toward the Weldolet because that is the conservative, inspectable default; the socket and threaded options are "exit ramps" taken only when service is genuinely non-critical.

Step-by-step decision path

1. Is the branch outlet larger than NPS 4? → Yes: Weldolet (Sockolet/Threadolet not made). → No: go to 2.

2. Is radiographic (RT) or ultrasonic (UT) examination required by code or specification? → Yes: Weldolet. → No: go to 3.

3. Is the line subject to cyclic pressure, vibration, or fatigue? → Yes: Weldolet (avoid fillet/thread stress risers). → No: go to 4.

4. Does the branch need frequent disassembly (instruments, temporary tie-ins)? → Yes & fluid non-hazardous: Threadolet. → Yes & fluid hazardous: Weldolet (use a flanged or welded instrument connection). → No: go to 5.

5. Is crevice / corrosion resistance critical (stainless, duplex, nickel alloy in corrosive service)? → Yes: Weldolet (avoid socket cavity). → No: Sockolet is acceptable for utility/small-bore.




Decision matrix: service condition → recommended fitting

Service condition	Recommended	Why
Outlet > NPS 4	Weldolet	Only type manufactured
High pressure / high temperature	Weldolet	Butt-weld, inspectable
RT/UT required by code	Weldolet	Full-penetration weld
Cyclic / vibrating line	Weldolet	No stress riser
Corrosive alloy, crevice-sensitive	Weldolet	Smooth bore
Instrument tap, non-hazardous	Threadolet	Easy disassembly
Small-bore utility, non-critical	Sockolet	Simple fillet weld
Temporary / test connection	Threadolet	No hot work to remove

Frequently Asked Questions

Q1: What is the main difference between Weldolet, Sockolet, and Threadolet?

A: They differ in how the branch pipe attaches to the fitting. A Weldolet uses a beveled butt-weld for a full-penetration, radiographable joint; a Sockolet uses a socket (counterbore) with an external fillet weld; a Threadolet uses internal NPT/BSP threads and is screwed on with no branch welding. This single difference drives their pressure rating, size range, inspectability, and cost.

Q2: When should I use a Weldolet instead of a Sockolet?

A: Choose a Weldolet whenever the branch is larger than NPS 4, requires radiographic inspection, operates at high pressure/temperature, sees cyclic or vibrating load, or handles a corrosive alloy where the Sockolet's socket-bottom cavity would cause crevice corrosion. For small-bore, non-critical utility lines a Sockolet is simpler and cheaper.

Q3: Can Threadolets be used for high-pressure service?

A: Generally no. Threaded outlets concentrate stress at the thread root and cannot be radiographed, so they are restricted to low-pressure, non-critical, small-bore lines (typically instrument taps or temporary connections). For high-pressure or hazardous-fluid service, use a Weldolet.

Q4: What is the maximum size for Sockolet and Threadolet?

A: Both are almost exclusively manufactured for outlet sizes of NPS 4 and smaller. Above that, the fillet-weld and thread loads become unmanageable, so MSS SP-97 lists Weldolets (butt-weld outlets) for all larger branch sizes up to NPS 48 and beyond.

Q5: Are Sockolets and Threadolets allowed in stainless steel or nickel-alloy corrosive service?

A: They can be used, but with caution. The Sockolet's socket-bottom cavity is a crevice-corrosion site in chloride or acidic service, and a Threadolet's threaded path is a potential leak path. In critical corrosive duty (e.g., duplex, 904L, Inconel, Hastelloy), a Weldolet is strongly preferred to keep the bore continuous and crevice-free.

Q6: Do these fittings comply with MSS SP-97 and ASME B31.3?

A: Yes. Weldolet, Sockolet, and Threadolet are all branch-connection outlet fittings covered by MSS SP-97 (standard practice for integrally reinforced forged branch outlet fittings). They are selected and installed within ASME B31.3 (process piping) and ASME B31.1 (power piping) frameworks, with the welding details governed by the applicable ASME B31 code and the corresponding ASME Section IX welding procedure.
