Duplex 2205 vs Super Duplex 2507: When to Use Which?

Introduction

Duplex stainless steels are a family of alloys built on a two-phase microstructure: roughly 50 % austenite and 50 % ferrite. This balanced structure combines the best of both worlds — the high strength and stress corrosion cracking (SCC) resistance of ferritic steel with the toughness and corrosion resistance of austenitic steel. They outperform austenitic grades like 316L in most aggressive environments while delivering tensile strength nearly double that of conventional austenitic stainless steels.



Within the duplex family, two grades dominate global industrial specifications: Duplex 2205 and Super Duplex 2507. They are related but not interchangeable.





Duplex 2205 vs Super Duplex 2507: Chemical Composition

The performance difference between 2205 and 2507 begins at the chemical composition. Both grades are standardised under ASTM A240 and ASME SA-240 for plate and sheet, and ASTM A790 for seamless and welded pipe. The key differences are higher chromium (Cr), molybdenum (Mo), and nitrogen (N) in 2507, which translate directly into superior corrosion resistance.





Table 1: Chemical composition ranges per ASTM A240 / ASME SA-240. *PREN = Cr + 3.3×Mo + 16×N (calculated at typical midpoint values).



The PREN (Pitting Resistance Equivalent Number) is the single most important predictive index for chloride pitting performance. A PREN of ≥ 40 is the industry threshold for seawater service — 2507 clears it at ~42–43; 2205 at ~35 does not. This single difference explains why seawater desalination and subsea pipeline specifications almost universally mandate 2507.





Duplex 2205 vs Super Duplex 2507: Mechanical Properties



Both grades deliver roughly twice the yield strength of austenitic grades such as 316L (minimum 170 MPa per ASTM A240). This strength advantage allows designers to specify thinner wall sections, reducing weight and material cost — a significant advantage in offshore and subsea structures where every kilogram counts. Per ASTM A790, the minimum mechanical requirements are:





Table 2: Minimum mechanical properties per ASTM A790 (pipe) and ASTM A276 (bar). All values in solution-annealed condition.



A critical note on elongation: 2507's higher alloy content and greater precipitation-hardening response reduce its minimum elongation to 15 % vs 25 % for 2205.



Both grades exhibit excellent Charpy impact toughness down to −40 °C per ASTM A923, making them suitable for cold-climate and cryogenic-adjacent applications. Neither grade requires impact testing at the elevated temperatures typical of oil and gas process service (up to ~300 °C).

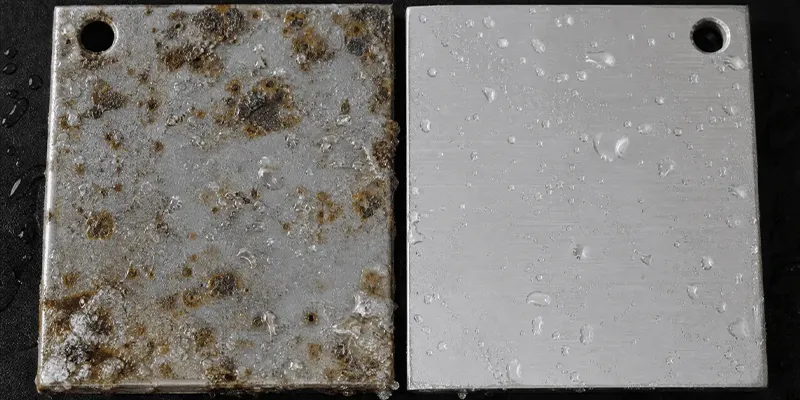

Duplex 2205 vs Super Duplex 2507: Corrosion Resistance

Corrosion resistance is where 2507 most decisively outperforms 2205. Three parameters define corrosion performance in chloride-containing process environments: the PREN index, the Critical Pitting Temperature (CPT), and the Critical Crevice Temperature (CCT). All three are tested per ASTM G48 using a ferric chloride immersion test.





Table 3: Corrosion resistance data per ASTM G48 Methods E and F, and ASTM G36 (boiling MgCl₂ SCC test). PREN = Cr + 3.3×Mo + 16×N.



Chloride Stress Corrosion Cracking (SCC)



Both 2205 and 2507 are substantially more resistant to chloride SCC than austenitic grades such as 304L and 316L, which can crack in chloride concentrations as low as a few hundred ppm at temperatures above 60 °C. This SCC resistance is the primary reason duplex grades replaced austenitic steels in many oil, gas, and chemical applications from the 1980s onward.



However, under severe conditions (high chloride, elevated temperature, high tensile stress), 2507's higher alloy content provides a meaningful additional safety margin per ASTM G36 testing.

Sour Service (H₂S)

Both grades are qualified for sour (H₂S-containing) service under NACE MR0175 / ISO 15156-3, subject to hardness limits (HRC ≤ 36 for 2205; ≤ 36 for 2507) and temperature/chloride thresholds defined in the standard. This qualification makes both grades suitable for oil and gas applications involving partial pressures of H₂S, provided the design envelope stays within the standard's limits.





Duplex 2205 vs Super Duplex 2507: Weldability and Fabrication

Duplex stainless steels are weldable by all major processes including GTAW (TIG), GMAW (MIG), SMAW (stick), and SAW. However, maintaining the correct austenite-ferrite balance in the weld metal and heat-affected zone (HAZ) requires strict parameter control, particularly for 2507.



Duplex 2205 Welding

2205 is considered the more forgiving duplex grade to weld. Key requirements per AWS D1.6 / ISO 15614-1:

• Filler metal: ER2209 (GTAW/GMAW) or E2209 (SMAW) — over-alloyed relative to the base metal to compensate for nitrogen loss during welding

• Heat input: 0.5–2.5 kJ/mm recommended to maintain phase balance

• Interpass temperature: Maximum 150 °C

• Shielding gas: 100 % Ar or Ar + 2 % N₂ (for GTAW root); N₂ addition prevents nitrogen depletion from the weld pool

• Post-weld heat treatment (PWHT): Generally not required or recommended — solution annealing at 1,020–1,100 °C followed by rapid quench if sensitisation or sigma phase is a concern

Super Duplex 2507 Welding

2507 requires tighter control to avoid sigma phase (σ) precipitation, which forms rapidly in the 700–950 °C range and severely degrades corrosion resistance and toughness. Per the Welding Research Council Bulletin 455 and supplier guidelines:

• Filler metal: ER2594 (super duplex filler with ~25Cr/9Ni/4Mo/0.25N)

• Heat input: Strictly 0.5–2.0 kJ/mm — excessive heat input promotes sigma phase; insufficient input causes too much ferrite and reduced toughness

• Interpass temperature: Maximum 100 °C (tighter than 2205)

• Shielding gas: Ar + 2–3 % N₂ mandatory — nitrogen loss from 2507 weld metal is more pronounced due to higher nitrogen content

• Post-weld testing: Corrosion testing per ASTM A923 Method C (ferric chloride test) is commonly specified on critical welds



Duplex 2205 vs Super Duplex 2507: Application Comparison

The table below maps common industrial applications to the recommended grade, based on corrosion environment, operating conditions, and industry practice. '✔✔' indicates the preferred grade; '✔' indicates suitable but not optimal; 'Limited' indicates use only after detailed corrosion engineering review.





Table 4: Application suitability matrix. Grade preference based on PREN threshold requirements, ASTM G48 CPT/CCT data, and published industry guidelines including NACE SP0170 and EEMUA 194.





Duplex 2205 vs Super Duplex 2507:  Cost and Availability

Cost is rarely the sole driver of material selection, but it is always a factor. Because 2507 contains higher quantities of all three premium alloying elements — chromium, molybdenum, and nickel — its raw material cost premium over 2205 is structural rather than cyclical.

• Material cost premium: Super Duplex 2507 typically carries a 30–50 % price premium over Duplex 2205 in plate and pipe product forms, based on mill surcharge structures tied to LME molybdenum, nickel, and chromium prices.

• Availability: 2205 is produced by virtually every major flat-rolled and tubular stainless steel mill worldwide. 2507 is produced by a smaller number of specialty mills, leading to longer lead times — typically 8–16 weeks vs 4–8 weeks for 2205 in standard product forms.

• Stock availability: 2205 plate, pipe, and bar are widely stocked in service centre networks in North America, Europe, and Asia. 2507 is more commonly made-to-order, particularly in heavier gauges or larger diameters.

• Fabrication cost: The tighter welding parameters and greater QC requirements for 2507 increase fabrication costs by an additional 15–25 % over 2205 in comparable assemblies.



Summary: 2205 vs 2507

The table below consolidates the key decision dimensions into a single reference. Highlighted winners reflect the better-performing grade in each category; a 'Tie' indicates comparable performance.





Table 5: Consolidated head-to-head comparison. All data per ASTM A240, A790, A276, ASME SA equivalents, and ASTM G48.

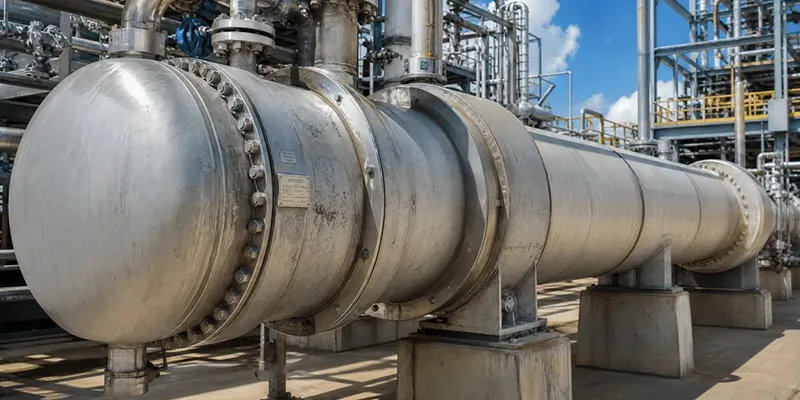

Duplex 2205 vs Super Duplex 2507: Which Grade Is Right for Your Project?

Choose Duplex 2205 When:

• Chloride concentration is below 1,000 ppm and operating temperature below 30 °C

• The application is structural, architectural, or food/beverage processing

• Budget constraints make a 30–50 % premium difficult to justify without documented engineering need

• Field welding or limited QC capability makes 2507's tight parameters impractical

• Rapid delivery from stock is required and lead time is critical

• The application is covered by ASME or ASTM standards that list 2205 as the design basis material



Choose Super Duplex 2507 When:

• Seawater or highly concentrated brine is the process medium (PREN ≥ 40 required)

• Critical Pitting Temperature (CPT) requirements exceed 35 °C

• Subsea or deepwater application where corrosion failure is not retrievable

• High-pressure/high-temperature (HPHT) conditions demand maximum strength with minimum wall thickness

• Flue gas desulfurisation, hot acid, or concentrated chloride service at elevated temperature

• Project specification explicitly mandates 2507 (NORSOK M-630, Shell DEP, or equivalent)



Frequently Asked Questions

The following questions represent the most common points of confusion we encounter from engineers, procurement professionals, and project managers when specifying duplex stainless steel grades.



Q: What is the main difference between Duplex 2205 and Super Duplex 2507?

A: The primary differences are in alloy content and corrosion resistance. 2507 contains significantly more chromium (25 % vs 22 %), molybdenum (4 % vs 3 %), and nitrogen (0.28 % vs 0.17 %), giving it a PREN of ~42 compared to ~35 for 2205. This translates to a 22 % higher minimum yield strength (550 MPa vs 450 MPa per ASTM A790) and a Critical Pitting Temperature roughly 25 °C higher per ASTM G48 Method E.



Q: Is Super Duplex 2507 always better than Duplex 2205?

A: No — and this is a critical misconception. 2507 excels in aggressive chloride environments, but 2205 is preferred for moderate environments, structural applications, food processing, and wherever budget, weldability, or availability favour the leaner grade. Over-specifying 2507 adds 30–50 % material cost, increases lead times, and introduces more demanding welding requirements without any practical benefit if the corrosion environment does not require it.



Q: What ASTM and ASME standards govern Duplex 2205 and Super Duplex 2507?

A: Both grades are covered by the same family of standards, differentiated by UNS designation. ASTM A240 / ASME SA-240 covers plate and strip. ASTM A790 / ASME SA-790 covers seamless and welded pipe. ASTM A276 / ASME SA-276 covers bar and shapes. ASTM A182 / ASME SA-182 covers forgings, flanges, and fittings. ASTM A923 covers testing for detrimental intermetallic phases in both grades.



Q: Can Duplex 2205 and Super Duplex 2507 be welded to each other?

A: Yes. Dissimilar welding between 2205 and 2507 is routinely performed using a super duplex filler metal — typically ER2594 for GTAW/GMAW — to ensure the weld deposit corrosion resistance equals or exceeds the leaner base metal (2205). Post-weld heat treatment is generally not required, but the heat input and interpass temperature limits of the more demanding grade (2507) should govern the welding procedure.



Q: What is PREN and why does it matter for material selection?

A: PREN (Pitting Resistance Equivalent Number) is calculated as: Cr + 3.3×Mo + 16×N. It is the standard predictive index for resistance to chloride-induced pitting corrosion. The industry consensus threshold for seawater service is PREN ≥ 40. Duplex 2507 achieves ~42–43; Duplex 2205 achieves ~35. This numerical gap explains why 2507 is mandated in seawater desalination, offshore seawater injection, and subsea applications where 2205 is inadequate.



Q: Which grade should I specify for offshore oil and gas applications?

A: The answer depends on service location and fluid composition. For topside structures, structural components, and mild process environments with moderate chloride concentrations, 2205 is cost-effective and widely used. For subsea pipelines, seawater injection headers, and downhole tubing in high-chloride or sour service, 2507 is the industry standard — qualified per NACE MR0175 / ISO 15156-3 and specified in major industry standards including NORSOK M-630 and API 5LC.



Q: Is Super Duplex 2507 significantly harder to weld than 2205?

A: Yes — measurably so. 2507 requires a maximum interpass temperature of 100 °C (vs 150 °C for 2205), stricter heat input control (0.5–2.0 kJ/mm vs 0.5–2.5 kJ/mm), mandatory nitrogen-enriched shielding gas, and ER2594 super duplex filler metal. These controls are necessary to prevent sigma phase precipitation in the weld metal and HAZ, which can cause catastrophic loss of toughness and corrosion resistance. Post-weld ASTM A923 testing is commonly required for critical 2507 fabrications.

Conclusion

Duplex 2205 and Super Duplex 2507 are both exceptional engineering materials — but they are not interchangeable, and the decision between them should be driven by data, not convention.



Duplex 2205 is the rational default for the majority of industrial applications: moderate to aggressive process environments, structural applications, pressure vessels, and anywhere that a favourable combination of cost, availability, weldability, and corrosion resistance is required. With a yield strength of 450 MPa minimum per ASTM A790 and a PREN of ~35, it outperforms every standard austenitic grade while remaining significantly more economical than 2507.



Super Duplex 2507 earns its cost premium — only in applications where its superior PREN (~42), elevated CPT (50–60 °C per ASTM G48), and 550 MPa minimum yield strength are genuinely required. Seawater desalination, subsea infrastructure, high-chloride chemical processing, and flue gas desulfurisation are the domains where 2507 is the right choice.



Use this guide, the ASTM standard data tables within it, and a qualified corrosion engineering assessment to make the selection with confidence.
