Material: Stainless Steel, Duplex, Super Duplex, Nickel Alloys
Type: Threaded, NPT,FPT,MPT,BSPT
Size: 1/8″~4″ (DN6~DN100)
Class: 3000LBS, 6000LBS
Ends: Threaded
Form: Flush Bushings, Hex Head Bushing

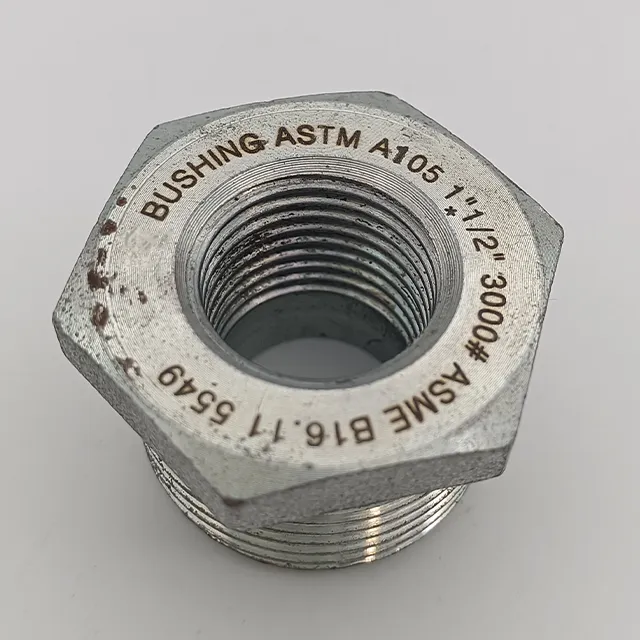

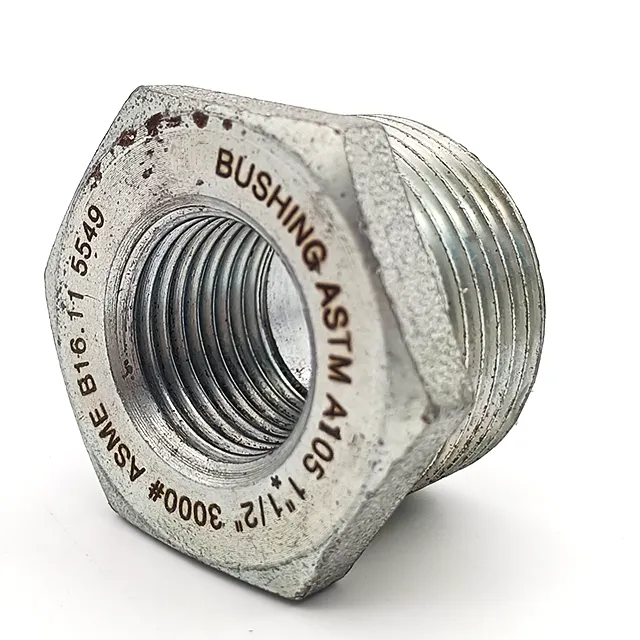

Forged Bushing
Standard | Types | Class Rating/Schedule | Ends | Size |
ASME B16.11 | Flush Bushing/Hex Bushing | 3000LB/6000LB | Threaded | 1/8''~4'' |
Nominal size | Length | Hex height | Hex height | |
DN | NPS | Amin | Gmin | Fmin |
6 | 1/8 | 10 | 一 | 11 |
8 | 1/4 | 11 | 3 | 16 |
10 | 3/8 | 13 | 4 | 18 |
15 | 1/2 | 14 | 5 | 22 |
20 | 3/4 | 16 | 6 | 27 |
25 | 1 | 19 | 6 | 36 |
32 | 11/4 | 21 | 7 | 46 |
40 | 11/2 | 21 | 8 | 50 |
50 | 2 | 22 | 9 | 65 |
65 | 21/2 | 27 | 10 | 75 |
80 | 3 | 28 | 10 | 90 |
100 | 4 | 32 | 13 | 115 |
Nickel Alloy | ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3) |
Copper Alloy | ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30) |
Stainless Steel | ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H. |
Duplex and Super Duplex | ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61. |
Carbon Steel | ASTM / ASME A/SA 105（N） |
Low Temp Carbon Steel | ASTM / ASME A/SA 350 LF 2. |
High Yield Carbon Steel | ASTM / ASME A/SA694 F52 F56 F60, F65, F70 |
Alloy Steel | ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91. |
Titanium | ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7 |
