Material: Stainless Steel, Duplex, Super Duplex, Nickel Alloys
Type:Socket Weld Fittings & Screwed-Threaded NPT,BSP,BSPT Fittings, etc
Size:1/4″~4″ (DN6~DN100)
Class: 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Dimensions: ASME 16.11
Form: Reducing Cross, Unequal Cross, Equal Cross, Forged Cross

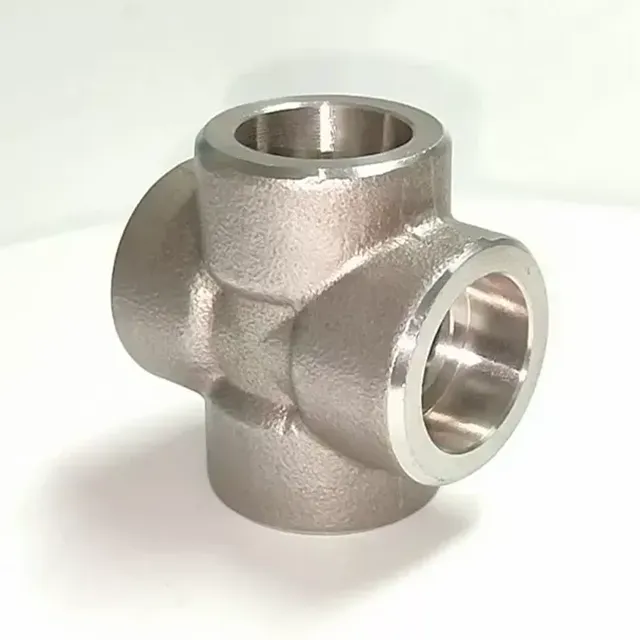

Forged Cross
Nominal size | Socket bore diameter | Bore diameter of fittings | Socket wall thickness | Depth of socket | Center to bottom of socket | ||||||||||
DN | NPS | B | D | C | Jmin | A | |||||||||
3000 | 6000 | 9000 | 3000 | 6000 | 9000 | Cross | |||||||||
Avg | Min | Avg | Min | Avg | Min | 3000 | 6000 | 9000 | |||||||
6 | 1/8 | 10.9 | 6.1 | 3.2 | — | 3.18 | 3.18 | 3.96 | 3.43 | — | — | 9.5 | 11.0 | 11.0 | — |
8 | 1/4 | 14.3 | 8.5 | 5.6 | — | 3.78 | 3.30 | 4.60 | 4.01 | — | — | 9.5 | 11.0 | 13.5 | — |
10 | 3/8 | 17.7 | 11.8 | 8.4 | — | 4.01 | 3.50 | 5.03 | 4.37 | — | — | 9.5 | 13.5 | 15.5 | — |
15 | 1/2 | 21.9 | 15.0 | 11.0 | 5.6 | 4.67 | 4.09 | 5.97 | 5.18 | 9.53 | 8.18 | 9.5 | 15.5 | 19.0 | 25.5 |
20 | 3/4 | 27.3 | 20.2 | 14.8 | 10.3 | 4.90 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 | 12.5 | 19.0 | 22.5 | 28.5 |
25 | 1 | 34.0 | 25.9 | 19.9 | 14.4 | 5.69 | 4.98 | 7.92 | 6.93 | 11.38 | 9.96 | 12.5 | 22.5 | 27.0 | 32.0 |
32 | 11/4 | 42.8 | 34.3 | 28.7 | 22.0 | 6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.62 | 12.5 | 27.0 | 32.0 | 35.0 |
40 | 11/2 | 48.9 | 40.1 | 33.2 | 27.2 | 6.35 | 5.54 | 8.92 | 7.80 | 12.70 | 11.12 | 12.5 | 32.0 | 38.0 | 38.0 |
50 | 2 | 61.2 | 51.7 | 42.1 | 37.4 | 6.93 | 6.04 | 10.92 | 9.50 | 13.84 | 12.12 | 16.0 | 38.0 | 41.0 | 54.0 |
65 | 21/2 | 73.9 | 61.2 | — | — | 8.76 | 7.62 | — | — | — | — | 16.0 | 41.0 | — | — |
80 | 3 | 89.9 | 76.4 | — | — | 9.52 | 8.30 | — | — | — | — | 16.0 | 57.0 | — | — |
100 | 4 | 115.5 | 100.7 | — | — | 10.69 | 9.35 | — | — | — | — | 19.0 | 66.5 | — | — |
Nominal size | Center to end | Outside diameter to band | |||||
DN | NPS | A | H | ||||
90° Elbows tees Crosses | |||||||
2000 | 3000 | 6000 | 2000 | 3000 | 6000 | ||
6 | 1/8 | 21 | 21 | 25 | 22 | 22 | 25 |
8 | 1/4 | 21 | 25 | 28 | 22 | 25 | 33 |
10 | 3/8 | 25 | 28 | 33 | 25 | 33 | 38 |
15 | 1/2 | 28 | 33 | 38 | 33 | 38 | 46 |
20 | 3/4 | 33 | 38 | 44 | 38 | 46 | 56 |
25 | 1 | 38 | 44 | 51 | 46 | 56 | 62 |
32 | 11/4 | 44 | 51 | 60 | 56 | 62 | 75 |
40 | 11/2 | 51 | 60 | 64 | 62 | 75 | 84 |
50 | 2 | 60 | 64 | 83 | 75 | 84 | 102 |
65 | 21/2 | 76 | 83 | 95 | 92 | 102 | 121 |
80 | 3 | 86 | 95 | 106 | 109 | 121 | 146 |
100 | 4 | 106 | 114 | 114 | 146 | 152 | 152 |
