Forged Elbow

Material: Stainless Steel, Duplex, Super Duplex, Nickel Alloys
Type:Socket Weld Fittings & Screwed-Threaded NPT,BSP,BSPT Fittings, etc
Size: 1/8″~4″ (DN6~DN100), 1/8″~4″ (DN6~DN100)
Class: 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS, etc
Producing Standards: ASME B16.9, ASME B16.28, ASME B16.49, MSS SP43, MSS SP75, etc
Form: 45 Deg Elbow,90Deg Elbow,Forged Elbow,Threaded Elbow,Socket Weld Elbow

Availability:



Inquire Add to Basket

Product Description

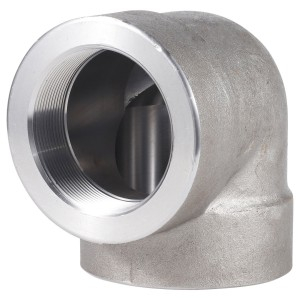

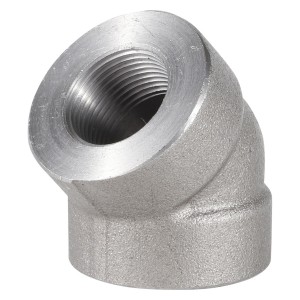

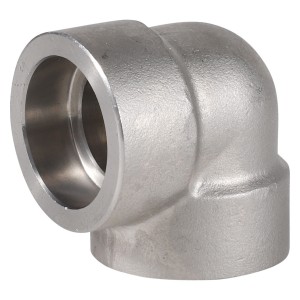

Size/Name	90 degree female thread elbow	45 degree female thread elbow	Socket weld 45 deg elbow	male female thread elbow 90 deg	90 sw socket weld elbow	HDG hot dip galvanized elbow
Size/Name	90 degree female thread elbow	45 degree female thread elbow	Socket weld 45 deg elbow	male female thread elbow 90 deg	90 sw socket weld elbow	HDG hot dip galvanized elbow
Connection end	Female threaded and socket weld	Female threaded and socket weld	Female threaded and socket weld	Female threaded and socket weld	Female threaded and socket weld	Female threaded and socket weld
Size	1/4" up to 6"	1/4" up to 6"	1/4" up to 6"	1/4" up to 6"	1/4" up to 6"	1/4" up to 6"
Dimension standard	ANSI B16.11	ANSI B16.11	ANSI B16.11	ANSI B16.11	ANSI B16.11	ANSI B16.11
Pressure	2000lb,3000lb,6000lbs,9000lb	2000lb, 3000lb, 6000lbs, 9000lb	2000lb, 3000lb, 6000lbs, 9000lb	2000lb, 3000lb, 6000lbs, 9000lb	2000lb, 3000lb, 6000lbs, 9000lb	2000lb, 3000lb, 6000lbs, 9000lb
Material	carbon steel, stainless steel, alloy steel	carbon steel, stainless steel, alloy steel	carbon steel, stainless steel, alloy steel	carbon steel, stainless steel, alloy steel	carbon steel, stainless steel, alloy steel	carbon steel, stainless steel, alloy steel
Degree	45 and 90	45 and 90	45 and 90	45 and 90	45 and 90	45 and 90
Radius	long radius	long radius	long radius	long radius	long radius	long radius
Thread		NPT, BSP

Standard	Types	Class Rating/Schedule	Ends	Size
ASME B16.11	90°Elbow/ 45°Elbow/ Tee/ Cross	2000LB	Threaded	1/4''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coulping	3000LB/6000LB	Threaded	1/4''~4''
		3000LB/6000LB	Socket-welding	1/8''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coulping	9000LB	Socket-welding	1/2''~2''

Nickel Alloy	ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3)
Copper Alloy	ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30)
Stainless Steel	ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex and Super Duplex	ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61.
Carbon Steel	ASTM / ASME A/SA 105（N）
Low Temp Carbon Steel	ASTM / ASME A/SA 350 LF 2.
High Yield Carbon Steel	ASTM / ASME A/SA694 F52 F56 F60, F65, F70
Alloy Steel	ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.
Titanium	ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7

Quality Control

Our Quality Management System has beenverified with ISO9001:2008 to guarantee allproduction processes are well controlled,so that we can make sure all materials are traceable and well inspected; only the best quality is delivered to our clients.

Non-Destructive Tests	Destructive Tests
Ultrasonic Test	Metallographic Examination
Radiographic Examination	Intergranular Corrosion Test
PMI Test	Grain Size Test
Penetration Test	Mechanical Property Test
Dimension Examination	Tension Test
Surface Examination	Bending Test
Hardness Examination	Impact Test

Testing Equiptments

All materials are tested by destructive and non-destructive testing methods, which are performed at different stages in the production process.

Packing

Our team adopts professional packaging methods to ensure that the products reach our clients in their best form, without getting affected by the adversities of the environment.

If by any chance (however small it may be), the products fail to satisfy the customers, we act on our product replacement scheme to ensure that they receive better.

Stock System

We have a large stock of pipes / flanges / BW fittings / forged fittings. (Stainless Steel 304 316,etc. )
No MOQs
Fast Delivery
