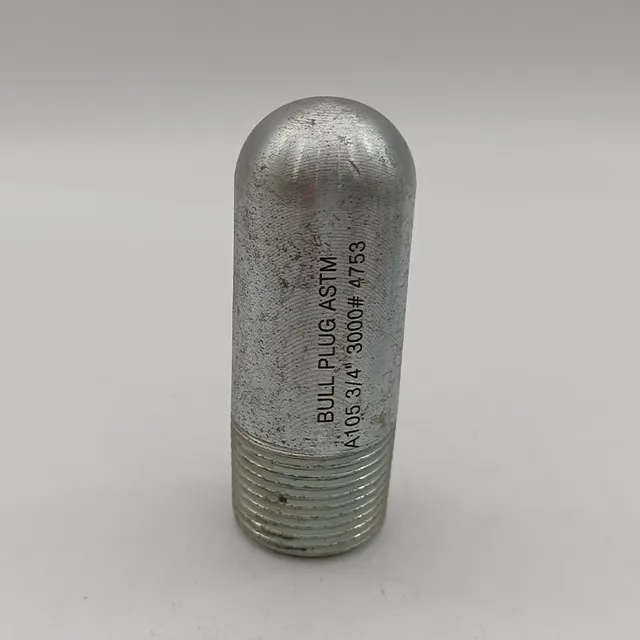

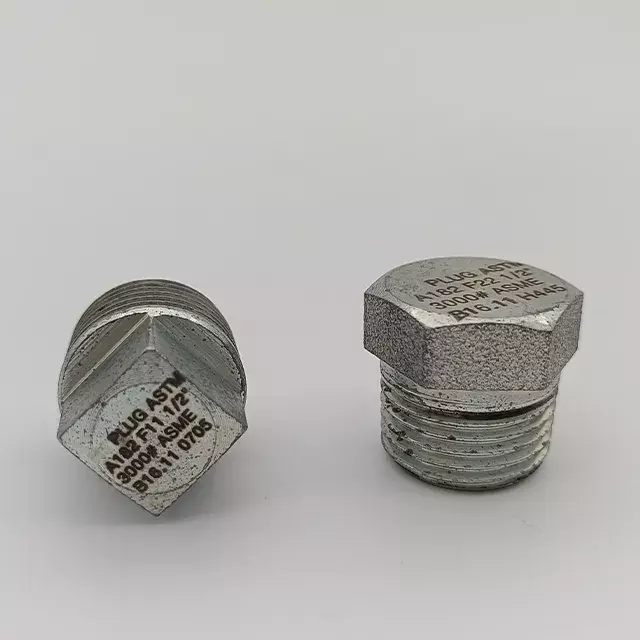

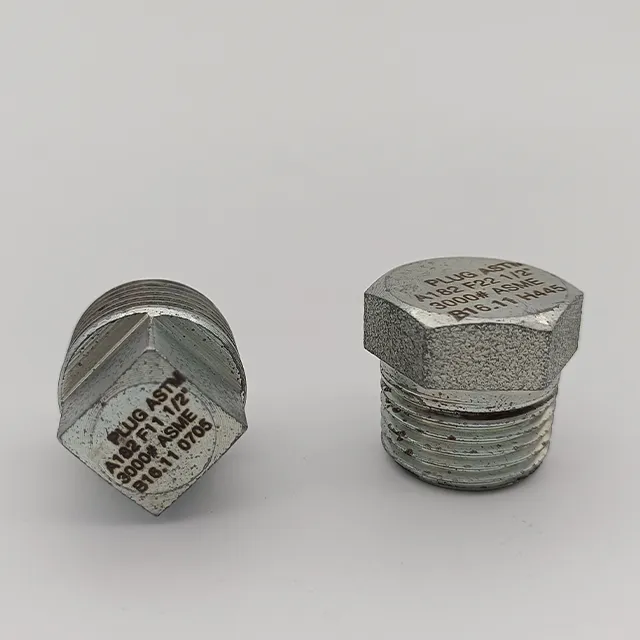

Forged Plug

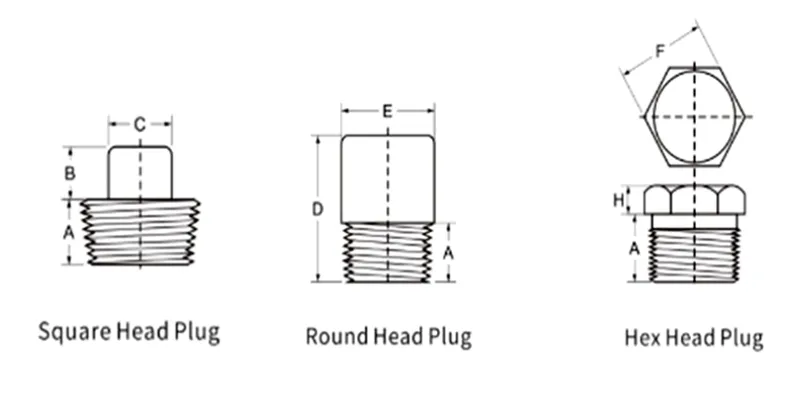

Nominal size

Length

Square height

Width flats

Head diameter

Length

Hex height

Hex height

DN

NPS

Amin

Bmin

Cmin

Emin

Dmin

Hmin

Fmin

6

1/8

10

6

7

10

35

6

11

8

1/4

11

6

10

14

41

6

16

10

3/8

13

8

11

18

41

8

18

15

1/2

14

10

14

21

44

8

22

20

3/4

16

11

16

27

44

10

27

25

1

19

13

21

33

51

10

36

32

11/4

21

14

24

43

51

14

46

40

11/2

21

16

28

48

51

16

50

50

2

22

18

32

60

64

18

65

65

21/2

27

19

36

73

70

19

75

80

3

28

21

41

89

70

21

90

100

4

32

25

65

114

76

25

115

Nickel Alloy

ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3)

Copper Alloy

ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30)

Stainless Steel

ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.

Duplex and Super Duplex

ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61.

Carbon Steel

ASTM / ASME A/SA 105（N）

Low Temp Carbon Steel

ASTM / ASME A/SA 350 LF 2.

High Yield Carbon Steel

ASTM / ASME A/SA694 F52 F56 F60, F65, F70

Alloy Steel

ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.

Titanium

ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7
