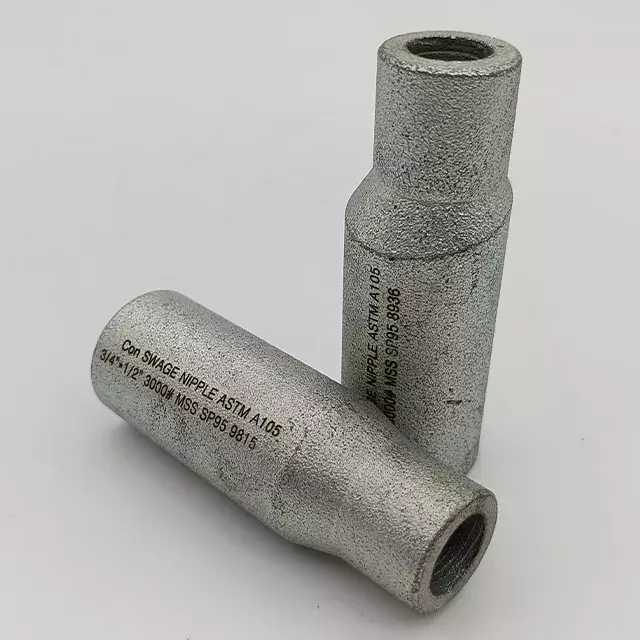

Material: Stainless Steel, Duplex, Super Duplex, Nickel Alloys
Type: Eccentric or Concentric
Size: 1/4″～12″
Class: 3000 LBS, 6000 LBS
Dimension: MSS SP-95
Connection End: Male Thread, Plain End, Bevel End, TOE, TBE, POE, BBE, PBE,PE,BE, BLE, BSE,PLE,PSE, TLE,TSE

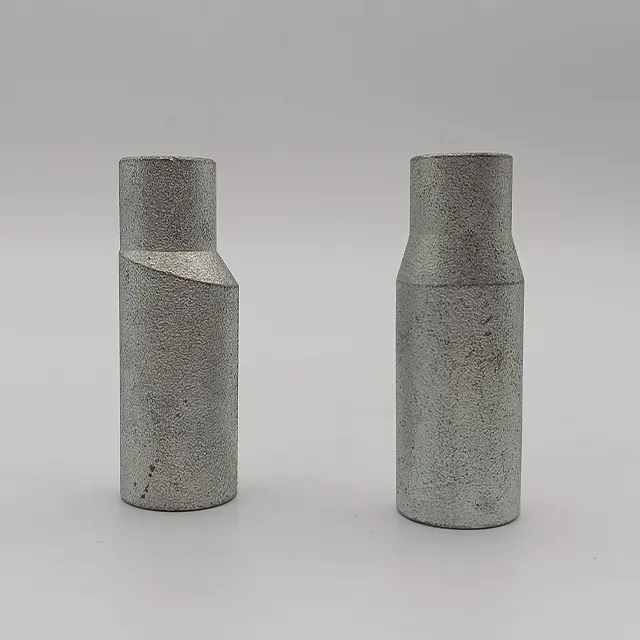

Forged Swage Nipple
Type: Concentric and eccentric
Connection end: Male thread, plain end, bevel end, TOE, TBE, POE, BBE, PBE,PE,BE, BLE, BSE,PLE,PSE, TLE,TSE
Size:1/4" up to 12"
Dimension standard: MSS SP 95
Wall thickness: SCH40, SCH80,SCH100,SCH160,XXS, SCH80,XS, etc.
Material: Carbon steel, stainless steel, alloy steel
Standard | Types | Ends | Size |
MSS SP95 | Concentric/Eccentric Swaged Nipples | See Below Note1 | 1/4‘’~12'' |
Note1 | PBE: Plain Both Ends BBE Bevel Both Ends | ||
TBE: Threaded Both Ends PSE:Plain Small End | |||
BSE:Bevel Small End | |||
TSE:Threaded Small End | |||
PLE:Plain Large End | |||
BLE:Bevel Large End | |||
TLE:Thread Large End | |||
Note2 | For the swage nipples,pipe nipples,the material can be referred to the pipe standard. | ||
Note3 | NPT(National Pipe Thread) | ||
FPT(Female Pipe Thread) | |||
MPT(Male Pipe Thread) | |||
BSPT(British Standard Pipe Thread) | |||
Nickel Alloy | ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3) |
Copper Alloy | ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30) |
Stainless Steel | ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H. |
Duplex and Super Duplex | ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61. |
Carbon Steel | ASTM / ASME A/SA 105（N） |
Low Temp Carbon Steel | ASTM / ASME A/SA 350 LF 2. |
High Yield Carbon Steel | ASTM / ASME A/SA694 F52 F56 F60, F65, F70 |
Alloy Steel | ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91. |
Titanium | ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7 |
