How to Choose Nickel Alloy Pipe for Chemical Plants?

Chemical plants process some of the most aggressive substances on the planet—concentrated acids, hot caustic solutions, chlorinated solvents, and sour gas mixtures. These media can rapidly destroy ordinary carbon steel and even common stainless steel pipes.

A chemical plant in Southeast Asia learned this the hard way in 2023. Their procurement team selected standard 316L stainless steel tubing for a caustic alkali transfer line to save upfront costs. Eighteen months later, pitting corrosion caused a leak that halted operations for six days. The replacement? Nickel 201 tubing. It has now been running without issue for over three years.

So when are nickel alloy pipes for chemical plant required? Nickel alloys become necessary when process conditions exceed what stainless steel can handle—temperatures above 800°F, reducing acid environments, high chloride concentrations preventing stress corrosion cracking (SCC) failure, or hydrogen service applications where hydrogen embrittlement is a concern.

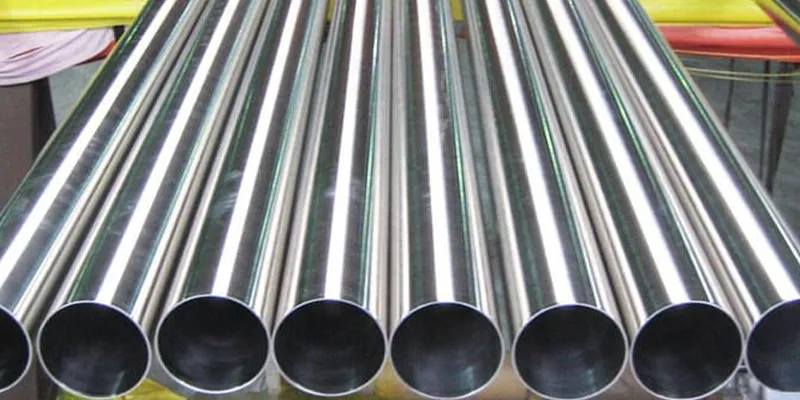

What Are Nickel Alloy Pipes?

Nickel alloy pipes are materials in which nickel (Ni) is the dominant composition, typically comprising 40–80% of the element.



Nickel alloy pipes are produced in seamless and welded pipe form, conforming to international standards such as ASTM, ASME, GOST and EN. Pipes are available in a wide range of sizes (from ¼” OD tubing to large-diameter piping) and schedules to meet virtually any pressure and flow requirement in chemical plant service.



Why Not Just Use Stainless Steel?



Austenitic stainless steels (304, 316) are excellent general-purpose materials, but they have well-documented limitations:



•Susceptible to chloride-induced stress corrosion cracking (SCC) at temperatures above 60°C.



•Limited resistance to hydrochloric acid (HCl), sulfuric acid at high concentrations, and wet chlorine environments.



•Inadequate performance in reducing acid environments.



•Lower creep resistance at temperatures above 600°C.



However, nickel alloys overcome all of these limitations, making them the correct choice when stainless steel falls short.



Step-by-Step: How to Select the Right Nickel Alloy Pipe

Pipe selection should never be driven by habit, preference, or lowest unit price. Follow this systematic five-step process to ensure you specify the right material the first time.

Step 1 – Define Your Service Environment



Gather the following process data before choosing any alloy:



• Process fluid identity (e.g., 30% H₂SO₄, wet HCl gas, seawater, chlorinated organics)

• Fluid concentration and pH range

• Operating temperature (°C or °F)—both normal and upset conditions

• Operating pressure (bar or psi)—normal and design maximum

• Presence of contaminants (chlorides, fluorides, oxygen, hydrogen sulfide, CO₂)

• Flow velocity and potential for erosion or cavitation

• Cyclic thermal or mechanical loading

ℹ️  Pro Tip: Always design for the worst-case operating scenario, not the normal operating condition. Chemical processes experience upsets, startup/shutdown transients, and off-spec feeds that your piping must survive.

Step 2 – Identify the Dominant Corrosion Mechanism



Different environments attack metals through different mechanisms. Matching your alloy choice to the dominant corrosion type is the single most important selection principle.





Step 3 – Match the Alloy Grade to Your Application

Once the corrosion mechanism is understood, compare the leading nickel alloy grades against your process conditions. The table below summarizes the most widely specified grades in chemical plant service:

Step 4 – Verify Mechanical and Dimensional Requirements

Chemical resistance is necessary but not sufficient. Your selected alloy must also satisfy the mechanical design requirements of your piping system:

4a. Pressure and Temperature Rating

Consult ASME B31.3 (Process Piping) or applicable design code to confirm the selected alloy’s allowable stress values at your design temperature. Nickel alloys generally retain strength at elevated temperatures better than austenitic stainless steels, but allowable stresses decrease with temperature for all materials.

4b. Wall Thickness Calculation

Calculate minimum required wall thickness using the Barlow formula or the applicable code formula:

t = (P × D) / (2 × SE + 2 × P × Y)

Where: t = minimum wall thickness (in); P = design pressure (psi); D = outside diameter (in); S = allowable stress (psi); E = weld quality factor; Y = temperature coefficient

Always add a corrosion allowance (typically 1–3 mm for moderate environments, up to 6 mm for severe duty) and a mill tolerance allowance (typically −12.5% per ASTM standards) to your calculated minimum wall thickness.

4c. Pipe Schedule and Standard Dimensions

Nickel alloy pipes are commonly supplied to ASME B36.10M (welded and seamless) and B36.19M (stainless steel / high-alloy) dimensional standards. Common pipe schedules used in chemical plants include Schedule 10S, 40S, 80S, and 160. Confirm that your selected schedule provides adequate wall thickness after allowances.

4d. Fabrication and Welding Compatibility

Confirm that your fabricator has qualified welding procedures (WPS/PQR per ASME Section IX) for the selected alloy. Nickel alloys require specific filler metals, preheat practices, and post-weld heat treatment (PWHT) protocols. For example:

• Alloy C-276 pipe is typically welded with matching ERNiCrMo-4 filler wire

• Alloy 625 requires ERNiCrMo-3 (ER625) filler for full matching chemistry

• Low heat input is critical for Alloy B-3 to avoid Mo segregation at weld boundaries

Step 5 – Evaluate Total Cost of Ownership (TCO)

A disciplined Total Cost of Ownership analysis almost always justifies the higher upfront investment in a correctly specified nickel alloy pipe.



ℹ️  Industry data consistently shows that nickel alloy piping systems in severe chemical service environments deliver the lowest 20-year lifecycle cost despite the highest initial purchase price. The break-even point typically occurs within 3–5 years.



Special Considerations for Common Chemical Plant Environments

Sulfuric Acid (H₂SO₄) Service

Sulfuric acid exhibits dramatically different corrosivity depending on concentration and temperature. Dilute H₂SO₄ (below ~65%) is highly corrosive and reducing; concentrated H₂SO₄ (above ~93%) is actually less corrosive to most metals due to passivation. Mid-range concentrations (65–93%) combined with elevated temperatures represent the most aggressive condition.

• Dilute H₂SO₄ (< 65%): Alloy B-3, Alloy 200, or high-silicon cast iron

• Mid-range H₂SO₄ (65–93%): Alloy B-3, Alloy C-276 with corrosion monitoring

• Concentrated H₂SO₄ (> 93%): Carbon steel or Alloy 20 (Carpenter 20) often suitable

• Oleum (> 100% H₂SO₄): Alloy B-3 or special carbon steel with careful velocity control

Hydrochloric Acid (HCl) Service

HCl is among the most aggressive mineral acids, attacking nearly all common construction materials. Even small concentrations at elevated temperatures cause rapid corrosion of carbon steel and stainless steel. Wet HCl gas is equally destructive.

• Aqueous HCl (all concentrations): Alloy B-3 is the industry benchmark

• Dilute HCl (< 10%, < 60°C): Alloy C-276 also acceptable

• Wet HCl gas: Alloy C-276, Alloy B-3, or rubber-lined carbon steel (if temperature permits)

• HCl synthesis (500°C+): Alloy 600 or Alloy B-3 depending on atmosphere

Chloride-Containing Environments

Chloride ions are one of the most destructive contaminants in process piping. Even trace chlorides (>50 ppm) can initiate pitting or SCC in austenitic stainless steels. Nickel alloys with high molybdenum content provide superior resistance through increased PREN (Pitting Resistance Equivalent Number).

PREN = %Cr + 3.3 × %Mo + 16 × %N. Higher PREN = greater pitting resistance.

• Alloy 625: PREN ≈ 52 (excellent resistance, suitable for seawater and bleach environments)

• Alloy C-276: PREN ≈ 65 (outstanding; suitable for wet chlorine gas and hypochlorite solutions)

• Alloy 316L SS: PREN ≈ 24 (insufficient for concentrated chloride service)

High-Temperature Service (> 500°C / 932°F)

At temperatures above 500°C, material selection must address oxidation, sulfidation, carburization, and creep in addition to corrosion. Chromium content becomes critical for forming a protective Cr₂O₃ scale.

• 500–800°C: Alloy 600, Alloy 601 (good oxidation and carburization resistance)

• 800–1100°C: Alloy 601, Alloy 214, Alloy HR-120

• Above 1100°C: Alloy 214 or ODS (oxide dispersion strengthened) alloys



Nickel Alloy Pipe Specification and Standards

Specifying the correct material standard is as important as selecting the correct alloy. Use the following standards as the basis for purchasing and inspection:



ℹ️  Always verify that your supplier provides Material Test Reports (MTRs) with full chemical composition and mechanical property data per the applicable ASTM/ASME specification. Third-party inspection (TPI) at the mill is recommended for critical service pipe.



Frequently Asked Questions



Can ASTM A312 and A358 Pipe Be Used Interchangeably?



Not without engineering review. While both standards cover austenitic stainless steel pipe, the manufacturing and inspection requirements differ. A358 Class 1 pipe meets more stringent quality criteria than baseline A312 welded pipe. Substituting A312 welded pipe for A358 Class 1 in a high-pressure application may not satisfy the applicable piping code.



Is Seamless Pipe Better Than EFW Pipe?



Not categorically. Seamless pipe has no longitudinal weld seam, which eliminates a potential point of failure. However, EFW pipe produced under A358 Class 1 — with 100% radiographic examination — provides a high level of weld integrity assurance. For large diameters, A358 EFW pipe is often the only practical option.



What Is The Difference Between ERW And EFW Welded Pipe?



ERW (Electric Resistance Welded) pipe is made by passing a high-frequency electric current through the strip edges; the heat of resistance fuses them together without filler metal. EFW (Electric Fusion Welded) pipe uses an arc welding process with filler metal, producing a weld that can be deposited in multiple passes for heavier walls. A358 specifies EFW exclusively; A312 welded pipe can be either ERW or EFW.



Do Both Standards Apply To Nickel Alloys?



Neither A312 nor A358 applies to nickel alloys such as Alloy 625, Alloy 825, or Hastelloy C-276. Those materials are covered by separate ASTM standards (e.g., ASTM B444 for nickel alloy seamless pipe). However, the selection logic between seamless versus EFW pipe and between baseline versus radiographically examined pipe follows similar engineering principles for nickel alloy piping.



What schedule (wall thickness) options are available under each standard?



ASTM A312 pipe is available in a wide range of schedules from SCH 5S through SCH XXS. ASTM A358 pipe is typically produced in standard wall schedules and heavier; the specific schedules available depend on the manufacturer's capability for a given diameter. For very large diameters, custom wall thicknesses may be manufactured to order.



What Are The Benefits Of Nickel Alloy Pipe?



Nickel alloy pipes offer five core advantages over carbon steel and stainless steel pipes:



Superior corrosion resistance — withstand aggressive acids (HCl, H₂SO₄), alkalis, wet chlorine, and sour gas where stainless steel fails.



High-temperature strength—retains mechanical integrity from cryogenic conditions up to 1,100°C+, resisting creep and oxidation.



Resistance to stress corrosion cracking (SCC)—critical in chloride-rich or caustic environments that cause sudden brittle fracture in austenitic stainless steels.



Long service life—properly specified nickel alloy piping routinely achieves 20–25+ years in severe chemical service, dramatically reducing life cycle costs.



Versatility—a single alloy family (e.g., Alloy C-276) can handle both oxidizing and reducing environments simultaneously, simplifying system design.



Heat Exchanger Nickel Alloy Coil Pipe Recommendations



Alloy selection depends on the process-side fluid and shell-side medium. The most commonly specified grades are:





For coil tubes specifically, seamless product form is strongly recommended over welded, as the weld seam is a potential weak point under cyclic thermal fatigue. Specify OD tolerances per ASTM B829 and confirm the coil bend radius is ≥ 3× the OD to avoid work-hardening cracks.



How Much Do Nickel Alloy Pipes And Tubes Cost?



Nickel alloy pricing is market-driven and fluctuates with the London Metal Exchange (LME) nickel price. The following are indicative price ranges for reference only:
