In industrial, chemical, petrochemical, power generation, pharmaceutical, food, and marine applications, the efficiency of piping systems is paramount. Stainless steel elbows are often overlooked but play a vital role in these systems.
Stainless steel elbow fittings are used for changing the direction of fluid or gas flow, adapting complex pipe systems, thermal expansion, and structures. Choosing the correct stainless steel elbow is not easy; it directly impacts system longevity, safety, operational efficiency, and maintenance costs.
Selecting the ideal elbow involves a deep understanding of types, manufacturing processes, material standards, specification precision, and application requirements. This guide helps you in making informed decisions for your stainless steel elbows project.
Stainless steel elbow is used to connect two lengths of pipe at an angle, a directional change in the pipeline. Its core purpose is to change the flow path smoothly and efficiently, minimizing pressure drop, turbulence, and potential erosion. Elbows are made from various stainless steel alloy grades; they inherit the material's resistance to corrosion, oxidation, and scaling, making them suitable for aggressive chemicals, high-purity media, steam, and extreme temperatures.
Before quoting stainless steel elbows, you need to confirm:
Bend Angle: 45°, 90°, 180°.
Diameter: 1/2", 2", 6", 24". Must match your connecting pipe.
Wall Thickness/Schedule: Dictated by pressure, temperature, and mechanical load requirements (e.g., SCH 5S, SCH 10S, SCH 40S, SCH 80S).
Radius: The curvature of the bend, typically classified as Short Radius (SR) or Long Radius (LR), affecting flow characteristics and stress distribution.
End Connections: Usually butt-weld ends but can also be threaded, socket weld, or flanged.
Construction: Seamless or Welded (see Heading 4).
Note: The geometry and material properties of the elbow must be precisely manufactured to withstand the internal pressure, temperature changes, mechanical stresses, and corrosive nature of the conveyed medium throughout its design life.
Choosing stainless steel elbows offers distinct advantages over like carbon steel, plastic, or lower-grade alloys, particularly in demanding applications:
Corrosion Resistance: The chromium content forms a passive, self-repairing oxide layer, providing excellent resistance to rust, oxidation, and a wide range of chemicals. Grades like 316/316L offer enhanced resistance to chlorides and acids due to molybdenum addition. Duplex and super duplex grades provide exceptional resistance to pitting and stress corrosion cracking in highly aggressive environments.
High Temperature and Pressure Capability: Stainless steel maintains its structural integrity and strength at significantly higher temperatures. This allows elbows to perform reliably in steam lines, heat exchangers, and high-pressure process systems.
Strength and Durability: Stainless steel alloys offer high tensile and yield strength, providing excellent resistance to impact, abrasion, and deformation under load.
Low Maintenance and Long Lifecycle Cost: While the initial cost may be higher than some alternatives, the exceptional durability, corrosion resistance, and minimal maintenance requirements of stainless steel elbows lead to significantly lower total cost of ownership over the system's lifespan.
The primary type of stainless steel elbows is based on the angle of directional change they provide. The most common types are:

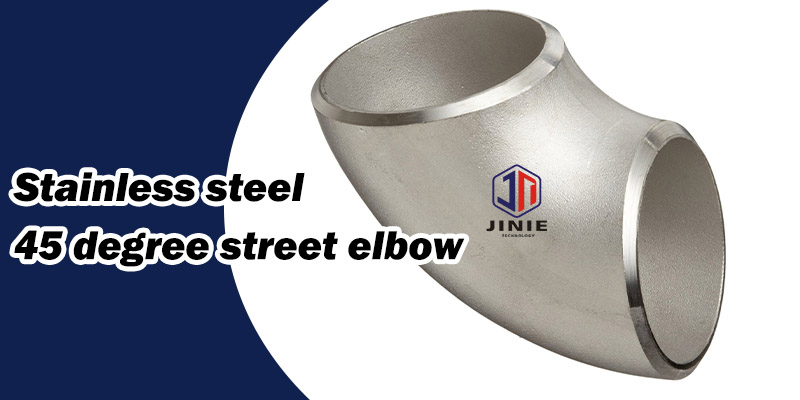

Stainless steel 45 degree street elbow: Provides a moderate change in direction.
Application: A gentler turn is required than a 90° elbow allows, helping to reduce pressure drop and turbulence. Stainless steel 45 degree street elbow common in complex piping layouts requiring multiple directional adjustments or where space constraints prevent using a 90° elbow.
Radius: Typically, 45° long radius elbows are standard, though short-radius can be manufactured to order for tighter spaces or higher pressure drop/turbulence.

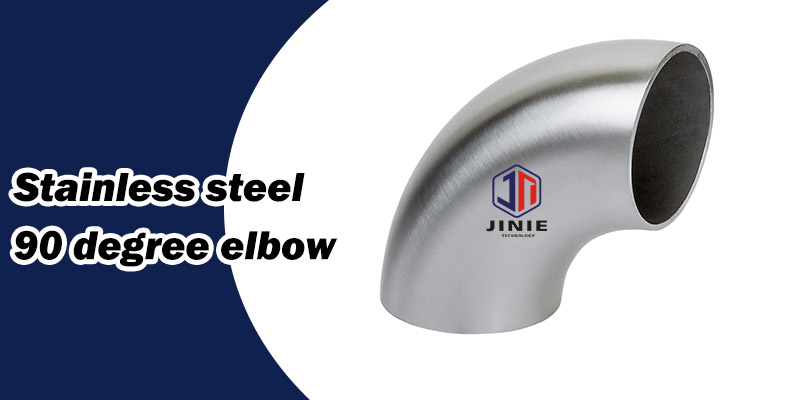

Stainless steel 90 degree elbow: Provides a right-angled change in direction.
Application: The most widely used elbow type. Essential for navigating corners, connecting perpendicular pipe runs, and changing flow direction sharply. You'll find it in all piping systems.
Radius:
Long Radius: Standard for most applications. The centerline radius is 1.5 times the nominal pipe size. Stainless steel 90 degree elbow has smoother flow, lower pressure drop, reduced turbulence, and less erosion potential. 90° elbows preferred for high-flow, high-pressure, or abrasive service.
Short Radius: The centerline radius is equal to the nominal pipe size. Results in higher pressure drop, turbulence, and potential for erosion/corrosion at the bend. Not recommended for severe service.

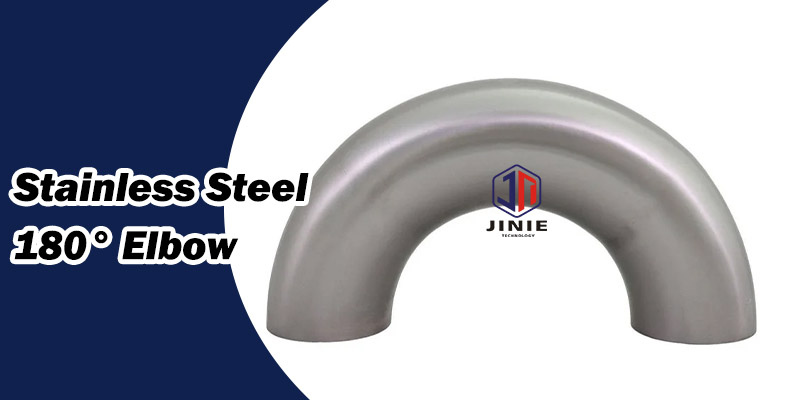

Stainless Steel 180° Elbow: Reverses the flow direction completely.
Application: Used in heat exchanger U-tube bundles, pump bypass lines, tank connections, or any situation requiring a complete reversal of flow within a compact footprint. The stainless steel 180° elbows are often used in pairs.
Radius: Typically long radius 180° elbows, though short radius is also manufactured. Dimensions are critical for fitment, especially in tube bundles.
Seamless Elbow Manufacturing: A solid cylindrical stainless steel billet is precisely heated and pierced to form a hollow shell. This shell is then forced over a shaped mandrel, using presses or extrusion under high temperature and pressure to form the desired elbow shape and radius. No welding is involved in the main body formation.
| Applications | Advantages | Disadvantages |
| High-pressure, high-temperature, critical service, corrosive fluids. Such as power plants, offshore platforms, and high-pressure chemical processing. | Superior structural integrity and homogeneity: No weld seam eliminates a potential weak point. | Higher cost due to complex process and material yield. |
| Higher pressure rating and fatigue strength. | Size limitations: Primarily used for smaller diameters, though capabilities vary by manufacturer. Larger seamless elbows become expensive. | |
| Better resistance to corrosion, especially in the bend area. | - | |
| Smoother internal surface finish, reducing friction and turbulence. | - |
Welded Elbow Manufacturing:
Cold Forming: A flat plate or strip of stainless steel is cut into a trapezoidal shape. Multiple segments are pressed into "horseshoe" shapes using dies. These segments are then precisely aligned and welded together longitudinally using automated TIG (GTAW) or Plasma Arc Welding (PAW) processes. The welds are then meticulously inspected and often heat-treated and pickled/passivated.
Fabricate Large-Sized Elbows: For very large or custom elbows, sections of pipe may be cut and welded together to form the elbow shape.
| Applications | Advantages | Disadvantages |
| Larger diameter piping systems, lower pressure applications, structural supports, ducting, or where cost is a significant factor, provided welding quality is assured. | Cost-effective, especially for NPS 10" / DN 250mm and above. | The presence of longitudinal welds introduces a potential weak point requiring stringent quality control. |
| Capable of producing virtually any size, wall thickness, or radius. | Welds and heat-affected zones may be more susceptible to corrosion in aggressive environments if not properly executed and finished. | |
| Suitable for lower pressure applications or where seamless isn't feasible due to size/cost. | The internal weld bead may require grinding for smooth flow if not controlled precisely during welding. |
Adherence to stringent international standards is non-negotiable for ensuring elbow quality, performance, safety, and interchangeability. Main standards include:
ASME B16.9: Factory-Made Wrought Butt-Welding Fittings, it covers dimensions for 45°, 90° LR/SR, and 180° LR/SR elbows from NPS 1/2" to 48".
ASME B16.28: Wrought Steel Butt-Welding Short Radius Elbows and Returns, Specifics for SR 90° & 180°.
ISO 4144: Stainless steel fittings threaded according to ISO 7-1.
ISO 1127: Stainless steel tubes—Dimensions, tolerances and conventional masses per unit length.
Material and Manufacturing Standards: Specify chemical composition, mechanical properties, testing requirements, and manufacturing processes.
ASTM A403 / ASME SA403: Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings.
ASTM A774 / ASME SA774: Specification for As-Welded Wrought Austenitic Stainless Steel Fittings for General Corrosive Service at Low and Moderate Temperatures.
ASTM A182 / ASME SA182: Standard Specification for Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service.
EN 10253: Butt-welding pipe fittings.
Common Stainless Steel Alloys for Elbows:
304 (S30400)
304L (S30403)
316 (S31600)
316L (S31603)
321 (S32100)
347 (S34700)
2205 (S32205)
2507 (S32750)
625 (N06625)
C276 (N10276)
Production Range:
Angles: 45°, 90°, 180°; custom angles possible.
Diameter: From 1/2" up to 48" or larger for fabricated elbows.
Wall Thickness: SCH 5S, 10S, 40S, 80S, 160S, XXS; or specific WT in mm. Custom thicknesses available.
Radius: LR: 1.5D, SR: 1.0D for 90° & 180°.
Material: All standard grades like 304/L, 316/L, 321, 347, Duplex, and Super Duplex and high-performance nickel alloys (Inconel, Hastelloy, and Monel).

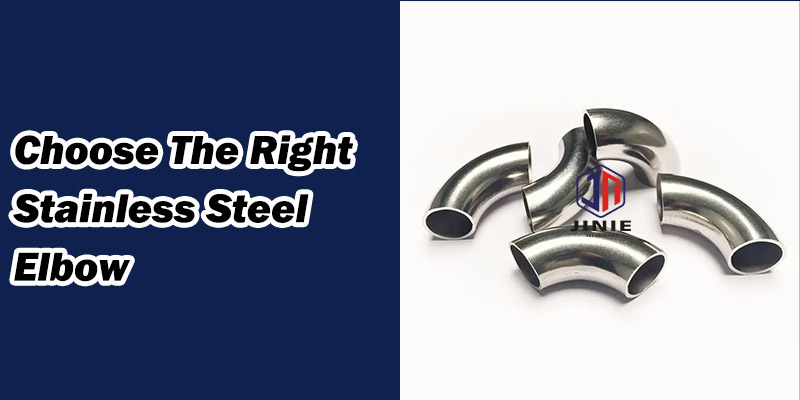

Selecting the optimal stainless steel elbow requires a systematic approach, considering all factors discussed:
Material Grade: Based on corrosion resistance needs (Heading 5). Consult corrosion tables or material engineers. Consider nickel alloys for extreme conditions.
Angle: 45°, 90°, or 180° based on required directional change.
Diameter: Must match connecting pipe.
Wall Thickness: Based on pressure, temperature, mechanical loads, and corrosion allowance. Use ASME B31.3 or relevant piping code for calculation.
Radius: Long Radius (LR) preferred for flow efficiency and reduced wear. Short Radius (SR) only if space is absolutely critical. Consider custom radii for specific needs.
Seamless vs. Welded: Seamless for high-pressure/high-temperature/critical service/smaller sizes. High-Quality Welded for cost-effectiveness in larger sizes or lower pressure. Demand certified material and welding procedures and rigorous NDT for welded elbows.
Standards Compliance: Specify required dimensional (ASME B16.9/B16.28) and material (ASTM A403/SA403, A774/SA774) standards.
Certification: Require mill test certificates verifying chemical composition, mechanical properties, and heat treatment.

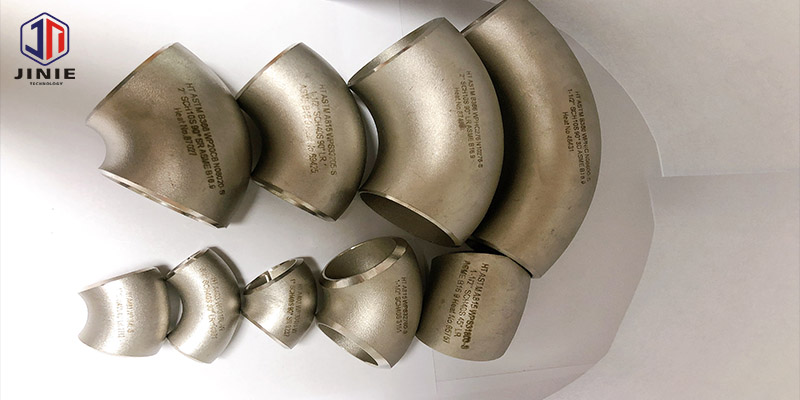

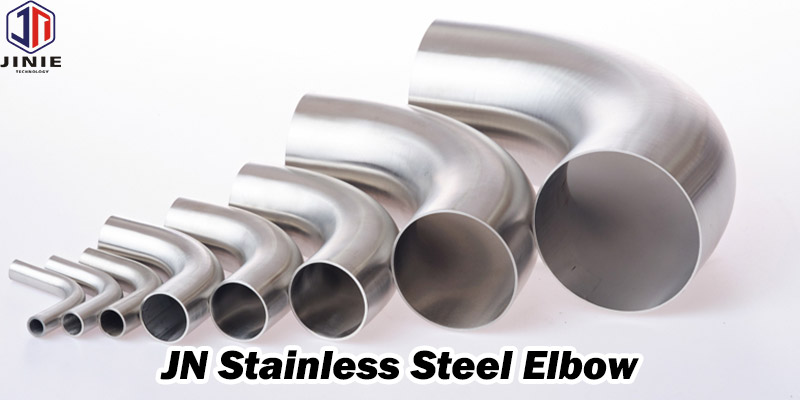

At JN Alloy, we specialize in manufacturing premium stainless steel and nickel alloy elbows that meet the most stringent requirements. Our commitment is your assurance:
Material Integrity: We source prime stainless steel and high-performance nickel alloys from certified mills, backed by full MTCs.
Precision Manufacturing: Utilizing both state-of-the-art seamless hot forming and automated, high-integrity cold forming/welding processes, we guarantee dimensional accuracy per ASME B16.9, B16.28, and customer prints.
Rigorous Quality Control: Every step, from raw material inspection to final dimensional checks, NDT, hydrostatic testing, surface inspection, and passivation, is performed under strict protocols. Our welders and procedures are certified.
Broad Production Capability: Supplying elbows from DN15 to DN1200 and beyond, in all standard angles, schedules, and radii, plus custom configurations.
Contact JN now with your detailed specifications, and let our expertise guide you to the perfect stainless steel or nickel alloy elbow solution for your demanding application.
