Pipe Nipple

Type

TBE, PBE, hex nipple, Threaded

Size

1/8"-6"

Pressure

2000#,3000#,6000#,9000#

Standard

ANSI B16.11, EN10241, MSS SP 97, BS 3799

Dimension

ASME B36.10/36.19

Wall thickness

SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.

End

TOE, TBE, POE, BBE, PBE,

Connection End

Male Thread, Plain End, Bevel End

Material

Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S, A403 WP347H, A403 WP316Ti, A403 WP317, 904L,1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc.

Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.

Nickel alloy: ASTM/ASME SB 366 Alloy 200/UNS N02200, Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 400/Monel 400/UNS N04400, F904L/UNS N08904, Alloy 800/Incoloy 800/UNS N08800, Alloy C-2000/UNS N06200, Alloy 925/Incoloy 925/UNS N09925, Alloy C-22/UNS N06022, Alloy 201/UNS N02201, Alloy C-276/Hastelloy C-276/UNS N10276, Alloy 625/UNS N06625, Nimonic 80A/Nickel Alloy 80A/UNS N07080, Alloy K-500/Monel K-500, Alloy 20/UNS N08020, Alloy 800H/Incoloy 800H/UNS N08810,Alloy 600/Inconel 600/UNS N06600, Alloy 31/UNS N08031,Hastelloy C-276/UNS N10276, Alloy 825/Incoloy 825/UNS N08825,Alloy 20/N08020

Application

Petrochemical industry; avation and aerospace industry; pharmaceutical industry;gas exhaust; power plant; ship buliding; water treatment, etc.

Standard

Types

Class Rating/Schedule

Ends

Size

BS3799

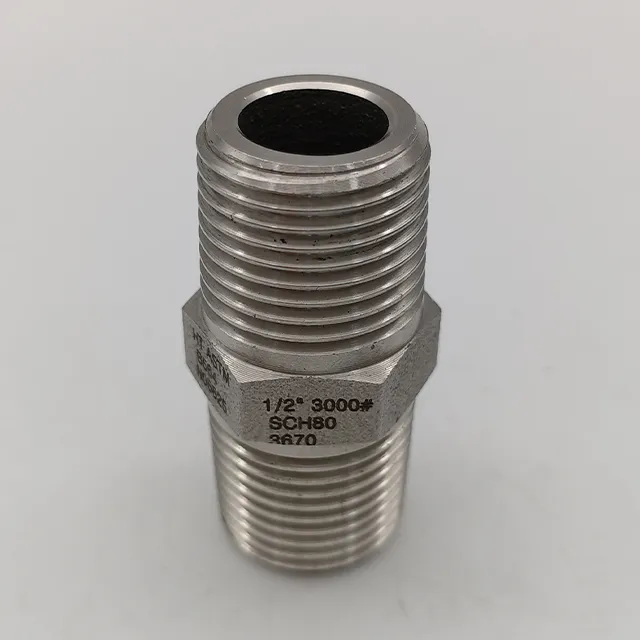

Hex Nipple

3000LB/6000LB

Threaded

1/8''~2''x1/2''

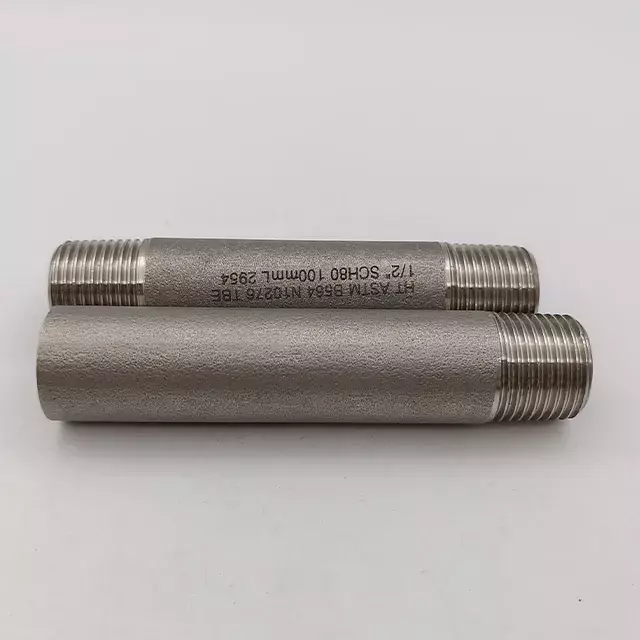

Pipe Nipple

40/STD/80/XS /160/XXS

See Below Note1

1/8''~6''

Note1

PBE:Plain Both Ends BBE Bevel Both Ends TBE: Threaded Both Ends PSE:Plain Small End BSE:Bevel Small End TSE:Threaded Small End PLE:Plain Large End BLE:Bevel Large End TLE:Thread Large End

Note2

For the swage nipples,pipe nipples,the material can be referred to the pipe standard.

Note3

NPT(National Pipe Thread) FPT(Female Pipe Thread) MPT(Male Pipe Thread) BSPT(British Standard Pipe Thread)

Nickel Alloy

ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3)

Copper Alloy

ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30)

Stainless Steel

ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.

Duplex and Super Duplex

ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61.

Carbon Steel

ASTM / ASME A/SA 105（N）

Low Temp Carbon Steel

ASTM / ASME A/SA 350 LF 2.

High Yield Carbon Steel

ASTM / ASME A/SA694 F52 F56 F60, F65, F70

Alloy Steel

ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.

Titanium

ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7
