Material: 304,304l,316,316l,347,904l,254smo...
Type: Seamless/Welded/SAW/ERW/EFW Pipe
Thickness: SCH5~SCHXXS
Size: 1/2" to 48"
End: Beveled End,Plain End
Production: Hot rolling / Hot work / Cold rolling / Cold-drawn

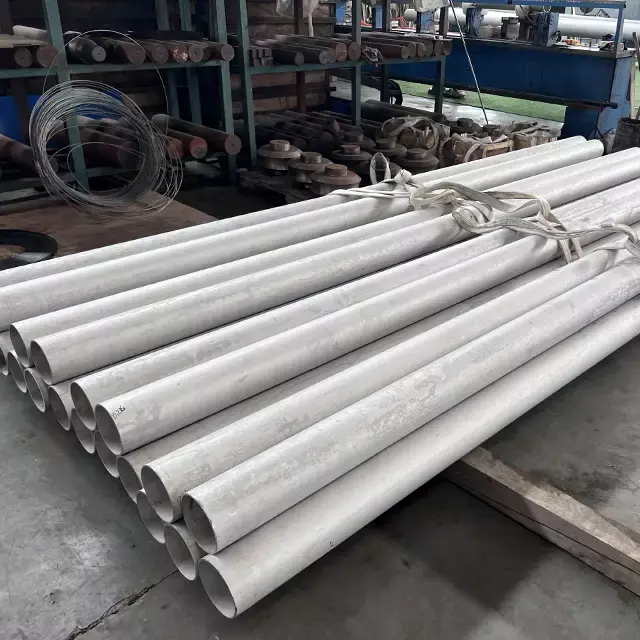

Stainless steel pipes are widely used across industries that demand excellent corrosion resistance, high-temperature strength, durability, and long service life. Manufactured from premium austenitic, ferritic, martensitic, duplex, and super duplex stainless steels, these pipes are suitable for fluid transportation, structural applications, heat exchange systems, and pressure-containing environments.
Our stainless steel pipe products are produced in accordance with internationally recognized standards ASTM A312, A213, A269, SB677, B676 and the main grades including TP304, TP304L, TP310S, TP316, TP316L, 316Ti, TP317, TP317L, TP321, TP347, TP347H, S31254, N08367, N08926, N08904.
The following is a specifications table for the stainless steel pipes we supply.
Type | Seamless/Welded/SAW/ERW/EFW Pipe | |
End | BE (Beveled End) | |
Size | OD: 1/2"-48" | |
Manufacturing Technique | Hot rolling / Hot work / Cold rolling / Cold-drawn | |
Producing Standard | ASME B36.10 and ASME B36.19 | |
Stainless Steel Grades | ASTM A312 | TP304,TP304L,TP316,TP316L,316Ti, TP317, TP317L, TP321, TP310S, TP347, S31254, N08904 |
ASTM A213 | TP304,TP304L,TP316,TP316L,316Ti, TP317, TP317L, TP321, TP310S, TP347, S31254, N08904 | |
ASTM A269 | TP304,TP304L,TP316,TP316L,TP317,TP317L,TP321,TP347, S31254,N08967, N08926 | |
ASTM B677 | N08904 | |
ASTM B677 | UNS N08925, UNS N08926 | |

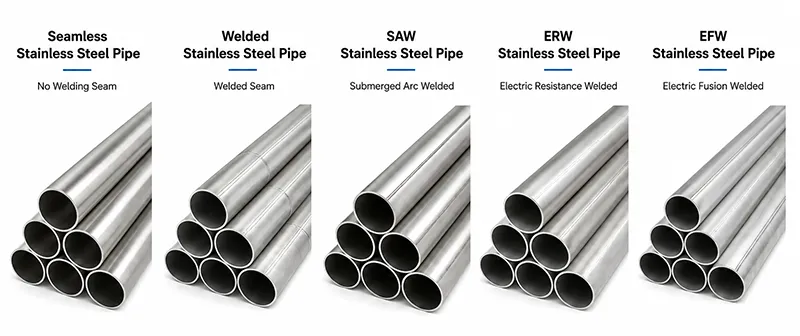

Seamless pipes are made from a solid round steel billet (round bar). The billet is heated and pierced through the center to form a hollow tube, then rolled or drawn to the desired size and wall thickness. No welding is involved in the pipe body.
Features:
Uniform structure with no weld seam
Excellent pressure resistance and strength
Can withstand higher pressure and temperature
Better corrosion resistance (no weld zone weakness)
Common Standards: ASME B36.10, ASTM A106, A53, A312, A335, etc.
Applications:
High-pressure applications (oil & gas, power plants, refineries)
High-temperature service
Critical piping systems where leakage cannot be tolerated
Welded pipes are produced by rolling stainless steel plates or coils and welding the seam using advanced welding technologies.
Features:
Cost-effective
Excellent dimensional accuracy
Available in large diameters
Applications:
Suitable for low and medium pressure systems
A steel plate is formed into a cylindrical shape and welded using Submerged Arc Welding. The welding is done under a blanket of granular flux, which protects the weld from atmospheric contamination.
Types:
LSAW (Longitudinal SAW) – weld runs along the length
SSAW (Spiral SAW) – weld runs spirally around the pipe
Features:
Suitable for large diameters and thick walls
High productivity and good mechanical properties
Cost-effective for large-scale projects
Applications:
Oil & gas transmission pipelines
Water pipelines
Structural piling
Offshore platforms
A steel strip (coil) is formed into a pipe shape using rollers, then the edges are heated by high-frequency electric resistance and pressed together to form a weld.
Features:
Cost-effective and fast production
Good dimensional accuracy
Suitable for medium to small diameters
Modern ERW pipes have very high weld quality (especially HFW - High Frequency Welded)
Applications:
Oil & gas pipelines (up to moderate pressure)
Mechanical tubing
Water, steam, and air lines
Scaffolding and structural use
Similar to SAW, but uses electric arc (usually with filler metal) to fuse the edges of the plate. It is essentially a type of fusion welding process.
Features:
Used for very thick wall pipes
High weld integrity
Often overlaps with SAW terminology in the industry
Applications:
High-pressure and large-diameter piping
Power plants and heavy industrial applications
DN | NPS | OD | Sch5S | Sch10S | Sch40S | Sch80S | Sch160S | ||||||
in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
6 | 1/8 | 0.405 | 10.3 | 0.049 | 1.24 | 0.068 | 1.73 | 0.095 | 2.41 | 0.124 | 3.15 | ||
8 | 1/4 | 0.54 | 13.7 | 0.065 | 1.65 | 0.088 | 2.24 | 0.119 | 3.02 | 0.145 | 3.68 | ||
10 | 3/8 | 0.675 | 17.1 | 0.065 | 1.65 | 0.091 | 2.31 | 0.126 | 3.2 | 0.158 | 4.01 | ||
15 | 1/2 | 0.84 | 21.3 | 0.065 | 1.65 | 0.083 | 2.11 | 0.109 | 2.77 | 0.147 | 3.73 | 0.188 | 4.78 |
20 | 3/4 | 1.05 | 26.7 | 0.065 | 1.65 | 0.083 | 2.11 | 0.113 | 2.87 | 0.154 | 3.91 | 0.219 | 5.56 |
25 | 1 | 1.315 | 33.4 | 0.065 | 1.65 | 0.109 | 2.77 | 0.133 | 3.38 | 0.179 | 4.55 | 0.25 | 6.35 |
32 | 1 1/4 | 1.66 | 42.2 | 0.065 | 1.65 | 0.109 | 2.77 | 0.14 | 3.56 | 0.191 | 4.85 | 0.25 | 6.35 |
40 | 1 1/2 | 1.9 | 48.3 | 0.065 | 1.65 | 0.109 | 2.77 | 0.145 | 3.68 | 0.2 | 5.08 | 0.281 | 7.14 |
50 | 2 | 2.375 | 60.3 | 0.065 | 1.65 | 0.109 | 2.77 | 0.154 | 3.91 | 0.218 | 5.54 | 0.344 | 8.74 |
65 | 2 1/2 | 2.875 | 73 | 0.083 | 2.11 | 0.12 | 3.05 | 0.203 | 5.16 | 0.276 | 7.01 | 0.375 | 9.52 |
80 | 3 | 3.5 | 88.9 | 0.083 | 2.11 | 0.12 | 3.05 | 0.216 | 5.49 | 0.3 | 7.62 | 0.438 | 11.13 |
90 | 3 1/2 | 4 | 101.6 | 0.083 | 2.11 | 0.12 | 3.05 | 0.226 | 5.74 | 0.318 | 8.08 | ||
100 | 4 | 4.5 | 114.3 | 0.083 | 2.11 | 0.12 | 3.05 | 0.237 | 6.02 | 0.337 | 8.56 | 0.531 | 13.49 |
125 | 5 | 5.563 | 141.3 | 0.109 | 2.77 | 0.13 | 3.4 | 0.258 | 6.55 | 0.375 | 9.52 | 0.625 | 15.88 |
150 | 6 | 6.625 | 168.3 | 0.109 | 2.77 | 0.13 | 3.4 | 0.28 | 7.11 | 0.432 | 10.97 | 0.719 | 18.26 |
200 | 8 | 8.625 | 219.1 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.5 | 12.7 | ||
250 | 10 | 10.75 | 273.1 | 0.134 | 3.4 | 0.165 | 4.19 | 0.365 | 9.27 | 0.5 | 12.7 | ||
300 | 12 | 12.75 | 323.9 | 0.156 | 3.96 | 0.18 | 4.57 | 0.375 | 9.52 | 0.5 | 12.7 | ||
350 | 14 | 14 | 355.6 | 0.156 | 3.96 | 0.188 | 4.78 | 0.375 | 9.52 | 0.5 | 12.7 | ||
400 | 16 | 16 | 406.4 | 0.165 | 4.19 | 0.188 | 4.78 | 0.375 | 9.52 | 0.5 | 12.7 | ||
450 | 18 | 18 | 457 | 0.165 | 4.19 | 0.188 | 4.78 | 0.375 | 9.52 | 0.5 | 12.7 | ||
500 | 20 | 20 | 508 | 0.188 | 4.78 | 0.218 | 5.54 | 0.375 | 9.52 | 0.5 | 12.7 | ||
550 | 22 | 22 | 559 | 0.188 | 4.78 | 0.218 | 5.54 | ||||||
600 | 24 | 24 | 610 | 0.218 | 5.54 | 0.25 | 6.35 | 0.375 | 9.52 | 0.5 | 12.7 | ||
650 | 26 | 660 | |||||||||||
700 | 28 | 711 | |||||||||||
750 | 30 | 30 | 762 | 0.25 | 0.312 | ||||||||
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
304 | 1.4301 | S30400 | SUS304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
304L | 1.4306 | S30403 | SUS304L | 304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
316 | 1.4401/1.4436 | S31600 | SUS316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
316L | 1.4404 / 1.4435 | S31603 | SUS316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17-11-02 / Z3CND18-14-03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
316Ti | 1.4571 | S31635 | SUS316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
317 | 1.4449 | S31700 | SUS317 | - | - | - | - |
317L | 1.4438 | S31703 | SUS317L | - | - | - | X2CrNiMo18-15-4 |
321 | 1.4541 | S32100 | SUS321 | - | - | - | X6CrNiTi18-10 |
321H | 1.4878 | S32109 | SUS 321H | - | - | - | X12CrNiTi18-9 |
310 | 1.4841 | S31000 | SUS310 | 310S24 | 20Ch25N20S2 | X15CrNi25-20 | |
310S | 1.4845 | S31008 | SUS310S | 310S16 | 20Ch23N18 | - | X8CrNi25-21 |
347 | 1.4550 | S34700 | SUS347 | - | 08Ch18N12B | - | X6CrNiNb18-10 |
347H | 1.4961 | S34709 | SUS 347H | - | - | - | X6CrNiNb18-12 |
SMO 254 | 1.4547 | S31254 | - | - | - | Z1 CNDU 20.18.06Az | X1CrNiMoCuN20-18-7 |
AL-6XN | 1.4529 | N08367 | |||||
N08926 | X1NiCrMoCuN25-20-7 | ||||||
904L | 1.4539 | N08904 | SUS 890L | 904S13 | - | Z1 CNDU 20.18.06Az | X1NiCrMoCu25-20-5 |
Oil & Gas Industry
Stainless steel pipes are extensively used in upstream, midstream, and downstream oil and gas operations due to their superior resistance to corrosion, sulfides, chlorides, and high-pressure environments.
Typical Applications:
Pipeline transportation systems
Offshore platforms
Heat exchangers
Refinery processing units
Subsea equipment
Chemical & Petrochemical Processing
The excellent chemical resistance of stainless steel makes it ideal for handling aggressive media such as acids, alkalis, and corrosive gases.
Typical Applications:
Chemical reactors
Storage tanks
Process piping
Fertilizer plants
Acid transportation systems
Power Generation
Stainless steel pipes are commonly used in thermal, nuclear, and renewable energy plants where high temperature and pressure resistance are critical.
Typical Applications:
Boiler tubing
Superheaters and reheaters
Condensers
Steam pipelines
Heat recovery systems
Food & Beverage Industry
The hygienic properties and easy-cleaning surfaces of stainless steel pipes ensure contamination-free processing and transportation.
Typical Applications:
Dairy processing
Beverage production lines
Brewery systems
Food transportation pipelines
Sanitary fluid handling
Water Treatment & Desalination
Stainless steel pipes provide excellent resistance to rust and chloride corrosion, making them suitable for water-related infrastructure.
Typical Applications:
Seawater desalination plants
Municipal water systems
Wastewater treatment
Reverse osmosis systems
Construction & Structural Engineering
Architectural-grade stainless steel pipes offer attractive appearance, high strength, and long-term durability.
Typical Applications:
Handrails and balustrades
Structural frameworks
Decorative applications
Building facades
