A steel pipe can handle a single high-pressure event and survive. The real challenge is what happens when that loading repeats—thousands of times, millions of times, across decades of service. Each cycle leaves a mark at the microscopic level, and eventually those marks connect into a crack that ends the pipe's life without warning.
This is fatigue failure, and it is responsible for a disproportionate share of pipe system failures in industry.

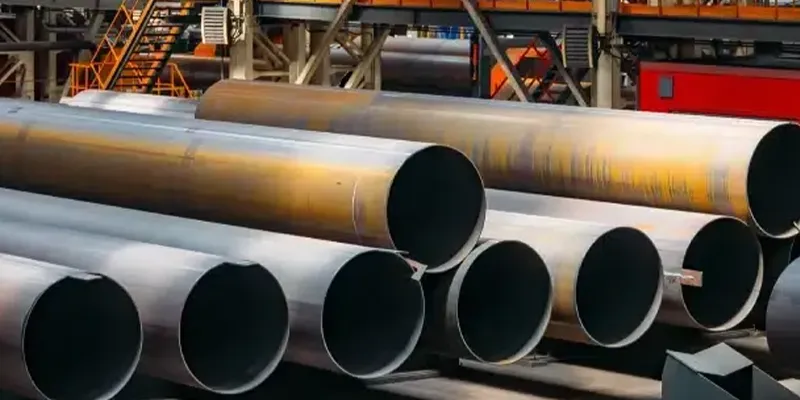

Repeated loading — also called cyclic loading — refers to any condition where a pipe experiences stress that rises and falls over time. The stress does not need to approach the material's yield strength to cause damage. In fact, most fatigue failures occur at stress levels well below what a static pressure test would flag as dangerous.
The four most common sources of cyclic stress in pipe systems are:
Pressure fluctuations: Process systems where pumps start and stop, compressors cycle, or valves open and close repeatedly impose pressure pulses on the pipe wall. Each pulse creates a tensile stress cycle.
Thermal cycling: Pipes that heat up and cool down thermally expand and contract. Where movement is constrained by supports, flanges, or fixed endpoints, this expansion becomes mechanical stress. A pipe that cycles through 200°C twice daily accumulates over 700 thermal stress cycles per year.
Mechanical vibration: Pump-induced vibration, flow-induced vibration from turbulent flow, and externally transmitted vibration all create high-frequency, low-amplitude stress cycles. These can accumulate millions of cycles per year.
Water hammer: Rapid valve closure or sudden pump shutdown creates a pressure wave that travels through the system. Each water hammer event is a high-amplitude impact stress cycle, often far exceeding normal operating pressure.
In a pipe system, these sources often act simultaneously. A pipe in a chemical plant might experience daily thermal cycling, continuous pump-induced vibration, and occasional water hammer events—each contributing to the total fatigue damage accumulation.
The following table presents the estimated service life of various types of steel pipes under different stress levels:
Table 1: Fatigue Life of Stainless Steel Pipes Under Different Stress Levels
Material Type | Stress Amplitude (MPa) | Average Stress (MPa) | Estimated Lifespan (Number of Cycles) | Applicable Environment |
304 Stainless Steel | 150 | 100 | 1×10⁶ | General Industrial Environment |
304 Stainless Steel | 200 | 100 | 3×10⁵ | General Industrial Environment |
304 Stainless Steel | 250 | 100 | 1×10⁵ | General Industrial Environment |
316 Stainless Steel | 150 | 100 | 2×10⁶ | Corrosive Environment |
316 Stainless Steel | 200 | 100 | 6×10⁵ | Corrosive Environment |
316 Stainless Steel | 250 | 100 | 2×10⁵ | Corrosive Environment |
2205 Duplex Stainless Steel | 180 | 100 | 5×10⁶ | Seawater Environment |
2205 Duplex Stainless Steel | 230 | 100 | 1×10⁶ | Seawater Environment |
2205 Duplex Stainless Steel | 280 | 100 | 3×10⁵ | Seawater Environment |
Table 2: Fatigue Life of Nickel Alloy Steel Tubes Under Different Stress Levels
Material Type | Stress Amplitude (MPa) | Average Stress (MPa) | Estimated Lifespan (Number of Cycles) | Applicable Environments |
Inconel 625 | 200 | 150 | 1×10⁷ | High-temperature environments (≤650°C) |
Inconel 625 | 250 | 150 | 2×10⁶ | High-temperature environments (≤650°C) |
Inconel 625 | 300 | 150 | 4×10⁵ | High-temperature environments (≤650°C) |
Hastelloy C276 | 180 | 120 | 8×10⁶ | Highly corrosive environments |
Hastelloy C276 | 230 | 120 | 1×10⁶ | Highly corrosive environments |
Hastelloy C276 | 280 | 120 | 3×10⁵ | Highly corrosive environments |
Monel 400 | 160 | 100 | 5×10⁶ | Seawater and chemical environments |
Monel 400 | 210 | 100 | 8×10⁵ | Seawater and chemical environments |
Monel 400 | 260 | 100 | 2×10⁵ | Seawater and chemical environments |
Table 3: Influence Coefficients of Different Loading Frequencies on Steel Pipe Lifespan
Load Frequency (Hz) | 304 Stainless Steel Correction Factor | 316 Stainless Steel Correction Factor | Nickel Alloy Correction Factor |
0.1 | 1.00 | 1.00 | 1.00 |
1.0 | 0.98 | 0.99 | 1.00 |
10.0 | 0.95 | 0.97 | 0.99 |
50.0 | 0.90 | 0.94 | 0.97 |
100.0 | 0.85 | 0.90 | 0.95 |
Note: The correction factor is used to multiply the life values in Tables 1 and 2.

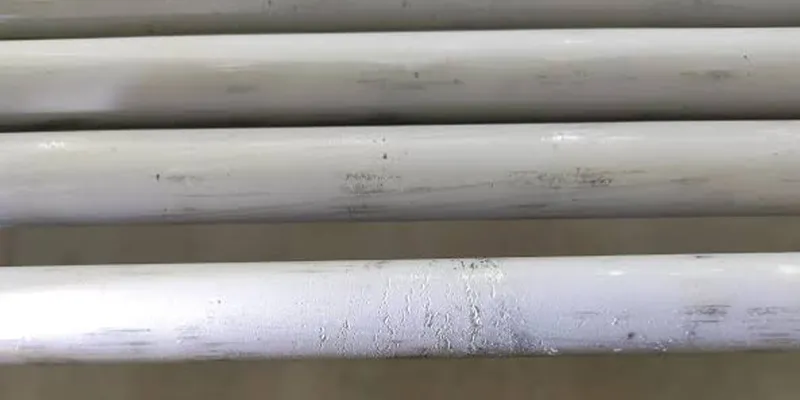

The service life of a steel pipe under repeated loading is commonly estimated using S-N curves, which relate stress amplitude (S) to the number of cycles to failure (N).
Here is an example of fatigue life estimates for commonly used materials in industrial piping under moderate cyclic loading:
Material | Stress Range (Δσ) [MPa] | Estimated Cycles to Failure | Approximate Service Life (Years) |
304 Stainless Steel | 200 | 1 × 10^6 | 5–7 |
304 Stainless Steel | 150 | 5 × 10^6 | 15–20 |
316 Stainless Steel | 200 | 1 × 10^6 | 6–8 |
316 Stainless Steel | 150 | 6 × 10^6 | 18–22 |
Alloy 625 (Nickel-based) | 250 | 2 × 10^6 | 10–12 |
Alloy 625 (Nickel-based) | 200 | 1 × 10^7 | 25+ |
Steel pipe service life under repeated loading depends on material selection, stress levels, environmental conditions, and maintenance practices.
For critical applications, always consult qualified engineers and follow applicable codes. Our manufacturing facility provides fatigue-rated pipes and fittings with full certification and technical support. We help customers select the right materials and designs to achieve maximum service life under repeated loading conditions.
