The Applications and Advantages of Inconel 625 Bars

What are the Benefits of Inconel 625 material?

Inconel 625 alloy consists of a solid solution alloy of nickel, chromium and molybdenum alloy with niobium added. When this combines with molybdenum it distorts the alloy’s atomic matrix, thus providing particularly high strength in the annealed condition without a deliberate strengthening heat treatment. This combination of elements creates superior resistance to a wide range of corrosive environments of unusual severity.



Alloy 625 is generally supplied in the annealed condition, to provide utmost stability during fabrication and subsequent service. Inconel 625 alloy has found to have a resistance to potable and salt or brackish water, where Chloride ions cause pitting and crevice corrosion to become established. As a result, pipelines for gathering sour gas have been built with solid (or clad) Inconel 625 alloy and used in seawater heat exchangers in refineries, power plants, and offshore topside services that often need this material. Additionally, the alloy's properties make it an excellent choice for sea-water applications, including freedom from local attack (pitting and crevice corrosion), high corrosion-fatigue strength, high tensile strength, and resistance to chloride-ion stress-corrosion cracking.



The outstanding and versatile corrosion resistance of Inconel 625 alloy under a wide range of temperatures and pressures is a primary reason for its wide acceptance in the chemical processing field. Because of its ease of fabrication, it is made into a variety of components for plant equipment. Inconel 625 provides resistance to stress corrosion cracking to chloride ions, making it a favourable choice for sea water applications. The alloy also provides commendable oxidation resistance, with its high strength a result of the stiffening combination of Molybdenum and Niobium on the alloy’s Nickel-Chromium base.

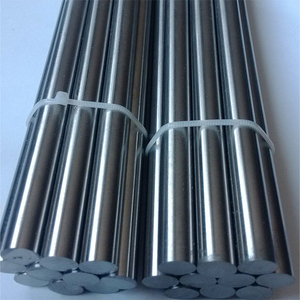

What are the Inconel 625 Bars?

JN Alloy is a one among the leading Inconel 625 round bar suppliers and Inconel 625 round bar manufacturers in the country. Inconel 625 round bars are oxidation and corrosion resistant materials that are a perfect fit for serving in extreme environments, depending on the heat and pressure. When being heated, round bars form a thick and stable oxide layer, protecting the surface from attack. They also retain strength over a huge temperature range, which proves to be attractive for high temperature applications. Inconel 625 bars are used in industries requiring super alloys that don’t oxidize or corrode and maintain their integrity across a full range of extreme temperatures. Thanks to Alloy 625 Bar's nickel base, reinforced with a columbium-tantalum alloy, molybdenum, niobium and chromium, Inconel 625 bars are available from JN Alloy in the following specifications:



Specifications	ASTM B446 / ASTM SB446
Dimensions	EN, DIN, JIS, ASTM, BS, ASME, AISI
Size	5 mm To 500 mm
Diameter	0.1 mm to 100 mm
Length	100 mm To 3000 mm Long & Above
Finish	Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Form	Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.



Inconel 625 Round Bars of high-quality and highly corrosion-resistant are supplied and stocked by JN Alloy. Our entire round bar inventory is available in random lengths or can be cut to specific lengths to meet your exact requirements. The ASTM B446 UNS N06625 Bars we supply includes a complete range of alloys that demonstrate high strength and high resistance to heat and corrosion in even the most extreme conditions.



Inconel 625 Round bars are most frequently used to make parts such as gears, shafts, axles, and flywheels for rotating machinery applications. Round Bars can also be engineered and used for manufacturing of seamless pipe and tubing used in oil drilling, military, and other applications. Inconel 625 Round bars conform to ASTM, UNS, ASME, UNS, ANSI, EN standards and specifications. Round Bar is available in a wide variety of sizes ranging from 10 mm to 125 mm. We supply ASTM B446 round bars with diameters between 0.5 mm to 500 mm. Inconel 625 Bar available in following forms Round Bar, Hex Bars, Flat Bar, Square Bar.



JN Alloy offers a comprehensive range of Inconel 625 Round Bar which is available in Alloy and Stainless Steel grades. We pride ourselves on supplying Round Bar products to suit your exact requirements. Our Round bars are finished according to, En, BS, ANSI, ASME specifications. The length of the round bar is 50 mm to 6000 mm long and it can be Single Random, Double Random and Cut Length. The characteristics of high resistance to thermal oxidation, corrosion resistance and high strength in our round bar meet the requirements for use in numerous applications within the aerospace, chemical processing, thermal processing, oil & gas, pharmaceutical and bio synthetic and motorsport industries.

This is yet another application for Inconel 625 bars, which is a versatile material. This nickel alloy is commonly used in high-performance automobiles and supercars for exhaust couplings, for example. Ignition systems, sensors, safety devices, and electrical switchgear all use Inconel 625 bars.

Marine industry:

In such severe circumstances, Inconel 625 bars work admirably. Wire rope, propeller blades, propulsion motors, and sheathing for undersea communication cables, for example, all use Inconel 625 Bars.

Aerospace Industry:

Inconel 625 Round bars is particularly used for exhaust equipment, fuel lines, heat exchanger casings, and rocket components, have also found their way into the aircraft industry. This is because, even in severe temperatures under high stress, Inconel 625 performs well. Inside aerospace, there are many possible applications for this technical alloy, including aircraft ducting systems and jet engines. Thanks to its flexibility, the actual list of applications is quite lengthy. Thanks to its high-temperature resistance, magnetic properties and corrosion resistance, nickel alloys are chosen around the board. They are also some of the hardest materials available commercially.



Benefits of Inconel 625 Round bars

Strength can be measured using tensile strength, corrosion resistance, and even melt resistance. Inconel 625 bars have a tensile strength range of 103-160 Ksi, which is higher than the 73.2 Ksi of stainless steel and can withstand higher temperatures. Inconel 625 bars are a superalloy because of their corrosion resistance and suitability for intense pressure and heat situations.



The main advantage of using Inconel 625 Round bars is their ability to withstand extremely high temperatures without becoming brittle or cracking under pressure. Power plants or petrochemical facilities find them perfect for changing temperature conditions. Additionally, they offer superior corrosion resistance compared to other metals used in an industrial setting. Which helps ensure maximum durability over time, even when exposed to harsh environmental factors like saltwater or acid rain.



Using these bars machined into custom shapes upon request to easy for many manufacturing projects. They can easily cut down into smaller pieces. Moreover, Inconel 625 Bars are highly durable, allowing them to stand up to the wear and tear of daily use without showing signs of deterioration. They come in various shapes and sizes, so you can find one that fits your requirements without any problems.
