For most seawater piping, select alloys by PREN and flow velocity, not cost. Super duplex stainless steel UNS S32750 is the industry-standard choice for critical seawater mains and firewater systems. 90/10 copper-nickel remains preferred for low-velocity cooling and ballast piping due to its natural biofouling resistance. Titanium Grade 2 and Hastelloy C276 are reserved for extreme-duty service — high velocity, high temperature, or sour conditions. But 316/316L stainless steel is not suitable for continuous seawater immersion.
For most seawater piping systems, super duplex stainless steel UNS S32750 or 90/10 copper-nickel is the best chiose.
Seawater is one of the most aggressive service environments a piping system will encounter. It combines high chloride concentration, dissolved oxygen, variable temperature, biofouling organisms, and — in stagnant zones — sulfate-reducing bacteria that drive microbiologically influenced corrosion. A material that performs well in freshwater or mildly corrosive process fluids can fail within months in continuous seawater service.
This guide compares the alloys most commonly specified for seawater piping — austenitic stainless steel, duplex and super duplex stainless steel, copper-nickel, titanium, and high-performance nickel alloys.

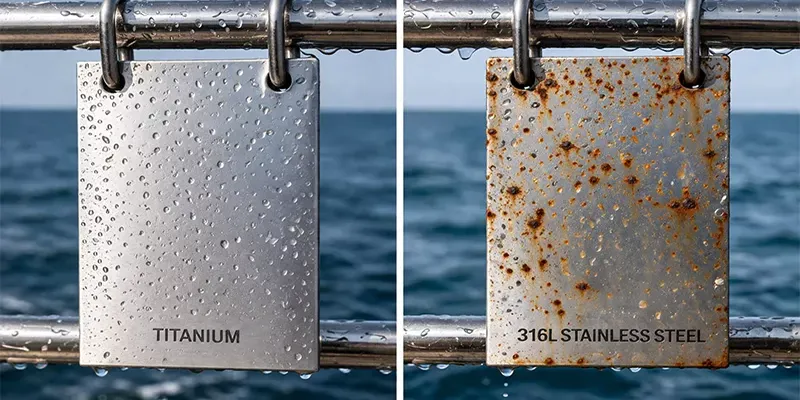

316L fails in seawater mainly through pitting and crevice corrosion under stagnant or low-flow chloride exposure because its PREN of approximately 24 falls well below the PREN 40 threshold generally required for reliable continuous seawater immersion.
316L's corrosion resistance depends on a thin, self-healing chromium oxide passive film. In chloride-rich seawater, chloride ions locally break down this film faster than it can reform, initiating pits at surface defects, inclusions, and weld heat-affected zones. Once a pit forms, the local environment inside it becomes more acidic and chloride-concentrated, accelerating attack—a self-propagating mechanism.
The problem is worse at crevices: gaskets, flange faces, and marine growth underneath create oxygen-depleted pockets where the passive film cannot regenerate at all. Biofouling compounds this, since barnacles and biofilm create additional crevice sites and can locally elevate the corrosion potential of the steel through microbial activity.
In conclusion:
•Pitting typically initiates within weeks to months in stagnant or low-velocity seawater.
•Crevice corrosion is the dominant failure mode at flanged and gasketed joints.
•316L may perform acceptably in short-term, well-flushed, or intermittent freshwater-adjacent service, but is not recommended for continuous seawater immersion.

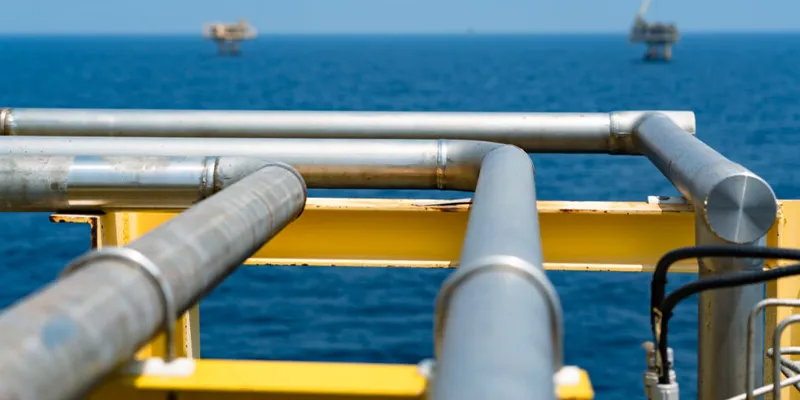

For most critical seawater piping applications, yes. Super duplex 2507 combines a PREN of 42–45 with roughly triple the yield strength of 316L, allowing thinner-wall, lighter piping while meeting NORSOK M-630 seawater material requirements.
Duplex and super duplex grades have roughly equal parts austenite and ferrite and are enriched with chromium, molybdenum, and nitrogen. This combination raises the critical pitting temperature (CPT) and critical crevice temperature (CCT) well above the highest seawater temperatures typically encountered in service, while also improving resistance to chloride stress corrosion cracking (SCC), a failure mode that can affect austenitic grades even when pitting is not the dominant concern.
The higher yield strength allows thinner wall thickness for the same pressure rating, which partially offsets the higher per-kilogram material cost. So, super duplex is widely specified for offshore firewater systems, seawater lift caissons, and seawater cooling.
In conclusion:
•Requires controlled welding heat input to maintain the austenite/ferrite phase balance and avoid intermetallic phase precipitation.
•Typically specified per ASTM A790 (seamless) or A928 (welded) pipe standards.
•Standard duplex 2205 (PREN ~35) is an economical alternative for moderate-chloride or splash-zone applications where full super duplex performance is not required.
90/10 copper-nickel (UNS C70600) is the preferred choice for seawater cooling and ballast piping at low-to-moderate velocities (below roughly 3–4 m/s), due to its natural biofouling resistance and decades of proven service history in shipbuilding and coastal power plants.
Unlike stainless steels, copper-nickel alloys resist seawater corrosion by forming a protective cuprous oxide film rather than a chromium oxide passive layer. This film also releases trace copper ions that inhibit the settlement of barnacles and other marine organisms, meaningfully reducing biofouling-related flow restriction and crevice corrosion compared to stainless piping.
Copper-nickel has lower yield strength than duplex stainless steel and is more susceptible to erosion-corrosion at high flow velocities or in turbulent zones (elbows, tees, pump discharges), where the protective film can be mechanically stripped faster than it regenerates. 70/30 copper-nickel (UNS C71500) offers a higher velocity tolerance than 90/10 at added cost and is often used at pump discharges and higher-velocity condenser piping.
In conclusion:
•90/10 (C70600): typical velocity limit ~3–4 m/s; most common cooling/ballast piping alloy in shipbuilding.
•70/30 (C71500): typical velocity limit ~4–6 m/s; used where higher flow rates are unavoidable.
•Sulfide contamination in polluted harbor water can disrupt the protective film—pre-filming or dosing procedures are sometimes used to mitigate this in sensitive intakes.
Titanium Grade 2 is the right choice where seawater piping faces extreme velocity or elevated temperature or where near-absolute corrosion immunity is required regardless of upfront material cost—most commonly in desalination plants, power plant condensers, and high-specification offshore systems.
Titanium forms an exceptionally stable, tenacious oxide film that is essentially immune to seawater pitting, crevice corrosion, and erosion-corrosion at any practical flow velocity, and it resists chloride stress corrosion cracking that can affect some stainless grades under specific conditions. This performance makes it the default choice for the most demanding seawater duty, including hot seawater above the temperature range where duplex grades remain reliable.
The limiting factor is cost: titanium pipe typically costs five to eight times as much as super duplex stainless steel, and it requires specialized welding procedures to avoid embrittlement from atmospheric contamination. Because of this, titanium is generally reserved for applications where failure consequences or maintenance access is severe enough to justify the premium—condenser tubing and piping being the most common example.
•Typically specified per ASTM B265 (plate/sheet) or B861 (seamless pipe).
•No practical seawater velocity limit for corrosion — mechanical/hydraulic design governs instead.
•Galvanic compatibility with adjacent alloys should be checked, as titanium is strongly cathodic relative to steel.
Hastelloy C276 and comparable high-nickel alloys (PREN often above 60) are reserved for the most severe combined-exposure seawater service—such as sour seawater injection or subsea chemical injection lines.
High-nickel alloys derive exceptional resistance from very high molybdenum and chromium content combined with a nickel matrix that is far more resistant to chloride-induced stress corrosion cracking than iron-based alloys. This makes them the standard choice where seawater exposure is combined with additional aggressive factors—dissolved H₂S in sour produced-water reinjection systems, elevated temperature, or low pH from chemical treatment.
Given their cost — typically six to ten times that of super duplex — nickel alloys are rarely specified for general seawater piping runs. They are targeted at specific high-risk components: injection wellheads, valve trim, instrumentation piping, and short critical spool sections rather than entire cooling water systems.

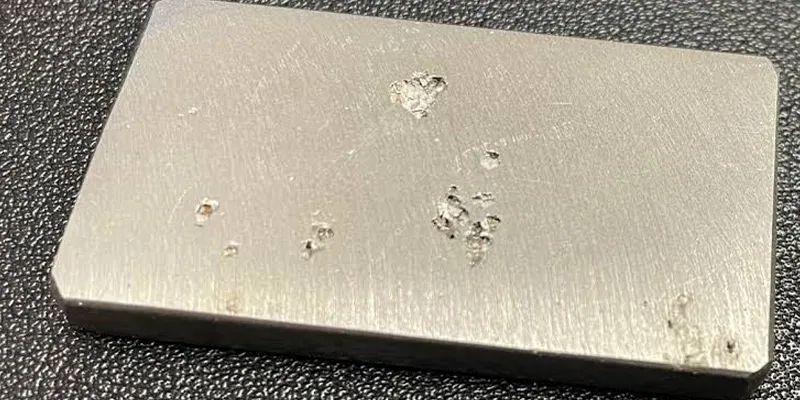

PREN is a composition-based screening index—PREN = %Cr + 3.3×(%Mo + 0.5×%W) + 16×%N.
A minimum PREN of 40 is a widely used industry guideline for continuous seawater immersion, though it should be confirmed with critical pitting/crevice temperature testing per ASTM G48 rather than relied on alone.
PREN gives engineers a fast way to rank stainless and nickel alloys by relative pitting resistance using standard mill certificate data, without requiring physical testing at the screening stage. It correlates well with real-world seawater pitting performance across a wide range of alloys, which is why PREN 40 has become a common minimum specification threshold for critical seawater piping.
PREN has limits: it does not directly predict crevice corrosion resistance, does not account for welding effects on local composition, and does not apply to copper-based or titanium alloys, which rely on entirely different protective mechanisms. For that reason, PREN screening is normally paired with critical pitting temperature (CPT) and critical crevice temperature (CCT) data from ASTM G48 testing before final material selection on critical projects.
The table below summarizes the alloys covered in this guide, structured for quick side-by-side comparison of corrosion resistance, strength, and typical application.
Alloy | UNS No. | PREN | Typ. Yield (ksi) | Relative Cost | Max Recommended Velocity | Typical Seawater Use |
316L Stainless Steel | S31603 | ~24 | 30–35 | 1.0x (baseline) | Not recommended for continuous immersion | Dry/intermittent service, low-chloride freshwater only |
2205 Duplex | S32205 | ~35 | 65 | 1.6–1.9x | ~3–4 m/s | Moderate-chloride seawater, splash zone piping |
2507 Super Duplex | S32750 | 42–45 | 95 | 2.3–2.8x | ~4–7 m/s | Firewater, seawater lift, cooling water mains |
90/10 Copper-Nickel | C70600 | N/A (Cu-based) | 18–20 | 1.2–1.5x | ~3–4 m/s | Seawater cooling, ballast, low-velocity piping |
70/30 Copper-Nickel | C71500 | N/A (Cu-based) | 22–25 | 1.7–2.0x | ~4–6 m/s | Higher-velocity cooling water, condenser piping |
Titanium Grade 2 | R50400 | Immune | 40 | 5–8x | No practical limit | Desalination, condensers, extreme-duty piping |
Hastelloy C276 | N10276 | ~63–68 | 41–46 | 6–10x | High-velocity / sour service | Sour seawater injection, chemical injection lines |
PREN values are representative for the nominal alloy composition; actual mill-certified PREN varies within specification ranges. Copper-nickel and titanium are evaluated by film-forming mechanism rather than PREN.
NORSOK M-001 and M-630, ASTM A790/A928 for duplex pipe, ASTM B111/B466 for copper-nickel, NACE MR0175/ISO 15156 for sour service, and ASTM G48 for pitting/crevice testing form the core standards framework referenced in most seawater piping specifications.
Project specifications for seawater piping typically reference a combination of material standards, test standards, and service-specific standards.
The table below summarizes the standards most frequently cited in seawater piping specifications.
Standard | Scope |
NORSOK M-001 | Material selection philosophy for offshore piping systems, including seawater service classification |
NORSOK M-630 | Material data sheets for pipes, fittings, and valves, including super duplex requirements |
ASTM A790 / A928 | Seamless and welded duplex/super duplex stainless steel pipe |
ASTM B111 / B466 | Copper-nickel seamless tube and welded pipe for seawater service |
ASTM G48 | Standard test methods for pitting and crevice corrosion resistance (used to derive CPT/CCT) |
NACE MR0175 / ISO 15156 | Material qualification for sour (H₂S-containing) service, relevant to seawater injection systems |
ASTM B265 / B861 | Titanium and titanium alloy sheet, strip, plate, and seamless pipe |
Q: Can copper-nickel and stainless steel piping be connected in the same seawater system?
A: They can, but galvanic compatibility must be checked. Copper-nickel and stainless steel are reasonably close in the galvanic series, so direct coupling is common practice, but isolation flanges or dielectric fittings are still recommended at transitions to limit galvanic current in stagnant or low-flow conditions.
Q: What flow velocity limit applies to copper-nickel seawater piping?
A: 90/10 copper-nickel is typically limited to roughly 3–4 m/s and 70/30 copper-nickel to roughly 4–6 m/s, above which erosion-corrosion risk increases significantly, particularly at elbows, tees, and pump discharge piping where turbulence is highest.
Q: Is 316L stainless steel ever acceptable for seawater-related service?
A: 316L can be acceptable for short-term, intermittent, or well-flushed exposure, or where seawater is diluted or filtered, but it is not recommended for continuous immersion piping, where pitting and crevice corrosion typically progress within weeks to months.
Q: What is the practical difference between duplex 2205 and super duplex 2507?
A: 2205 (PREN ~35) is suitable for moderate-chloride or splash-zone service at lower cost, while 2507 (PREN 42–45) is specified for critical, continuously immersed seawater piping where maximum pitting and crevice resistance are required, such as firewater and seawater lift systems.
Q: Is titanium piping worth the added cost compared to super duplex?
A: Titanium is generally justified only where corrosion consequences are severe, maintenance access is difficult, or velocity/temperature exceeds duplex limits—desalination and condenser applications are the most common cases. For general seawater piping runs, super duplex typically offers a better cost-to-performance balance.
Q: How does biofouling influence seawater alloy selection?
A: Biofouling creates additional crevice sites that accelerate localized corrosion on stainless steels, which is one reason copper-nickel—whose surface naturally inhibits marine growth—remains popular for cooling water systems. Stainless and duplex systems typically rely on adequate flow velocity and cleaning regimes to manage biofouling instead.
