The order spans two different product families. Everything from DN 80 upward is a wrought butt welding fitting made to ASTM A815 in class WP-W, schedule 40S, dimensioned to ASME B16.9. The small bore DN 25 elbows are forged socket weld fittings in ASTM A182 Gr.F53, Class 3000, to ASME B16.11.
Saudi Arabia is one of the few places on earth where the choice of super duplex over ordinary stainless steel is not a preference but a requirement. Arabian Gulf seawater carries 41,000 to 45,000 mg/L of total dissolved solids and roughly 24,900 mg/L of chloride, at summer temperatures that reach 36.8 C. That combination defeats 316L and leaves standard 2205 with little margin. It is exactly the duty that S32750 was designed for.
Quick Reference: 84 PCS UNS S32750 fitting order to Saudi Arabia
| Item | Value |
|---|---|
| Order size | 8 line items, 84 PCS stated in headline (line-item quantities total 98 PCS - see Data Note) |
| Material | UNS S32750 super duplex stainless steel (EN 1.4410, commonly 2507) |
| Fitting types | 45 deg elbows, 90 deg elbows, end caps |
| Sizes | DN 25 to DN 450 (see order record table) |
| Butt weld spec | ASTM A815 UNS S32750, class WP-W, SCH 40S, ASME B16.9 |
| Forged socket weld spec | ASTM A182 Gr.F53, Class 3000, ASME B16.11 |
| Solution anneal | 1025-1125 C (1880-2060 F), water quench or rapid cool |
| Min yield strength | 550 MPa (80 ksi) |
| Min tensile strength | 800 MPa (116 ksi) |
| Min elongation | 15 percent |
| Max hardness (ASTM A815) | 310 HBW (approx 32 HRC) |
| Max hardness (sour service) | 28 HRC (approx 272 HBW) - stricter than the ASTM limit |
| PREN (Cr + 3.3Mo + 16N) | 41-43 typical; 40 is the super duplex threshold |
| Arabian Gulf TDS | 41,000-45,000 mg/L vs 25,000-35,000 mg/L open ocean |
| Arabian Gulf chloride | approx 24,900 mg/L - 1.6 to 2x Mediterranean or Atlantic seawater |
| Gulf seawater temperature | 30.6-36.8 C summer, 11-22 C winter |
| Aramco standard corrosion allowance | 3.2 mm; maximum 6.4 mm with specific approval |
| Recommended filler metal | ER2594 (AWS A5.9), over-alloyed in nickel |
| Welding heat input | 0.5-2.5 kJ/mm, interpass 150 C maximum |

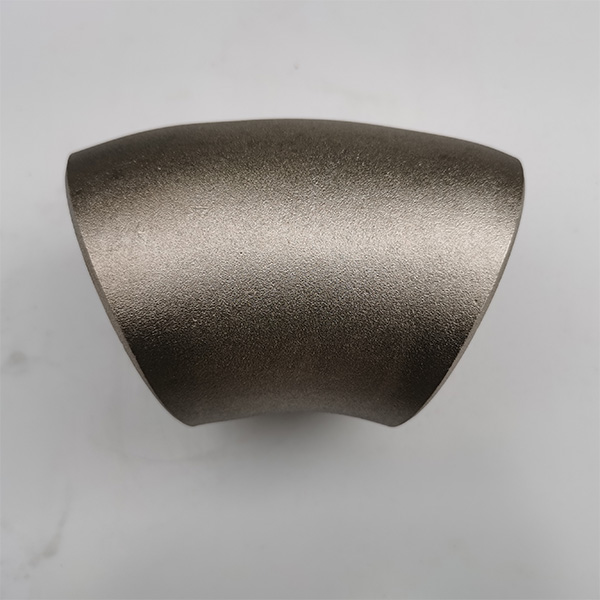

UNS S32750 Elbow 90 Deg

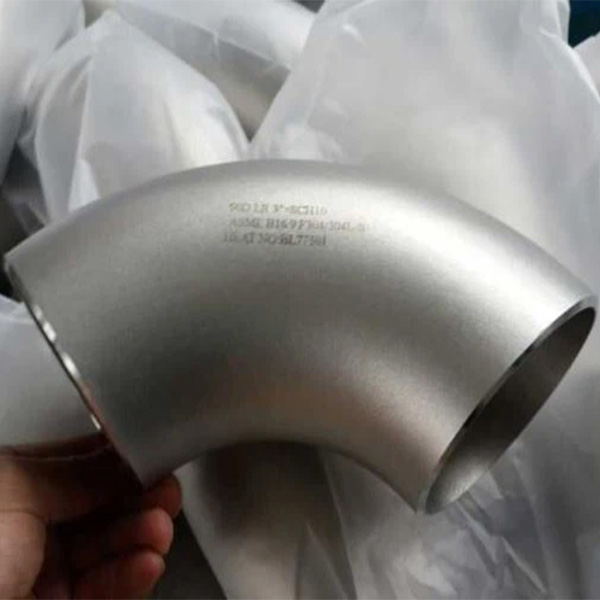

UNS S32750 Elbow 45 Deg
UNS S32750 End Cap
Eight line items covering 45 degree elbows, 90 degree elbows and end caps, in DN sizes from 25 to 450, manufactured from UNS S32750 super duplex stainless steel.
The customer enquiry arrived on 29 April 2025 and covered three fitting families: 45 degree elbows, 90 degree elbows and end caps. The table below is the original order record, reproduced unchanged.
Original order record - reproduced unchanged. "UNS 32750" appears in the source purchase order text and has been preserved as written.
SPECIFICATION | DESCRIPTION | SIZE | QTY |
Elbow 45 Deg | ELBOW 45, A815,UNS 32750,WELDED (WP-W), 1.5D,BW ENDS, SCH 40S, ASME B16.9 | 80 | 22 |
Elbow 90 Deg | ELBOW 90, A182 Gr.F53, 3000#, SOCKET WELD, ASME B16.11 | 25 | 24 |
Elbow 90 Deg | ELBOW 90, A815,UNS 32750,WELDED (WP-W), 1.5D,BW ENDS, SCH 40S, ASME B16.9 | 300 | 16 |
Elbow 90 Deg | ELBOW 90, A815,UNS 32750,WELDED (WP-W), 1.5D,BW ENDS, SCH 40S, ASME B16.9 | 350 | 12 |
Elbow 90 Deg | ELBOW 90, A815,UNS 32750,WELDED (WP-W), 1.5D,BW ENDS, SCH 40S, ASME B16.9 | 450 | 2 |
End Cap | END CAP, A815,UNS 32750, WELDED (WP-W), BW ENDS, SCH 40S, ASME B16.9 | 250 | 12 |
End Cap | END CAP, A815,UNS 32750, WELDED (WP-W), BW ENDS, SCH 40S, ASME B16.9 | 350 | 6 |
End Cap | END CAP, A815,UNS 32750, WELDED (WP-W), BW ENDS, SCH 40S, ASME B16.9 | 450 | 4 |
Reading the record, the mix is deliberate. Six of the eight lines are wrought butt weld fittings to ASTM A815 with schedule 40S walls, covering DN 80 through DN 450. One line - the DN 25 90 degree elbow at 24 pieces - is a forged socket weld fitting to ASTM A182 Gr.F53 Class 3000. The two families meet different pressure and installation needs, and both are routine on a single project.
Because small bore and large bore piping are engineered to different rules. Forged socket weld fittings win on small bore; wrought butt weld fittings win everywhere else.
Socket weld fittings are compact, need no end bevel, and are quick to fit up. Their limitation is the annular gap left between pipe end and socket shoulder, which is a ready-made crevice. In chloride service that crevice is a corrosion risk, so socket weld construction is normally restricted to small bore where inspection and replacement are easy.
Butt weld fittings are welded end to end with a full penetration groove weld, so there is no crevice and the bore stays smooth. At DN 80 and above, and in any line where erosion, pigging or high velocity matter, butt weld is the default. The 1.5D bend radius specified on this order also matters here: a long radius sweep loses far less energy and erodes far less than a short radius turn.
Butt weld versus socket weld fittings in chloride service
| Attribute | Butt weld (ASME B16.9) | Socket weld (ASME B16.11) |
|---|---|---|
| Typical size range | NPS 1/2 to 48 (DN 15 to 1200) | NPS 1/8 to 4 (DN 6 to 100) |
| Wall or rating basis | Matches connected pipe schedule, e.g. SCH 40S | Pressure class 3000, 6000, 9000 |
| Material spec in this order | ASTM A815 UNS S32750 | ASTM A182 Gr.F53 |
| Crevice risk | None after full penetration weld | Annular gap at socket shoulder is a crevice |
| Bore smoothness | Continuous, smooth | Step at the socket shoulder |
| Erosion resistance | Excellent, especially at 1.5D | Moderate, flow disturbance at shoulder |
| Radiography | Weld examined to the specified A815 class | Surface examination typically sufficient |
| Best use case | Process, utility, seawater, large bore | Small bore instrument, drain, vent, utility |
A practical note on the Class 3000 rating. In the bore range covered by ASME B16.11, a Class 3000 socket weld fitting is commonly matched to schedule 80 pipe, which is what the original enquiry meant when it tied the 3000# elbows to Sch 80. That is a pressure class comparison, not a claim that the fitting wall equals a Sch 80 pipe wall.
For a deeper walk through of fitting selection, see knowledge about pipe fittings and how to choose a stainless steel elbow.
WP-W is a construction and examination class, not a chemistry grade. It means the fitting contains welds and the fabrication or construction welds have been radiographed.
This is the single most misunderstood line on a duplex fitting requisition. Buyers read WP-W as a grade, next to WP-S or WP-WX, and assume they are comparing alloys. They are not. The alloy is fixed by the UNS number - S32750 here. The WP prefix tells you how the fitting was made and how much of it was examined.
ASTM A815 / A815M class designations explained
| Class | What it means | Typical construction | Where it is used |
|---|---|---|---|
| WP-S | Seamless, no fabrication welds | Formed from seamless pipe or bar | Small to medium bore, high integrity |
| WP-W | Contains welds; fabrication or construction welds radiographed | Formed from plate or blanks | Standard pressure piping - used in this order |
| WP-WX | Contains welds; all welds radiographed | Formed from plate or blanks | Higher integrity or critical service |
| WP-WU | Contains welds; all welds ultrasonically tested | Formed from plate or blanks | Where UT is the specified NDE route |
| CR | Fittings made to MSS SP-43 requirements | Light wall, corrosion resistant service | Low pressure corrosive duty |
The practical difference between WP-W and WP-WX is examination coverage. WP-W requires the fabrication welds to be radiographed; WP-WX requires every weld to be radiographed. On a plate-formed elbow there may be only one longitudinal seam, so the gap can be small - but on a large diameter fitting or a segmented bend the difference is real.
For this order the customer specified WP-W, which is the correct and economical choice for general pressure piping. If the service were subsea, sour at high H2S partial pressure, or subject to severe cyclic loading, WP-WX or WP-S would be worth the premium.
More on the alloy itself is in All About of Super Duplex UNS S32750 Material and What Is Super Duplex Stainless Steel S32750.
ASME B16.9 governs the dimensions and tolerances of the butt weld elbows and caps; ASME B16.11 governs the forged socket weld elbow. They are separate standards with separate tolerance regimes.
Both standards are about geometry, not material. They tell the manufacturer what the center-to-end dimension of a 90 degree elbow must be, how far out of round it may be, what the end bevel angle must be, and how much the wall thickness may vary from nominal.
Dimensional control on this order
| Check | Governing standard | Practical consequence |
|---|---|---|
| Center-to-end dimension | ASME B16.9 (BW) / B16.11 (SW) | Fit-up without field trimming or stretching the line |
| Outside diameter and roundness | ASME B16.9 | Alignment for welding; mismatch causes root defects |
| Wall thickness tolerance | ASME B16.9 | Pressure integrity; minimum wall must survive at the extrados |
| End bevel angle and root face | ASME B16.9 | Full penetration groove weld without burn-through |
| Socket bore and depth | ASME B16.11 | Correct expansion gap; too deep a socket creates a bigger crevice |
| Class 3000 body dimensions | ASME B16.11 | Pressure rating matches the connected Sch 80 pipe |
On this order every fitting was dimensionally verified against the applicable standard before release. For the socket weld elbows that additionally included 100 percent penetrant testing of the inner bore and socket surface, because that surface is where a forging lap or a machining tear would sit.
SCH 40S is the stainless 40S wall schedule for the connected pipe, and the fitting wall is matched to it. A Class 3000 socket weld fitting is pressure-matched to roughly schedule 80 pipe in the small bore range - a rating comparison, not a wall thickness equality.
The S suffix marks the stainless steel schedule system under ASME B36.19, which differs from the carbon steel schedules in ASME B36.10. SCH 40S is the workhorse wall for corrosion resistant alloy process and utility piping and is what the DN 80 through DN 450 fittings on this order were built to.
Matching matters for two reasons. First, pressure: if a fitting wall is thinner than the pipe, the fitting becomes the weak point. Second, flow: if the fitting bore does not line up with the pipe bore, the resulting step creates turbulence, and turbulence plus entrained sand is how elbows erode.
Because it is shallow, semi-enclosed, extremely hot and extremely salty. Gulf water carries roughly 1.6 to 2 times the chloride of Atlantic or Mediterranean seawater and reaches 36.8 C in summer.
The Gulf is a shallow basin with an average depth of about 35 m and a single narrow exchange at the Strait of Hormuz. Evaporation runs at 1.4 to 2.1 metres per year while precipitation is 0.07 to 0.1 metres per year. The water that stays behind gets more concentrated every season, and there is no river input on the Saudi side to dilute it.
The result is water that is chemically hostile to stainless steel. Total dissolved solids sit at 41,000 to 45,000 mg/L against an open ocean range of 25,000 to 35,000 mg/L. Chloride measures about 24,900 mg/L. Summer sea surface temperature reaches 36.8 C along the Saudi coast, with winter lows around 11 C. Salinity runs 40.4 to 42.7 parts per thousand offshore and can exceed 70 parts per thousand in shallow coastal pockets, against an open ocean average of about 35.
Arabian Gulf seawater versus open ocean average
| Parameter | Arabian Gulf (Saudi coast) | Open ocean average | Why it matters for piping |
|---|---|---|---|
| Total dissolved solids | 41,000 to 45,000 mg/L | 25,000 to 35,000 mg/L | Higher conductivity accelerates electrochemical corrosion |
| Chloride concentration | about 24,900 mg/L | about 19,000 mg/L | Chloride drives pitting and chloride stress corrosion cracking |
| Salinity | 40.4 to 42.7 ppt; up to 70 ppt in shallow coastal pockets | about 35 ppt | Raises chloride activity at the metal surface |
| Summer temperature | 30.6 to 36.8 C | typically 20 to 25 C at comparable latitude | Moves service closer to the alloy critical pitting temperature |
| Winter temperature | 11 to 22 C | variable | Warm year round, so no seasonal corrosion relief |
| pH | 8.1 to 8.2 | about 8.1 | Stable and alkaline; not itself aggressive |
| Total hardness | about 7,900 mg/L | far lower | Drives scaling, which creates under-deposit cells |
| Turbidity and biology | high, with seasonal algal blooms | low | Raises microbiologically influenced corrosion risk |
| Evaporation rate | 1.4 to 2.1 m per year | not applicable | Concentrates salts in coastal soil and sabkha |
Two consequences follow directly. First, an alloy that survives North Sea or Mediterranean seawater may pit in the Gulf, because temperature and chloride are both higher. Second, corrosion allowance alone does not solve it - pitting is local, and adding wall thickness does not stop a pit from penetrating. This is why Saudi operators reach for corrosion resistant alloys rather than thicker carbon steel.
For a dedicated treatment of this duty, see Super Duplex S32750 for Seawater Desalination.
Eight mechanisms matter in practice: chloride pitting, crevice corrosion, chloride stress corrosion cracking, microbiologically influenced corrosion, sour cracking, CO2 corrosion, erosion-corrosion, and under-deposit attack from scaling.
Most of these are chloride-driven, which is why one alloy choice addresses several of them at once. But they do not all respond the same way, and knowing which mechanism is dominant is what separates a correct specification from an expensive mistake.
Corrosion mechanisms in Saudi and Gulf service, and how S32750 responds
| Mechanism | Driver in Saudi service | Where it attacks | Response of S32750 |
|---|---|---|---|
| Chloride pitting | 24,900 mg/L chloride at 30 to 37 C | Stagnant zones, weld heat affected zone, under deposits | PREN 41 to 43 gives a wide margin |
| Crevice corrosion | Flange faces, gasket grooves, socket gaps | Any shielded geometry | High PREN and molybdenum help; design still matters |
| Chloride stress corrosion cracking | Warm chloride plus tensile stress above about 50 to 60 C | Heat affected zone, cold worked bends | Ferrite phase resists it; austenitic stainless does not |
| Microbiologically influenced corrosion | Warm, turbid, high biology Gulf water | Under deposits, low flow and dead legs | Material is resistant; cleaning and chlorination still required |
| Sour cracking (SSC and SOHIC) | H2S in Khuff and Arab-D reservoirs | Hard zones and weld heat affected zones | Acceptable only inside the ISO 15156-3 envelope at 28 HRC maximum |
| CO2 or sweet corrosion | Dissolved CO2 in produced gas and water | General and localized wall loss | Corrosion resistant alloy is effectively immune |
| Erosion-corrosion | Entrained sand and high velocity | Elbows and direction changes - exactly this order | 550 MPa yield plus a smooth 1.5D bore helps |
| Under-deposit attack | 7,900 mg/L hardness drives scale | Heat transfer and low velocity surfaces | Not a metallurgy problem; chemical treatment and cleaning |
The erosion line is worth dwelling on, because it is the reason this order is full of elbows and caps rather than straight pipe. Every direction change is a place where entrained sand strikes the wall. A 1.5D long radius elbow spreads that impact over a longer arc than a short radius one, and a harder, higher yield material resists the damage that does occur.
SAES-L-133 is the central document for corrosion protection, supported by SAES-L-100, SAES-L-105, SAES-L-310, SAES-L-410, the 01-SAMSS-046 material specification, and the SAES-W welding series.
Saudi Aramco runs one of the most detailed piping standard systems in the energy industry. For a supplier, the practical effect is that a material requisition is never just an ASTM number - it is an ASTM number plus a set of supplementary requirements that trace back to these documents.
Saudi Aramco standards relevant to a super duplex piping package
| Document | Scope | Relevance to S32750 fittings |
|---|---|---|
| SAES-L-100 | General requirements for piping | Fixes the governing ASME B31 code plus Aramco modifications |
| SAES-L-105 | Piping material specifications | Material selection by service: hydrocarbon, water, utility, sour |
| SAES-L-132 | Referenced by SAES-L-133 for services not otherwise covered | Corrosive service material selection route |
| SAES-L-133 | Corrosion protection requirements for pipelines, piping and process equipment | Sets 3.2 mm standard corrosion allowance, 6.4 mm maximum; lists corrosion resistant alloys as a control measure |
| SAES-L-310 | Design of plant piping | On-plot piping layout, flexibility, supports and testing |
| SAES-L-410 | Design of pipelines | Cross-country and trunkline design |
| 01-SAMSS-046 | Austenitic and duplex stainless steel pipe for on-plot piping | The procurement specification duplex pipe must meet |
| SAES-W series | Welding requirements | Dissimilar metal weld restrictions, especially in sour service |
| SAES-H-001 / H-002 | Coatings | External corrosion control |
| SAES-X-300 to X-700 | Cathodic protection | Protection of buried and submerged systems |
| SAES-A-205 | Chemical and inhibitor selection | Corrosion inhibitor and biocide programme |
| SAEP-302 | Deviation process | Formal route for any waiver from the above |
One caution for specifiers: secondary sources sometimes attribute a specific PREN threshold to SAES-L-133. The published text of SAES-L-133 sets corrosion allowance and lists control measures; the numerical alloy acceptance limits live in the material specifications and in ISO 15156-3. Confirm the current issue before relying on any quoted number.
It sets a 3.2 mm standard corrosion allowance with a 6.4 mm ceiling, and it explicitly lists corrosion resistant alloys as an acceptable control measure, with duplex pipe procured to 01-SAMSS-046.
The standard corrosion allowance is 3.2 mm. If a higher allowance is calculated, the line must be flagged for additional on-stream inspection coverage. The maximum is 6.4 mm and that needs specific Saudi Aramco approval. If the calculated requirement exceeds 6.4 mm, the standard directs you to evaluate alternative measures.
That last point is the important one for material selection. Corrosion allowance is a carbon steel strategy - it buys time against uniform loss. It is explicitly noted as often ineffective against localized attack such as pitting. Once pitting or chloride cracking is the governing mechanism, the route shifts from thicker steel to a corrosion resistant alloy, which is precisely where super duplex sits on the cost ladder.
SAES-L-133 then points duplex procurement at 01-SAMSS-046 for on-plot piping. In practice that means the mill certificate, heat treatment record and supplementary testing are not optional extras - they are the acceptance package.
Because it combines a PREN above 41 with a 550 MPa minimum yield strength, so it resists Gulf chloride at a fraction of the cost of a nickel alloy and at roughly half the wall thickness of 316L.
The economics are straightforward. The alternative to super duplex for warm high-chloride service is a nickel alloy such as Inconel 625. Inconel 625 will outperform S32750 in corrosion terms, but it costs several times more per kilogram. Between 316L, which does not survive, and 625, which is over-specified, S32750 occupies the value position.
The strength contribution is easy to overlook. At 550 MPa minimum yield against 170 MPa for 316L, a super duplex line can theoretically be far thinner for the same pressure. In practice, after considering available schedules, fabrication minimums and support requirements, the realized saving is typically 35 to 50 percent of wall and weight. On a large diameter offshore line that saving alone partly funds the alloy premium.
For seawater service more broadly, see what alloy should I use for seawater piping.
PREN is the pitting resistance equivalent number, calculated as %Cr + 3.3 x %Mo + 16 x %N. Above 40 an alloy is classed as super duplex, and that is roughly the level at which continuous warm seawater service becomes viable.
PREN is a composition index, not a measured property, but it correlates well enough with pitting and crevice resistance to be the standard screening tool. The multipliers reflect how much each element contributes: molybdenum is about 3.3 times as effective as chromium, and nitrogen about 16 times, per weight percent.
The critical discipline is to calculate PREN from the actual mill heat values on the certificate, not from nominal or minimum chemistry. A heat at the low end of the chromium, molybdenum and nitrogen ranges will produce a materially lower PREN than the datasheet headline.
PREN ladder for alloys considered for Saudi seawater service
| Alloy | UNS | Typical Cr / Mo / N (percent) | PREN typical | Verdict for Gulf seawater |
|---|---|---|---|---|
| 316L | S31603 | 17.0 / 2.1 / 0.05 | 24 to 27 | Not suitable - will pit and crevice corrode |
| 2205 standard duplex | S32205 | 22.5 / 3.2 / 0.17 | 34 to 36 | Marginal in warm Gulf water; little margin |
| 254 SMO | S31254 | 20.0 / 6.2 / 0.20 | 42 to 44 | Suitable; higher nickel content raises cost |
| 2507 super duplex | S32750 | 25.0 / 4.0 / 0.27 | 41 to 43 | Suitable and the usual value choice |
| Zeron 100 | S32760 | 25.0 / 3.5 / 0.25 | 40 to 42 | Equivalent, with tungsten and copper additions |
| Inconel 625 | N06625 | 21.5 / 8.5 / - | 45 to 52 | More than adequate; usually over-specified for seawater |
As a procurement rule of thumb: require PREN of 41 or higher for Arabian Gulf seawater service, and 42 or higher where the line runs hot, stagnant, or is difficult to inspect.
Full chemistry and mechanical data are in Properties of Super Duplex Stainless Steel S32750.
S32750 roughly triples the yield strength of 316L, clearly outranks 2205 on chloride resistance, matches 254 SMO on pitting at lower cost, and stops well short of Inconel 625 on both temperature and acid resistance.
Selection comparison for chloride service
| Attribute | 316L | 2205 | S32750 | 254 SMO | Inconel 625 |
|---|---|---|---|---|---|
| UNS | S31603 | S32205 | S32750 | S31254 | N06625 |
| PREN typical | 24 to 27 | 34 to 36 | 41 to 43 | 42 to 44 | 45 to 52 |
| Min yield strength | 170 MPa | 450 MPa | 550 MPa | 300 MPa | 415 MPa |
| Min tensile strength | 485 MPa | 620 MPa | 800 MPa | 650 MPa | 827 MPa |
| Resists warm Gulf seawater | No | Marginal | Yes | Yes | Yes |
| Resists chloride SCC | No | Good | Excellent | Good | Excellent |
| Sour service qualified | No | With conditions | With conditions | With conditions | Yes, broad envelope |
| Max service temperature | about 815 C oxidation limited | about 315 C | about 300 C | about 400 C | about 980 C |
| Relative cost | Low | Moderate | Moderate to high | High | Very high |
| Best fit | Fresh water, mild chemical | Onshore utility, moderate chloride | Seawater, brine, produced water | Seawater where welding is difficult | Severe acid, high temperature, severe sour |
The 2205 versus 2507 decision comes up on almost every Gulf project. See Duplex 2205 vs Super Duplex 2507: When to Use Which for the full treatment, and F53 vs F55 Super Duplex Full Technical Comparison for the S32750 versus S32760 decision.
Where the service is genuinely severe - high H2S beyond the duplex envelope, strong reducing acids, or temperatures above 300 C - the answer moves to nickel alloys. See Incoloy 825 vs Hastelloy C276 for Sour Gas Service and Best Alloy for Offshore Oil and Gas Pipeline.
Seawater cooling and intake, firewater deluge rings, SWRO and MSF desalination, produced water handling, seawater injection, offshore platform utility piping, and refinery chemical service.
Saudi Arabia is the largest producer of desalinated water in the world, and roughly half of its municipal water supply comes from the sea. That single fact creates an enormous installed base of high-chloride piping, and super duplex is the default material for the parts that cannot be made from non-metallics or coated carbon steel.
Typical Saudi and Gulf applications for S32750 pipe fittings
| Application | Typical conditions | Why S32750 is specified |
|---|---|---|
| Seawater cooling and intake headers | Gulf seawater, 20 to 36 C, 45,000 mg/L TDS | PREN above 41 resists pitting at ambient Gulf temperature |
| Firewater deluge rings | Stagnant seawater between tests | Resists stagnation crevice attack and MIC |
| SWRO desalination brine | Concentrated brine at 60 to 80 bar | High strength plus chloride resistance together |
| MSF and MED desalination | Hot brine, 90 to 120 C | Resists chloride stress corrosion cracking |
| Produced water handling | High chloride, H2S, entrained solids | Sour envelope compliance plus erosion resistance |
| Seawater injection | Deaerated seawater at high pressure | 550 MPa yield allows thinner wall and lighter supports |
| Offshore platform utility piping | Marine splash and atmospheric zone | Strength plus compatibility with cathodic protection |
| Subsea and topsides CRA piping | Chloride plus cathodic protection | Qualified, but hydrogen induced stress cracking under CP must be assessed |
| Refinery chemical and utility service | Mixed process streams | Broad compatibility and good mechanical strength |
Note the subsea caveat. Super duplex under cathodic protection can suffer hydrogen induced stress cracking where high strength, high applied stress and hydrogen charging coincide. It is a real and well-documented constraint, and it is why subsea specifications add hardness, stress and coating controls rather than simply accepting the alloy.
Related reading: oil and gas, marine engineering, heat exchanger with UNS S32750, and Inconel 625 for Offshore Oil and Gas.
About 300 C as the practical upper design limit and roughly minus 20 C to minus 50 C at the low end, with the upper bound set by sigma phase and 475 C embrittlement rather than by strength.
Super duplex loses strength gradually with temperature, so strength is not the limiting factor. The limit is metallurgical stability. Between roughly 550 C and 900 C, sigma phase precipitates at ferrite and austenite boundaries, removing toughness and, critically, stripping chromium and molybdenum from the surrounding matrix. Around 475 C a separate spinodal decomposition embrittles the ferrite phase.
Neither mechanism requires the metal to reach those temperatures in service - both can occur during a bad heat treatment, an uncontrolled weld thermal cycle, or a slow cool through the critical range. That is why the solution anneal and quench record matters more than almost any other line on the certificate.
At the low end, the duplex ferrite phase has a ductile to brittle transition. Impact tested material is normally qualified to minus 46 C or better, but the applicable minimum design metal temperature must be confirmed against the project specification and the actual impact test results, not assumed.
Yes, but only in the solution annealed condition inside the qualified envelope of NACE MR0175 / ISO 15156-3, with hardness capped at 28 HRC across base metal, weld metal and heat affected zone.
Sour service begins at a low threshold: an H2S partial pressure of 0.05 psi, about 0.0035 bar, in the aqueous phase. Many Saudi reservoirs, including Khuff gas and Arab-D associated gas, sit above that line, so the question is not academic.
The qualification is conditional, not blanket. Three things must all be true: the material is solution annealed and quenched, the hardness is within the cap everywhere including the weld and heat affected zone, and the service environment falls inside the published envelope for that alloy and condition.
Sour service acceptance checklist for S32750
| Requirement | Limit | Verification method |
|---|---|---|
| Hardness, base metal | 28 HRC maximum, about 272 HBW | ASTM E18 or ISO 6508 |
| Hardness, weld metal and HAZ | 28 HRC maximum | Hardness survey on the weld procedure qualification coupon |
| Material condition | Solution annealed 1025 to 1125 C, water quenched | Heat treatment record on the mill certificate |
| Ferrite content | 35 to 65 percent | ASTM E562 point count, or magnetic measurement where permitted |
| Intermetallic phases | No sigma, chi or nitride | ASTM A923 Method A, with B or C as specified |
| Filler metal | ER2594 or equivalent over-alloyed super duplex | AWS A5.9 classification on the consumable certificate |
| Welding heat input | 0.5 to 2.5 kJ per mm | WPS and PQR records |
| Interpass temperature | 150 C maximum | WPS and PQR records, monitored in production |
Not in strong reducing acids, not above about 300 C, not where elemental sulfur is present, not in hot concentrated caustic, and not outside its qualified sour envelope. A nickel alloy is the answer in those cases.
Strong reducing acids. Hydrochloric and hydrofluoric acid attack super duplex. Use a nickel alloy - see Hastelloy C276 for Acid Service.
High temperature above about 300 C. Sigma phase and 475 C embrittlement remove toughness and corrosion resistance. Move to a nickel alloy or a high temperature grade.
Elemental sulfur in the produced stream. Elemental sulfur generally disqualifies duplex stainless steels in sour service; nickel alloys take over.
Hot concentrated caustic. Caustic cracking risk rises with temperature and concentration; nickel alloys are the conventional choice.
Severe sour service beyond the qualified envelope. Above the published H2S, chloride and temperature limits, qualification testing or a nickel alloy is required.
Severe crevice geometry that cannot be designed out. No alloy solves a badly detailed crevice; fix the design first.
For acid and chemical duty selection, see nickel alloy pipe for chemical plants by acid type and chemical equipment.
Use over-alloyed ER2594 filler, argon with 2 to 3 percent nitrogen as backing gas, hold heat input between 0.5 and 2.5 kJ per mm, keep interpass below 150 C, and do not apply post-weld heat treatment.
Welding is where most super duplex problems are created. The alloy arrives at site with a correct 50/50 ferrite to austenite balance and no intermetallic phases. The welding thermal cycle is what can destroy both, and the damage is invisible without metallography.
The mechanism is a two-sided window. Too little heat input cools the weld too fast and the ferrite fraction runs high, which costs toughness and corrosion resistance. Too much heat input slows the cool through 700 to 1000 C and allows sigma phase to precipitate. Stringer beads rather than weaving keep you inside the window.
Welding parameters for S32750
| Parameter | Recommended practice | Reason |
|---|---|---|
| Filler metal | ER2594 to AWS A5.9, or equivalent | Over-alloyed in nickel, typically 9 to 12 percent, to restore the phase balance |
| Filler to avoid | 2205 or 316L filler | Produces a ferrite rich, brittle weld |
| Backing gas | Argon plus 2 to 3 percent nitrogen, or pure nitrogen | Nitrogen promotes austenite formation and prevents nitrogen loss from the root |
| Heat input | 0.5 to 2.5 kJ per mm | Below the range over-ferritises; above it invites sigma phase |
| Interpass temperature | 150 C maximum | Limits time in the critical precipitation range |
| Technique | Stringer beads, no weaving | Keeps heat input predictable and controllable |
| Post-weld heat treatment | Not required; normally avoided | The wrong thermal cycle precipitates sigma phase |
| Remedy if sigma is suspected | Full re-solution anneal 1050 to 1100 C, water quench | The only way to dissolve sigma phase |
Nitrogen in the backing gas is the step most often skipped, and it matters most on the root pass, which is also the pass most exposed to the process fluid. Pure argon is not sufficient for super duplex.
Post weld inspection should include ferrite measurement, penetrant testing, and ASTM A923 on production weld test coupons. These are standard requirements for offshore and pressure containing applications.
An EN 10204 Type 3.1 certificate as a minimum, or 3.2 with third party witness for critical service, plus chemical analysis, mechanical results, the solution anneal record, hardness survey, ferrite count, NDE reports and positive material identification.
Documentation and inspection package
| Item | What it proves | When it is mandatory |
|---|---|---|
| EN 10204 Type 3.1 certificate | Manufacturer test results, traceable to the heat | Standard for pressure piping |
| EN 10204 Type 3.2 certificate | Results witnessed by a third party | Critical service, sour service, subsea |
| Chemical analysis | Composition within ASTM limits; enables PREN calculation | Always |
| Mechanical test results | Yield, tensile, elongation within ASTM A815 | Always |
| Solution anneal record with quench method | Correct heat treatment; no slow cool through the sigma range | Always |
| Hardness survey | Within 310 HBW for ASTM, within 28 HRC for sour service | Always; tighter cap for sour |
| Ferrite count per ASTM E562 | 35 to 65 percent phase balance | Sour service and most offshore specifications |
| ASTM A923 intermetallic screening | No sigma, chi or nitride | Sour service; recommended above 12 mm |
| Radiography of fabrication welds | Class WP-W compliance on plate formed fittings | As specified by the A815 class |
| Penetrant testing | Surface integrity, notably socket bores | Forged fittings and weld surfaces |
| Positive material identification | Correct alloy actually installed | Critical service; routine for Aramco work |
| Dimensional verification | Compliance with ASME B16.9 or B16.11 | Always |
Two of these are worth calling out because they catch the failures that matter. The solution anneal record with the quench method stated catches material that was furnace cooled and is already sensitised. The ferrite count catches a chemistry imbalance or a bad thermal cycle that neither chemistry nor tensile testing would reveal.
Formed from plate or blanks by cold or hot working, welded if the geometry requires it, then solution annealed at 1025 to 1125 C and water quenched, followed by testing and dimensional check.
Raw material. Super duplex plate to ASTM A240, or seamless pipe or forgings, each certified to UNS S32750 chemistry.
Forming. Elbows are cold formed through a die under hydraulic push, caps are cold pressed, and tees are cold extruded. Super duplex work hardens quickly and needs roughly 40 to 50 percent more forming force than austenitic stainless, with greater springback.
Hot forming where required. When the wall is too heavy to cold form, hot forming is carried out at about 1100 to 1150 C, where the alloy is ductile but scaling is still manageable.
Welding. Large diameter fittings made from plate are welded with procedures qualified to ASME Section IX. This is what makes the fitting a WP-W class item.
Solution annealing. 1025 to 1125 C followed by a water quench or equivalent rapid cool. This step restores the phase balance and dissolves any intermetallic phases formed during forming and welding.
Testing. Chemical analysis, tensile and hardness testing, radiography to the specified A815 class, and intermetallic screening where required.
Dimensional verification and marking. Dimensions and end bevels checked against ASME B16.9 or B16.11, then marked and packed for shipment.
The solution anneal after forming is the step that separates a fitting that will last twenty years from one that fails in five. It is also the step a low cost supplier is most likely to skip or to run with an inadequate quench.
For the forged socket weld items the route differs: ASTM A182 F53 forgings are machined to ASME B16.11 dimensions, and this order additionally required 100 percent penetrant testing of the inner bore and socket surface. See All About of Super Duplex UNS S32750 Forged Pipe Fittings.
Name the UNS number and the ASTM specification separately, fix the dimensional standard and wall class, then add the supplementary requirements - hardness cap, ferrite range, A923, NDE, PMI and certification type - that the ASTM specification does not include on its own.
Most rejected requisitions fail for the same reason: they specify the alloy correctly but leave the acceptance criteria to the ASTM default, which is looser than the project needs. The alloy number gets you the chemistry; the supplementary requirements get you the material condition.
Define the service envelope before naming an alloy.
Check chloride resistance with PREN, calculated from actual heat values.
Check sour service qualification if any aqueous H2S is present.
Select the correct ASTM specification per fitting type: A815 for butt weld, A182 F53 for forged.
Fix the dimensional standard and wall class: ASME B16.9 with a schedule, or ASME B16.11 with a class.
Add the supplementary requirements that catch bad material: hardness, ferrite, A923, anneal record, PMI, certification type.
Qualify the welding procedure before production starts.
Verify at goods receipt, not at installation.
A worked example of the line you want for this order: elbow 90 degrees, ASTM A815 UNS S32750, class WP-W, 1.5D, butt weld ends, SCH 40S, ASME B16.9, solution annealed and water quenched, PREN 41 minimum on the actual heat, hardness 28 HRC maximum, ferrite 35 to 65 percent, ASTM A923 Method A, EN 10204 Type 3.1.
Prefabrication can move much of this verification off the critical path. See prefabricated service solution and pipe spool prefabrication cost versus field welding.
Four things: raw material availability and size range, whether the fitting is seamless or plate-formed, the extent of supplementary testing, and the size of the order relative to a mill production run.
Raw material. Super duplex plate, forgings and seamless pipe are all longer lead than austenitic stainless, and DN 300 and above is a thin market.
Construction route. Class WP-S seamless fittings cost more than WP-W plate formed ones, and WP-WX costs more than WP-W because of the wider radiography coverage.
Testing extent. Third party witnessed certification, ferrite counting and A923 screening each add days and cost, and each is usually worth it.
Quantity. A single order of 84 pieces across eight lines sits below most mill minimums, so it is normally served from a combination of stock and scheduled production.
The cost lever most buyers miss is wall thickness. Because S32750 carries 550 MPa minimum yield, a correctly engineered super duplex line is often thinner and lighter than the 316L line it replaces, which reduces both material tonnage and support steel.
For current pricing and availability, contact us. Related shipments are documented in ASTM A815 UNS S32750 fittings shipped to Brazil and 153 PCS F53 weld neck flanges shipped to Argentina.
Define the service envelope before naming an alloy. Write down fluid composition, chloride content, H2S partial pressure, in-situ pH, temperature range, design pressure and flow velocity. Every downstream decision depends on these six numbers, and Saudi Aramco will ask for them.
Check chloride resistance with PREN. Calculate PREN = %Cr + 3.3 x %Mo + 16 x %N from the actual mill heat values, not from nominal chemistry. Require 41 or higher for Arabian Gulf seawater service and 42 or higher for critical or high-temperature duty.
Check sour service qualification. If any aqueous H2S is present, the fitting must be solution annealed, at 28 HRC maximum including weld metal and HAZ, with ferrite in the 35 to 65 percent range and no intermetallic phases per ASTM A923. Read the applicable ISO 15156-3 / NACE MR0175 table for the project envelope.
Select the correct ASTM specification per fitting type. Wrought butt welding fittings: ASTM A815 UNS S32750. Forged or socket weld fittings: ASTM A182 Gr.F53. Matching pipe: ASTM A790 or A928. Plate for formed fittings: ASTM A240.
Fix the dimensional standard and wall class. Butt weld fittings to ASME B16.9 with the schedule of the connected pipe (SCH 40S here). Forged socket weld fittings to ASME B16.11 with a pressure class (Class 3000 here).
Add the supplementary requirements that actually catch bad material. Hardness survey, ferrite count per ASTM E562, ASTM A923 intermetallic screening, solution anneal record with quench method, positive material identification, and EN 10204 Type 3.1 or 3.2 certification.
Qualify the welding procedure before production. Use ER2594 filler, argon plus 2 to 3 percent nitrogen backing gas, heat input 0.5 to 2.5 kJ/mm, interpass 150 C maximum, and stringer beads. Do not apply post-weld heat treatment; if sigma phase is suspected, re-solution anneal at 1050 to 1100 C and water quench.
Verify at goods receipt, not at install. Review the mill test certificate against the requisition line by line, run PMI on a statistical sample or 100 percent for critical service, check dimensions and end bevels against B16.9 or B16.11, and confirm the NDE extent matches the specified class.
Contact us for the latest prices on duplex stainless steel S32750 pipe fittings!
What is UNS S32750?
UNS S32750 is a super duplex stainless steel, also known as alloy 2507 or EN 1.4410. It contains roughly 25 percent chromium, 7 percent nickel, 4 percent molybdenum and 0.3 percent nitrogen, giving a pitting resistance equivalent number (PREN) of 41 to 43 and a minimum yield strength of 550 MPa.
What is the difference between S32750 and ASTM A182 F53?
S32750 is the UNS composition number; F53 is the ASTM A182 grade designation for the same alloy in forged form. The same chemistry is designated A240 for plate, A790 or A928 for pipe, A815 for wrought butt weld fittings and A182 F53 for forgings and forged socket weld fittings.
What does WP-W mean in ASTM A815?
WP-W is a construction and examination class, not a chemistry grade. It means the fitting contains welds and the fabrication or construction welds have been radiographed. It sits alongside WP-S (seamless), WP-WX (all welds radiographed), WP-WU (all welds ultrasonically tested) and CR (made to MSS SP-43 for low pressure corrosion resistant service).
Is ASTM A815 WP-W seamless?
No. WP-W fittings contain welds and are normally formed from plate or blanks. If you need a seamless fitting, specify class WP-S. This distinction matters because the weld seam and its heat affected zone are where pitting and intermetallic phase problems start.
What is the PREN of S32750?
Typical PREN for S32750 is 41 to 43, calculated as %Cr + 3.3 x %Mo + 16 x %N. Using the nominal 25Cr, 4Mo and 0.3N chemistry gives about 43. PREN above 40 is the conventional threshold that separates super duplex from standard duplex.
Is super duplex S32750 suitable for Arabian Gulf seawater?
Yes. Arabian Gulf seawater carries 41,000 to 45,000 mg/L total dissolved solids and about 24,900 mg/L chloride at 30 to 37 C in summer, which defeats 316L and is marginal for 2205. S32750 at PREN 41 to 43 sits clearly above the threshold for continuous warm seawater service.
Can S32750 be used in sour service?
Yes, but only inside the qualified envelope published in NACE MR0175 / ISO 15156-3 and only in the solution annealed condition with hardness at 28 HRC maximum across base metal, weld metal and heat affected zone. Ferrite must be 35 to 65 percent and ASTM A923 must show no intermetallic phases.
What hardness limit applies to S32750 in sour service?
28 HRC maximum, approximately 272 HBW. This is stricter than the ASTM A815 limit of 310 HBW, so ordering to the ASTM specification alone does not buy sour service compliance; the hardness cap must be stated separately on the requisition.
What is the maximum service temperature for S32750?
Around 300 C for pressure-containing design under ASME rules. Above roughly 300 C the risk of sigma phase and 475 C embrittlement rises sharply, which removes both toughness and corrosion resistance. Most Gulf seawater and produced water services operate far below this ceiling.
Do S32750 fittings need post-weld heat treatment?
No. Post-weld heat treatment is not required and is generally avoided, because the wrong thermal cycle precipitates sigma phase. If heat input or interpass temperature was exceeded, the only remedy is a full re-solution anneal at 1050 to 1100 C followed by water quenching.
What filler metal should be used to weld S32750?
ER2594 to AWS A5.9, or equivalent over-alloyed super duplex filler. The filler carries more nickel than the base metal, typically 9 to 12 percent against 6 to 8 percent, so the weld metal still reaches the correct ferrite to austenite balance after the thermal cycle. Do not use 2205 or 316L filler.
What is the difference between ASME B16.9 and ASME B16.11 fittings?
ASME B16.9 covers factory made wrought butt welding fittings that are welded to the pipe with beveled ends and take the pipe schedule as their wall basis. ASME B16.11 covers forged socket welding and threaded fittings, normally NPS 1/8 to 4, rated by pressure class such as 3000, 6000 or 9000.
What does SCH 40S mean on a fitting?
SCH 40S is the stainless steel 40S pipe schedule, and the fitting wall thickness is matched to the pipe it joins so the bore stays smooth and the pressure rating is continuous. It is the most common schedule for corrosion resistant alloy process and utility piping in the DN 15 to DN 600 range.
Why did a butt welding order include socket weld elbows?
Because the small bore end of the system uses forged fittings. In this order the DN 25 elbows are ASTM A182 F53 Class 3000 socket weld to ASME B16.11, while everything from DN 80 upward is ASTM A815 WP-W butt weld to ASME B16.9. Mixing both families on one requisition is normal practice.
Is S32750 magnetic?
Yes, partially. The roughly half ferrite half austenite microstructure makes super duplex noticeably magnetic, unlike fully austenitic 316L. This is a useful quick field check but it says nothing about quality; use positive material identification and the mill certificate for verification.
How does S32750 compare with 316L for seawater?
S32750 is decisively better. 316L has a PREN of 24 to 27 and will pit and crevice corrode in warm Arabian Gulf seawater, while S32750 at PREN 41 to 43 resists both. S32750 also has about three times the yield strength, which allows thinner wall and lighter supports.
Should I choose 2205 or 2507 for Saudi seawater service?
Choose 2507 for warm seawater, brine and any service above about 40 C. Standard 2205 at PREN 34 to 36 is acceptable for many onshore duties but loses margin in Gulf seawater, where higher temperature and higher chloride push it toward its pitting threshold.
What is the difference between S32750 and S32760?
Both are 25Cr super duplex grades with PREN around 40 to 43. S32760 adds tungsten and copper, which helps in reducing acid and some sour environments; S32750 has slightly higher nitrogen and typically a marginally higher PREN. They are often interchangeable for seawater service but are not automatically equivalent on a project specification.
What documentation should accompany S32750 fittings for Saudi Arabia?
An EN 10204 Type 3.1 mill test certificate as a minimum, or 3.2 with third party witness for critical service, plus chemical analysis, mechanical test results, the solution anneal record with quench method, hardness survey, ferrite count, ASTM A923 results where specified, NDE reports, and positive material identification records.
What causes S32750 to fail in service?
Four causes dominate: wrong heat treatment leaving sigma phase or an over-ferritic weld, exceeding the sour service envelope or the 28 HRC cap, using the wrong filler metal, and specifying it for strong reducing acids or high temperature caustic where a nickel alloy is required. Correctly specified and welded, it gives decades of service in seawater.
