Forged caps are used in piping systems to seal pipes, control pressure, prevent contamination, isolate areas, or simply provide a secure termination. These components are common in industries such as oil and gas exploration and transportation, petrochemical and chemical processing, power generation, offshore platforms, shipbuilding, and pharmaceuticals.
This guide comprehensively explains forged cap properties, manufacturing processes, types and alloys, applications, and how to choose one. We also provide a comparison between forged caps and butt-weld caps to help you make the right decision.
Forged caps are used to seal the ends of piping systems. They are created by controlled plastic deformation of solid metal under extreme compressive forces. Unlike butt welded caps, forging alters the material's internal metallurgical structure.
The process involves heating cut billets or bars to a specific forging temperature range, which promotes plastic flow without melting.
The heated material is then formed in a closed die under tremendous pressure, typically provided by a hydraulic or mechanical forging press. This pressure refines the metal's grain structure, aligning it with the cap's contours and eliminating inherent casting defects such as porosity, shrinkage, and non-metallic inclusions.
The resulting forged caps exhibit exceptional strength, superior toughness, and impact resistance, resulting in extended fatigue life under pressure. Forged caps are manufactured to strict dimensional and pressure standards, most commonly ASME B16.11 (socket weld and threaded) and ASME B16.9 (butt weld), ensuring compatibility and performance within the specified pressure-temperature ratings, enabling seamless integration into critical pipeline infrastructure.

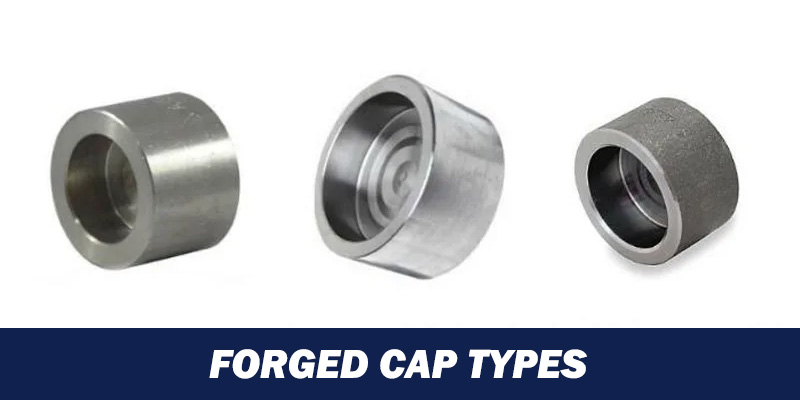

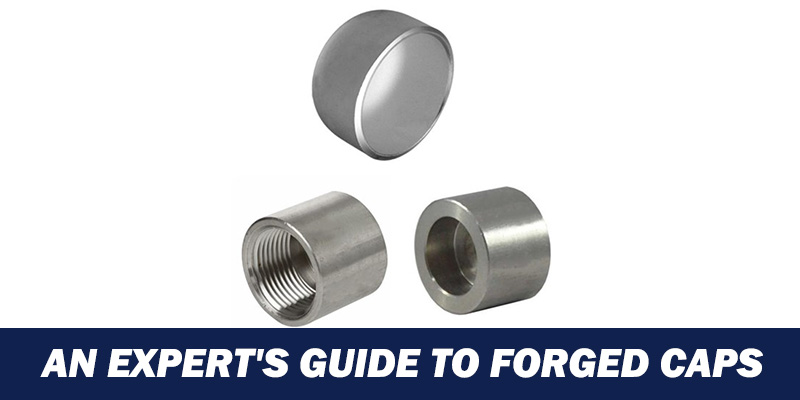

Forged caps are categorized by their end connections. The two types are Socket Weld Forged Caps and Threaded Forged Caps, both conforming to ASME B16.11.
Socket weld caps feature a socket into which the pipe end is inserted, followed by fillet welding around the exterior joint perimeter. This design offers good strength and ease of alignment and is particularly used for smaller bore pipes in high-pressure, non-corrosive or moderately corrosive services.
Threaded forged caps have internal (female) threads to mate with the external (male) threads on the pipe end. While convenient for assembly and disassembly without welding, threaded connections are more susceptible to leakage under severe cyclic conditions or vibration and require careful sealing. They are commonly used in lower-pressure utility lines, instrumentation connections, and services requiring frequent access.
Crucially, both types are manufactured from a wide array of materials. Beyond carbon steel, our expertise lies in producing caps from austenitic stainless steels, duplex and super duplex stainless steels, and high-performance nickel alloys, allowing customization for extreme corrosion resistance, high-temperature strength, or sour service environments per NACE MR0175/ISO 15156.
The manufacturing of forged caps is as follows:
Material selection and verification: Certified mill test reports are reviewed to confirm the chemical composition and initial mechanical properties of the chosen alloy meet the required specification. Billet preparation involves precisely cutting the verified raw material to the calculated weight and dimensions necessary for the final cap size.
Heating follows, where billets are uniformly brought to a precise forging temperature within a controlled atmosphere furnace to achieve optimal plasticity without overheating or burning the alloy. The core step is hot forging: the heated billet is transferred to forging dies mounted in a high-tonnage press. Intense pressure forces the plastic metal to flow and completely fill the die cavity, shaping the cap.
After forging, heat treatment is applied to relieve internal stresses induced during forging, achieve the desired microstructure, and attain specified mechanical properties.
Machining then transforms the forged "blank" into the final precision component. This involves turning, boring, and facing operations on CNC lathes and machining centers to achieve exact dimensions, smooth surface finishes, precise thread forms, and the correct socket depth and geometry.
Finally, dimensional inspection using calibrated gauges and CMMs, visual examination for surface defects, hydrostatic testing to verify pressure integrity, mechanical testing on witness coupons from the same heat, material chemistry verification via PMI, and comprehensive documentation provide irrefutable proof of quality and compliance.

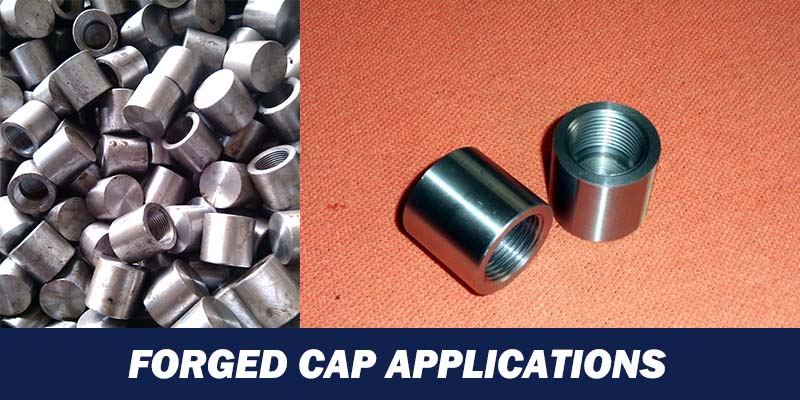

Forged caps are the best solution, particularly in high-pressure, high-temperature, severe cyclic conditions, corrosive media, or toxic/flammable contents.
In the oil and gas industry, they seal critical ends on wellheads, Christmas trees, flow lines, manifolds, and high-pressure transmission pipelines, especially in sour gas service where nickel alloys like Alloy 625 or C276 are essential.
Petrochemical and chemical plants rely on stainless steel and nickel alloy forged caps for reactors, distillation columns, high-pressure feed lines, and corrosive chemical transfer lines.
Power generation facilities, both fossil fuel and nuclear, utilize forged caps extensively in boiler feedwater systems, steam lines, turbine bypass lines, and safety-related systems, often requiring high-temperature strength alloys like 321/347 stainless or nickel alloys.
Offshore platforms subject components to harsh marine environments, high pressures, and dynamic loads; forged caps, particularly in super duplex stainless steel 2507 or corrosion-resistant nickel alloys, provide the necessary resilience. Shipbuilding employs them in high-pressure hydraulic systems, fuel lines, and critical seawater cooling circuits.
Essentially, any application where pipe end failure is unacceptable requires the inherent strength, leak integrity, and reliability of forged caps.
Service Conditions: Carbon steel suffices for non-corrosive, lower-temperature services. Austenitic stainless steels handle a wide range of corrosive chemicals and temperatures; stabilized grades are preferred for prolonged high-temperature service above 800°F to prevent sensitization. Duplex 2205 and Super Duplex 2507 stainless steels offer superior strength and chloride stress corrosion cracking resistance. For the most aggressive environments—severe sour service, hot concentrated acids, or oxidizing chlorides—nickel alloys are essential.
Connection Type: Socket weld caps offer robust, leak-tight performance for high-pressure, permanent installations in smaller sizes; threaded caps provide easier disassembly but are best suited for lower pressures, non-critical utilities, or instrument lines. Size and pressure rating must align with the pipe specification and system design pressure/temperature; ensure the cap conforms to the required standard and material grade.
Certification: Demand full MTRs, heat number traceability, hydrostatic test reports, and any required NDE reports compliant with project specifications. Finally, partner with a reputable manufacturer possessing demonstrable expertise in forging your specific alloy and rigorous quality control systems.

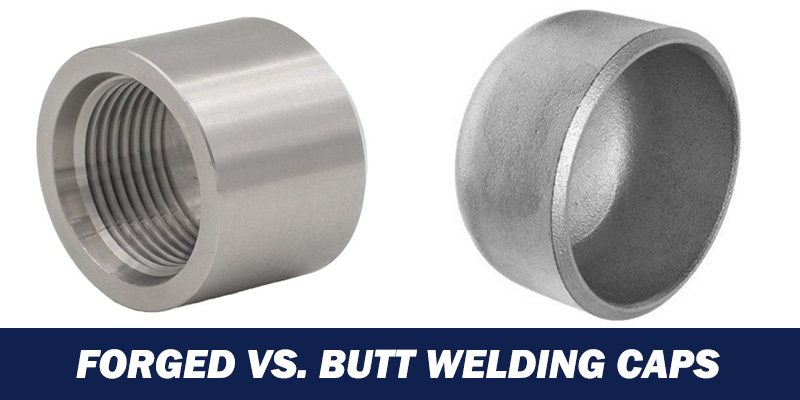

While both forged caps and butt-weld caps serve to seal pipe ends, their manufacturing origins result in differences in performance, application, and cost, making the choice highly dependent on service demands.
Butt-Weld Caps are manufactured by cold or hot forming processes. Flat plates or cut sections of pipe are pressed or deep-drawn into a hemispherical, elliptical, or conical shape, followed by welding a tangency line and machining the beveled end for welding to the pipe. This process is generally more cost-effective, especially for larger diameters (NPS 10" and above), and offers smooth internal contours ideal for flow or cleaning.
Butt welding caps are well-suited for moderate pressures and temperatures, non-critical services, large diameters, and applications prioritizing cost-efficiency where the highest level of inherent integrity is not mandated.
Forged caps derive their superiority from the forging process. The refined, directional grain flow, absence of welds in the pressure-containing body, and inherent elimination of porosity/casting defects. They exhibit superior mechanical properties, greater reliability under high pressure, high temperature, severe thermal cycling, shock loading, and vibration.
While typically commanding a higher cost than formed butt-weld caps, this premium is justified for critical service. Forged caps are the unequivocal choice for high-pressure/high-temperature systems, toxic or flammable fluids, severe cyclic service, sour environments requiring NACE compliance, small to medium bore piping.
Available in socket weld and threaded and manufactured from stainless steels and nickel alloys, forged caps meet the demands of oil and gas and petrochemicals to power generation and pharmaceuticals. Partnering with an experienced, quality-focused forged caps manufacturer is paramount to ensure you receive uncompromising performance.
