Views: 1 Author: Wang Publish Time: 2025-02-17 Origin: Site
Hastelloy C276 Alloy has excellent resistance to a wide variety of chemical process environments, including strong oxidizers such as ferric and cupric chlorides, hot contaminated media (organic and inorganic), chlorine, formic and acetic acids, acetic anhydride, and seawater and brine solutions. It is used in flue gas desulfurization systems because of its excellent resistance to sulfur compounds and chloride ions encounted in most scrubbers. C-276 alloy has excellent resistance to pitting and to stress-corrosion cracking. It is also one of the few materials that withstands the corrosive effects of wet chlorine gas, hypochlorite, and chlorine dioxide.

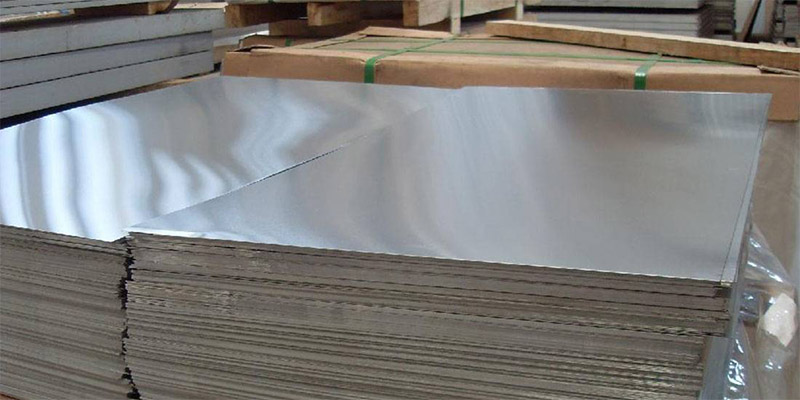

Alloy C276 is one the variations of Hastelloy which is a nickel chromium molybdenum alloy. It has various additions as well. The addition of tungsten provides strength to this alloy. It is a highly corrosion resistant alloy. The molybdenum and nickel contents provide the alloy with very high pitting corrosion resistance. The chromium content in the Hastelloy C276 UNS N10276 makes it resistant to oxidizing media. The alloy’s carbide precipitation during welding is very less as there is very less carbon content in the composition. The DIN 2.4819 material has the optimum strength, corrosion resistance and the cost benefits among the range of Hastelloy. Therefore it is the most widely used variation.

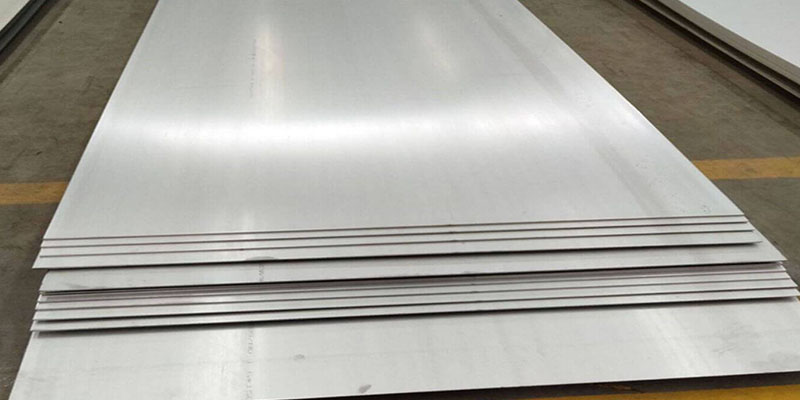

The Hastelloy C276 price is affordable. You can contact us for a full price list. The properties such as the Hastelloy C276 density, pressure ratings, strength, thermal conductivity and the corrosion resistance makes it applicable along a wide range of applications. There are different types of products in this material. The Hastelloy C276 has resistance against wet chlorine gas, chlorine dioxide and hypochlorite. It is resistant to corrosion in welded joints as it minimizes the intergranular precipitation during welding. The resistance to reducing agents is significant. The alloy is resistant to strong oxidizing agents such as salts. All of these mechanical properties are due to the specific chemical mixture. The Hastelloy C276 chemical composition has nickel, molybdenum, chromium, iron, tungsten, cobolt, manganese, carbon, vanadium, phosphorus, silicon and sulfur. The material is used in fuel gas desaulfurization systems, sour gas wells, pulp and paper industries, waste water treatement and in pollution control systems. There are not many Hastelloy C276 equivalent materials but other Hastelloy grades can sometimes be used in place of the Hastelloy c276.
Hastelloy C-276 nickel alloy plate (UNS N10276) is a nickel-molybdenum-chromium-iron-tungsten alloy which is among the most corrosion-resistant alloys currently available. The high molybdenum content imparts resistance to localized corrosion such as pitting. The low carbon minimizes carbide precipitation during welding to maintain resistance to intergranular attack in heat affected zones of welding joints. Hastelloy C276 nickel alloy plate also has good high temperature strength and moderate oxidation resistance although the alloy will eventually form embrittling high temperature precipitates.
This Hastelloy C276 Plates are being traded and supplied by us to our esteemed clients in market leading prices. Hastelloy C276 Plates (UNS N10276) is normally solution heat-treated at 2050 Degree F and rapid quenched. Parts which have been hot-formed should be solution heat-treated prior to final fabrication or installation, if possible. Alloy C276 Sheets welding products are used as identical composition filler material for welding Alloy C276 Plates wrought and cast products, for different welding uses including other nickel-chromium-molybdenum alloys and stainless steels, and for weld intersection or cladding of steels. Inconel C276 Sheets are used for Heat exchangers, Reaction vessels, Evaporators, and more. JN Alloy also offers these products in customized sizes and shapes with respect to highest international standard quality. Hastelloy C276 Plates also has good machinability, although the alloy work hardens as is true of the nickel base alloys in general. These are accessible to our valuable customers in different range of diameters, wall thicknesses and sizes at quite affordable rates.

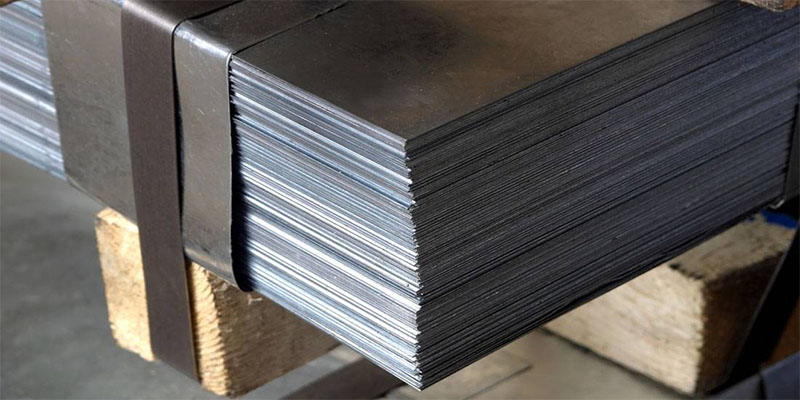

ASME SB575 Hastelloy C276 Sheet ASTM Specification | ASTM B575 |
ASME SB575 Hastelloy C276 Plate, Sheet and Strip Specification | ASTM B 575; ASTM B 906 & ASME SB 575; ASME SB 906, ASME Code Case 2226, ASME Code Case N-621, isO 6208, DIN 17750 |
ASME SB575 Alloy C276 Plate Specification | ASTM B575 / ASME SB575 |
Thickness | 0.1mm to 20 mm Thk |
Width | 10-2500mm |
Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
Temper | Annealed |
Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Stock in form of | ASME SB575 Alloy C276 Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
High Quality | · Huge Stock, Timely delivery · Raw Materials Certificate · EN 10204/3.1B · 100% Radiography Test Report · High special strength, high melt point · Third Party Inspection Report, etc · Excellent corrosive resistance, good thermal resistance · Customer support after-sales service · Strict Control from Raw Material to Finished Hastelloy C22 plate |
Specialized in | · ASME SB575 Hastelloy C276 Sheet: material under 3/16" [5.00 mm] in thickness and 24" [600 mm] and over in width · ASME SB575 Hastelloy C276 Plate: material 3/16" [5.00 mm] and over in thickness and over 10" [250 mm] in width · ASME SB575 Hastelloy C276 Strip: cold-rolled material under 3/16" [5.00 mm] in thickness and under 24" [600 mm] in width · ASME SB575 Hastelloy C276 Clad plate: Hastelloy C22 Clad plate is a composite steel plate made by bonding Hastelloy C22 plate, etc. |

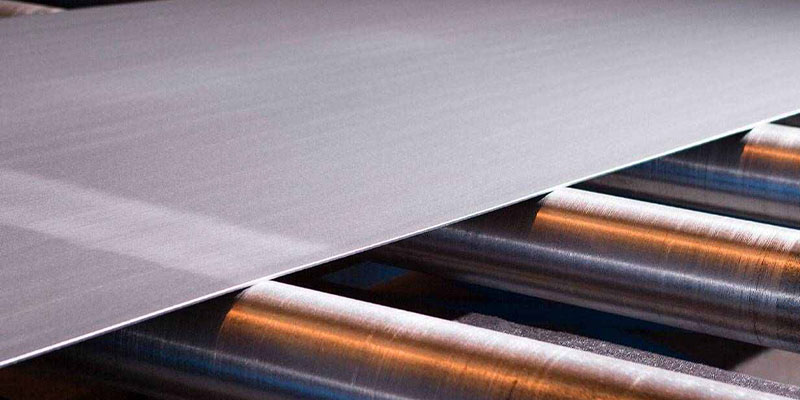

Hastelloy C276 plates are commonly used in the chemical industry primarily for their superior resistance to corrosion and pitting. It is widely used to produce chemical compounds containing wet chlorine gas and other oxidizing chemicals. Also it is used in distillation towers, heat exchangers, and reactors.
The high corrosion resistance of Hastelloy C276 makes it a popular option for marine engineering applications. It is extensively used in manufacturing seawater handling equipment such as heat exchangers, pump shafts, and chlorine dryers. Hastelloy C276 plates can withstand corrosive environments such as saltwater, humid air, and fire, making them excellent options for offshore structures.
Hastelloy C276 plates have exceptional strength and durability, making them a perfect fit for the aerospace industry. It is used to manufacture critical engine components such as exhaust systems and turbine blades, providing resistance against high-temperature environments and corrosion.
The petrochemical industry uses Hastelloy C276 plates to produce benzene, toluene, and xylene compounds. It is also utilized for anhydrous hydrogen chloride gas production, offering excellent corrosion resistance when dealing with chlorine-containing solutions. Additionally, it finds wide usage in the manufacturing of sulfuric acid solutions.
Hastelloy C276 plates have excellent resistance to radiation and high temperatures, making them an ideal choice for nuclear power generation. They are used to produce reactor components, boiling water reactors, and steam turbine components.
