Hastelloy C276 Welding Guide: Procedures, Parameters, and Best Practices

Hastelloy C276 (UNS N10276) is welded with gas-tungsten-arc welding (GTAW) using matching filler metal ERNiCrMo-4 (UNS N10276) or the higher-purity ERNiCrMo-10 (UNS N06059), under 99.99 percent argon shielding with a full argon backing purge (O2 below 50 ppm).

Heat input must be limited to 0.5-1.5 kJ/mm and interpass temperature kept below 93 degrees C. No preheat and no post-weld heat treatment are required because the ultra-low carbon and silicon make C276 immune to weld-zone sensitization. The main risks are lack of fusion, oxide contamination of the root, and tungsten inclusions - all preventable with correct purge, travel speed, and cleanliness.

Is Hastelloy C276 Easy to Weld?

C276 is considered readily weldable for a high-performance nickel alloy because its ultra-low carbon (0.010 percent max) and silicon (0.08 percent max) prevent weld-zone sensitization, so it can be welded by standard GTAW/GMAW/SMAW processes without preheat or post-weld heat treatment and without loss of corrosion resistance in the heat-affected zone.

Weldability problems in nickel alloys usually come from two sources: sensitization (grain-boundary carbide precipitation that depletes chromium) and hot cracking. C276 avoids sensitization because its carbon and silicon are so low that carbides and silicides simply cannot form in the heat-affected zone (HAZ) during cooling. It also has low impurity levels (phosphorus, sulfur, boron) that minimize hot-cracking susceptibility.

The trade-off is that C276 is somewhat more sensitive to contamination than carbon steel: any oxygen, sulfur, or lead contact during welding can cause porosity or embrittlement, so cleanliness and inert purge are critical. Compared with precipitation-hardenable alloys or high-silicon cast irons, C276 is among the easier high-nickel alloys to weld. The practical challenge is not the metallurgy but the discipline: strict purge, controlled heat input, and clean consumables.

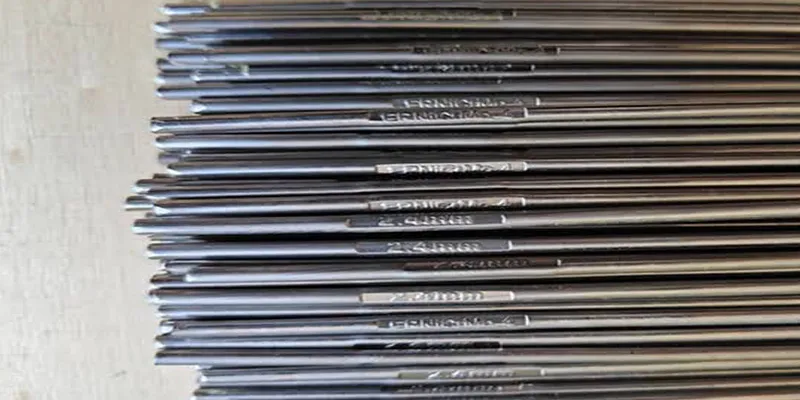

Which Filler Metal Should Be Used for C276 Welding?

For welding C276 to itself, use ERNiCrMo-4 (AWS A5.14, UNS N10276) for the closest composition match, or ERNiCrMo-10 (UNS N06059) which has lower iron and slightly better resistance to localized corrosion in the weld metal; for joining C276 to carbon or low-alloy steel, use ERNiCrMo-10 or a nickel-base transition layer.

Filler selection for C276 aims to keep the weld metal within the same corrosion-resistance class as the base metal. ERNiCrMo-4 (UNS N10276) is the classic matching wire: its chemistry mirrors C276 (about 15-17 percent Mo, 14-16 percent Cr, 3-4.5 percent W) so the weld deposit performs identically to the base metal in service. ERNiCrMo-10 (UNS N06059) is a close alternative with lower iron (1.0 percent max vs 4-7 percent in C276) and slightly higher chromium; the lower iron gives the weld deposit marginally better pitting and crevice resistance, which is why many fabricators prefer it for critical corrosion service.

For dissimilar joints to carbon steel, a nickel-base buffer layer (ERNiCrMo-10 or ERNi-1 depending on the application) prevents dilution of the corrosion-resistant layer by iron from the steel. Filler metals must carry AWS A5.14 certification and a matching EN 10204 3.1 certificate. Note: ERNiCrMo-14 (UNS N06200) is for C2000, NOT for C276, and should not be substituted.

Table 1. Filler Metal Selection for C276 Welding



What Are the Welding Parameters for C276?

C276 welding requires controlled, low-to-moderate heat input (0.5-1.5 kJ/mm), interpass temperature below 93 degrees C (200 degrees F), no preheat, 99.99 percent argon shielding with a full backing purge (O2 below 50 ppm), and high travel speed - parameters that prevent both intermetallic precipitation in the HAZ and oxide contamination of the root.

Heat input control is the single most important welding parameter for C276. Although C276 does not sensitize, it CAN form mu-phase and P-phase if the HAZ is held in the 650-1150 degrees C range for too long. Limiting heat input to 0.5-1.5 kJ/mm and keeping interpass below 93 degrees C ensures the HAZ cools quickly through that dangerous window. Preheat is never required because C276 does not harden or crack from rapid cooling.

The shielding and backing purge requirements exist because nickel alloys form tenacious oxides at weld temperatures; any oxygen in the root atmosphere produces a brittle, porous root that fails both mechanically and in corrosion service. A full argon backing purge with oxygen below 50 ppm keeps the root bright and oxide-free. Travel speed should be high enough to minimize heat affected zone width. Typical GTAW parameters: 80-140 amps, 10-18 volts, 50-120 mm/min travel, depending on thickness.

Table 2. Recommended C276 Welding Parameters

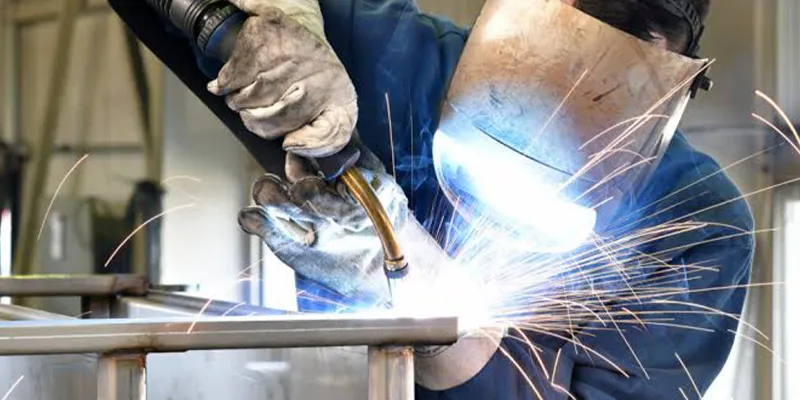

How Should C276 Be Prepared Before Welding?

Successful C276 welding starts with rigorous surface preparation: remove all oil, grease, oxide scale, and chalk marking with acetone or alcohol and a stainless-wire brush used ONLY for nickel alloys, then machine or grind the joint edges to bright metal and verify cleanliness immediately before welding.

Because C276 is sensitive to contamination, preparation is as important as the welding itself. Sulfur, lead, and phosphorus from cutting fluids, marking pens, or shop dirt can cause hot cracking or porosity.

The standard procedure is: (1) degrease with acetone or isopropyl alcohol; (2) remove all oxide scale by machining, grinding, or pickling - C276 forms a tough oxide that does not come off with normal cleaning; (3) use a dedicated stainless-steel or nickel-alloy wire brush that has never touched carbon steel, to avoid iron contamination that would seed rust and reduce corrosion resistance; (4) remove any layout chalk (use a soapstone or a marker rated for stainless/nickel); (5) keep the prepared joint covered and weld within a few hours. For pipe, the ends should be cut square (for socket) or beveled (for butt) and the purge dams installed before fit-up. A simple verification is a clean white lint-free cloth wipe that should come away uncontaminated, or a wipe with acetone that leaves no residue.

· Degrease with acetone or isopropyl alcohol (never chlorinated solvents on heated metal)

· Remove oxide scale by machining, grinding, or acid pickling

· Use a dedicated nickel-alloy wire brush (never shared with carbon steel)

· Remove all layout chalk; use soapstone or a nickel-rated marker

· Avoid carbon-steel contamination (tools, clamps, grinding sparks)

· Weld within a few hours of preparation; cover if delayed

· Install purge dams and verify leak-tight backing enclosure before fit-up

What Are the Common Weld Defects in C276 and How to Prevent Them?

The three most common C276 weld defects are lack of fusion (from too-low heat input or poor fit-up), root oxidation/porosity (from inadequate backing purge), and tungsten inclusions (from GTAW electrode contact) - all are preventable through correct purge, parameter control, and operator discipline.

Unlike some alloys, C276 does not suffer from sensitization cracking or sigma-phase embrittlement in normal welding because of its low C/Si, so defects are almost always process-related rather than metallurgical. Lack of fusion occurs when heat input is too low or the travel angle is wrong; it is prevented by staying in the 0.5-1.5 kJ/mm band and using proper torch angle.

Root oxidation happens when the backing purge is incomplete or oxygen creeps in; the fix is a verified purge with O2 below 50 ppm and a purge monitor. Tungsten inclusions are a classic GTAW error where the electrode touches the molten pool; using a correctly sized electrode, proper gas lens, and avoiding electrode contact eliminates them. Porosity from moisture or contamination is avoided by dry filler, clean surfaces, and adequate gas flow. Each defect type has a distinct radiographic or visual signature, and a qualified WPS plus welder performance qualification (WPQ) per ASME Section IX is the structural safeguard.

Table 3. C276 Weld Defects and Prevention



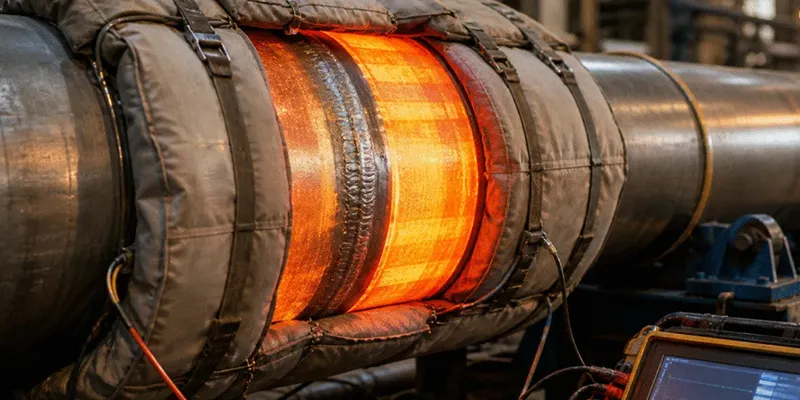

What Post-Weld Heat Treatment Is Required for C276?

No post-weld heat treatment is required or recommended for C276 in most applications; in fact, any stress-relief or PWHT in the 600-1150 degrees C range is strictly forbidden because it causes embrittling mu-phase and P-phase precipitation, and the only acceptable heat treatment is a full re-solution anneal if the component was accidentally overheated.

C276's immunity to sensitization means that as-welded joints are already in their optimum corrosion-resistant condition - the HAZ and weld metal retain full properties without any thermal treatment. Applying a conventional stress-relief anneal (which fabricators might use on carbon steel) would be catastrophic: holding the weldment in the 600-1150 degrees C band causes intermetallic precipitation that embrittles the joint and locally depletes molybdenum, destroying corrosion resistance.

Therefore, C276 specifications should explicitly state 'no PWHT' and forbid the 600-1150 degrees C range. If a component is accidentally heated into that range during fabrication (for example, during hot forming or a nearby weld on attached carbon steel), the remedy is a full solution anneal at 1120-1175 degrees C followed by rapid water quench. For thick-wall C276 vessels, some fabricators use a full anneal of the entire assembly after welding, but this is a re-solution anneal, not a stress relief.

Table 4. C276 Heat Treatment Do and Do Not



How Is C276 Welded in Sour (NACE MR0175) Service?

For NACE MR0175 / ISO 15156 sour service, C276 welds must be made in the solution-annealed (as-welded) condition with hardness kept below 35 HRC and the weld procedure qualified to confirm no sulfide stress cracking susceptibility; ERNiCrMo-10 filler is commonly preferred for the weld deposit's lower iron content.

NACE MR0175/ISO 15156 Part 3 lists C276 as an acceptable corrosion-resistant alloy for sour service in the solution-annealed condition with hardness below 35 HRC. The weld metal must also meet this hardness limit, which is easily achieved because the ERNiCrMo-4 / ERNiCrMo-10 deposits have hardness in the 85-95 HRB range (well below 35 HRC). A critical point: cold work above 20 percent can raise hardness and must be avoided or solution-annealed out.

The welding procedure should be qualified with a hardness survey of the weld cap and HAZ to confirm compliance. Because no PWHT is used, the as-welded structure is accepted directly. For sour gas lines, internal purge of the pipe during welding is especially important to protect the root from both oxidation and any sulfur-bearing contamination. ERNiCrMo-10 is often specified for sour service because its lower iron content gives the weld metal marginally better resistance to localized corrosion that could initiate under deposit (crevice) conditions.

Table 5. C276 Sour-Service Welding Requirements

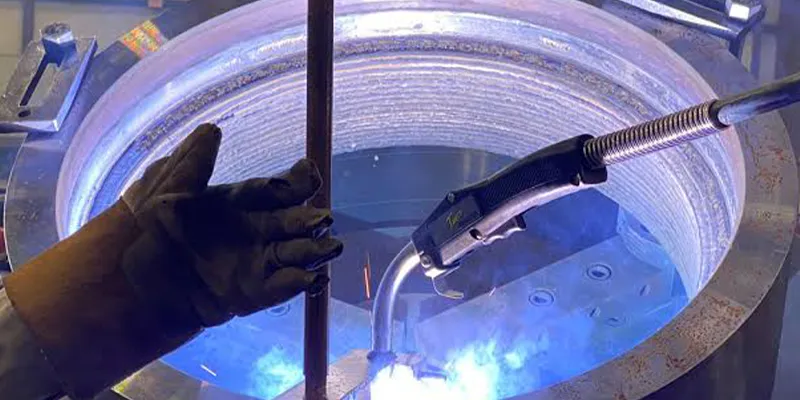

Can C276 Be Used for Weld Overlay (Cladding)?

Yes - C276 is an excellent weld overlay (cladding) material for protecting carbon and low-alloy steel equipment from severe corrosion, applied by GTAW, GMAW, or submerged-arc strip cladding with ERNiCrMo-10 (or ENiCrMo-10) consumables, delivering a fully corrosion-resistant C276 layer at a fraction of the solid-alloy cost.

Weld overlay is the most cost-effective way to get C276 performance on large vessels, columns, and reactors, because only the thin surface layer (typically 3-6 mm) is C276 while the structural strength comes from low-cost carbon steel. The overlay is deposited as one or two layers using ERNiCrMo-10 wire (GTAW/GMAW) or ENiCrMo-10 strip (submerged-arc or electroslag strip cladding for large areas).

The first layer is a buffer that minimizes dilution from the steel substrate; dilution must be controlled so the final layer meets the C276 composition envelope (especially Mo above 15 percent). Post-overlay, a dilution check (PMI or chemical spot) confirms the deposited layer chemistry. Because the overlay is as-welded, no PWHT is applied. This approach is widely used in FGD absorbers, acid towers, and reactors where solid C276 walls would be prohibitively expensive. A common specification requires the final overlay layer to be at least 60 percent of the design thickness in the C276 composition and to pass a ferrite/PM check.

Table 6. C276 Weld Overlay Options

What Qualification and Inspection Are Needed for C276 Welds?

C276 welds require a qualified WPS and welder (WPQ) per ASME Section IX, verified by mechanical testing and, where specified, corrosion testing; typical inspection includes visual, liquid penetrant (PT), radiographic (RT) or ultrasonic (UT) examination, and PMI of the weld deposit, with hardness checks for sour service.

Welding procedure qualification confirms that the chosen parameters produce a sound, corrosion-capable joint. A WPS qualification coupon is welded, then tested for: tensile strength (must exceed base-metal minimum of 690 MPa), bend ductility, and macro-etched soundness. For critical service, an ASTM G28 Method A intergranular corrosion test on the weld metal may be specified.

Production inspection typically includes: visual examination (no cracks, undercut, or oxidation); PT to detect surface cracks; RT or UT for internal soundness (RT is preferred for butt welds on pressure equipment); and PMI of the deposited weld to confirm the correct filler was used. For NACE sour service, a hardness survey of the weld cap and HAZ confirms below 35 HRC. Records must be retained per the fabrication quality plan. Proper qualification and inspection are what convert a 'weldable alloy' into a reliably performing asset.

Table 7. C276 Weld Inspection Checklist

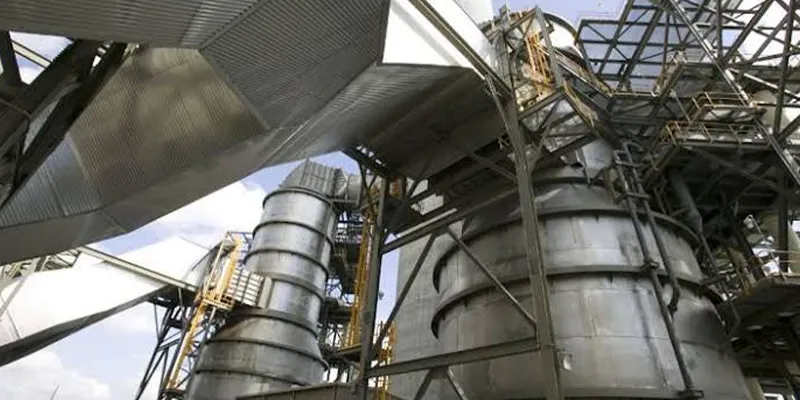

Case Study: FGD Absorber C276 Overlay Repair

A 500 MW power plant FGD absorber originally lined with rubber failed within 4 years in the hot, chlorinated zone; a C276 weld overlay (ERNiCrMo-10, 4 mm final layer) was applied to the carbon-steel shell, and after 7 years of operation shows no measurable corrosion, avoiding a full vessel replacement costing over USD 3 million.

The absorber shell was SA-516 Gr 70 carbon steel with a rubber lining that degraded in the upper zone where flue gas temperature and chloride concentration peaked. After the lining failed, the owner evaluated two options: full replacement with solid C276 (prohibitively expensive at the vessel size) or C276 weld overlay on the existing shell.

An engineering review selected overlay: the shell was grit-blasted, a 4 mm ERNiCrMo-10 layer was deposited by GMAW in two passes with controlled dilution (first pass buffer, second pass to full C276 composition verified by PMI), and no PWHT was applied. The overlay cost approximately USD 380,000 versus an estimated USD 3.2 million for solid C276 replacement. Annual ultrasonic thickness surveys from 2019 to 2026 show zero wall loss in the overlaid zone. The case demonstrates that C276 weld overlay is the most cost-effective route to C276 performance on large carbon-steel equipment.

Example Welding Procedure (WPS Summary)

A qualified C276 WPS for a 6 mm butt joint typically specifies GTAW root + GMAW fill with ERNiCrMo-10, 0.8-1.2 kJ/mm heat input, interpass below 93 degrees C, argon backing purge with O2 below 50 ppm, and no PWHT - a practical template that fabricators can adapt and qualify per ASME Section IX.

The following is an illustrative WPS summary that meets the parameters discussed above. It is a starting point; the actual WPS must be qualified by the fabricator with test coupons. The key numbers - heat input ceiling 1.5 kJ/mm, interpass 93 degrees C, argon purge O2 below 50 ppm, no PWHT - are the non-negotiable safeguards. For thicker sections, additional fill passes follow the same limits. For pipe, the root is usually GTAW (for a clean, controllable root) and fill/cover passes GMAW or SMAW. For field joints where purge is difficult, a fusible purge dam or a controlled-atmosphere enclosure is used. This disciplined approach is why C276 fabrications in refineries, FGD plants, and chemical complexes routinely achieve 20-30 year service lives without weld failures.

Table 8. Illustrative C276 WPS (6 mm butt, qualified per ASME IX)

Frequently Asked Questions

Q: What filler metal is used for welding Hastelloy C276?

A: For welding C276 to itself, use ERNiCrMo-4 (AWS A5.14, UNS N10276) for a matching composition, or ERNiCrMo-10 (UNS N06059) which has lower iron and slightly better weld-metal corrosion resistance and is often preferred for critical service. For joints to carbon or low-alloy steel, use an ERNiCrMo-10 buffer layer to block iron dilution. Do not confuse these with ERNiCrMo-14, which is for C2000, not C276. Stick welding uses ENiCrMo-4 or ENiCrMo-10 covered electrodes.

Q: Does Hastelloy C276 need preheat or post-weld heat treatment?

A: Neither is required. C276 does not need preheat because it does not harden from rapid cooling, and it must NOT receive post-weld heat treatment in the 600-1150 degrees C range because that causes embrittling mu-phase and P-phase precipitation. The as-welded condition is already optimal for corrosion resistance. If a component is accidentally overheated into the forbidden range, the only remedy is a full solution anneal at 1120-1175 degrees C followed by rapid water quench.

Q: What heat input and interpass temperature are recommended for C276?

A: Heat input should be limited to 0.5-1.5 kJ/mm and interpass temperature kept below 93 degrees C (200 degrees F). These limits keep the heat-affected zone from dwelling in the 650-1150 degrees C precipitation window. Preheat is not used. Higher heat input or higher interpass temperatures increase the risk of intermetallic phase formation and should be avoided, especially on thick sections.

Q: Why is argon backing purge important when welding C276?

A: Nickel alloys form tenacious, brittle oxides at weld temperatures, so any oxygen in the root atmosphere produces a porous, oxidized, mechanically weak root that also fails in corrosion service. A full argon backing purge with oxygen below 50 ppm keeps the root bright and sound. The purge is verified with an oxygen monitor before and during welding, and purge dams or enclosures are used for pipe and enclosed joints.

Q: Can C276 be welded in NACE sour service?

A: Yes. C276 (UNS N10276) is listed in NACE MR0175/ISO 15156 Part 3 as an acceptable corrosion-resistant alloy for sour service in the solution-annealed (as-welded) condition with hardness below 35 HRC. The weld deposit must also stay below 35 HRC, which ERNiCrMo-4/10 fillers easily meet. Cold work above 20 percent must be avoided or solution-annealed out. No PWHT is used; the as-welded joint is accepted directly after qualification and hardness verification.

Q: Is C276 weld overlay a good way to save cost on large equipment?

A: Yes. Applying a 3-6 mm C276 weld overlay (using ERNiCrMo-10 or ENiCrMo-10 consumables) onto a carbon-steel shell delivers full C276 corrosion resistance at a fraction of the cost of solid C276, because only the thin surface layer is the expensive alloy while the structural strength comes from low-cost steel. It is widely used on FGD absorbers, acid towers, and reactors. The overlay must control dilution so the final layer meets the C276 composition, verified by PMI, and no PWHT is applied.
