How Much Weight Can a Schedule 80 Steel Pipe Support?

A 4-inch Schedule 80 pipe can support approximately 983 kg over a 3-meter span.

One common question is: how much weight can a Schedule 80 steel pipe support? This article shows the factors affecting pipe strength, provides calculation formulas, and includes data tables.

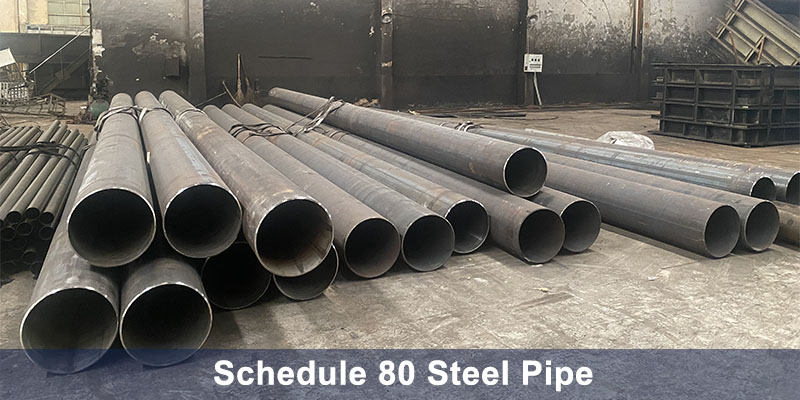

What is Schedule 80 Steel Pipe?

Schedule 80 refers to the pipe wall thickness. Compared with Schedule 40, Schedule 80 has thicker walls, making it stronger and capable of supporting more weight.

"Schedule" in the steel piping system, represented by standards like ASME B36.10, refers to a pipe's wall thickness relative to its diameter.

It is a classification system that determines the pipe's pressure-handling capabilities. Schedule 80 does not denote a single, specific thickness but rather a series of wall thicknesses that increase with the pipe's diameter.

Many Schedule 80 pipes are manufactured as seamless pipes. This process involves piercing a solid billet of steel to form a pipe without any welds along its length. SCH 80 steel pipe has many advantages:

• Strength and Durability: The absence of welds results in more uniform strength in the steel pipe.

• Higher Reliability: The continuous structure of seamless steel pipes is ideal for high-pressure applications, reducing the risk of failure under pressure.

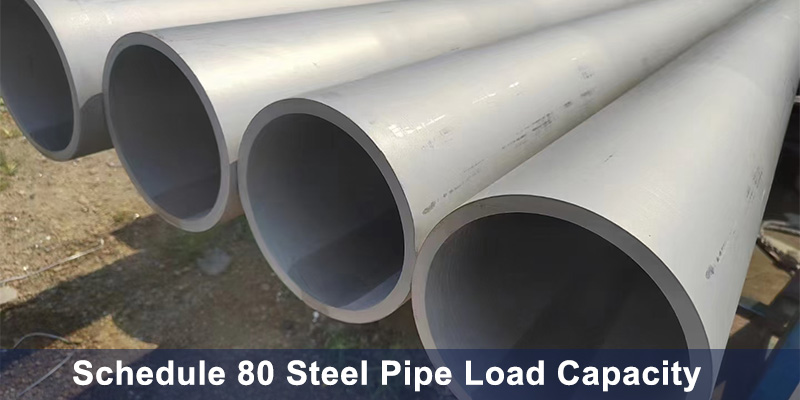

Schedule 80 Pipe Load-Bearing Capacity by Length

This is the critical data most users are searching for. The following table shows maximum uniform load capacity for Schedule 80 carbon steel pipe (ASTM A53 Grade B) at various span lengths:

Maximum Load Capacity Table (Simply Supported, Safety Factor 1.5)

Note: These values assume:

Carbon steel ASTM A53 Grade B (Yield Strength: 240 MPa)

Simply supported conditions (supported at both ends)

Safety factor of 1.5

Uniform distributed load

No additional corrosion allowance

Calculating Sch 80 Pipe Weight and Load-Bearing Capacity

Knowing the weight of the pipe itself is essential for load-bearing capacity. The weight per meter can be found in reference charts, or it can be calculated using the formula below. The formula for calculating the weight of any steel pipe is:

---

Weight (kg) = (Outer Diameter (mm) - Wall Thickness (mm)) × Wall Thickness (mm) × Length (m) × Density of Steel (0.00785)

Example: Weight of a 6-inch Schedule 80 Pipe

Using the formula and data from the chart:

Outer Diameter = 168.3 mm

Wall Thickness = 3.40 mm

Length = 1 meter

Weight = (168.3 - 3.40) × 3.40 × 1 × 0.00785 ≈ 4.40 kg/m

---

Load-Bearing Capacity Calculation Formula

Schedule 80 Pipe Load Capacity Calculation Steps

Step 1: Determine pipe dimensions (OD, Wall, Length)   Step 2: Calculate Section Modulus (S)                   Step 3: Identify material yield strength (σy)           Step 4: Apply safety factor (typically 1.5-2.0) Step 5: Calculate maximum bending moment (M) Step 6: Convert to load capacity (W)

Formula	Equation	Variables
Section Modulus	S = π × (D⁴ - d⁴) / (32 × D)	D = Outer diameter, d = Inner diameter
Maximum Bending Moment	M = σy × S / SF	σy = Yield strength, SF = Safety factor
Uniform Load Capacity	W = 8 × M / L	L = Span length
Point Load Capacity	P = 4 × M / L	Center point load

Calculation Example: 4-inch Schedule 80 Pipe, 3-meter Span

Step	Calculation	Result
1. Dimensions	OD = 114.3 mm, Wall = 6.02 mm, ID = 102.26 mm	—
2. Section Modulus	S = π × (114.3⁴ - 102.26⁴) / (32 × 114.3)	48,700 mm³
3. Yield Strength	ASTM A53 Grade B	240 MPa
4. Safety Factor	Standard structural application	1.5
5. Max Bending Moment	M = 240 × 48,700 / 1.5	7,792,000 N·mm
6. Load Capacity	W = 8 × 7,792,000 / 3,000	20,779 N = 2,118 kg

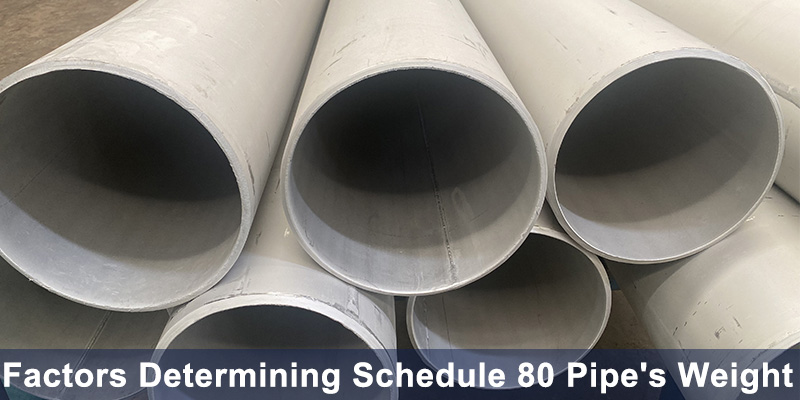

Factors Determining Schedule 80 Pipe's Weight Capacity

The weight a Schedule 80 steel pipe can support is not a single number.

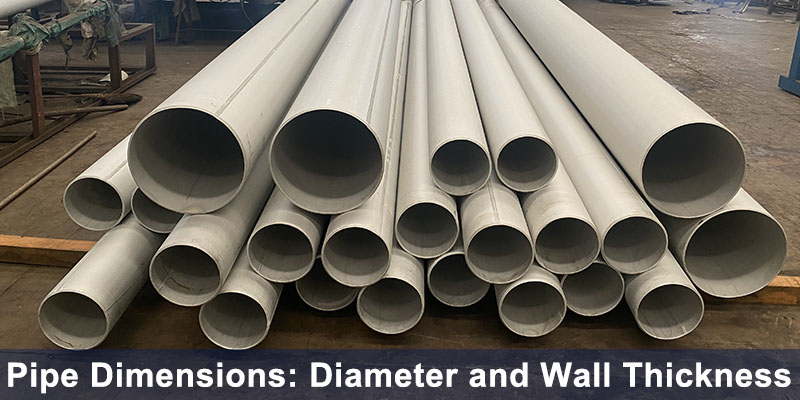

Pipe Dimensions: Diameter and Wall Thickness

The physical size of steel pipe is the most obvious factor affecting its capacity.

• Pipe Diameter: A larger outer diameter increases the pipe's area, which generally enhances its load-bearing capacity. For instance, a 6 inch Schedule 80 pipe can handle greater loads than a 2 inch Schedule 80 pipe simply due to its larger size.

• Wall Thickness: This is the biggest feature of Schedule 80. A thicker wall increases the pipe's resistance to internal pressure and external loads. For example, a 1/2 inch Schedule 80 pipe has a wall thickness of 2.11 mm, while a 6-inch Schedule 80 pipe has a wall thickness of 3.40 mm.

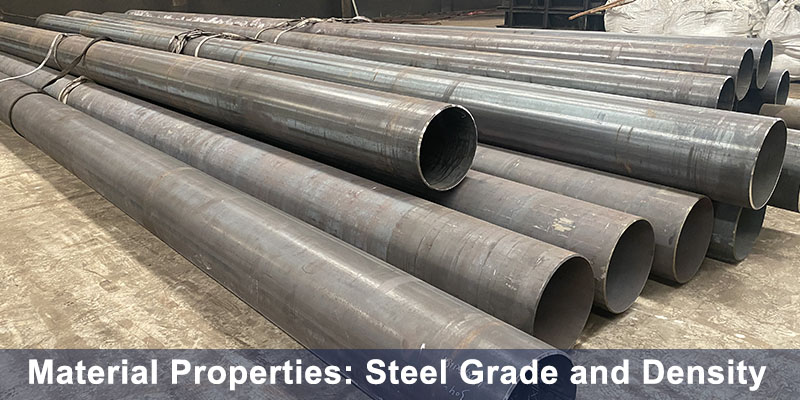

Material Properties: Steel Grade and Density

The pipe's composition is equally important.

• Material Density: The weight of the pipe itself and its capacity are tied to the density of the steel used. Standard carbon steel has a density of approximately 7.85 g/cm³.

• Steel Grade: Variations in steel alloys impact their mechanical properties. Common grades like ASTM A106 or ASTM A53 for carbon steel pipes and ASTM A312 for stainless steel have different yield strengths and tensile strengths, which directly define how much stress the material can withstand.

Schedule 80 Pipe Specifications and Weight Data

The following table provides a detailed overview of the dimensions and key specifications for various sizes of Schedule 80 steel pipes.

Schedule 80 Steel Pipe Dimensions & Weight (Carbon Steel)

Nominal Size (Inches)	Outside Diameter (mm)	Wall Thickness (mm)	Weight (kg/m)	Pressure Rating (psi)
1/2	21.3	2.11	1.00	8,575
3/4	26.7	2.11	1.29	7,187
1	33.4	2.77	2.11	6,670
1 1/4	42.2	2.77	2.71	5,638
1 1/2	48.3	2.77	3.13	5,158
2	60.3	2.77	3.96	4,498
3	88.9	3.05	6.50	4,200
4	114.3	3.05	8.42	3,670
6	168.3	3.40	13.91	3,195
8	219.1	3.76	20.10	2,841

The pressure rating, often expressed in psi (pounds per square inch) or kPa (kilopascals), indicates the maximum allowable internal pressure pipe can handle continuously. This is a critical measure of its strength.

As shown in the table, the pressure rating generally decreases as the pipe size increases for Schedule 80, highlighting the complex relationship between diameter and wall thickness.

Schedule 80 Pipe Applications and Standards

Schedule 80 pipes are specified in applications where their additional strength is necessary.

• High-Pressure Fluid and Gas Transport: Used in industrial process piping, hydraulic systems, and steam lines.

• Structural Applications: Employed as columns, supports, and frames in construction and machinery where their inherent stiffness and strength are advantageous.

• Critical Infrastructure: Used in water distribution systems, gas transmission lines, and chemical plants where failure is not an option.

Schedule 80 pipes are manufactured to conform to strict industry standards, which ensure consistency and reliability. Key standards include:

• ASTM A53/A106: Standard specification for carbon steel pipe.

• ASTM A312: Standard specification for seamless stainless steel pipe.

• ASME B36.10: Standard for dimensions of welded and seamless wrought steel pipe.

These standards govern the dimensions, material properties, and testing requirements.

Schedule 40 vs Schedule 80 Capacity Comparison

Conclusion

The weight a Schedule 80 steel pipe can support is a function of its substantial wall thickness, material grade, and overall dimensions. While it is significantly stronger than Schedule 40 pipe, accurate load-bearing capacity requires professional calculation that considers the specific application, load type, and installation conditions.

Frequently Asked Questions

Can Schedule 80 pipe be used for structural columns?

Yes, with proper engineering calculation and safety factors

What is the maximum span for Schedule 80 pipe?

It depends on size and load; typically 3-6 meters for structural use

Does Schedule 80 rust faster than Schedule 40?

No, corrosion rate depends on material grade, not schedule

Can I weld Schedule 80 pipe for structural use?

Yes, but requires qualified welding procedures and inspection

How do I verify my pipe is actually Schedule 80?

Measure wall thickness and compare to ASME B36.10 standards

Disclaimer: The data provided in this article is for reference purposes only. All structural applications require verification by a licensed professional engineer. Actual load capacity may vary based on material certification, installation conditions, and local building codes.
