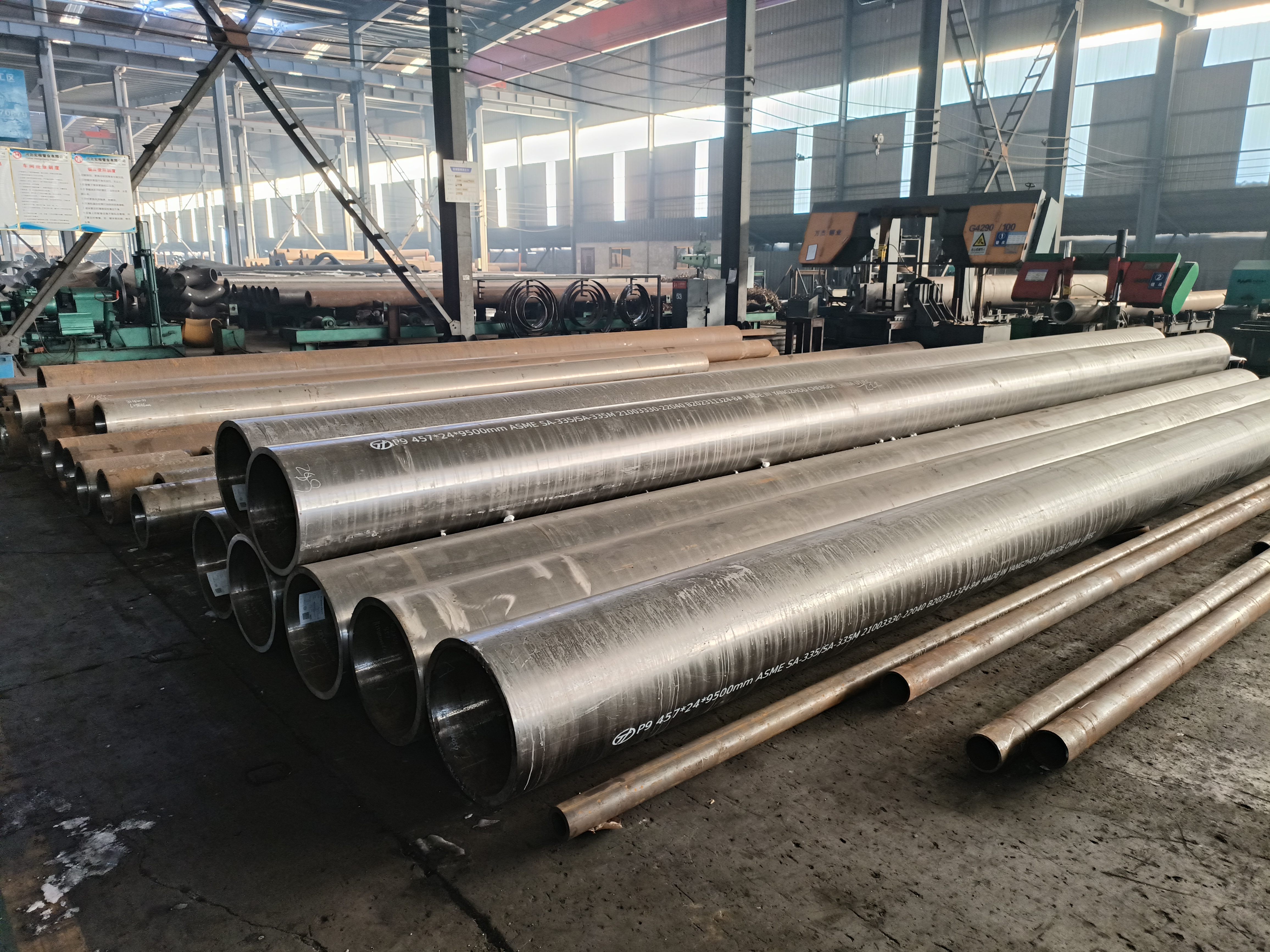

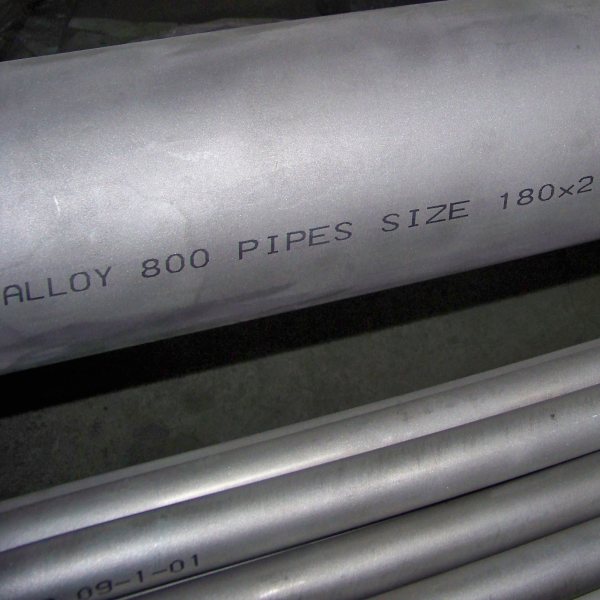

Incoloy 800 is a nickel-iron-chromium alloy pipe. It has a high nickel (Ni) content, typically around 30% - 35%. Nickel plays an extremely important role in the alloy, enhancing its corrosion resistance at high temperatures and in harsh chemical environments, and providing a stable matrix structure for the overall alloy. Iron (Fe), the basic component of the alloy, is generally present in the residual portion of the alloy at about 40% - 50%. Iron contributes to the basic structure and strength of the alloy, and also influences the thermal conductivity of the alloy to some extent, giving it good heat transfer properties. Chromium (Cr) is present at about 19% - 23% and forms a dense and stable protective oxide layer on the pipe surface.
In addition, the alloy 800 also contains a small amount of carbon (C), generally below 0.1%. Although the carbon content is low, it has a significant effect on the weldability of the alloy, especially in corrosive environments, and the lower carbon content helps to minimize cracks and other defects that may occur during the welding process and improves the quality of the weld. In addition to carbon, the alloy may contain trace amounts of other elements such as copper (Cu), titanium (Ti), aluminum (Al), etc., which, although present in very small quantities, have a potentially important contribution to the overall performance of the alloy. For example, titanium and aluminum can further enhance the alloy's high-temperature strength and antioxidant properties through the formation of stable intermetallic compounds.
Incoloy 800 pipe excels in mechanical properties. Its tensile strength is high, with typical tensile strength values of over 520MPa at room temperature. Even at high temperatures, such as 500 degrees Celsius, it still maintains considerable strength, which makes it less likely to break when subjected to external tensile forces. In terms of yield strength, it is generally around 205MPa at room temperature, and this value ensures that when the pipe is subjected to certain external forces, it can maintain elastic deformation and will not easily undergo permanent deformation, thus ensuring the safety of the piping system.
In terms of thermal performance, Incoloy 800 piping is particularly outstanding in terms of oxidation resistance. It can effectively resist oxidation at high temperatures up to 1100 ℃, thanks to the formation of a stable oxide layer on its surface. In long-term exposure to high-temperature oxidizing environments, such as furnace applications, the pipe maintains its structural integrity for extended periods of time without degradation due to oxidation. At the same time, Incoloy 800 pipe has good resistance to carburization. This is critical in applications such as certain petrochemical processes that may be exposed to carbon-rich environments, where carburization can lead to alloy degradation, which is avoided with Incoloy 800.
In terms of corrosion resistance, Incoloy 800 pipe excels in acidic, alkaline and neutral media. It maintains good corrosion resistance in common acidic environments such as sulfuric acid and hydrochloric acid, as well as alkaline environments such as sodium hydroxide. Compared with standard stainless steels, Incoloy 800 has a significant advantage in pitting and crevice corrosion resistance, especially in chloride-rich solutions, such as marine environments or certain industrial circulating water systems, can effectively resist the occurrence of pitting and crevice corrosion. In terms of stress corrosion cracking resistance, due to its unique alloy composition and microstructure, Incoloy 800 pipeline is not easy to crack under the combined effect of tensile stress and corrosive environments, which greatly improves its reliability in complex working conditions.
Incoloy 800 pipe has good compatibility with common welding techniques. Arc welding is one of the more commonly used welding methods, for Incoloy 800 pipe, when using arc welding, you need to pay attention to control the welding current, voltage and welding speed and other parameters to ensure the quality of welding. Gas-shielded tungsten arc welding (GTAW) is also widely used to weld Incoloy 800 pipe because of its ability to provide high-quality welds. This welding method allows for precise control of the welding process and reduces weld defects. Gas Shielded Arc Welding (GMAW), on the other hand, has the advantage of high welding efficiency, which is an advantage when welding Incoloy 800 pipe on a large scale.
Cutting and fabricating Incoloy 800 pipe requires the use of appropriate tools and methods. Due to its high hardness, ordinary cutting tools may not be able to meet the requirements, and it is usually necessary to use carbide cutting tools or abrasive cutting wheels and so on. During the cutting process, care should be taken to control the cutting speed and cooling conditions to avoid degradation of pipe material properties due to overheating. In the machining process, such as turning, drilling, etc., it is also necessary to select the appropriate cutting parameters to ensure processing accuracy and surface quality.

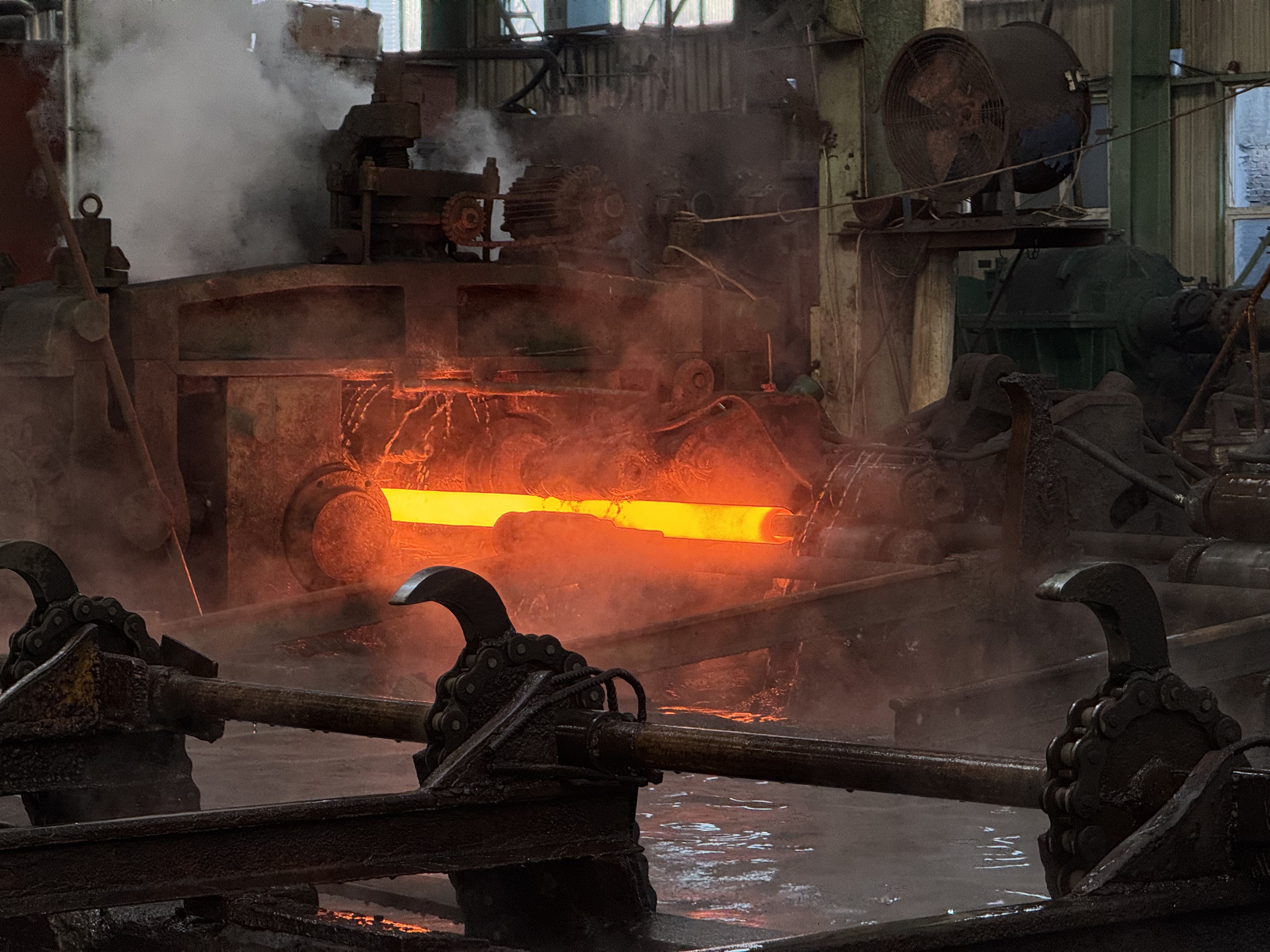

When forming and bending Incoloy 800 pipe, its material properties need to be fully considered. Since the alloy has good ductility and formability, it can be molded into different shapes through cold or hot working processes. In cold working, it is important to control the amount of deformation to avoid cracks in the material due to excessive deformation. Hot processing requires precise control of heating temperature and time to ensure that the pipe maintains good performance in the molding process.
In the petroleum refining industry, Incoloy 800 pipe plays an indispensable role. In the crude oil distillation process, the pipe needs to withstand high temperature, high pressure and the erosion of various corrosive substances in the crude oil, Incoloy 800 pipe with its excellent high temperature strength and corrosion resistance, can stably transport the crude oil to the various distillation columns for separation. In catalytic cracking plants, where piping is subjected to high temperatures and catalysts, Incoloy 800 piping not only resists oxidation and corrosion at high temperatures, but also withstands mechanical damage due to catalyst abrasion, and its resistance to hydrogen corrosion and hydrogen sulfide corrosion makes it an ideal choice for this process. Common applications include heat exchangers, which are used for heat transfer, where heat transfer and corrosion resistance ensure efficient and consistent heat exchange, and Incoloy 800 piping, which meets these stringent requirements, as well as a variety of conveyor piping, which transports materials through different stages of the process and ensures that the entire refining process runs smoothly.
In the chemical processing industry, Incoloy 800 piping is used in a wide range of applications, including chemical reaction vessels, storage tanks and piping for corrosive chemicals. In the production of sulfuric acid, nitric acid and other strong acids in the chemical industry, the pipeline needs to be exposed to high concentrations of acid for a long time, Incoloy 800 pipeline can effectively resist the corrosion of these strong acids to ensure the continuity of the production process. At the same time, in the storage of corrosive chemicals tanks connected to the pipeline, its good corrosion resistance can prevent leakage and other safety accidents. And, because the chemical processing industry has strict standards for product quality and safety, the stability of Incoloy 800 piping helps chemical processing plants meet these strict safety and quality standards.
In the power generation sector, Incoloy 800 tubing is used in steam generators and heat exchangers. In thermal power plants, steam generators need to convert water into steam at high temperatures and pressures, and the high-temperature strength and oxidation resistance of Incoloy 800 piping ensures its reliable operation in this harsh environment. Heat exchangers are used for heat transfer and recovery, and their good thermal conductivity and corrosion resistance can improve heat exchange efficiency and reduce energy consumption. In the nuclear power sector, Incoloy 800 piping is used in nuclear fuel reprocessing systems. In the nuclear fuel reprocessing process, there are strong radiation and corrosive media and other complex environments, Incoloy 800 pipe's radiation resistance and corrosion resistance make it a key material to ensure the safe operation of nuclear fuel reprocessing system.
In the aerospace industry, although relatively few applications, the high-temperature strength and good mechanical properties of Incoloy 800 pipe make it a likely candidate for the manufacture of high-temperature engine components. In the food and beverage industry, although the sanitary requirements for piping materials are extremely high, in some special cases, such as conveying food additives with a certain degree of corrosiveness or in high-temperature sterilization processes, the corrosion resistance and high-temperature performance of Incoloy 800 piping may make it possible to be used after special treatment and validation.
The excellent mechanical properties of Incoloy 800 piping enable it to withstand a wide range of external forces, and it is not prone to deformation or fracture during long-term use. Its good thermal properties ensure that there is no degradation of performance at high temperatures due to oxidation or thermal expansion. And excellent corrosion resistance is to make it in a variety of corrosive media to maintain stability, not easy to be eroded. These characteristics combine to give Incoloy 800 piping excellent long-term performance in a variety of applications, greatly extending the service life of the piping. Compared to some common piping materials, the service life of Incoloy 800 piping may be extended several times, which means that throughout the project cycle, there is no need to frequently replace the piping, reducing the downtime and labor and material costs associated with piping replacement.
Stable material properties allow Incoloy 800 piping to perform consistently in a variety of complex operating conditions. It operates reliably in extreme environments with high temperatures and pressures, as well as in harsh corrosive conditions. In applications such as nuclear power or high-temperature chemical processes, Incoloy 800 piping's superior performance provides these critical applications with a solid guarantee of a safe and stable production process.
From an initial cost perspective, Incoloy 800 piping may be relatively high compared to some common piping materials. However, when considered from a long-term performance and total cost of ownership perspective, the advantages are clear. Its durability and long service life reduce the need for frequent maintenance and replacement, which in turn reduces maintenance costs. In addition, in industries where product quality is critical, such as electronics and pharmaceuticals, the stability of Incoloy 800 piping can help ensure consistent product quality, reducing fluctuations in product quality and scrap rates due to piping problems, further reducing overall costs. Combining these factors, Incoloy 800 piping can realize overall cost savings in the long-term use process, with significant cost-effectiveness.
Incoloy 800 pipe exhibits excellent mechanical, thermal, and corrosion resistance due to its unique chemical composition. There are some challenges in welding and fabrication, but these can be dealt with effectively through appropriate processes and methods. Its wide range of applications covers many important industries such as petroleum refining, chemical processing, power generation, etc., and it has demonstrated significant advantages such as high durability, reliability and long-term cost-effectiveness in the process of use. With the continuous development of industrial technology, the performance requirements of piping materials will also become higher and higher, Incoloy 800 pipeline is expected to continue to improve its performance in the future through further alloy optimization and process improvement, to expand a wider range of applications, and to continue to contribute to industrial development. When selecting piping materials, the characteristics of Incoloy 800 piping should be fully considered, and an informed choice should be made based on specific project needs to achieve efficient, safe and economic operation of the project.
