Inconel 625 Corrosion Resistance

Inconel 625 (UNS N06625, Werkstoff Nr. 2.4856) is a nickel-chromium-molybdenum superalloy originally developed in the 1960s for steam-line piping. Its defining feature is not just high strength—it is extraordinary corrosion resistance across an unusually wide range of environments: seawater, chlorides, acids, high-temperature oxidation, and sour gas (H₂S) service.

This article answers the eleven questions that corrosion, materials Inconel 625:

• What makes Inconel 625 so resistant to corrosion?

• What is its PREN?

• How does it perform in seawater and chloride environments?

• Is it immune to chloride stress-corrosion cracking?

• Which acid environments can it withstand?

• How does it compare to 316L, 904L, 6Mo, and Hastelloy C-276?

• What is its high-temperature oxidation resistance?

• Does it require post-weld heat treatment for corrosion service?

• Is it certified for sour-gas (NACE/ISO 15156) service?

• Where is it actually used for corrosion resistance?

• How can a buyer verify its corrosion performance?

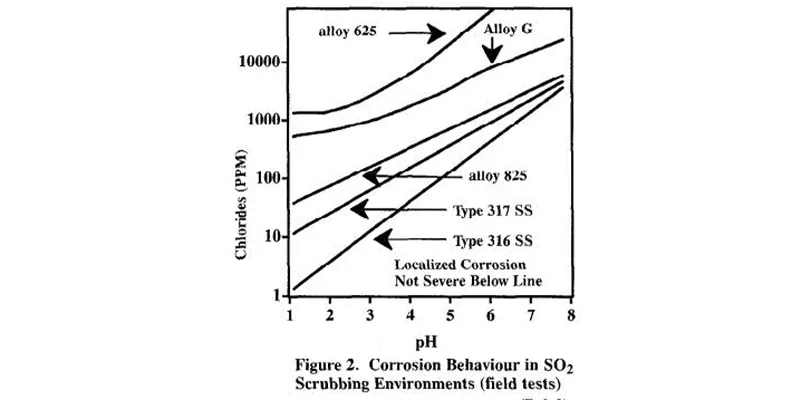

What Makes Inconel 625 So Resistant to Corrosion?

Inconel 625 resists corrosion because its chemistry — nickel ≥58%, chromium 20–23%, molybdenum 8–10%, and niobium (columbium) 3.15–4.15% — forms a fast-healing, chrome-rich passive film and combines oxidizing (Cr) and reducing (Mo, Nb) corrosion protection in a single alloy.

Corrosion resistance in metals comes from a stable, self-repairing passive oxide film. Inconel 625 achieves this through a synergistic blend of elements:

• Nickel (≥58%): Provides the base that keeps the alloy ductile and, critically, makes it immune to chloride stress-corrosion cracking—the failure mode that destroys austenitic stainless steels.

• Chromium (20–23%): Forms a tenacious Cr₂O₃ passive film that protects against oxidizing acids and high-temperature oxidation.

• Molybdenum (8–10%): Confers resistance to localized attack—pitting and crevice corrosion—in chloride and reducing-acid environments; molybdenum is the single most important element for chloride resistance.

• Niobium/Columbium (3.15–4.15%): Strengthens the alloy by precipitating gamma-double-prime (γ″) without requiring a sensitizing heat treatment and stabilizes the structure against intergranular corrosion.

The nominal composition of alloy 625 is summarized below:

What Is PREN, and Why Does It Matter for Inconel 625?

Inconel 625 has a Pitting Resistance Equivalent Number (PREN) of roughly 48–52 — among the highest of any commercially wrought alloy. This is why it resists pitting and crevice corrosion in chloride environments where 316L (PREN ~25) and even 6Mo super-austenitic stainless (PREN ~43) eventually fail.

PREN is a simple, widely used index that predicts an alloy's resistance to pitting and crevice corrosion in chlorides. The standard formula is:

PREN = %Cr + 3.3 × %Mo + 16 × %N

Using nominal values for alloy 625 (Cr ≈ 21.5%, Mo ≈ 9%, N ≈ 0.05%), the result is approximately 21.5 + 29.7 + 0.8 ≈ 52. Even at the conservative low end of the composition range, PREN remains above 48.

Note that PREN is a screening tool, not a guarantee — it does not capture the effect of niobium, oxidizing/reducing conditions, or temperature, which is why field testing and standards still matter.

How Does Inconel 625 Perform in Seawater and Chloride Environments?

Is Inconel 625 Suitable for Seawater Service?

Yes. Inconel 625 is one of the few alloys that performs excellently in natural and chlorinated seawater — including stagnant, crevice-prone conditions — with negligible general corrosion, pitting, or crevice attack. It is a standard choice for subsea hardware, propeller shafts, and seawater-cooled heat-exchanger components.

• Seawater is deceptively aggressive: it is a chloride-rich, oxygen-saturated, biological electrolyte that quickly pits ordinary stainless steel. Inconel 625 resists all three principal seawater failure modes:

• General corrosion: Negligible; the high nickel and chromium content keep the passive film intact even with low oxygen.

• Pitting: Essentially absent in normal seawater because the PREN (~48–52) far exceeds the threshold for chloride pitting.

• Crevice corrosion: Strongly resisted even in tight crevices (e.g., under deposits or bolt heads) where lower-alloy materials suffer.

In practical terms, 625 is specified for subsea manifolds, wellhead components, seawater pump shafts, and desalination equipment where designers cannot tolerate even minor localized attack over a 20–30 year design life.

Is Inconel 625 Immune to Chloride Stress-corrosion Cracking?

Yes, Inconel 625 is immune to chloride-induced stress-corrosion cracking (Cl⁻ SCC). Its nickel content (≥58%) is above the ~40–45% threshold above which austenitic alloys no longer suffer transgranular chloride SCC.

Stress-corrosion cracking in chloride environments is the single most common cause of catastrophic failure in 300 series stainless steels operating above about 60°C.

The mechanism requires a susceptible metallurgical structure — and face-centered-cubic nickel alloys with high nickel content simply do not crack under chloride stress. This is why 625 is selected for chloride-laden, high-stress, high-temperature duties (e.g., FGD scrubbers and sour gas trees) where 316L would crack within months.

Which Acid Environments Can Inconel 625 Withstand?

What Is the Acid Resistance Profile of Inconel 625?

Inconel 625 resists oxidizing acids (nitric, phosphoric) very well, performs moderately in sulfuric and hydrochloric acid at low-to-moderate concentration and temperature, and is not recommended for hot concentrated oxidizing sulfuric or for hydrofluoric acid. For the most aggressive reducing acids, Hastelloy C-276 is the stronger choice.

No single alloy resists every acid. Inconel 625 occupies a strong position across the common industrial acids, but engineers must respect its limits — summarized below. Ratings are general guidance for isocorrosion (0.1 mm/year) and should be confirmed against mill data and standards for each specific condition.

How Does Inconel 625 Compare to 316L, 904L, 6Mo, and Hastelloy C-276?

In the corrosion-resistance ranking, Inconel 625 sits clearly above 316L, 904L, and 6Mo in chloride service, and just below Hastelloy C276 in purely reducing/aggressive acid service. It is the better all-rounder when you also need high strength, fabricability, and high-temperature capability alongside corrosion resistance.

The table below compares the four most common candidates for severe-corrosion service. Cost index is relative to 316L (≈ 1×) and is indicative of raw-material premium only.

What Is the High-Temperature Oxidation Resistance of Inconel 625?

How Does Inconel 625 Resist Oxidation at Elevated Temperature?

Inconel 625 resists oxidation in continuous service up to about 980°C (1800°F) and in intermittent service up to roughly 1100°C (2010°F). Its high chromium content forms a dense, adherent Cr₂O₃ scale that slows further attack, making it suitable for exhaust systems, afterburners, and furnace hardware.

Above approximately 540°C, most stainless steels form a non-protective scale or suffer sigma-phase embrittlement. Inconel 625 avoids both problems: the chromium-rich scale is self-limiting, and the nickel matrix remains stable and ductile. This high-temperature capability is what separates 625 from the stainless family entirely — it is both a corrosion alloy and a high-temperature alloy.

Does Inconel 625 Require Post-Weld Heat Treatment for Corrosion Service?

Does Welding Compromise the Corrosion Resistance of Inconel 625?

No. Inconel 625 retains its full corrosion resistance in the as-welded condition and generally does NOT require post-weld heat treatment (PWHT) for corrosion service. Its low carbon content prevents sensitization, so the heat-affected zone does not become preferentially attacked.

Many stainless steels (e.g., 316, 304) must be solution-annealed after welding to dissolve chromium carbides that would otherwise cause intergranular corrosion in the heat-affected zone. Inconel 625 avoids this entire problem because its carbon is capped at 0.10% and niobium ties up carbon, preventing chromium-depleted zones. As a result, welded 625 structures — pipe spools, vessel shells, scrubber modules — enter service with corrosion behavior essentially identical to the base metal.

One important nuance: in the age-hardened or high-niobium condition (some variants of 625 are used for strength), prolonged exposure in the 550–760°C range can precipitate delta phase and reduce toughness. For corrosion service, solution-annealed 625 is the standard and requires no PWHT. Always confirm the heat-treat condition against the purchasing specification.

Is Inconel 625 Certified for Sour-Gas and How Is It Verified?

Is Inconel 625 Approved for Sour-Gas (NACE/ISO 15156) Service?

Yes. Solution-annealed Inconel 625 is accepted for sour-gas (H2S-containing) service under NACE MR0175 / ISO 15156-3, subject to hardness and heat-treatment limits. This makes it a qualified material for downhole, wellhead, and subsea components in oil & gas production.

Sour-gas service subjects materials to hydrogen-induced cracking and sulfide stress cracking. NACE MR0175 / ISO 15156 defines hardness ceilings and metallurgical conditions for each alloy family. Inconel 625 qualifies in its soft, solution-annealed condition; age-hardened variants are subject to stricter limits. Specifying 625 to the correct heat-treat condition is essential for compliance.

How Can a Buyer Verify the Corrosion Performance of Inconel 625?

Verify Inconel 625 through four documents: (1) an EN 10204 3.1 Mill Test Certificate confirming chemistry and mechanical properties; (2) Positive Material Identification (PMI); (3) corrosion qualification per ASTM G28 (intergranular) and ASTM G48 (pitting/crevice); and (4) NACE TM0177 for sour-service qualification where required.

Where Is Inconel 625 Used for Its Corrosion Resistance?

Which Industries Rely on Inconel 625 for Corrosion Service?

Inconel 625 is specified wherever a corrosion failure is unacceptable: seawater and subsea systems, flue-gas-desulfurization (FGD) plants, pulp & paper digesters, chemical reactors handling chlorides, sour-gas oil & gas, nuclear components, and high-temperature aerospace exhaust. Its combination of corrosion + strength + temperature capability is unique among commercial alloys.

Frequently Asked Questions

What is the PREN of Inconel 625?

Inconel 625 has a Pitting Resistance Equivalent Number (PREN) of roughly 48–52, calculated as %Cr + 3.3×%Mo + 16×%N. This is among the highest of any commercial wrought alloy and explains its immunity to chloride pitting.

Is Inconel 625 a stainless steel?

No. Inconel 625 is a nickel-based superalloy (UNS N06625), not a stainless steel. Its nickel content is ≥58%, versus ~8–14% in 300-series stainless, which is why it resists chloride stress-corrosion cracking where stainless steels fail.

Can Inconel 625 be used in seawater?

Yes. Inconel 625 performs excellently in seawater, including stagnant and crevice-prone conditions, with negligible general corrosion, pitting, or crevice attack.

Does Inconel 625 rust?

Inconel 625 does not rust in the conventional sense. It forms a stable, self-healing chromium-rich passive film that protects it from oxidation and most corrosive media.

Is Inconel 625 better than 316L for corrosion?

Yes, by a wide margin in chlorides. 316L has a PREN of ~25 and suffers chloride stress-corrosion cracking above ~60°C; Inconel 625 has a PREN of ~48–52 and is immune to chloride SCC.

Can Inconel 625 be welded without losing corrosion resistance?

Yes. Inconel 625 retains full corrosion resistance in the as-welded condition and normally requires no post-weld heat treatment for corrosion service, because its low carbon content prevents sensitization.

Is Inconel 625 NACE certified for sour service?

Yes. Solution-annealed Inconel 625 is accepted for sour-gas (H2S) service under NACE MR0175 / ISO 15156-3, subject to hardness and heat-treatment limits.

What grade is equivalent to Inconel 625?

Common equivalents: UNS N06625, Werkstoff Nr. 2.4856, EN NiCr22Mo9Nb, JIS NCF 625, and BS NA 21. The "Ultimate Guide to Inconel 625" hub page lists the full cross-reference.

About JN Alloy: Your Global Inconel 625 Supplier

Jinie Technology (Jiangsu) Co., Ltd. (JN Alloy) is a specialized manufacturer and global supplier of nickel alloys, super-austenitic stainless steels, and specialty corrosion-resistant alloys, including the complete Inconel family. We supply Inconel 625 (UNS N06625, W.Nr. 2.4856) in all commercial product forms — plate, sheet, strip, bar, rod, seamless and welded pipe, fittings, and forgings — with full traceability and Mill Test Reports (EN 10204 3.1) accompanying every order.

· Plate, Sheet & Strip — ASTM B443 / ASME SB-443 certified

· Rod & Bar — ASTM B446 / ASME SB-446 certified

· Seamless & Welded Pipe / Tube — ASTM B444 / B705 / ASME SB-444 certified

· Forgings & Fittings — ASTM B564 / B366 / ASME SB-564 certified

· Prefabricated Pipe Spools & Custom Components — engineered to spec

We support engineering firms, EPC contractors, and fabrication shops worldwide with material for chemical processing, oil & gas, marine, desalination, FGD, nuclear, and aerospace applications, and provide technical consultation for optimal alloy selection in your specific corrosive environment.

Info@jnalloy.com  |   www.jnalloy.com  |   +86 193 3990 0211  |  Jinie Technology (Jiangsu) Co., Ltd.  |  Serving 40+ Countries Worldwide
