Inconel 625 Heat Treatment

Key Facts About Inconel 625 Heat Treatment

Inconel 625 (UNS N06625) is a nickel-chromium-molybdenum alloy that gets its strength from atoms dissolved in the metal itself, not from heat treatment. It arrives from the mill strong and corrosion-resistant, so heat treatment is used only to fine-tune three things: ductility (annealing), corrosion resistance (solution annealing) and residual stress (stress relief). An optional fourth cycle, aging at 593-760 °C, can raise strength where a design asks for it.

This guide covers every thermal cycle applied to Inconel 625 in practice: what each treatment does, the temperatures and cooling rates specified by ASTM, ASME, AMS and ISO standards, how each delivered condition changes strength and corrosion resistance, and how to select and verify the right treatment for your application. Every temperature is given in both °C and °F, and the data tables can be used directly for procurement and receiving inspection. For the wider material context, start with the complete Inconel 625 guide and the chemical composition breakdown.

Inconel 625 does not need heat treatment to be usable - but if it is heat treated, the treatment must match the service. Solution anneal (1093-1204 °C, rapid cool) for corrosive service, anneal (927-1038 °C) for ductility, stress relief (871-899 °C) only where corrosion is not a concern, and never slow-cool through 600-900 °C.

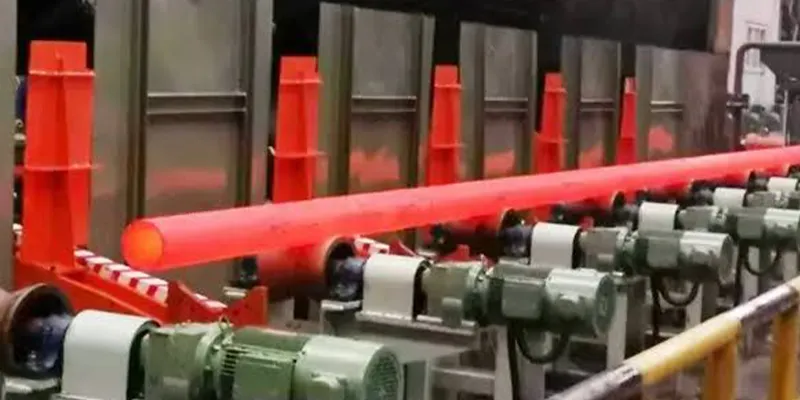

What Is Inconel 625 Heat Treatment?

Inconel 625 heat treatment is the controlled application of thermal cycles to modify the alloy's microstructure, mechanical properties and corrosion performance without changing its chemical composition. Inconel 625 serves in demanding environments, from subsea pipelines at cryogenic temperatures to combustion chambers at 980 °C, and each application demands a different balance of strength, ductility and corrosion resistance.

The fundamental principle is simple: heating the alloy to specific temperatures causes atoms to rearrange. At lower temperatures (871-899 °C), internal stresses relax without significant microstructural change. At intermediate temperatures (927-1038 °C), cold-worked structures recover and recrystallize, restoring ductility. At high temperatures (1093-1204 °C), carbide precipitates dissolve back into the matrix, creating a chemically uniform structure that maximizes corrosion resistance.

What makes Inconel 625 unique among superalloys is its solid-solution strengthening mechanism. The alloy derives its strength from molybdenum (8-10%) and niobium (3.15-4.15%) atoms physically embedded within the nickel-chromium matrix, like rocks mixed into concrete. That is why the alloy needs no heat treatment to reach its baseline strength - a contrast with precipitation-hardened grades such as Alloy 718.

Table 1. Inconel 625 heat treatment categories at a glance

What Are the Three Main Types of Inconel 625 Heat Treatment?

The three main types of Inconel 625 heat treatment are stress relief, annealing (ASTM B443 Grade 1) and solution annealing (ASTM B443 Grade 2). Each targets a different temperature window and produces distinct property outcomes. A fourth category, precipitation aging, is optional and used only when additional strength is needed beyond the solid-solution baseline.

These three heat treatments are not interchangeable. Selecting the wrong one can degrade corrosion resistance, reduce fatigue life, or waste energy. The table below compares all three across the parameters that matter at receiving inspection.

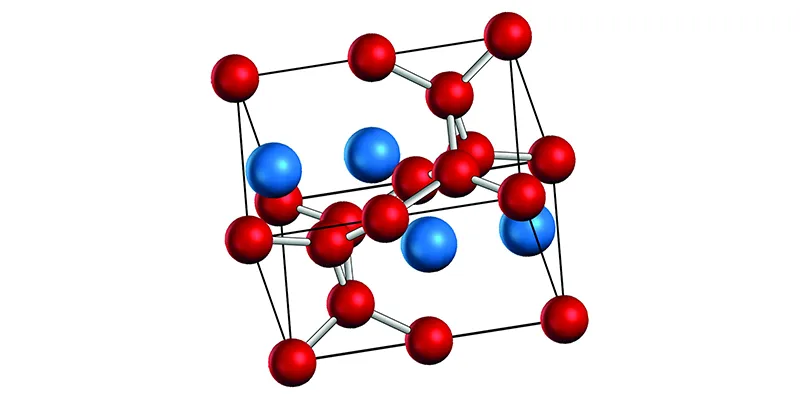

What Is Stress Relief Treatment for Inconel 625?

Stress relief treatment for Inconel 625 involves heating the material to 871-899 °C (1600-1650 °F), holding for approximately one hour per inch of thickness, and air cooling. The purpose is to reduce residual stresses introduced by welding, cold forming, machining or thermal gradients during service, without significantly altering the material's mechanical properties or microstructure.

Residual stresses are internal forces locked into the metal during manufacturing. Think of the metal as a compressed spring inside a solid block: it is invisible but constantly pushing. In service, these hidden forces combine with applied loads and can cause unexpected dimensional distortion, stress corrosion cracking or premature fatigue failure. Stress relief allows the atoms to vibrate enough at elevated temperature to rearrange into a lower-energy configuration, effectively releasing the spring without reshaping the block.

When to Apply Stress Relief

• After welding, to reduce residual stresses in the heat-affected zone (HAZ) and prevent delayed cracking.

• After severe cold forming (bending, deep drawing), to prevent springback and dimensional instability.

• After heavy machining of large components, to prevent distortion during subsequent service.

• Before final precision machining, to ensure dimensional stability of critical-tolerance parts.

Stress relief at 871 °C falls within the carbide precipitation range for Inconel 625 (600-900 °C). While the effect is mild compared with lower-temperature exposures, prolonged holding at this temperature can cause chromium-rich M23C6 carbides to form at grain boundaries, potentially reducing corrosion resistance in aggressive environments. For components requiring maximum corrosion resistance, solution annealing is preferred over stress relief.

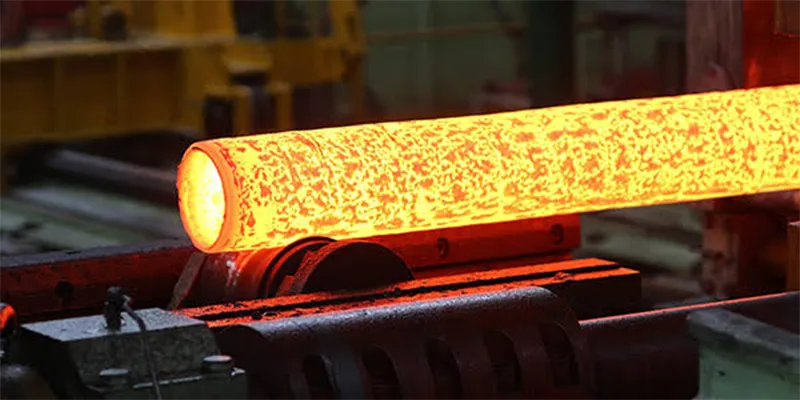

What Is Annealing (Grade 1) for Inconel 625?

Annealing, designated as Grade 1 under ASTM B443, involves heating Inconel 625 to 927-1038 °C (1700-1900 °F), holding for 1-2 hours, and air cooling. This treatment restores ductility and formability in cold-worked material by allowing the deformed grain structure to recover and recrystallize, making it the preferred inter-step treatment during multi-stage cold forming operations.

When Inconel 625 is cold worked (bent, rolled, drawn), its grains become elongated and the internal dislocation density rises dramatically. This is called work hardening, and it makes the material stronger but progressively more brittle, like bending a paperclip back and forth. Annealing reverses this process: the elevated temperature gives atoms enough energy to form new, strain-free grains that replace the deformed ones. The result is a softer, more ductile material ready for the next forming step.

Table 3. Typical properties of Inconel 625 annealed to Grade 1 (ASTM B443)

The ATI 625 alloy datasheet notes that annealing at 1600-1900 °F (927-1038 °C) is specified where high hardness, tensile strength and fatigue strength are desired. This is because Grade 1 annealing preserves a finer grain structure and retains some strengthening from controlled carbide precipitation, compared with the higher-temperature solution annealing which fully homogenizes the structure. The full property set by condition is compared in the Inconel 625 mechanical properties reference.

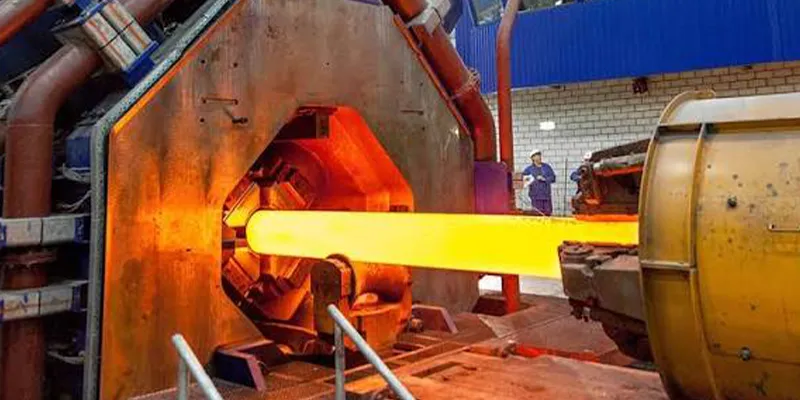

What Is Solution Annealing (Grade 2) for Inconel 625?

Solution annealing, designated as Grade 2 under ASTM B443, involves heating Inconel 625 to 1093-1204 °C (2000-2200 °F), holding for 1-2 hours, and rapidly cooling (water quench or fast air cool). This is the most aggressive heat treatment: it dissolves all carbide precipitates and secondary phases back into the nickel matrix, producing a chemically uniform microstructure that delivers maximum corrosion resistance and maximum ductility.

The term solution refers to a solid solution, which is like salt dissolved in water but at the atomic level in metal. When Inconel 625 is held at 1093-1204 °C, carbon atoms, niobium atoms and chromium atoms that had previously clustered together as carbide particles (NbC, Cr23C6) diffuse back into the nickel matrix until they are uniformly distributed. Rapid cooling freezes this uniform structure in place, preventing the carbides from re-forming as the metal cools.

Grade 2 Solution Annealed Properties (Typical)

Note that solution annealed material has lower tensile and yield strength than Grade 1 annealed material. This is expected: solution annealing produces the softest, most ductile and most corrosion-resistant condition. The strength trade-off is acceptable because the alloy's solid-solution strengthening from molybdenum and niobium still provides adequate baseline strength for most applications.

Why Rapid Cooling Is Critical

After solution annealing, the cooling rate must be fast enough to prevent carbide re-precipitation. If the material cools slowly through the 600-900 °C range, chromium-rich M23C6 carbides will reform at grain boundaries, a phenomenon called sensitization.

Sensitized material is vulnerable to intergranular corrosion because the carbides deplete chromium from the surrounding matrix, stripping away the passive film that protects the alloy. For thin sections (under 3 mm), air cooling may suffice. For thick sections, water quenching is mandatory.

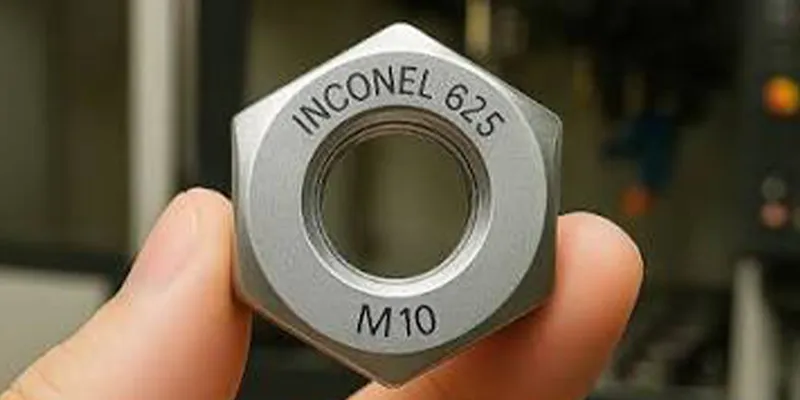

Can Inconel 625 Be Age Hardened (Precipitation Hardened)?

Yes, Inconel 625 can be age hardened through a precipitation treatment at 593-760 °C (1100-1400 °F) for 8-24 hours, which forms metastable gamma double prime (γ″, Ni3Nb) precipitates that can increase yield strength by up to 40%. However, age hardening is not a standard treatment for Inconel 625 and is used only in specialized applications.

Inconel 625 was originally designed as a solid-solution alloy, meaning its strength comes from atoms dissolved in the matrix rather than from precipitates. However, the alloy's niobium content (3.15-4.15%) enables a secondary strengthening mechanism: when aged at 600-750 °C, niobium atoms combine with nickel to form nanoscale γ″ particles (Ni3Nb, D022 crystal structure). These particles act like speed bumps inside the crystal lattice, obstructing dislocation movement and raising the force needed to deform the metal.

Aging Temperature vs. Precipitated Phases

The γ″ phase that provides age hardening is metastable and transforms to the stable δ phase (delta Ni3Nb) with prolonged exposure above 650 °C. The δ phase is acicular (needle-like) and significantly reduces impact toughness and ductility. If Inconel 625 is aged, the treatment must be carefully controlled in temperature and time. For service temperatures above 650 °C, age-hardened Inconel 625 will gradually lose its strengthening effect as γ″ transforms to δ. Where precipitation hardening is the design basis, the standard answer is to move to Alloy 718 - see Inconel 625 vs Inconel 718 - and to check the thermal limits in the Inconel 625 temperature range guide.

What Phases Form During Inconel 625 Heat Treatment?

Inconel 625's microstructure evolves through five principal phases depending on temperature and time: the nickel matrix (γ), gamma double prime (γ″, Ni3Nb), delta phase (δ, Ni3Nb), MC carbides (NbC, TiC) and M23C6 carbides (chromium-rich).

The key insight is that Inconel 625's most useful phases (the solid-solution matrix and MC carbides) are stable across all service temperatures, while the problematic phases (M23C6, δ and Laves) form only in specific temperature windows during heat treatment or prolonged high-temperature service. Proper heat treatment design avoids or controls these detrimental phases.

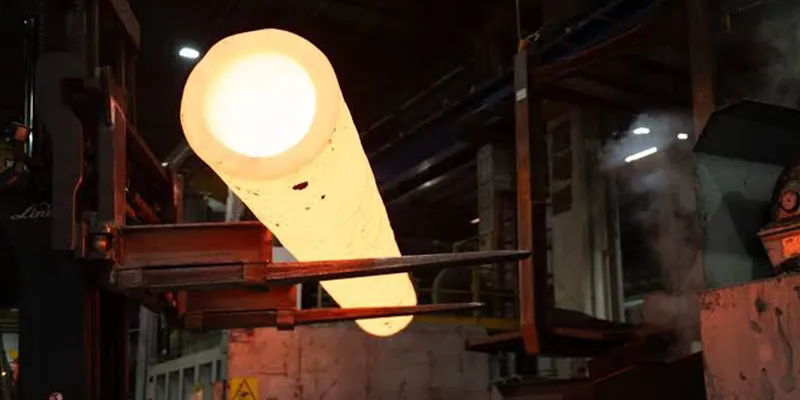

How Does Heat Treatment Affect Inconel 625 Mechanical Properties?

Heat treatment significantly affects Inconel 625's mechanical properties, with tensile strength ranging from 758 MPa (solution annealed, softest) to 1103+ MPa (age hardened, strongest), and elongation ranging from 30% (annealed plus aged) to 55% (solution annealed).

The relationship is inverse: treatments that maximize strength reduce ductility, and treatments that maximize ductility reduce strength. The table below is the fastest way to check whether a delivered condition matches its certificate.

The data reveals a clear trade-off matrix. For applications requiring maximum formability and corrosion resistance (chemical processing, marine exhaust), solution annealing (Grade 2) is the correct choice despite its lower strength. For applications requiring maximum strength with acceptable ductility (aerospace structural components), annealing (Grade 1) or age hardening after solution annealing provides the better balance. The wider property picture, including creep and fatigue, is in the mechanical properties guide.

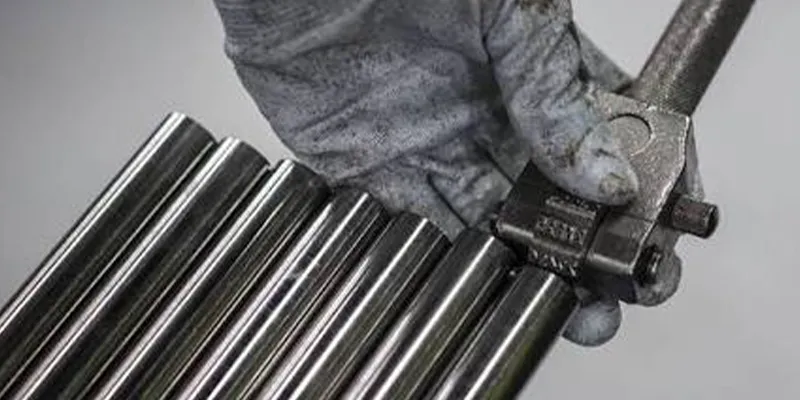

How Does Heat Treatment Affect Inconel 625 Corrosion Resistance?

Heat treatment has a profound effect on Inconel 625 corrosion resistance, with solution annealing (Grade 2) providing the best resistance and low-temperature annealing or stress relief potentially reducing resistance through carbide sensitization. The critical factor is whether chromium-rich M23C6 carbides precipitate at grain boundaries, which depletes chromium from the adjacent matrix and creates zones vulnerable to intergranular attack.

The Sensitization Mechanism

Sensitization occurs when Inconel 625 is held in the 600-900 °C temperature range long enough for chromium atoms to migrate to grain boundaries and form M23C6 carbide particles. The chromium concentration in the matrix immediately adjacent to these carbides drops below the 12% threshold needed to maintain a protective passive film. This chromium-depleted zone becomes anodic relative to the bulk matrix, creating a galvanic cell that drives intergranular corrosion.



For Inconel 625 components destined for aggressive corrosive environments (seawater, acid gas, chloride service), always specify solution annealed (Grade 2) condition. The rapid cooling from 1093-1204 °C ensures all carbides remain dissolved in the matrix, eliminating sensitization risk. If stress relief is necessary after welding, keep the temperature at the upper end (899 °C) and minimize holding time to reduce carbide precipitation. Environment-by-environment performance is covered in the Inconel 625 corrosion resistance guide.

What Standards Govern Inconel 625 Heat Treatment?

Inconel 625 heat treatment is governed by a network of AMS (Aerospace Material Specifications), ASTM, ASME and international standards that define acceptable temperature ranges, soaking times, cooling rates and property verification requirements.

The AMS specifications are published by SAE International and are mandatory for aerospace applications.

The ASTM B443 standard is the primary specification for plate, sheet and strip used in general industrial applications, and it explicitly defines the two grades (annealed and solution annealed) that cover most commercial requirements.

ASME SB-443 mirrors ASTM B443 for pressure vessel code compliance. For the full standards map see ASTM standards for Inconel 625, the equivalent grades explainer and the Inconel 625 pipe and tube overview; forgings under ASTM B564 are covered on the Inconel 625 flanges page.

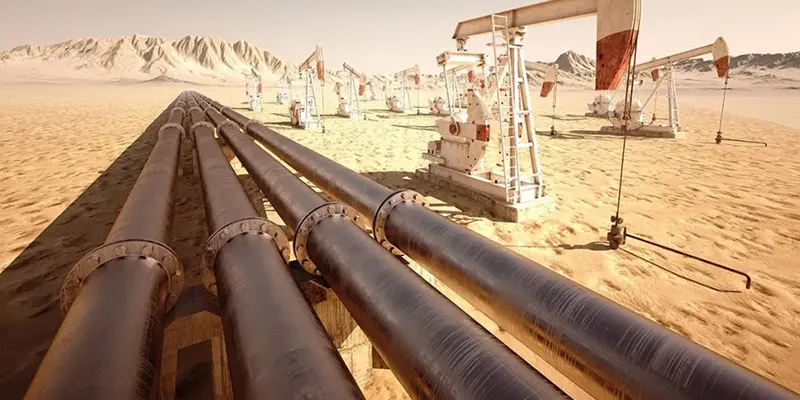

How to Select the Right Heat Treatment for Your Application?

Selecting the right Inconel 625 heat treatment requires evaluating three primary factors: the service environment, the manufacturing stage and applicable material specifications. The decision matrix below maps common application scenarios to the recommended heat treatment.

Industry context for the two largest demand pools: offshore and subsea projects almost always land on solution annealed material - see the offshore oil and gas applications page and the LNG pipe spool case study - while heat exchanger and process-plant duties are compared against Hastelloy C276 in Inconel 625 vs Hastelloy C276 and in the heat exchanger applications guide. When the question is which product form to buy rather than which treatment, use how to select Inconel 625 pipes.

What Are Common Inconel 625 Heat Treatment Mistakes to Avoid?

The most common Inconel 625 heat treatment mistakes are slow cooling through the sensitization range after solution annealing, overaging at temperatures above 760 °C, using stress relief as a substitute for solution annealing in corrosive service, and neglecting to account for carbide precipitation during prolonged intermediate-temperature exposure. Each of these errors can compromise properties without any visible indication, making prevention critical.

• Mistake 1 - slow cooling after solution annealing. Problem: air cooling thick sections (above 12 mm) allows the material to dwell in the 600-900 °C carbide precipitation range long enough for sensitization to occur, so intergranular corrosion appears in service even though the material was solution annealed. Solution: for sections above 3 mm specify water quenching; for very thick sections (above 50 mm) ensure the quench tank has adequate capacity and agitation to achieve at least 55 °C per minute through the critical 900-500 °C range.

• Mistake 2 - overaging above 760 °C. Problem: holding Inconel 625 above 760 °C for extended periods causes γ″ to transform into the stable δ phase, which is acicular and significantly reduces impact toughness; this can happen accidentally during stress relief if the furnace overshoots. Solution: monitor furnace temperature closely (within ±5 °C); if overaging is suspected, re-solution anneal at 1093-1204 °C to dissolve the δ phase.

• Mistake 3 - stress relief in lieu of solution annealing for corrosive service. Problem: using stress relief (871 °C) after welding instead of full solution annealing leaves carbides precipitated in the weld HAZ, creating sensitized zones vulnerable to intergranular corrosion - a common shortcut in fabrication shops. Solution: for any component that will see corrosive service (chlorides, acids, seawater), always perform a full solution anneal after welding.

• Mistake 4 - ignoring time-at-temperature during heat-up. Problem: the furnace may reach setpoint while the core of a thick section is still far below temperature, so the core receives insufficient treatment. Solution: use thermocouples attached to the workpiece surface and core to verify the entire section has reached setpoint before starting the soak timer; add 1 hour of heat-up time per 25 mm of section thickness beyond the first 25 mm.

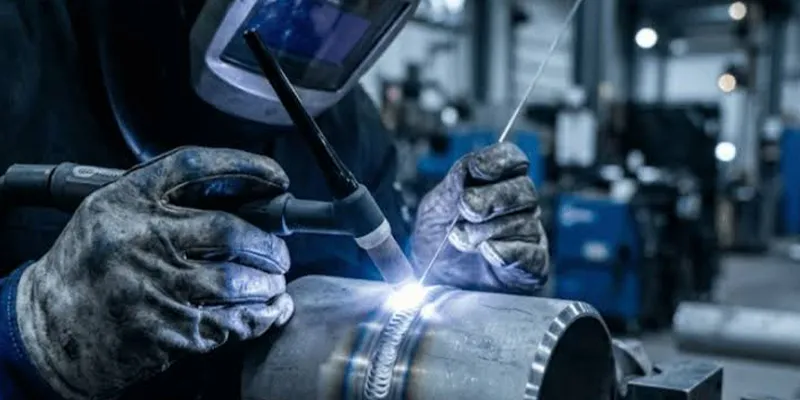

How Does Heat Treatment Interact with Inconel 625 Welding?

Inconel 625 is highly weldable using GTAW (TIG), GMAW (MIG) and SMAW processes, but the welding thermal cycle creates a heat-affected zone (HAZ) where temperatures pass through the carbide precipitation range, potentially sensitizing the material. Post-weld heat treatment strategy depends on the service environment: solution annealing is required for corrosive service, while stress relief may suffice for non-corrosive applications.

During welding, the HAZ experiences temperatures from the melting point at the fusion boundary down to ambient temperature at the outer edge. The portion of the HAZ that passes through 600-900 °C is susceptible to M23C6 carbide precipitation. The severity depends on the heat input, section thickness and number of weld passes. Low-heat-input welding (pulsed GTAW) minimizes the time in the sensitization range but cannot eliminate it entirely.

Post-Weld Heat Treatment Decision Guide

Procedure qualification, filler selection and interpass control are covered in the Inconel 625 welding guide; the same logic applied to a delivered spool is documented in the LNG facility case study.

How Do Inconel 625 Heat Treatment Temperatures Compare Across Specifications?

Different specifications and data sources cite slightly different temperature ranges for Inconel 625 heat treatment, reflecting variations in product form, application requirements and historical evolution of the standards. The table below consolidates the most authoritative sources to enable cross-reference and eliminate confusion.

The data shows remarkable consistency across specifications: stress relief at about 871 °C, annealing at 927-1038 °C and solution annealing at 1093-1204 °C. The only variation is in whether a particular specification formally recognizes stress relief as a defined treatment - most AMS specifications do not, treating it as a supplementary process rather than a delivery condition.

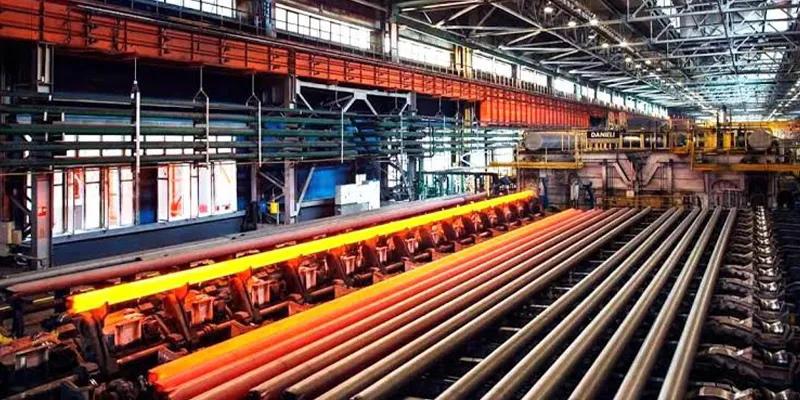

How Does Heat Treatment Apply to Additively Manufactured Inconel 625?

Additively manufactured (AM) Inconel 625, produced by laser powder bed fusion (LPBF) or directed energy deposition (DED), requires specialized heat treatment protocols that differ from wrought material. The as-built AM microstructure features extremely fine grains, high residual stresses and micro-segregation of niobium and molybdenum, necessitating stress relief or solution annealing to achieve consistent properties.

Research published in 2024 demonstrated that direct aging of LPBF-fabricated Inconel 625 at 700 °C produced the highest γ″ precipitation density, increasing hardness by up to 52% compared with the as-built condition. However, the AM microstructure's residual stresses and micro-segregation make it more susceptible to δ phase formation during aging, requiring tighter process control than wrought material.

How to Verify the Heat Treatment Condition of Received Inconel 625

1. Read the heat-treatment condition stated on the EN 10204 3.1 MTC - annealed, solution annealed or stress relieved - and confirm it matches the purchase order line for line.

2. For plate, sheet and strip, Grade 1 means annealed and Grade 2 means solution annealed under ASTM B443 and ASME SB-443; for bar and wire the purchaser specifies the grade under ASTM B446.

3. Solution annealing requires 1093-1204 °C followed by rapid cooling. Ask the supplier for the furnace chart showing soak temperature, time at temperature and quench delay for your heat number.

4. Typical annealed Grade 1 hardness is 180-200 HB, solution annealed Grade 2 is 150-180 HB, and cold-worked material runs 220-280 HB. A reading far outside the expected band flags the wrong condition.

5. Grade 1 requires a minimum of 827 MPa tensile and 414 MPa yield; Grade 2 requires 758 MPa and 345 MPa. Compare the MTC values, not marketing brochures.

6. Typical grain size is ASTM 4-6 for Grade 1 and ASTM 3-5 for Grade 2. If sensitization is suspected, request metallographic examination for grain-boundary carbide films.

7. For acid, seawater and sour service, add ASTM G28 Method A intergranular corrosion testing to the purchase order so sensitized material is rejected before it enters service.

8. Confirm the MTC links heat number, furnace batch, chemistry, mechanical tests and heat-treatment record into one traceable document, and keep it with the material certificate for the life of the component.

Key Takeaways

• Inconel 625 is solid-solution strengthened: heat treatment is optional, not mandatory, and the mill-supplied condition is already service-ready.

• Match the treatment to the service - solution anneal (1093-1204 °C, rapid cool) for corrosive duty, anneal (927-1038 °C) for ductility, stress relief (871-899 °C) only where corrosion is not a concern.

• Never slow-cool through 600-900 °C: that is the sensitization window where chromium-rich M23C6 carbides strip the passive film and invite intergranular corrosion.

• Avoid prolonged exposure above 760 °C, where the strengthening γ″ phase transforms to the embrittling δ phase.

• Verify what you receive: the MTC condition, temper designation, hardness band and tensile results must agree with the purchase order before the material enters fabrication.

• Product forms and stock conditions are listed on the Inconel 625 product page; further questions are answered in the JN Alloy FAQ library and the latest company news.

Frequently Asked Questions

Q: Does Inconel 625 need to be heat treated?

A: No, Inconel 625 does not require heat treatment to achieve its baseline properties. The alloy is solid-solution strengthened by molybdenum and niobium, so it arrives from the mill already strong and corrosion-resistant. Heat treatment is optional and is used to optimize properties for specific applications, such as restoring ductility after cold working (annealing), maximizing corrosion resistance (solution annealing), or reducing residual stresses after welding (stress relief).

Q: What is the difference between annealing and solution annealing for Inconel 625?

A: Annealing (Grade 1, ASTM B443) is performed at 927–1038°C and restores ductility in cold-worked material through recovery and recrystallization, with some carbide precipitation. Solution annealing (Grade 2, ASTM B443) is performed at 1093–1204°C and dissolves all carbide precipitates into the matrix, producing maximum corrosion resistance and ductility but lower strength. The key difference is temperature: solution annealing is 150–200°C hotter, which fully homogenizes the microstructure.

Q: Can Inconel 625 be precipitation hardened like Inconel 718?

A: Inconel 625 can be age hardened at 593–760°C to precipitate γ″ (Ni3Nb) for additional strength, but this is not a standard treatment and is used far less frequently than in Inconel 718. The γ″ phase in Alloy 625 is metastable and transforms to the embrittling δ phase above 750°C, limiting the practical service temperature of age-hardened material. Inconel 718 is the preferred choice when precipitation hardening is required, as its γ″ is more stable.

Q: What is the best heat treatment for Inconel 625 in corrosive service?

A: Solution annealing at 1093–1204°C followed by rapid cooling (water quench for sections above 3 mm) provides the best corrosion resistance. This treatment dissolves all grain-boundary carbides, eliminating sensitization and ensuring a uniform chromium distribution throughout the matrix. For post-weld treatment in corrosive service, a full solution anneal is required, not just stress relief.

Q: What temperature should be avoided during Inconel 625 heat treatment?

A: The 600–900°C range should be traversed quickly during cooling to avoid carbide sensitization (M23C6 precipitation at grain boundaries). Prolonged exposure above 760°C should be avoided to prevent δ phase (Ni3Nb) formation, which causes embrittlement. The 650–900°C range is particularly dangerous because it promotes both sensitization and δ/γ″ transformation simultaneously.

Q: Can Inconel 625 be heat treated after welding without losing strength?

A: Yes. Solution annealing after welding restores the HAZ microstructure to a uniform, corrosion-resistant condition. While the solution-annealed condition has lower tensile strength than the annealed or cold-worked condition, the strength remains adequate for most applications because of the alloy's inherent solid-solution strengthening. If maximum post-weld strength is needed, solution anneal followed by aging at 650°C can recover the strength through γ″ precipitation.

What is the solution annealing temperature for Inconel 625 pipe and tube?

Inconel 625 pipe and tube are supplied in the solution-annealed condition per ASTM B444 (welded) and ASTM B705 (seamless), with the typical solution annealing range of 1093-1204 °C (2000-2200 deg F) followed by rapid cooling. Always confirm the exact temperature, tolerance and cooling requirement in the purchase specification and the mill test certificate, because the specification, not a datasheet, is the contractual requirement.

How do you verify heat treatment on a mill test certificate?

Look for four items on the EN 10204 3.1 certificate: the delivered condition (annealed, solution annealed or stress relieved), the heat or melt number, the thermal cycle record (temperature, soak time and cooling method), and the mechanical test results that correspond to that condition. If any of the four is missing, the certificate does not prove the heat treatment was performed as specified.

Does solution annealing reduce the strength of Inconel 625?

Yes. Solution annealing produces the softest condition: typical tensile strength drops to 758-827 MPa and yield to 345-414 MPa, versus 827-965 MPa and 414-517 MPa for Grade 1 annealed material. The trade is deliberate - solution annealing buys maximum ductility and corrosion resistance, which is why it is the standard delivery condition for corrosive service.

Can stress relief sensitize Inconel 625?

Stress relief at 871-899 °C sits at the upper edge of the 600-900 °C carbide precipitation range, so prolonged holding can precipitate chromium-rich M23C6 carbides at grain boundaries and reduce corrosion resistance. The effect is mild compared with lower-temperature exposure, but for components in aggressive service, keep the temperature at the upper end of the range, minimize holding time, and prefer solution annealing when corrosion resistance is critical.

What cooling rate is required after solution annealing Inconel 625?

Rapid cooling is mandatory to keep carbides dissolved. For thin sections under 3 mm, air cooling may suffice; for thicker sections, water quenching is required. For very thick sections above 50 mm, the quench tank needs adequate capacity and agitation to achieve a cooling rate of at least 55 °C per minute through the critical 900-500 °C range.

Is age-hardened Inconel 625 used commercially?

Rarely. Aging at 593-760 °C can raise yield strength by up to 40 percent through gamma double prime precipitation, but the phase is metastable and transforms to the embrittling delta phase with prolonged exposure above 650-750 °C. Where high strength is the priority, Inconel 718 is specified instead, because its gamma double prime is stable at higher temperatures. Age-hardened 625 appears mainly in specialized springs, fasteners and research contexts.
