Inconel 625 Temperature Range: Cryogenic to 980°C Service

Inconel 625 (UNS N06625) holds useful strength and corrosion resistance from cryogenic temperatures up to about 980 C in clean oxidizing air. Here is the full temperature envelope, the limits that actually govern it, and how to choose Grade 1 or Grade 2.

Key Facts About Inconel 625 Temperature Range

Inconel 625 (UNS N06625) is a nickel-chromium-molybdenum alloy that holds useful strength and corrosion resistance from cryogenic temperatures (down to at least -196 C / -320 F) up to about 980 C (1800 F) in clean oxidizing air. The single number that people quote - 980 C - is an oxidation limit, not a universal ceiling. In reducing or sulfidizing atmospheres the limit falls to about 815 C, and above about 650 C long-term creep, not tensile strength, controls the design.

This article gives the full temperature envelope, explains the limits that actually govern it, corrects a common mix-up between Grade 1 and Grade 2, and shows how to specify the alloy for high-temperature service.

Use about 980 C as the oxidizing ceiling, about 815 C for reducing or sulfidizing atmospheres, and about 650 C as the temperature above which creep rupture governs pressure-boundary design. Avoid long holds in the 540 to 760 C embrittlement band. Choose Grade 1 (annealed) up to about 593 to 649 C and Grade 2 (higher-temperature solution annealed) for creep-sensitive service above about 600 C.

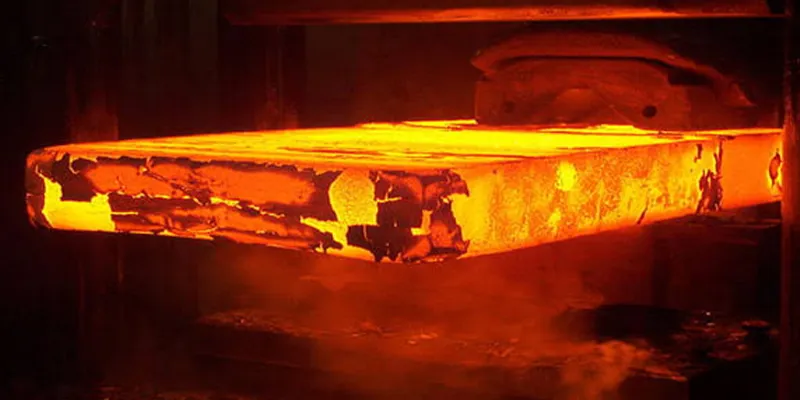

What Is the Full Service Temperature Range of Inconel 625?

Inconel 625 is usable from cryogenic temperatures up to about 980 C in clean oxidizing air, but the envelope is not a single line - it is divided into regimes, and the governing limit changes with temperature, atmosphere and whether the part is under stress.

The alloy is solid-solution strengthened by molybdenum and niobium, so there is no precipitate phase to overage and no sharp loss of strength as temperature rises. That is why it spans such a wide range, from liquid-nitrogen cryogenics to near 1000 C. The table below is the original service-regime data for this alloy, preserved exactly as published, and it is the fastest way to see where the governing limit changes.

What Is the Lowest Temperature Inconel 625 Can Handle?

Inconel 625 performs well at cryogenic temperatures, down to at least -196 C (-320 F) and below, with no ductile-to-brittle transition in the LNG-relevant range, so it is a sound choice for cryogenic piping, tanks and aerospace components.

Unlike ferritic and some austenitic steels, the austenitic nickel-base structure of Inconel 625 stays tough as it gets colder. It keeps useful strength and impact resistance in liquid nitrogen and liquid oxygen, which is why it appears in rocket engine and cryogenic storage service. For design at cryogenic temperature, still take mechanical properties from the product standard and the applicable code rather than from room-temperature data. The Inconel 625 mechanical properties page carries the property tables across the temperature range.

What Is the Maximum Continuous Temperature in Oxidizing Atmospheres?

Conclusion: in clean, oxidizing air the practical ceiling is about 980 C (1800 F), because a protective chromium oxide (Cr2O3) scale stays adherent up to that point; short-term or peak exposure can approach roughly 1000 C.

That 980 C figure is an oxidation-resistance limit. It assumes a clean atmosphere and no halogens, sulfur or molten salts, which can attack the scale at far lower temperatures. It also assumes the part is not creep-limited, because a pressure-boundary component above about 650 C will be designed on creep rupture long before it reaches 980 C. The chromium that gives this oxidation resistance is the same element that makes the alloy a strong chloride-corrosion performer - see the Inconel 625 corrosion resistance page.

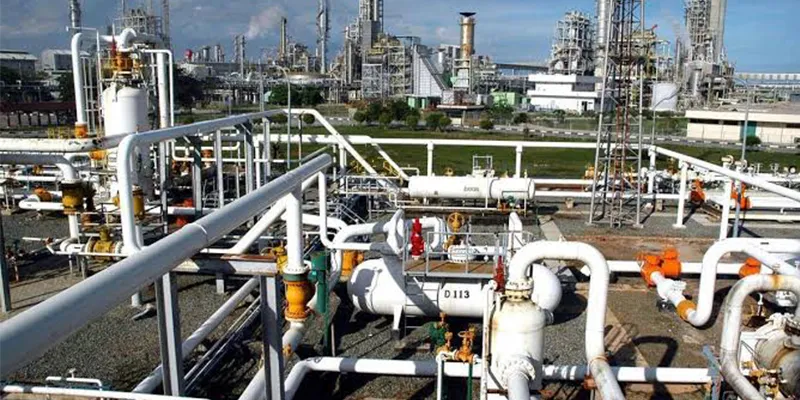

How Does Inconel 625 Perform in Cryogenic Service?

Inconel 625 retains excellent ductility and impact toughness at cryogenic temperatures down to -196°C, with no ductile-to-brittle transition temperature and Charpy V-notch impact values typically exceeding 100 J (74 ft-lb) — making it a reliable choice for LNG and other deep-cryogenic applications without any special cryogenic-grade processing.

This performance is a direct consequence of the alloy's fully austenitic, face-centered cubic (FCC) crystal structure. Unlike ferritic or martensitic steels, which undergo a sharp transition from ductile to brittle fracture behavior as temperature drops, FCC metals like Inconel 625 do not exhibit this transition at all — toughness degrades only gradually, if at all, as temperature falls. No special heat treatment or processing beyond standard solution annealing is required to qualify the alloy for cryogenic service, which is one reason it competes directly with austenitic stainless steels in LNG equipment while offering superior corrosion resistance against the amine-based acid-gas removal solvents used upstream of the liquefaction process.

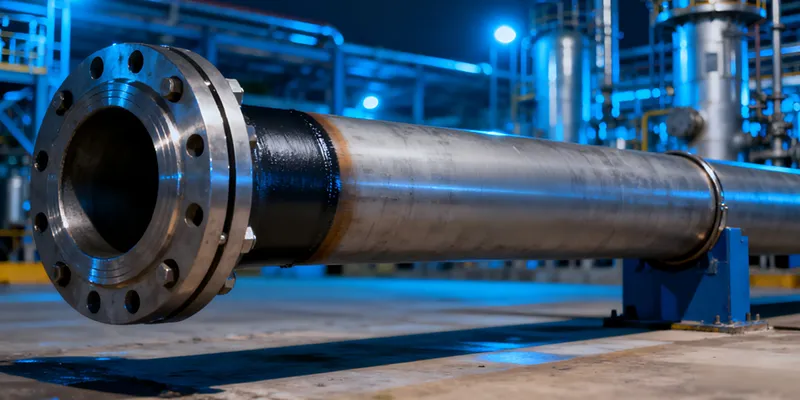

Why Does the Service Limit Drop in Reducing and Sulfidizing Atmospheres?

Conclusion: in H2S-bearing or reducing atmospheres the usable limit falls from about 980 C to about 815 C (1500 F), because the protective chromium oxide scale is less stable when sulfur rather than oxygen is the reactant.

Oxidation in clean air builds a stable, slow-growing Cr2O3 scale. In a reducing or sulfidizing atmosphere the sulfur reacts with chromium and nickel to form sulfides that grow faster and protect less, so the metal thins by scaling sooner. The practical rule is simple: match the atmosphere to the limit. If the environment can contain H2S, sulfur compounds or other reducing species, apply the 815 C ceiling and confirm sour-service compliance to NACE MR0175 / ISO 15156.

At What Temperature Does Creep Become the Design-Limiting Factor?

Above about 650 C (1200 F), long-term creep rupture life - not room-temperature tensile strength and not oxidation - becomes the design-limiting factor for pressure-boundary parts, so the allowable stress must come from ASME Section II Part D at the actual metal temperature.

Under sustained load at temperature, Inconel 625 slowly deforms and eventually ruptures. The tensile and yield values below fall steadily with temperature, and a design that copies a room-temperature strength into a 760 C calculation will be badly unconservative. The table is the original typical strength-versus-temperature data, preserved exactly as published; note the values are typical, not minimum, and are not design allowables.

Table 2. Typical tensile and yield strength of Inconel 625 versus temperature (typical, not minimum values)

For a focused look at how strength behaves in the creep-sensitive range, see the Inconel 625 yield strength at 700 C article, and use the Inconel 625 mechanical properties page for the full property set.

What Is the 540 to 760 C Embrittlement Window, and How Does It Affect Service?

long exposure in roughly the 540 to 760 C (1000 to 1400 F) band slowly precipitates a gamma double-prime phase that raises strength but reduces room-temperature ductility and impact toughness, so parts that must stay tough after years of hot service should avoid slow cooling through this range.

This is the practical downside of a solid-solution alloy that is not quite immune to precipitation. Short exposures and normal start-up and shut-down cycles are not a concern, but equipment that idles for long periods in this band, or that cools slowly through it, can lose toughness. Where service life is long, verify impact toughness after exposure and design against the code allowables rather than the strengthened tensile values. The Inconel 625 heat treatment page explains the annealing and cooling practice that avoids this.

At What Temperature Does Creep Become the Design-Limiting Factor?

For pressure-boundary components, creep rupture life — not oxidation resistance — becomes the governing design constraint above approximately 650°C (1200°F), which is why ASME Section II, Part D publishes separate time-dependent allowable stress values for Inconel 625 that account for long-term creep behavior rather than simply scaling down the short-term tensile properties.

Creep is the slow, time-dependent plastic deformation that occurs when a metal is held under sustained stress at elevated temperature — a mechanism entirely distinct from oxidation or sulfidation attack, and one that can govern component life even when the material shows no visible surface degradation at all. Because creep is time-dependent, the allowable stress for a component rated for 100,000 hours of service is necessarily lower than the short-term tensile strength would suggest at the same temperature.

For high-temperature pressure vessels and piping operating above approximately 650°C, designers should consult the relevant ASME Section II, Part D time-dependent stress tables (or applicable code case) for Grade 2 material, and should weigh whether a precipitation-hardened alternative such as Inconel 718 — or a higher-temperature solid-solution alloy such as Inconel 617 — better fits the specific creep-life requirement.

How Does Tensile and Yield Strength Change With Temperature?

Inconel 625 retains a substantially higher fraction of its room-temperature strength at elevated temperature than carbon steels or standard austenitic stainless steels, because the solid-solution strengthening provided by niobium and molybdenum continues to impede dislocation movement even as thermal energy activates additional slip systems — though both tensile and yield strength still decline steadily as temperature rises.

Typical values for annealed (Grade 1) material per ASTM B443/B444 elevated-temperature data, consistent with the Inconel 625 hub guide. These are typical, not minimum guaranteed, values — use ASME Section II, Part D allowable stress tables for pressure-boundary design, not the tensile data above.

For applications requiring guaranteed elevated-temperature strength below 650°C, Inconel 625 can be ordered in Grade 2 (annealed + aged) condition, which raises room-temperature yield strength by roughly 200–300 MPa over Grade 1 through precipitation of gamma-double-prime (γ″), a metastable Ni₃Nb phase — but this treatment is not appropriate above approximately 650°C, for reasons covered in the next section.

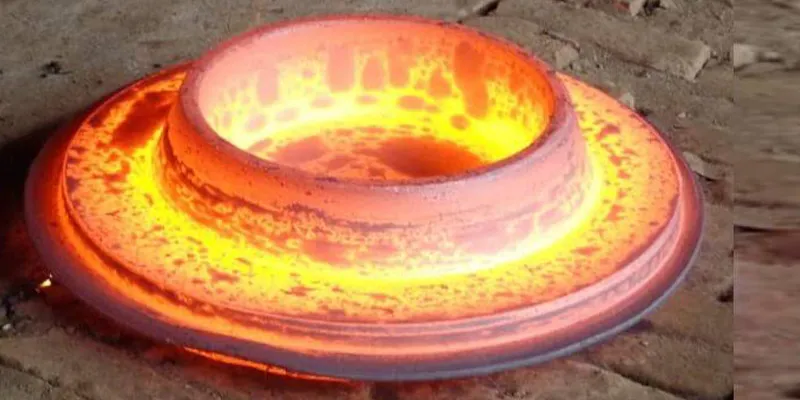

What Is the 540–760°C Embrittlement Window, and How Does It Affect?

Inconel 625 in the annealed (Grade 1) condition is subject to a documented loss of room-temperature impact toughness after prolonged exposure in the 540–760°C (1000–1400°F) range, a phenomenon distinct from both its creep behavior and its oxidation resistance — meaning a component can pass every relevant strength and corrosion check and still lose ductility if it spends extended time in this specific temperature band and is later stressed at or near room temperature.

This embrittlement is caused by long-term precipitation of secondary phases at grain boundaries during extended thermal exposure in this range — a slow metallurgical aging process, not a sudden failure mode. The practical implication is that components which pass through this temperature window only briefly during startup or shutdown are not typically at risk; the concern is specifically for equipment that dwells within this range for extended periods in service. It is a distinct consideration from the sensitization window relevant to welding, though the two temperature bands overlap.

Designers specifying Inconel 625 for equipment that will operate continuously in this range — certain heat exchanger tubes and furnace components, for example — should evaluate whether the equipment will also see mechanical loading or impact at or near room temperature during outages, inspection, or transport, since that is the condition under which this embrittlement actually manifests as a problem.

What Are the ASME Code Temperature Limits by Section and Grade?

The ASME construction sections set different temperature ceilings by product grade - generally about 593 to 649 C for Grade 1 (annealed) and up to about 871 C for Grade 2 (higher-temperature solution annealed) - and the exact allowable must be taken from ASME Section II Part D for the specific section and grade.

The table below is the original ASME code-limits data, preserved exactly as published. Read it with the grade definitions that follow, because the Grade 2 column is the high-temperature one.

Key point: Data note: the grade columns in Table 3 are consistent with ASTM B443. Grade 1 is the lower-temperature annealed condition and Grade 2 is the higher-temperature solution-annealed condition, which is why the Grade 2 ceiling is the higher of the two. An earlier version of this page reversed the two grades in the surrounding text; the table was correct and the text has been corrected. Always confirm the applicable code case and the current ASME Section II Part D curve for the exact grade and product form before design.

How Do Grade 1 and Grade 2 Differ, and Which Should I Choose?

Choose Grade 1 (annealed) for general service up to about 593 to 649 C, and Grade 2 (solution annealed at a higher temperature) for creep-sensitive service above about 600 C - Grade 2 is a higher-temperature solution anneal for creep resistance, not an aged or precipitation-hardened condition.

Table 4. Grade 1 versus Grade 2 selection for Inconel 625 (ASTM B443)

The common mistake is to buy Grade 1 because it shows a higher room-temperature yield on the certificate. Above about 600 C that is the wrong basis: Grade 1 lower-temperature anneal does not fully dissolve carbides and secondary phases, so it can lose creep rupture life well before its tensile data suggests a problem. State the service temperature and atmosphere on the enquiry and let the supplier flag the defensible grade. The Inconel 625 guide and ASTM standards for Inconel 625 cover the specification in detail.

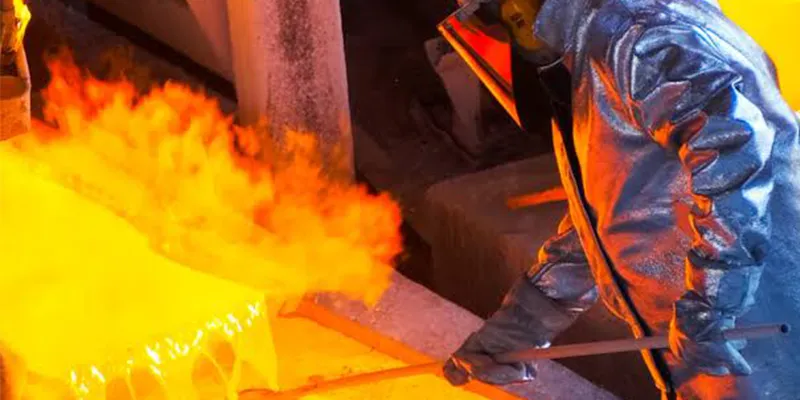

How Does Inconel 625 Compare to Other Nickel Alloys at High Temperature?

Inconel 625 is the general-purpose choice for hot, oxidizing and chloride-bearing service up to about 980 C, while Inconel 718 is stronger but only to about 650 C, Hastelloy C276 is better in strongly reducing acid, and the Incoloy and Monel families fill lower-temperature or specialized niches.

Table 5. High-temperature and corrosion positioning of common nickel alloys

The pattern is that no single alloy wins everywhere: 718 for strength below 650 C, 625 for the broad hot-and-corrosive middle, 601 and 800 for the highest oxidation and thermal cycling, C276 for reducing acids. The dedicated comparisons - Inconel 625 vs 718, Inconel 625 vs Hastelloy C276, Inconel 625 vs Monel 400 and Inconel 625 vs 316L - work through each trade-off, and the Hastelloy C276 temperature limits page is the C276-side companion to this article.

What Standards Govern Inconel 625 Temperature Limits?

The material and its conditions are defined by ASTM B443, B444, B446 and B564 (with ASME SB-equivalents), the design allowables come from ASME Section II Part D, process piping follows ASME B31.3, and sour service follows NACE MR0175 / ISO 15156.

Table 6. Standards that govern Inconel 625 and its temperature limits

The single most important discipline is to take allowables from Section II Part D at the design metal temperature and life, not from a datasheet tensile value. The ASTM standards for Inconel 625 and how to select Inconel 625 pipes pages give the procurement-level detail.

How to Specify Inconel 625 for High-Temperature Service

1. Write the highest continuous metal temperature, the start-up and shut-down transients, and the minimum (including any cryogenic or cold-start case). The metal temperature, not the fluid temperature, governs the material selection.

2. Specify whether the service is oxidizing, reducing or sulfidizing (H2S), and any contaminants. The oxidizing ceiling is about 980 C but the reducing or sulfidizing ceiling is only about 815 C, so the atmosphere decides the usable limit.

3. For pressure-boundary parts above about 650 C, obtain the allowable stress from ASME Section II Part D for the actual metal temperature and design life rather than from room-temperature tensile data.

4. Use Grade 1 (annealed) for general service to about 593 to 649 C, and Grade 2 (higher-temperature solution annealed) where creep-sensitive service exceeds about 600 C. State the grade and the ASME or ASTM product standard on the purchase order.

5. Keep fabrication and service exposure short through the roughly 540 to 760 C band, where gamma double-prime precipitation reduces ductility, and do not specify slow cooling through that range.

6. Name the form and standard: ASTM B443 for plate, B444 for tube, B446 for bar, B564 for forgings, with the ASME SB-equivalents where the code requires them, and require a solution-annealed, rapidly cooled condition.

7. Specify ERNiCrMo-3 filler, low heat input, and no post-weld heat treatment except where an anneal is used to restore ductility; qualify the procedure to the applicable code.

8. Demand an EN 10204 Type 3.1 or ASME-accepted mill test certificate reporting the actual heat chemistry and mechanical results, plus PMI, so the grade and condition are proven, not assumed.

What Are the Most Common Mistakes With Inconel 625 Temperature Ratings?

The usual mistakes are treating 980 C as a universal ceiling, ignoring the atmosphere, copying room-temperature strength into a creep design, buying Grade 1 for high-temperature creep service, and slow-cooling through the embrittlement band - all of which the correct regime and grade selection avoid.

Table 7. Common mistakes and how to avoid them

Key Takeaways

• The full envelope is cryogenic to about 980 C in clean oxidizing air; 980 C is an oxidation limit, not a universal ceiling.

• In reducing or sulfidizing atmospheres the limit falls to about 815 C (1500 F).

• Above about 650 C, creep rupture - not tensile strength - governs pressure-boundary design; use ASME Section II Part D.

• Avoid long holds and slow cooling through the roughly 540 to 760 C embrittlement band.

• Grade 1 (annealed) to about 593 to 649 C; Grade 2 (higher-temperature solution annealed) for creep-sensitive service above about 600 C.

• Inconel 625 is solid-solution strengthened, not age-hardened, and welds with ERNiCrMo-3 generally without post-weld heat treatment.

Related Reading

• Inconel 625 complete guide - the cluster hub

• Inconel 625 product page

• Inconel 625 chemical composition

• Inconel 625 mechanical properties

• Inconel 625 corrosion resistance

• Inconel 625 welding guide

• Inconel 625 heat treatment

• Inconel 625 yield strength at 700 C

• Inconel 625 vs Inconel 718

• Inconel 625 vs Hastelloy C276

• Inconel 625 vs Monel 400

• Inconel 625 vs stainless steel 316L

• Inconel 601 and Incoloy 800

• Hastelloy C276 temperature limits

• ASTM standards for Inconel 625 and how to select Inconel 625 pipes

• Full JN Alloy FAQ list

• JN Alloy industry news and case studies

Frequently Asked Questions

Q1. What is the maximum service temperature of Inconel 625?

About 980 C (1800 F) in clean, oxidizing air, where the protective chromium oxide scale stays adherent. Short-term or peak exposure can reach roughly 1000 C. The limit is set by oxidation resistance, so it falls to about 815 C (1500 F) in reducing or sulfidizing atmospheres.

Q2. What is the minimum, cryogenic temperature for Inconel 625?

Inconel 625 performs well at cryogenic temperatures, down to at least -196 C (-320 F) and below, with no known ductile-to-brittle transition within the LNG-relevant range. It keeps useful strength and toughness in liquid nitrogen and liquid oxygen, which is why it is used in cryogenic and aerospace components.

Q3. Can Inconel 625 be used continuously above 650 C?

Yes, but not on tensile strength alone. Above about 650 C (1200 F) the design is governed by long-term creep rupture life rather than room-temperature strength, so the allowable stress must come from ASME Section II Part D at the actual metal temperature. Oxidation also becomes the ceiling near 980 C, and the 540 to 760 C band adds an embrittlement caution.

Q4. Why does the service limit drop in reducing and sulfidizing atmospheres?

The protective scale on Inconel 625 is a chromium oxide. In clean, oxidizing air that scale is stable and adherent to about 980 C. In H2S-bearing or reducing atmospheres the scale is less stable and can break down, so the usable limit drops to about 815 C (1500 F). Always match the atmosphere to the limit you apply.

Q5. What is the 540 to 760 C embrittlement window?

Roughly 540 to 760 C (1000 to 1400 F), long exposure slowly precipitates a gamma double-prime phase that raises strength but cuts room-temperature ductility and impact toughness. Parts that must stay tough after years of hot service should avoid slow cooling through this band, and toughness should be checked after long exposure.

Q6. What is the difference between Inconel 625 Grade 1 and Grade 2?

Both are annealed, but to different temperatures. Grade 1 is annealed at a lower temperature (about 954 to 1038 C) and is the general-purpose condition for service up to about 593 to 649 C. Grade 2 is solution annealed at a higher temperature (about 1093 to 1204 C) and water quenched, giving a stable, fully recrystallized structure specified for creep-sensitive service above about 600 C. Grade 2 is not an aged or precipitation-hardened condition.

Q7. Which grade should I use for service above 650 C?

Specify Grade 2 (the higher-temperature solution-annealed condition) for creep-sensitive service above about 600 C, because its higher anneal dissolves carbides and secondary phases and stabilizes the microstructure for long-term creep. Grade 1 is the correct general grade for lower temperatures up to about 593 to 649 C.

Q8. Is Inconel 625 age-hardenable like precipitation-hardened superalloys?

No. Inconel 625 is strengthened by molybdenum and niobium in solid solution, not by precipitation hardening, so there is no aging cycle to schedule and it can be used as welded and as formed. This is a key advantage over age-hardened alloys such as Inconel 718, which need post-weld solution annealing and aging to restore properties.

Q9. Does Inconel 625 need post-weld heat treatment?

Generally no. Inconel 625 is one of the most weldable nickel alloys and is normally used in the as-welded condition with ERNiCrMo-3 filler. Where a stress relief or anneal is specified to restore ductility after heavy cold work, use the anneal rather than an aging treatment. Avoid slow cooling through the 540 to 760 C embrittlement band.

Q10. How does Inconel 625 compare to Inconel 718 at high temperature?

Inconel 718 is stronger at moderate temperature (about 300 to 650 C) because it is precipitation hardened, but it loses strength above about 650 C as its gamma double-prime coarsens. Inconel 625 holds strength and oxidation resistance across a far wider range, up to about 980 C, so for service above roughly 700 C Inconel 625 is the safer choice.

Q11. How does Inconel 625 compare to Hastelloy C276?

Both are nickel-chromium-molybdenum alloys with wide temperature ranges, but they optimize differently: Inconel 625 leads on oxidation resistance and high-temperature strength to about 980 C, while Hastelloy C276 is stronger in hot, wet chlorine and strongly reducing acids. Choose Inconel 625 when the duty is hot and oxidizing, and C276 when the medium is strongly reducing or acidic.

Q12. Is Inconel 625 suitable for cryogenic LNG service?

Yes. Inconel 625 keeps useful strength and toughness down to cryogenic temperatures with no ductile-to-brittle transition in the LNG-relevant range, and it resists the chloride and sour environments common in LNG and offshore service. It is used for cryogenic piping, tanks and structural components.

Q13. What standards govern Inconel 625 temperature limits?

ASTM B443 (plate), B444 (tube), B446 (bar) and B564 (forgings) define the material and its conditions, with the ASME SB-equivalents for code work. Allowable stresses come from ASME BPVC Section II Part D, and process piping is designed to ASME B31.3. Sour service follows NACE MR0175 / ISO 15156.

Q14. At what temperature does creep become the limiting factor for Inconel 625?

Creep begins to govern pressure-boundary design above about 650 C (1200 F). Below that, oxidation resistance and tensile strength usually control; above that, long-term creep rupture life sets the allowable stress and the wall thickness, so design must use creep data rather than room-temperature tensile values.

Q15. What is the tensile strength of Inconel 625 at high temperature?

Typical annealed tensile strength falls from about 827 to 1034 MPa at room temperature to roughly 655 MPa at 650 C, about 415 MPa at 760 C and about 240 MPa at 870 C. These are typical, not minimum, values and must not be used as design allowables; use ASME Section II Part D for that.

Q16. Is Inconel 625 resistant to chloride stress-corrosion cracking at high temperature?

Yes. Inconel 625 has high molybdenum and chromium content, giving strong resistance to chloride pitting, crevice corrosion and chloride stress-corrosion cracking, and it is NACE MR0175 / ISO 15156 listed for sour service. That corrosion resistance is retained across a broad temperature range, which is central to its versatility.

Q17. How should I specify Inconel 625 for a high-temperature vessel?

State the UNS number (N06625), the product standard and form, the grade (1 or 2), the maximum metal temperature and atmosphere, the required creep or tensile basis, and the certification type. For creep-sensitive service above about 600 C specify Grade 2, and take allowables from ASME Section II Part D at the design temperature.
