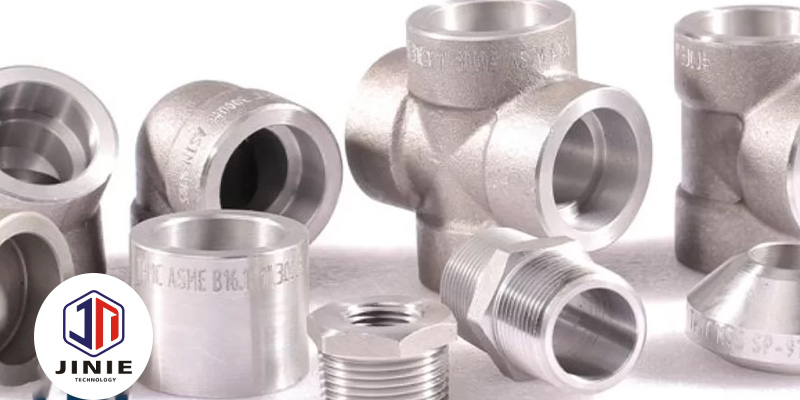

Socket weld is the connection method for small-bore, high-pressure piping systems. In socket weld fittings, a pipe is inserted into a recessed "socket" within a fitting, flange, valve, or other component, leaving a typical 1/16" or 1.5 mm gap before circumferential fillet welding is performed around the joint's exterior.
This article shows the basics, how it works, types, applications, and installation, providing professionals with the insights needed, using our latest material expertise.
A socket weld is a pipe connection primarily used for nominal pipe sizes (NPS) 2 inches and smaller, where a pipe end is inserted into a socket of a mating component. The internal shoulder of the socket provides inherent alignment and supports the pipe, while the external fillet weld applied around the circumference creates the primary structural and sealing bond.
Defined by standards such as ASME B16.11 and ASME B31.3, socket weld joints are characterized by their compact profile, high strength under internal pressure and vibration, and suitability for high-pressure services, making them a necessary choice in critical industries like oil and gas, chemical processing, power generation, and hydraulic systems where leak integrity is paramount.

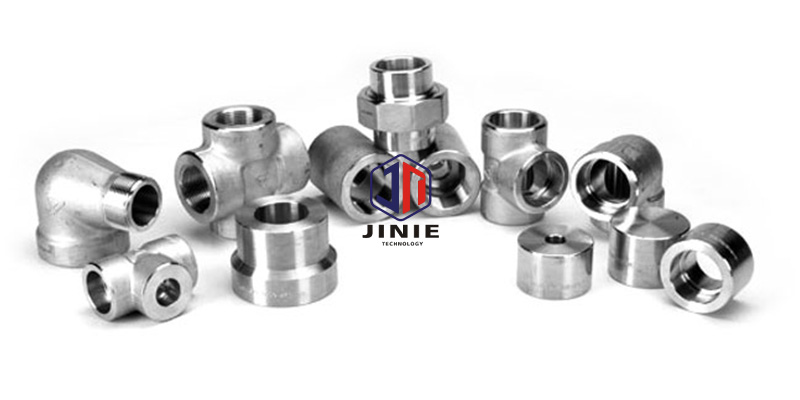

Socket welding works as follows: after cutting, deburring, and cleaning the pipe end, it is inserted fully into the socket of the fitting or component until it bottoms out against the internal shoulder. The pipe is then carefully withdrawn approximately 1/16 inch to create a deliberate expansion gap—this Critical Step is essential for thermal expansion during welding and prevents potential cracking at the weld root due to induced stresses upon cooling.
A fillet weld is then meticulously applied around the entire circumference where the pipe protrudes from the socket, fusing the pipe's outer surface to the raised "shoulder" or "hub" of the socket. This weld penetrates both the fitting material and the pipe wall, creating a robust, leak-tight joint capable of withstanding significant pressure, mechanical loads, and vibration; modern techniques involve precise gap control, heat input, and cleaning processes to ensure defect-free, high-integrity welds, especially crucial for corrosion-resistant alloys.

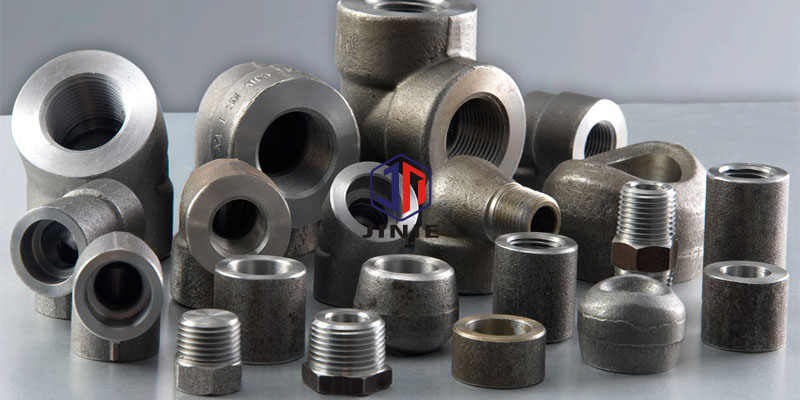

The socket welding system comprises standardized components for seamless integration.
Socket Weld Flanges: Connect pipes to equipment or other flanges, featuring a socket for pipe insertion and a raised face for bolting.
Socket Weld Pipe Fittings: This category encompasses elbows (90° and 45°), tees (equal or reducing), couplings (full, half), unions, caps, and reducers (concentric, eccentric), all featuring integral sockets for direct pipe welding.
Socket Weld Couplings: Connect two pipes end-to-end within a single fitting.
Socket Weld Tees: Allow branch connections, with sockets on all three ends.
Socket Weld Pipe: It refers to pipe ends specifically prepared for insertion into socket weld components.
Socket Weld Unions: Provide a demountable connection point within a socket-welded system.
Socket Weld Valves: Gate, globe, check, and ball valves designed with socket weld ends for direct in-line installation.
Socket Weld Elbows: Change flow direction (90° or 45°).
Cap Socket Welds: Seal the end of a pipe run.
Socket Weld Reducers: Connect pipes of different diameters, concentric reducer for vertical lines, eccentric reducer for horizontal to avoid air pockets.
Classification by Material Type:
Socket weldings are manufactured from diverse materials:
Stainless Steel: Grades 304/304L, 316/316L, 317L, 321, 347 for excellent corrosion resistance, strength, and hygiene. Super duplex UNS S32750 and high-alloy grade 904L are increasingly used for seawater, high chloride, and acids.
Nickel Alloys: Monel 400/K-500, Inconel 600/625, and Hastelloy B2/B3/C276/C22 for extreme corrosion resistance and high temperatures.
Carbon Steel: ASTM A105 for high strength/temperature, A350 LF2 for low temps. Often used in steam, oil, and gas. Requires corrosion protection.
Alloy Steel: ASTM A182 F11, F22 for high-temperature/high-pressure steam.
Advantages:
Inherent alignment and support from the socket shoulder, simplifying fit-up strength and leak integrity under high pressure and vibration due to the robust fillet weld;
Compact design requiring less radial space than butt welds or flanges;
Relatively easier welding technique compared to precision butt welding, especially for smaller diameters and in tight spaces;
Suitability for permanent, high-reliability connections;
Lower fabrication costs for small-bore piping compared to flange systems due to reduced material and labor.
Disadvantages:
Mandatory 1/16" gap, which can trap corrosive fluids or solids leading to crevice corrosion if not purged effectively;
Difficulty in performing non-destructive examination (NDT) like radiography on the internal weld root; unsuitability for larger diameters (typically limited to NPS 2");
Potential for turbulence or restriction at the internal step compared to smooth-bore butt welds;
The permanent makes it difficult for modification or inspection;
There is a weld cracking risk if the thermal expansion gap is omitted or insufficient.

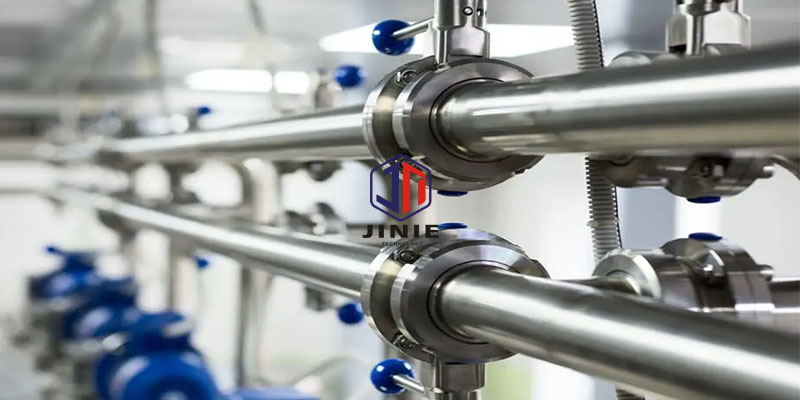

Oil and Gas Production/Refining: High-pressure instrument lines, chemical injection points, sample lines, small bore process connections on vessels and pumps, and wellhead controls.
Chemical and Petrochemical Processing: Corrosive fluid transfer lines (SS/Ni alloys), utility connections, reactor feed lines, high-pressure catalyst lines.
Power Generation: Boiler feedwater systems, steam sampling lines, instrument air, turbine lube oil systems, and high-pressure hydraulic controls.
Pharmaceutical and Food: Clean utility lines (WFI, CIP, SIP) where crevice corrosion risk is managed via design/purging.
Marine and Offshore: Hydraulic systems, fuel oil lines, seawater cooling instrument leads, and firefighting systems.
Compressed Air and Gas: High-pressure air lines, gas distribution. Its prevalence stems from its reliability in handling challenging pressures, temperatures, and critical media where failure is not an option.
Socket Weld Advantages: Easier fit and installation, faster welding, requires less skill for acceptable quality on small sizes, more compact, NPS 2" and below are often lower cost.
Butt Weld Advantages: Smooth, continuous bore eliminating crevices and minimizing turbulence/erosion; allows full radiography for highest quality assurance; generally stronger under bending loads due to full penetration; avoids crevice corrosion risk inherently; suitable for all pipe sizes and wall thicknesses.
Use SW for high-pressure, small-bore applications where crevice corrosion can be mitigated and space is tight. Choose BW for larger sizes, critical services requiring full NDT, and services prone to crevice corrosion or erosion.

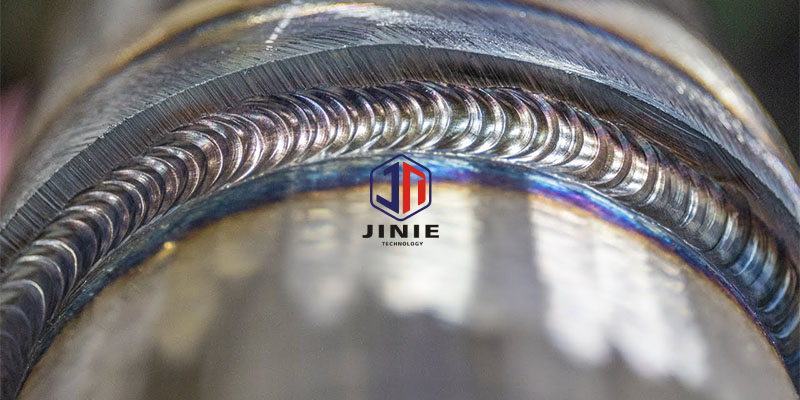

Follow these steps strictly:
1) Preparation: Cut the pipe square using a pipe cutter or saw, and remove all burrs internally and externally. Clean the pipe end and socket interior meticulously to remove oil, grease, dirt, and oxides. Ensure your components meet material grade and pressure rating specifications.
2) Insertion and Gap Setting: Insert the pipe fully into the socket until it contacts the internal shoulder. Withdraw the pipe precisely 1/16 inch/1.5 mm to establish the thermal expansion gap. Use a gap gauge if available. Temporarily tack weld if needed to maintain alignment and gap.
3) Alignment: Ensure proper alignment of the entire run before final welding. Misalignment induces stress.
4) Welding: For SS/Ni alloys, use appropriate filler; ensure inert gas backing/purging if specified. Apply a uniform fillet weld around the entire circumference. Control heat input to prevent excessive distortion or sensitization.
5) Cleaning and Inspection: Remove all weld slag, spatter, and heat tint, especially on SS—use pickling paste or mechanical brushing with SS tools. Visually inspect for complete fusion, lack of cracks, porosity, and proper weld profile. Perform specified NDT (PT/MT common for SW, RT difficult).
Q: Can I reuse socket weld fittings?
A: Strongly Do not reuse. Removing a socket-welded pipe typically requires cutting or grinding out the weld, damaging the fitting's socket shoulder and potentially altering its dimensions/metallurgy. Reusing a fitting compromises alignment, gap control, and weld integrity, increasing the risk of leaks or failure. Always use new fittings for reliable, code-compliant installations.
Q: Can natural gas pipe be socket welded?
A: Yes, but with important caveats. Socket welding is permitted for natural gas piping by codes like NFPA 54 and the International Fuel Gas Code (IFGC), primarily for pipe sizes NPS 2" and smaller and operating pressures within the fitting's rated limits. Crucially, the installation must strictly adhere to the code's requirements for the 1/16" gap, qualified welding procedures, inspection, and material suitability.
Q: Can you weld a socket?
A: Socket weld components (flanges, fittings, valves) are designed to BE welded to. You weld the pipe into the socket of these components using the fillet weld procedure described.
Q: Can you weld a socket to a bolt?
A: This is highly unusual and generally not recommended. Sockets are designed for pipe connection. Bolts are threaded fasteners. Welding a socket directly to a bolt head or shank would likely destroy the bolt's temper, compromise the socket, and create an unreliable connection. If a bolted connection to piping is needed, use a standard socket weld flange bolted to a mating flange.
Socket welding continues to be an indispensable technique for creating robust, leak-tight connections in small-bore, high-pressure piping systems across demanding industries. Understanding its principles is fundamental for specifying and installing reliable systems. As a leading manufacturer specializing in high-performance stainless steel and nickel alloy socket weld components, JN provides you material expertise and precision manufacturing to meet your connection requirements.
