90 degree elbow is the most common fitting in piping systems. Its core function is to change the direction of fluid flow. It is also used to avoid obstructions and force the flow into a 90 degree turn when piping layouts are restricted. 90 degree elbows are frequently used in industries such as building plumbing, HVAC systems, and industrial piping.

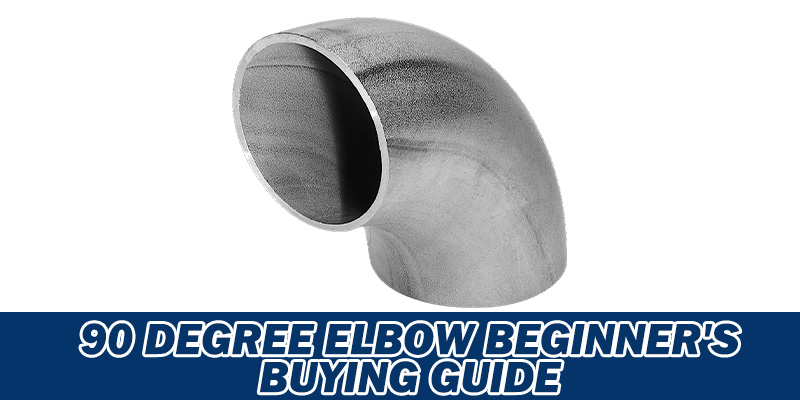

When choosing a 90-degree elbow, beginners should consider several factors. First, think about the material. Next, look at the size and wall thickness.
Also, check the pressure rating and bend radius. Finally, consider how it connects. This article provides a comprehensive guide to help beginners understand 90 degree elbows.
A 90 degree elbow is a standard pipe fitting. It looks like the letter "L" and has two openings. These openings are at a sharp 90-degree angle.
90-degree elbows are available in long-radius and short-radius versions. The centerline radius of a long-radius elbow is 1.5 times the pipe's nominal diameter. The centerline radius of a short-radius elbow is equal to the nominal pipe diameter. They are used in extremely confined spaces where significant flow resistance and turbulence are expected.
90 degree elbow connections include threaded, socket weld, butt weld, and flanged connections.
Threaded: This elbow is for small metal pipes. It needs internal or external threads on both ends to fit the pipe. To install, wrap sealing material around the pipe's outer threads. Then, screw the elbow in by hand.
Make sure the threads are aligned. Next, use a pipe wrench to clamp the elbow. Finally, tighten the pipe with another wrench. Finally, test the seal using water or air pressure.
Socket weld: Suitable for small- to medium-diameter carbon steel or stainless steel pipes. When connecting, insert the pipe into the elbow socket, leaving a 1.5-3mm gap. Secure the position with electric welding and weld along the end. Finally, remove the weld slag and perform non-destructive testing.
Butt welding: This is mostly used for large-diameter or high-pressure pipes. When butt welding, align the elbow and pipe groove, leaving a 2-3mm gap. First, secure with electric welding, then complete with multiple layers of welding. Finally, test for tightness.
Flange connection: This connection method is suitable for pipes that require frequent disassembly or maintenance. During installation, put bolts into the elbow and flange joint.
Then, place the gaskets. Tighten the bolts diagonally. Finally, check for tightness.

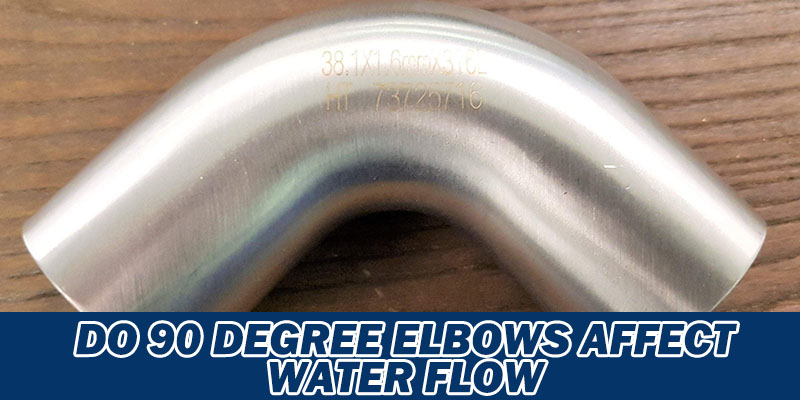

Yes, 90 degree elbows do affect water flow, causing pressure drops, increased turbulence, and energy loss in the pipe. So, how do 90 degree elbows affect water flow?
Water cannot flow through the sharp bend but instead "slams" against the elbow wall, creating a vortex. This turbulent flow persists for 5-10 pipe diameters downstream, wasting pump energy. It separates from the inner wall, forming a low-pressure vortex.
Water friction occurs along the longer internal path, especially in short-radius 90 degree elbows. Long-radius elbows, on the other hand, provide smoother flow, which is why 90 degree elbows with long radii are the most commonly used.
Effect | Consequence | Severity Factor |
Pressure Drop (ΔP) | Reduced pressure downstream; pumps must work harder | ↑ Higher in SR elbows, small pipes, high flow rates |
Flow Rate Reduction | Less water delivered per minute; weak shower heads, slow filling | ↑ Critical in long pipe runs with multiple elbows |
Energy Loss | Wasted pump/fan energy; higher electricity costs | ↑ Costs compound in systems with dozens of elbows (e.g., industrial cooling) |
Cavitation Risk | Low-pressure zones may vaporize water, causing bubbles that implode (damages pipes) | ↑ High in high-velocity systems (e.g., pump discharge) |
Water Hammer | Sudden valve closure + elbow turbulence → pressure surges ("banging" pipes) | ↑ Worse with fast-closing valves near elbows |
Noise/Vibration | Turbulence causes humming/rattling | ↑ Loudest in copper/PVC pipes with high flow |
Short Radius (SR) 90 Degree Elbow
SR elbows have a bend radius that is equal to the pipe diameter (R=1D). This design causes major flow disruption because of the sudden change in direction. ASME B31.3 restricts SR elbows in cyclic stress services due to lower fatigue strength.
Applications are limited to space-constrained utility systems with operating temperatures below 200°C. Material options include ASTM A403 WP316L (stainless) or A234 WPB (carbon steel), with wall thickness conforming to SCH 40/80. The hydrotest must exceed 1.5x design pressure per B31.1.
Long Radius (LR) 90 Degree Elbow
Featuring a bend radius of 1.5 times the nominal diameter (R=1.5D), LR elbows optimize flow efficiency by reducing pressure drop by ≈40% compared to SR types. The gradual curvature maintains laminar flow longer, minimizing energy loss and erosion potential.
ASME B16.9 mandates dimensional tolerances of ±1.5 mm on center-to-end dimensions. Standard materials are solution-annealed 304/316L stainless steel or normalized carbon steel. Required for pump suction/discharge lines per HI 9.6.6 and hydrocarbon systems under B31.4/31.8. Pressure ratings align with matching pipe schedules.
Reducing Diameter 90 Degree Elbow
This fitting transitions flow between differing pipe diameters while changing direction 90°. Design follows ASME B16.9 rules for size.
Concentric reducers keep a common centerline, which helps reduce air pockets. Eccentric reducers shift the centerline to stop fluid from getting trapped. Wall thickness at the reduced end must meet the smaller pipe’s pressure rating.
Applications include pump suction strainers and branch line connections. Materials match adjacent piping.
Threaded 90 Degree Elbow
Manufactured per ASME B16.11, these elbows feature tapered threads (NPT or BSPT) cut to ANSI B1.20.1 specifications. Thread engagement depth must achieve full thread form to ensure pressure integrity.
Limited to low-pressure systems and temperatures below 260°C due to stress concentration at thread roots. Material selection is critical: 316L stainless resists galling, while brass (C36000) suits non-corrosive services. Maximum recommended size is DN80 (NPS 3) to prevent thread stripping under torque. Hydrotest pressure is 1.5x rated working pressure.
Socket Weld 90 Degree Elbow
Designed per ASME B16.11, these fittings have counterbores to accept pipe ends, joined by fillet welds. For proper installation, there should be a 1.6 mm gap between the pipe and shoulder. This gap helps with thermal expansion and stops weld cracking.
Limited to small-bore piping due to weld shrinkage stresses. Material grades include ASTM A182 F316L or A105.
Flow characteristics mirror LR elbows but with a slight discontinuity at the weld zone. Post-weld heat treatment is mandatory for carbon steel in flammable service per B31.3. Applications include instrument lines and hydraulic systems.
Butt Weld 90 Degree Elbow
The industry standard for high-integrity systems is per ASME B16.9. Fabricated via cold/hot forming of seamless pipe or plate welding, with beveled ends for full-penetration welds. Material certification must include solution annealing for stainless steels to prevent sensitization.
Wall thickness tolerances are ±12.5% of nominal. Pressure ratings align with ASME B16.34. Required for toxic/flammable fluids (B31.3 Category D/M), high-cycle fatigue services, and temperatures >300°C.
Flow efficiency equals LR elbows when internally ground smooth. SCH 160 elbows can withstand >10,000 psi in hydrocarbon service. Permanent markings include material grade, schedule, and heat number.

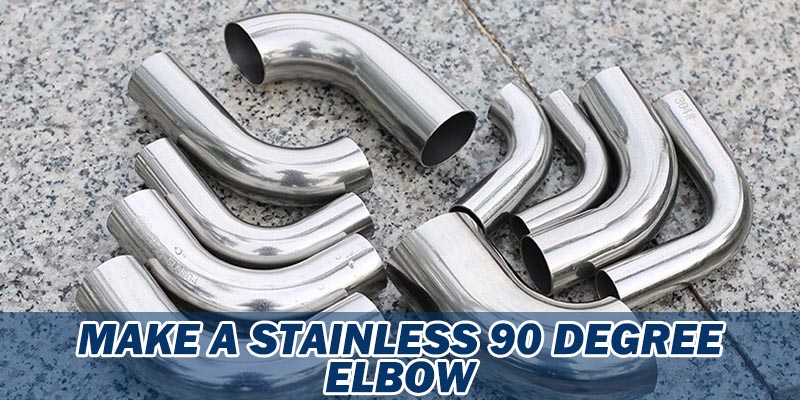

The making of stainless steel 90-degree elbows in factories follows a strict, multi-step process. This process meets international standards like ASME B16.9 and ASTM A312/A403.
Production starts with choosing austenitic stainless steel. This can be in seamless or welded pipe form. We check it using spectrometry to ensure it meets the right levels of chromium, nickel, and carbon.
Pipe segments are cut into "blanks." Their sizes are calculated to reach target bend radii, which are usually long or short.
For thick-walled or large-diameter elbows, we use hot induction bending. The blank is heated to 1,100–1,250°C with high-frequency induction coils.
This heating makes the material soft and pliable. Then, it is shaped over a die with internal mandrel support. This support helps prevent ovality and wall thinning on the inside.
Smaller diameters use cold forming through rotary draw bending or compression bending. In this process, hydraulic force presses the pipe against precise dies at room temperature. The strain is kept to 40% or less to reduce work hardening.
After forming, elbows are heated in controlled furnaces at 1,040–1,120°C. This process dissolves chromium carbides and restores corrosion resistance. Then, they are quickly cooled in water to prevent sensitization.
The next step in surface treatment is pickling in HNO₃/HF baths. This process removes annealing oxides. After that, passivation occurs in nitric or citric acid. This helps to improve the chromium oxide layer.
Laser scanning checks dimensions to ensure an angular tolerance of ±0.5° and proper wall thickness. Hydrostatic testing at 1.5 times the design pressure and nondestructive examination confirm the structural integrity.
Each elbow is marked with heat numbers, material grade, and size. Mill Test Reports certify the chemical, mechanical, and metallurgical properties for traceability.

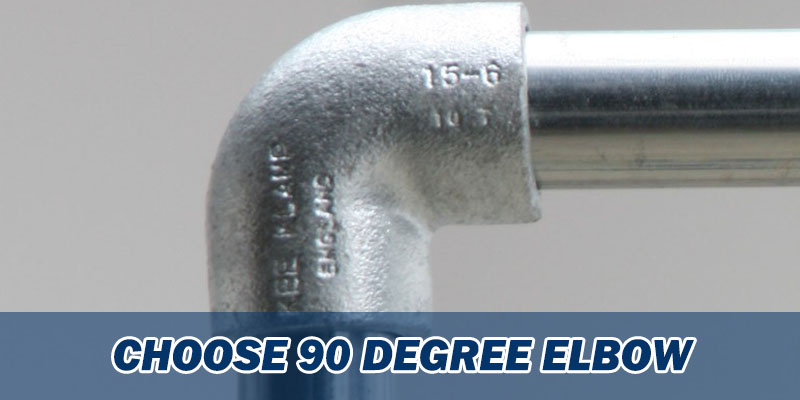

Prioritize Material
Always match the elbow material to your fluid and environment. For water systems, 304 stainless steel offers excellent corrosion resistance at a moderate cost. If chlorides or saltwater are present, use 316/L stainless. For acidic/chemical fluids, verify electrochemical compatibility using ISO 8044 standards—PTFE-lined carbon steel may be necessary.
Avoid galvanic corrosion by ensuring adjacent pipes/fittings share electrochemical potential; don’t connect copper pipes directly to steel elbows without dielectric insulation. PVC/CPVC suits cold water/drainage but fails above 93°C.
Verify Size and Connection Type
Measure your pipe's actual outer diameter (OD) and confirm nominal size. Never assume "DN25" fits all brands. For threaded connections, ensure thread standards match regionally—American NPT differs from British BSPT.
Welded systems require beveled ends. Push-fit systems demand manufacturer-specific fittings. For DIY, threaded/solvent-weld elbows are simplest; welded/flanged types need professional tools.
Assess Pressure-Temperature Ratings
Check your system's maximum operating pressure and temperature. Select elbows rated at least 1.5× your peak pressure. For steam/hot oil systems above 150°C, avoid plastics—use schedule 80+ carbon steel or schedule 40S stainless.
Wall thickness matters: SCH 40 handles residential water pressure; SCH 80 is mandatory for industrial hydraulics. Always reference ASTM A234 or ASTM D2466 pressure charts.
Elbow Shape
Choose long-radius (LR) elbows for pumps, high-flow, or slurry systems; they reduce turbulence by 40% vs short-radius types. Reserve SR elbows for tight spaces where flow disruption is acceptable. For food/pharma applications, specify "sanitary" elbows with polished interiors (Ra ≤0.8 μm) to prevent bacterial buildup. Avoid mitered elbows unless for large ducts; segmented welds create weak points.
Validate Standards and Supplier Credibility
Demand elbows certified to relevant standards: ASME B16.9, ASTM A403, and NSF/ANSI 61 for potable water. Reputable suppliers provide mill test reports (MTRs) with chemical analysis and hydrotest records. For critical systems, insist on third-party inspection reports. Online marketplaces often sell uncertified fittings—prioritize established industrial suppliers even at a 10–20% cost premium.
