Hastelloy C22 Vs C276: Key Differences And Selection Guide

What Are Hastelloy C22 and C276, and How Do They Differ in Origin?

Hastelloy C22 and C276 are both nickel-chromium-molybdenum-tungsten alloys produced by Haynes International (formerly Cabot Corporation / Stellite Division). They belong to the same family of corrosion-resistant Hastelloy alloys, but they were developed in different decades to address evolving industrial needs.

Hastelloy C276 (N10276)

Developed in the 1960s, Hastelloy C276 was a groundbreaking alloy. Before C276, the existing Hastelloy C (N10002) suffered from severe intergranular corrosion in the heat-affected zones of welds due to high carbon content. C276 reduced carbon to below 0.01% and silicon to below 0.08%, virtually eliminating carbide precipitation during welding. This made C276 the first truly weldable nickel alloy with exceptional corrosion resistance. It quickly became the gold standard for chemical processing equipment and remains one of the most widely specified nickel alloys in the world.

Hastelloy C22 (N06022)

Developed in the 1980s, Hastelloy C22 was designed to improve upon C276's limitations in oxidizing acid environments. While C276 excels in reducing acids (like hydrochloric acid), it is less resistant to oxidizing conditions (like nitric acid or wet chlorine). C22 addressed this by increasing chromium content from 16% to 22% and reducing molybdenum and tungsten slightly. The result: C22 offers superior resistance in oxidizing environments while maintaining excellent performance in reducing conditions — making it the more versatile of the two alloys.

Answer: Hastelloy C276 (1960s) was the first weldable nickel alloy with ultra-low carbon, solving intergranular corrosion in welds. Hastelloy C22 (1980s) increased chromium from 16% to 22% to improve oxidizing acid resistance. C276 is stronger in reducing acids; C22 is more versatile across both oxidizing and reducing environments.

How Do the Chemical Compositions of C22 and C276 Compare?

The chemical composition is the foundation of every material property. Even small percentage differences in chromium, molybdenum, or tungsten dramatically affect corrosion behavior. The following table presents the complete compositional comparison per ASTM B575:

Table 1: Chemical Composition Comparison — Hastelloy C22 vs C276 per ASTM B575 / ASME SB-575. Source: Haynes International Hastelloy C22 and C276 Product Data Sheets (2024 Rev.), ASTM B575-23.

The three most critical compositional differences are:

· Chromium: C22 has 6% more chromium (22% vs 16%), which forms a thicker, more stable passive oxide layer in oxidizing environments. This is the single most important difference.

· Molybdenum: C276 has 2.5% more molybdenum (16% vs 13%), which enhances resistance to reducing acids (HCl, H2SO4) and pitting corrosion in chlorides.

· Tungsten: C276 has 1% more tungsten (4% vs 3%), contributing to crevice corrosion resistance.

Answer: The key compositional difference: Hastelloy C22 contains 20-22.5% Cr vs C276's 14.5-16.5% Cr (+6%), while C276 contains 15-17% Mo vs C22's 12.5-14.5% Mo (+2.5%). Higher Cr in C22 favors oxidizing acid resistance; higher Mo in C276 favors reducing acid resistance. Source: ASTM B575-23.

Which Alloy Has Better Corrosion Resistance in Specific Environments?

Corrosion resistance is the primary reason engineers select Hastelloy alloys. However, "corrosion resistance" is not a single property — it varies dramatically depending on the chemical environment, temperature, concentration, and whether the conditions are oxidizing or reducing. The following table provides a comprehensive comparison based on published corrosion data:

Table 2: Corrosion Rate Comparison — Hastelloy C22 vs C276 in Various Environments. Source: Haynes International Corrosion Data (2024 Rev.); ASTM G28 Method A & B test data; NACE Corrosion Data Survey. All rates are general corrosion rates in mm/yr unless otherwise noted.

Key observations from the data:

· In pure reducing acids (HCl, H2SO4), C276 consistently outperforms C22 by 30-43%, thanks to its higher molybdenum content.

· In oxidizing acids (HNO3), C22 is dramatically superior — up to 175 times better than C276 in boiling 65% nitric acid. This is the single most important differentiator.

· In mixed oxidizing-reducing environments (common in real industrial processes), C22 generally outperforms C276 because most process streams contain both oxidizing and reducing species.

· For seawater and chloride pitting, both alloys are excellent, with C22 having a slight edge in crevice corrosion resistance at elevated temperatures.

Pitting Resistance Equivalent Number (PREN) Comparison

PREN is a widely used metric to estimate pitting corrosion resistance. The formula is: PREN = %Cr + 3.3 × %Mo + 16 × %N.

Table 3: PREN Comparison. Source: Calculated per ASTM G48 methodology; composition midpoints per ASTM B575. Note: PREN is an approximate indicator and does not replace actual corrosion testing.

Answer: Hastelloy C22 is superior in oxidizing environments (up to 175x better in boiling 65% HNO3). Hastelloy C276 is superior in reducing acids (30-43% lower corrosion rate in HCl and H2SO4). In mixed environments, C22 generally wins. Both have outstanding pitting resistance (PREN > 65). Source: Haynes International Corrosion Data, ASTM G28.

How Do Their Mechanical Properties Compare?

While corrosion resistance drives material selection in most applications, mechanical properties determine whether an alloy can handle the structural demands of pressure vessels, piping systems, and heat exchangers. The following table compares key mechanical properties per ASTM B575 (plate) and ASTM B564 (forgings):

Table 4: Mechanical and Physical Properties Comparison — Hastelloy C22 vs C276. Source: ASTM B575-23, ASTM B564-23, Haynes International Product Data Sheets (2024 Rev.).

Key mechanical observations:

· Both alloys meet the same minimum tensile strength (690 MPa), but C22 typically achieves 5-10% higher actual tensile values in production due to its slightly different composition balance.

· C22 has a ~10% higher minimum yield strength (310 vs 283 MPa), which can allow thinner wall sections in pressure vessel design — potentially reducing material cost and weight.

· C22 is slightly more ductile (45% vs 40% elongation), making it marginally easier to form and bend.

· C22 is 2.3% lighter (8.69 vs 8.89 g/cm3), which can be a factor in large-volume applications.

Answer: Hastelloy C22 has slightly higher yield strength (310 vs 283 MPa, +10%), higher elongation (45% vs 40%), and lower density (8.69 vs 8.89 g/cm3) compared to C276. Tensile strength minimums are identical at 690 MPa. The mechanical differences are modest but can influence pressure vessel design. Source: ASTM B575-23, B564-23.

What Are the Welding and Fabrication Differences?

Both alloys are designed to be weldable, but there are important differences in welding behavior and filler metal selection that directly affect fabrication quality and cost.

Table 5: Welding and Fabrication Comparison. Source: AWS A5.11/A5.14, ASME Section IX, Haynes International Welding Guidelines (2024 Rev.).

Practical welding considerations:

· Filler metals are NOT interchangeable: ERNiCrMo-10 (for C22) and ERNiCrMo-4 (for C276) have different compositions optimized for each base metal. Using the wrong filler can compromise corrosion resistance.

· C276's lower interpass temperature limit (100°C vs 150°C) means more pauses during welding to cool down, which increases fabrication time and labor cost.

· Both alloys require thorough surface cleaning before welding (solvent degreasing, stainless steel wire brushing) to avoid contamination that could cause porosity or cracking.

· When welding C22 or C276 to stainless steel, the nickel alloy filler metal (ERNiCrMo-10 or ERNiCrMo-4) must be used — never use stainless steel filler on a nickel alloy joint.

Answer: Hastelloy C22 uses ERNiCrMo-10 filler; C276 uses ERNiCrMo-4 filler — these are NOT interchangeable. C22 allows higher interpass temperature (150°C vs 100°C), making it slightly easier and faster to weld. Both alloys have excellent weldability with no preheat or PWHT required. Source: AWS A5.14, ASME Section IX.

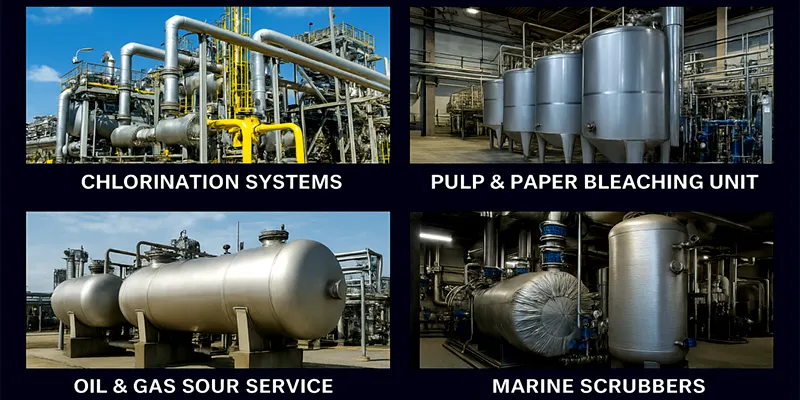

Which Industries and Applications Favor C22, and Which Favor C276?

Real-world material selection is driven by specific service environments. The following table maps industry sectors to the preferred alloy based on predominant corrosion conditions:

Table 6: Industry Application Guide — Hastelloy C22 vs C276 by Service Environment. Source: Haynes International Application Data Sheets; NACE Corrosion Data Survey; MTI Publication No. 27 (Materials Technology Institute).

Answer: Hastelloy C22 is preferred in oxidizing environments (chlor-alkali, nitric acid, FGD, pharmaceutical, pulp & paper, nuclear fuel reprocessing). Hastelloy C276 is preferred in reducing environments (HCl production, sulfuric acid plants). In mixed or variable environments, C22 is generally the safer choice due to its broader resistance profile.

How Should You Choose Between C22 and C276?

Material selection should follow a systematic evaluation, not guesswork. Use the following decision framework and case studies to guide your choice.

Selection Decision Flowchart

Table 7: Selection Decision Framework. Source: Developed based on Haynes International selection guidelines and NACE/ASTM corrosion data.

Case Study 1: Pharmaceutical Reactor Vessel (Mixed Environment)

Scenario: A pharmaceutical manufacturer needed a reactor vessel that would handle alternating batches — some containing hydrochloric acid (reducing), others containing nitric acid (oxidizing) for cleaning and passivation. The vessel operated at 80-120°C with regular thermal cycling.

· Initial consideration: C276 (good for HCl).

· Problem: C276's poor performance in nitric acid meant it would corrode rapidly during CIP (clean-in-place) cycles with HNO3 solutions.

· Decision: Hastelloy C22 was selected because it provides excellent resistance in both reducing and oxidizing conditions. The vessel has been in service for 8 years with no reported corrosion issues.

· Recommended product: ASTM B575 Hastelloy C22 plate, 12mm thick, with EN 10204 3.1 MTC.

Case Study 2: Hydrochloric Acid Production Plant (Reducing Environment)

Scenario: A chemical plant in India produced 33% hydrochloric acid. The absorption column and associated piping operated at 60-80°C in continuous HCl exposure. No oxidizing species were present in the process stream.

· Evaluation: C22 and C276 both offer good HCl resistance, but C276 has a ~40% lower corrosion rate in boiling 10% HCl.

· Decision: Hastelloy C276 was selected for the absorption column internals and piping. The lower corrosion rate provides a longer service life in this purely reducing environment.

· Recommended product: ASTM B622 Hastelloy C276 seamless pipe, Sch.40, with EN 10204 3.2 MTC.

Case Study 3: Flue Gas Desulfurization Scrubber (Oxidizing Environment)

Scenario: A coal-fired power plant in Southeast Asia was replacing the lining of its FGD scrubber inlet duct. The environment contained SO2, SO3, HCl gas, and entrained fly ash at 60-90°C. The presence of oxygen and sulfur trioxide created strongly oxidizing conditions.

· Evaluation: C276 had been used in a previous installation and showed localized corrosion after 3 years. C22 was recommended as a replacement.

· Decision: Hastelloy C22 was installed as an alloy overlay (weld overlay) on carbon steel substrate. After 6 years of service, inspection showed no measurable corrosion loss.

· Recommended product: Hastelloy C22 weld overlay wire (ERNiCrMo-10) per AWS A5.14, applied per ASME Section IX.

Recommended Products by Application

Table 8: Recommended Products by Application — Hastelloy C22 vs C276. Source: Jinie Technology Product Recommendations based on Haynes International data and NACE guidelines.

Answer: Choose Hastelloy C22 for: oxidizing environments (HNO3, Cl2, FGD), mixed environments, pharmaceutical/chemical reactors, and applications requiring broader corrosion coverage. Choose Hastelloy C276 for: reducing environments (HCl, H2SO4), legacy designs that already specify C276, and applications where maximum reducing acid resistance is critical. When in doubt, C22 is the safer general-purpose choice. Source: Haynes International, NACE, MTI Publication No. 27.

What Are the Cost and Availability Considerations?

Cost is a practical reality that influences every material decision. Both C22 and C276 are premium-priced nickel alloys, but there are notable differences:

Table 9: Cost and Availability Comparison. Source: Industry price surveys (2025-2026), distributor availability data, and fabrication cost estimates. Prices are indicative and subject to market fluctuation.

Answer: Hastelloy C22 costs 5-10% more per kg than C276 but may have lower fabrication costs due to more forgiving welding parameters. C276 has better global availability and shorter lead times. Total lifecycle cost favors C22 in oxidizing/mixed environments and C276 in reducing environments — selecting the wrong alloy is far more expensive than the price difference between them.

What Do the Standards and Specifications Say?

Both alloys are covered by multiple ASTM, ASME, and EN specifications. The following cross-reference ensures you can specify either alloy correctly regardless of the standard system your project uses:

Table 10: Standards and Specifications Cross-Reference. Source: ASTM B575-23, B622-23, B564-23, B574-23, B366-23; ASME Section II; AWS A5.11/A5.14; ISO 6207; EN 10095.

Answer: Hastelloy C22 = UNS N06022 / EN 2.4602 / ASTM B575. Hastelloy C276 = UNS N10276 / EN 2.4819 / ASTM B575. Both are covered by the same ASTM specifications but with different UNS designations. When ordering, always specify by UNS number to prevent confusion. Source: ASTM B575-23, ASME Section II.

Final Verdict — C22 or C276?

After examining every dimension — chemical composition, corrosion resistance, mechanical properties, weldability, industry applications, cost, and standards — the final verdict depends on your specific service environment. There is no universal "better" alloy. However, there is a clear pattern:

Table 11: Final Selection Matrix — Hastelloy C22 vs C276. Source: Comprehensive analysis based on Haynes International, ASTM, NACE, and MTI data.

Bottom Line: If you work in a primarily reducing acid environment (HCl, H2SO4), choose C276. If you work in an oxidizing or mixed environment — or if you are unsure — choose C22. C22 is the more versatile alloy; C276 is the specialist. Getting this choice wrong will cost far more than the 5-10% price difference between them.

Conclusion

Hastelloy C22 and C276 are both exceptional nickel alloys — but they are not interchangeable. C22's higher chromium content (22% vs 16%) makes it the clear choice for oxidizing and mixed environments, while C276's higher molybdenum content (16% vs 13%) gives it an edge in reducing acid service. In most real-world applications where environments are mixed or variable, C22 provides broader protection and is generally the safer default selection.

At Jinie Technology (Jiangsu) Co., Ltd., we supply both Hastelloy C22 and C276 products — plate, sheet, pipe, tube, bar, forgings, and fittings — certified to ASTM, ASME, and EN standards with full EN 10204 3.1/3.2 Mill Test Certificates. Our technical team can help you evaluate your specific service conditions and recommend the optimal alloy for your application. We do not push one alloy over the other — we help you choose the right one.
