Hastelloy C276 Machining Tips: Speeds, Tools & Feeds

Hastelloy C276 (UNS N10276) is machinable, but only with the right discipline: sharp positive-rake carbide, low cutting speeds, high constant feeds, flood coolant, and a rigid setup. Its rapid work hardening is the single behavior that defeats most shops - keep the tool cutting, never let it rub, and you can hold the same tolerances as 316L at roughly a third of the speed.

This guide gives the cutting data, tool choices, and a troubleshooting checklist.

Why Is Hastelloy C276 Hard to Machine?

Hastelloy C276 is hard to machine because it work-hardens instantly, conducts heat poorly, and needs very high cutting forces - so tool life runs 5-10x shorter than carbon steel and you must cut at about 30-50% of the speed you would use for 316L stainless.

Four material traits combine to make C276 one of the more demanding commercial alloys. First, work hardening: the nickel-molybdenum matrix strain-hardens in the first 0.2-0.5 mm of cut, sometimes reaching 350-400 HB locally. If the tool rubs instead of shears, it forges a fresh hard skin that destroys the next pass. Second, low thermal conductivity (~11-12 W/m-K, about a third of steel) traps heat at the tool tip, accelerating wear and inviting built-up edge (BUE), where the alloy welds to the cutting face. Third, high shear strength means C276 needs 2-3x the cutting force of carbon steel. Fourth, toughness produces long, stringy chips that wrap the tool. None of these is fatal - they simply forbid the 'stainless-like' habits many shops carry over.

What Is the Golden Rule for Machining C276?

The rule is 'sharp tools, heavy cuts, high feed, lots of coolant, and no hesitation' - every pass must shear material and stay below the work-hardened layer, with no dwelling and no rubbing.

Because work hardening is the dominant risk, the entire process is built to keep cutting. A sharp, positive-rake carbide insert shears cleanly and stays cool. A depth of cut above 0.5 mm and a deliberately high feed guarantee the edge is removing metal, not burnishing it. Flood coolant at high pressure carries heat away and flushes chips. 'No hesitation' means the spindle must never rotate in place without axial feed - a paused tool instantly work-hardens the spot under it. Get these five habits right and C276 becomes predictable; skip any one and tool life collapses.

Which Cutting Tools Work Best for Hastelloy C276?

Use submicron-grade (C-2) coated carbide with a TiAlN or AlTiN coating and a positive rake of +5 to +15 degrees. Carbide is mandatory for production; cobalt HSS is only for low-speed drilling, tapping, and special forms. Avoid PCD and CBN.

Carbide resists the abrasive intermetallics in C276 and survives the heat at the cut. A fine (submicron) grain keeps the edge strong through interrupted cuts, while the TiAlN/AlTiN coating adds hot hardness and oxidation resistance. Positive rake lowers cutting force and heat; negative rake causes rubbing and BUE, so it is explicitly avoided. High-cobalt HSS (M35/M42) earns a place only where carbide geometry is unavailable - small holes, reaming, tapping, form tools - and only at low speed. PCD is rejected because nickel has chemical affinity for diamond (rapid wear); CBN offers little advantage over carbide here and is rarely worth the cost.

Cutting-Tool Selection by Operation

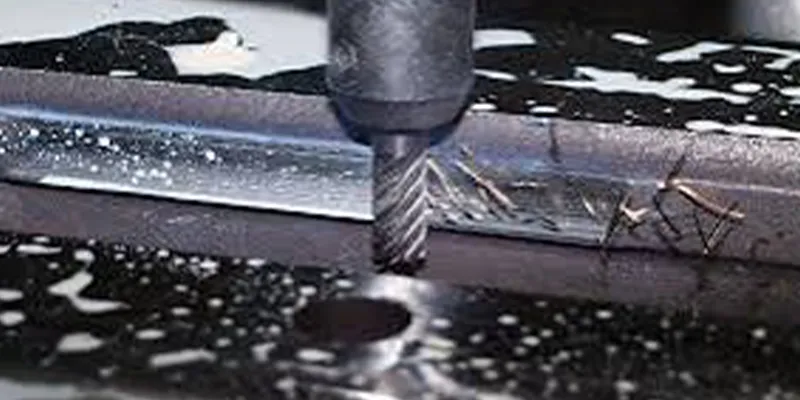

What Cutting Speeds and Feeds Should You Use?

Start turning at 30-45 m/min (100-150 SFM) rough and 45-60 m/min (150-200 SFM) finish, mill at 25-40 m/min, drill at 10-20 m/min, and tap at 5-10 m/min - always with a high, constant feed and coated carbide.

These ranges reflect stable conditions with flood coolant and sharp coated carbide; they are starting points, not limits. The consistent theme is low surface speed paired with high feed - speed is what generates heat and work hardening, while feed keeps the edge shearing. Match the feed to your chip-breaker geometry so chips break instead of wrapping. Always cross-check against your insert maker's data and your machine's rigidity before committing to a production run.

Recommended Cutting Speeds & Feeds for Hastelloy C276 (UNS N10276)

How Do You Turn (Lathe) Hastelloy C276?

Turn with coated carbide, low speed, and a feed high enough to shear; take a roughing pass at 30-45 m/min leaving 0.5-1.0 mm for finishing, then finish at 45-60 m/min with a sharp wiper insert.

Roughing removes the bulk and establishes a consistent hardened layer; the finish pass must cut clearly below that layer, so leave enough stock. Wiper inserts give a better finish at the lower feeds finishing requires. Keep the tool sharp and the coolant aimed at the cut - if surface finish suddenly degrades or the spindle load creeps up at constant settings, the insert has work-hardened the surface and needs replacement.

What Are the Best Milling Practices for C276?

Prefer climb (down) milling with positive-geometry carbide and a variable-helix end mill, keep radial engagement conservative (10-40% of diameter), and avoid full-width slotting where possible.

Climb milling engages at full chip thickness and exits to zero, which minimizes rubbing and the work hardening that conventional milling invites on the exit stroke. A variable helix/pitch breaks up resonance and chatter, which otherwise worsens surface damage. Conservative radial engagement with deeper axial depth often extends tool life versus full slotting at the same metal-removal rate. As with turning, never let the cutter dwell on the surface.

How Should You Drill and Ream C276?

Drill at 10-20 m/min with a 135-degree split-point carbide or cobalt-HSS drill using a peck (G83) cycle, constant feed pressure, and through-tool coolant; ream or bore only after pre-drilling for tight tolerances.

The split point centers the drill and reduces the thrust that would otherwise work-harden the hole entry. Pecking breaks the tough chips and clears flutes so they cannot clog and break the drill. Constant feed pressure matters because any pause at the bottom of a hole instantly hardens it. Through-tool coolant is strongly recommended for deep holes; parabolic-flute drills help evacuate chips. For precision holes, pre-drill slightly oversize, then ream or bore.

How Do You Tap and Thread Hastelloy C276?

Prefer roll-form (cold-form) tapping and thread milling over cut tapping; when you must cut-tap, use a spiral-flute tap, heavy-duty tapping compound, and a tap drill at the high end of the recommended range, running at 5-10 m/min.

Roll forming displaces material instead of shearing it, so it avoids the work-hardened, ragged surface that cut tapping leaves on C276 - and it needs no chip evacuation. Thread milling is the most reliable choice for blind or hard threads because it clears chips with coolant and is easy to withdraw. If cut tapping is unavoidable, the spiral flute lifts chips out of the hole and the generous tap-drill size reduces threading torque.

Can You Grind Hastelloy C276?

Grinding is possible but best avoided; if required, use a dedicated aluminum-oxide or silicon-carbide wheel with abundant flood coolant, and never a wheel that has touched carbon steel.

Grinding tends to smear rather than cut C276 and, if it overheats, can leave a surface that is vulnerable to corrosion. Dedicated wheels prevent embedded iron particles - steel residue in a C276 surface would cause galvanic corrosion in service. Blue or purple discoloration is a clear sign of overheating and must be removed. Where possible, choose abrasive waterjet or carbide machining instead of grinding to preserve surface integrity.

What Coolant and Lubrication Strategy Works?

Flood coolant is non-negotiable - use a water-soluble EP emulsion (chlorinated or sulfurized) delivered at high pressure, and switch to chlorine-based or sulfur-free coolant on parts that will later be welded.

C276's low thermal conductivity means coolant does the job heat should be doing in steel - it pulls temperature off the tool tip and washes chips away. High pressure (70+ bar / 1000+ psi), ideally through the tool, is what makes drilling and tapping viable. The welding caveat is important: active sulfur left on a surface can cause porosity and hot cracking during subsequent GTAW/GMAW, so weldment components get sulfur-free or chlorine-based coolant and thorough cleaning. Intermittent coolant on a hot cut can thermally shock some tool materials, so keep flow continuous.

Coolant & Lubrication Strategy

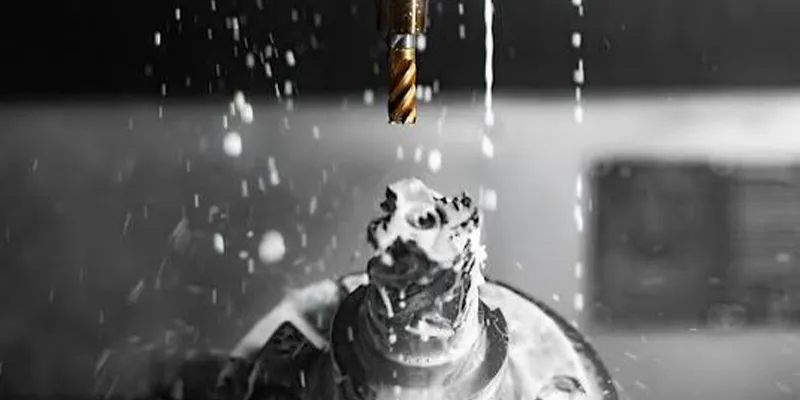

How Do You Prevent Work Hardening?

Prevent work hardening by keeping a constant feed, taking cuts deeper than 0.5 mm, using sharp positive-rake tools, preferring climb milling, and never letting the tool dwell or rub.

Work hardening happens the moment the tool deforms the surface without removing it. A constant, generous feed and adequate depth keep the edge in fresh material below any prior hardened layer. Sharp, positively raked tools cut instead of burnishing. Climb milling reduces the rubbing on the exit stroke that conventional milling causes. The simplest shop-floor test: if the machined surface looks glazed or takes on a bluish tint, it has hardened - take a fresh, deeper pass to get under it before attempting the finish.

How Does C276 Machining Compare With 316 Stainless or Inconel 625?

C276 is harder to machine than both - its machinability index (~15-22) sits below 316L (~55-65) and slightly below Alloy 625 (~30-40) - yet it can hold the same tolerances when you apply the same carbide-and-coolant discipline.

The table below ranks common engineering alloys by machinability. C276's low index is driven by the same traits discussed earlier: work hardening plus poor heat escape. 316L is 'friendly' by comparison; 625 is in the same difficult family but a notch easier. The practical takeaway is not to fear C276 but to budget for slower speeds and more tooling - and to remember that dimensional capability is unchanged, only the cycle time and insert consumption are higher.

Machinability Compared With Common Engineering Alloys

What Are the Most Common Machining Mistakes?

The recurring failures are light cuts/dwell, negative-rake or dull tools, weak coolant, wrong drill points, sulfur coolant on weldments, and reuse of steel grinding wheels - each with a straightforward fix.

Almost every C276 machining problem traces back to one of the habits above. They are worth memorizing as a pre-flight checklist because they are cheap to prevent and expensive to discover mid-run. The table consolidates symptom and cure so a setup operator can self-correct quickly.

Most Common C276 Machining Mistakes - and Fixes

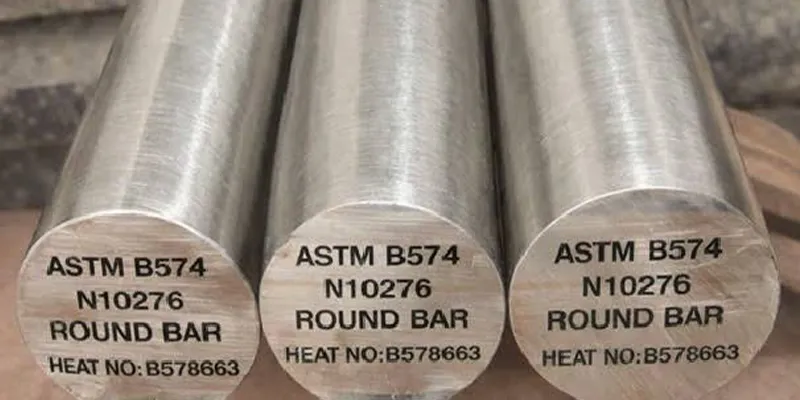

How Do You Machine C276 Pipes, Tubes, and Bars?

Use the same carbide-and-coolant rules, but add support - steady rests for long bars, backing for thin-wall pipe, and climb milling on sheet/plate - so deflection does not trigger chatter and work hardening.

Product form changes the risk, not the metallurgy. Long C276 bars destined for valve stems or pump shafts need steady rests to stop whipping; thin-wall pipe and tube must be supported internally or externally to avoid spring-back that ruins roundness. For bar stock, leave 0.5-1.0 mm below the hardened layer for finishing. Sheet and plate are best roughed with climb milling and waterjet or plasma breakdown before any chip-making operation.

How Do You Estimate Machining Cost and Lead Time?

Budget roughly 2-4x the per-part machining cost of 316L for the same geometry, driven by slower speeds and faster tool consumption - offset it with optimized inserts, high-pressure coolant, rigid setups, and batch processing.

Cost tracks two levers: cycle time (C276 runs at about a third of 316L's speed) and tooling consumption (inserts wear 5-10x faster than on carbon steel). Neither is avoidable, but both are manageable. Premium insert grades and through-tool coolant stretch tool life; rigid, repeatable fixturing cuts setup time; and batching amortizes that setup across many parts. Shops that treat C276 as 'just another stainless' lose money; shops that optimize the process stay competitive.

7-Step Quick-Start Checklist for Machining C276

Follow this eight-point sequence - confirm grade, pick sharp carbide, set low speed/high feed, clamp rigidly, flood-cool, never dwell, peck-drill and roll-form threads, then inspect and recut if work-hardened.

The steps below turn the article into a single actionable procedure a setup operator can run before the first chip. They are ordered so that the foundational choices (grade, tool, speed) precede the execution details (coolant, feed discipline, holes/threads) and end with verification, because catching a work-hardened surface early saves the whole batch.

Quick-start: STEP CHECKLIST: (1) Confirm UNS N10276 per ASTM B574/B575. (2) Sharp positive-rake TiAlN carbide. (3) 30-45 m/min turning, high constant feed. (4) Rigid clamp, minimal overhang. (5) Flood coolant 70+ bar through-tool. (6) Constant feed, depth >0.5 mm, never dwell. (7) Peck-drill holes; roll-form or thread-mill. (8) Inspect - if glazed/discolored, recut deeper.

Frequently Asked Questions

Is Hastelloy C276 difficult to machine?

Yes. Hastelloy C276 has a machinability index of only about 15-22 (free-machining AISI 1117 steel = 100), roughly 30-50% of the cutting speed you would use for 316L stainless. It work-hardens instantly, has low thermal conductivity, and generates high cutting forces, so tool life is 5-10x shorter than for carbon steel and machining cost runs 2-4x higher than 316L for the same part.

What is the best cutting tool for Hastelloy C276?

Sharp, submicron-grade (C-2) coated carbide with a TiAlN or AlTiN coating and a positive rake of +5 to +15 degrees. Carbide is mandatory for production work; high-cobalt HSS (M35/M42) is acceptable only for low-speed drilling, tapping, and special form tools. Avoid PCD and CBN - PCD has chemical affinity with nickel and CBN gives little benefit on this alloy.

What speed should I turn Hastelloy C276 at?

For turning, use 30-45 m/min (100-150 SFM) for roughing and 45-60 m/min (150-200 SFM) for finishing with coated carbide. These are starting values - confirm against your insert manufacturer's data and adjust for machine rigidity, coolant, and part geometry.

Can you machine C276 with high-speed steel (HSS)?

Only for limited, low-speed operations such as small-hole drilling, reaming, tapping, and special form tools, using cobalt-bearing HSS (M35/M42). For any production turning, milling, or heavy drilling, carbide is required - HSS wears out far too quickly on this alloy.

Why does C276 work harden, and how do I stop it?

C276's nickel-molybdenum matrix deforms plastically under the tool and strain-hardens in the first 0.2-0.5 mm of cut, sometimes reaching 350-400 HB locally. To stop it: keep a constant feed, take a depth of cut above 0.5 mm so you cut below the hardened layer, use positive-rake sharp tools, prefer climb milling, and never let the tool rotate in place without feeding.

What coolant should I use for Hastelloy C276?

Flood coolant is mandatory. Use a water-soluble emulsion with an extreme-pressure (EP) additive - chlorinated or sulfurized formulations are common - delivered at high pressure (70+ bar / 1000+ psi) through the tool for drilling and tapping. Dry machining is not viable for production. See the related Hastelloy C276 corrosion resistance guide for why surface integrity matters.

Should I avoid sulfurized coolant on C276 parts that will be welded?

Yes, when the machined part will later be welded. Residual active sulfur on the surface can cause weld porosity and hot cracking during GTAW/GMAW. For weldment components, use a chlorine-based or sulfur-free coolant and clean the surface thoroughly before welding. This is consistent with the low-carbon, sensitization-resistant chemistry described in the Hastelloy C276 welding guide.

How do you drill Hastelloy C276?

Drill at 10-20 m/min (35-65 SFM) with a carbide or cobalt-HSS drill using a 135-degree split point. Use a peck (G83) cycle to break chips and clear the flutes, maintain constant feed pressure, and deliver coolant through the drill. Pre-drill or use parabolic-flute drills for deep holes.

Can you tap Hastelloy C276?

Yes, but it is demanding. Roll-form (cold-form) taps are strongly preferred over cut taps because they displace rather than shear material, reducing work hardening. Use spiral-flute taps, a heavy-duty tapping compound, drill the tap hole at the high end of the recommended range, and run at 5-10 m/min (15-35 SFM). For blind or hard threads, thread milling is more reliable.

Can you grind Hastelloy C276?

It is possible but generally avoided because grinding can smear the surface and, if overheated, degrade corrosion resistance. If grinding is required, use a dedicated aluminum-oxide (Al2O3) or silicon-carbide (SiC) wheel - never a wheel previously used on carbon steel, since embedded iron causes galvanic corrosion. Apply abundant flood coolant; blue or purple discoloration means overheating and must be ground off.

How does C276 machining compare with 316 stainless?

C276 is markedly harder to machine. 316L has a machinability index of about 55-65 versus C276's 15-22, and C276 runs at roughly 30-50% of 316L's cutting speed. Expect tool life 5-10x shorter and per-part machining cost 2-4x higher for equivalent geometry. The saving grace is that C276 is machined to the same dimensional tolerances as 316L when you use rigid setups and sharp carbide.

Is Hastelloy C276 harder to machine than Inconel 625?

They are close. Alloy 625 has a machinability index of about 30-40 versus C276's 15-22, so 625 is slightly easier on average. Both share the same core challenges - work hardening, high strength, and low thermal conductivity - so the same rules (sharp carbide, low speed, high feed, flood coolant) apply to both. The Inconel 625 vs Hastelloy C276 comparison covers where each wins on cost and corrosion.

What are the most common C276 machining mistakes?

The big ones are: taking light cuts or letting the tool dwell (instant work hardening), using negative-rake or dull tools, running too little coolant, drilling with a standard 118-degree point without pecking, using sulfur coolant on weldments, and grinding with wheels that previously cut carbon steel. Each has a specific fix - see the mistakes table in the main article.

How much does machining C276 cost compared with 316L?

Typically 2-4x more per part for the same geometry. The premium reflects slower cutting speeds (longer cycle time) and faster tool consumption. You can control it with optimized insert grades, high-pressure coolant, rigid setups, and batch processing that amortizes setup cost - the same levers covered in our Hastelloy C276 overview.

What is the machinability rating of Hastelloy C276?

Expressed against free-machining AISI 1117 carbon steel (=100), C276 rates about 15-22. Against AISI 1212 free-machining steel it is roughly 25-35%. In plain terms: cut it at about one-third the speed of 316L and budget for several times the tooling consumption of carbon steel.

Can C276 be machined to tight tolerances?

Yes. C276 can hold the same tolerances as 316L - precision turning to +/-0.013 mm (+/-0.0005 in) is achievable on a rigid CNC lathe with sharp inserts. The extra controls needed are thermal stabilization between rough and finish passes (low conductivity means more local heating) and finish cuts deep enough to get below the work-hardened layer.

How do you machine C276 pipe, tube, and bar?

Use the same carbide and coolant rules, but watch wall/thin sections: minimize overhang with steady rests for long bars, support thin-wall pipe to prevent deflection, and prefer climb milling on sheet/plate. For bar stock destined for valve stems or shafts, leave 0.5-1.0 mm for finishing below the hardened layer. Our Hastelloy C276 round bar page and Hastelloy pipe page cover available sizes.
