Steel Reducer vs Swage Nipple: What's the Difference?

A steel reducer and a swage nipple both do the same basic job — they connect a larger pipe to a smaller pipe — but they are different parts for different jobs. A steel reducer is a conical butt-weld or threaded fitting that steps a pipeline down from one nominal size to another, typically from 1/2 inch up to 48 inches and beyond. A swage nipple is a short, thick-walled forged or swaged connector — usually 1/4 to 4 inches — that reduces between two threaded, socket-weld, or bevel-end connections at high pressure.

So which one do you need? In one line: choose a reducer for large-diameter, welded, medium-to-large-bore process lines, and choose a swage nipple for small-bore, high-pressure, threaded or socket-weld connections. The wrong choice usually fails at the connection — a leak, a pressure drop, or an expensive rework. This guide explains what each fitting is, how they compare, how each one is installed, and the typical installation scenarios where one clearly beats the other.

TL;DR: Reducers and swage nipples both step pipe sizes down, but they are not interchangeable. Use a steel reducer (ASME B16.9 / MSS SP-43, butt-weld or large threaded) for lines above about 2–4 inches and for welded systems. Use a swage nipple (MSS SP-95 / ASME B16.11) for small-bore, high-pressure, threaded or socket-weld take-offs such as instrument, gauge, drain, vent and chemical-injection connections. Reducers are sized by matching the pipe wall schedule; swage nipples carry a forged or swaged heavy wall (STD to XXS) that resists deformation.

Quick Reference: Steel Reducer vs Swage Nipple at a Glance

Key facts for steel reducers and swage nipples

What is a Steel Reducer?

A steel reducer is a short, cone-shaped pipe fitting that connects a larger pipe to a smaller pipe. It is made with two female or weld ends of different sizes and is most common in welded, medium-to-large-bore systems such as water mains, gas lines, HVAC ducts and industrial process piping.

Picture a hollow cone: one opening matches the large pipe, the other matches the small pipe, and the tapered body carries the flow smoothly from one diameter to the other. Butt-weld reducers are made to ASME B16.9 or the lighter-wall MSS SP-43 standard and are welded directly into the line; threaded and socket-weld reducers follow ASME B16.11 and are limited to smaller sizes.

Two body styles exist, and the choice is about where gas or liquid can collect, not about strength:

• Concentric reducer — both ends share the same centre line. It is used in vertical runs and at pump discharges where the flow can stay symmetric. See our concentric vs eccentric reducer guide.

• Eccentric reducer — one side is flat, so the top or the bottom of the pipe stays level across the transition. It is used in horizontal runs to keep the line self-draining (flat bottom) or to stop vapour collecting at a pump suction (flat top). See how to use eccentric reducers.

Because a reducer is normally welded into the pipe, its wall thickness must match the pipe schedule you are joining. Order it against the same material grade and schedule as the line — a schedule mismatch at the weld is a common cause of rework. For dimensions and pricing, see our pipe reducer dimensions and price page and the steel reducer product page.

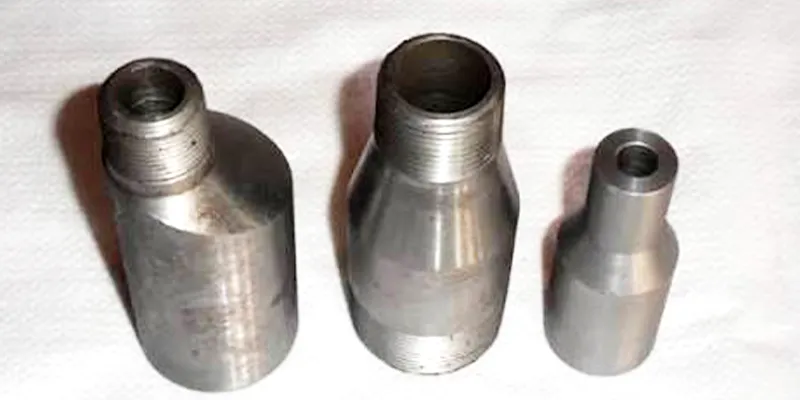

What is a Swage Nipple?

A swage nipple (pronounced "swayj") is a short, thick-walled connector that reduces from one pipe size to a smaller one. Unlike a reducer it looks like an ordinary nipple — a short piece of pipe with threads — except that one end has been swaged (pressed or hammered) down to a smaller diameter, giving it a dense, strong wall.

The word "swage" describes the metalworking process: the material is shaped by pressing or hammering, not by cutting metal away. Manufacturers start with seamless pipe or bar, hot- or cold-swage the large end down to the smaller end, then machine the two ends to the required finish. The swage angle is kept within the MSS SP-95 limit (45 degrees maximum internal and external), and each end can be finished differently — threaded, beveled, or plain.

That construction explains the fitting's two practical strengths. First, the wall is thicker than standard pipe of the same nominal size — commonly XS (Sch 80), Sch 160 or XXS — so it resists deformation under high pressure and repeated make-up. Second, the small end screws straight into a valve, gauge, instrument or header, which is why swage nipples dominate small-bore high-pressure service.

Swage nipples are classified by their end combinations. The standard shorthand is: TE (threaded end), BE (beveled end) and PE (plain end), written as pairs such as TE × TE, BE × BE, or PE × TE. A common example is a beveled large end welded into a header with a threaded small end that screws into a transmitter — one fitting solves both connections. Both concentric and eccentric swaged nipples exist. See our swage nipple types and dimensions page and the forged swage nipple product page.

Steel Reducer vs Swage Nipple: What Are the Main Differences?

The differences that decide the selection are size range, end type, wall thickness and connection method. A reducer connects two female or weld ends over a long taper at any size up to 48 inches; a swage nipple connects small male-style ends over a short, thick forged body and is rarely used above 4 inches.

Steel reducer vs swage nipple — full comparison

The most common mistake is using one where the other is needed. If the pipe is above about 2–4 inches or you need a butt-weld connection, a reducer is almost always the right answer. If the line is small-bore, threaded, and under high pressure, a swage nipple wins every time. For lines in between, check the end connections: a welded transition calls for a reducer; a threaded transition calls for a swage nipple, a reducing coupling, or a pipe nipple combination.

When Should You Choose a Steel Reducer?

Choose a steel reducer when your system involves large-diameter pipe, butt-weld connections, or a change in line size that must keep the pipe centre line or bottom elevation. Above roughly 4 inches nominal size, a reducer is effectively the only standard option.

Steel reducers suit these applications best:

• Water supply and distribution lines, and utility mains

• Gas mains and long-distance pipelines

• HVAC and ventilation ducting

• Large-diameter process piping (above about 4 inches)

• Butt-welded pipe systems where a full-penetration weld is wanted

• Pump discharge lines, where a concentric reducer keeps the flow symmetric

• Horizontal lines that must stay self-draining, where an eccentric reducer is set flat-side down

A reducer is also the standard way to step down at a pump. Two rules matter here. On a horizontal pump suction with a clean liquid, the eccentric reducer is normally installed with the flat side up so vapour cannot collect at the pump inlet (industry guidance such as ANSI/HI 9.6.5 discusses the trade-offs). On lines that must drain completely — steam, gas with condensate, or slurry — the flat side is usually turned down. Confirm the orientation against the project piping specification rather than applying one rule to every service.

When Should You Choose a Swage Nipple?

Choose a swage nipple when the service is high-pressure, small-bore and threaded, or when space is too tight for a reducer and its weld. Swage nipples are the standard hardware for instrument, gauge, drain, vent, sample and chemical-injection connections in refineries, chemical plants and power stations.

Typical applications:

• High-pressure oil and gas lines and small-bore headers

• Instrument and control take-offs — gauges, transmitters and switches

• Drain and vent lines, and sample points

• Chemical-injection quills and utility air or steam tappings

• Hydraulic systems and compact threaded connections from 1/4 to 2 inches

• Locations with limited space where a weld joint cannot be made or inspected easily

• Reductions from a header down to a valve, gauge or instrument fitting

Wall thickness is the selection detail most buyers miss. A swage nipple is available with different walls on the two ends — for example a Sch 160 large end and an XXS small end — so you can match each side to the pressure at that point instead of over-specifying the whole fitting. When you order, state the size pair (for example 2 in × 1/2 in), the end combination (TE × TE, BE × BE, PE × TE), the wall on each end, the thread standard, and the material grade.

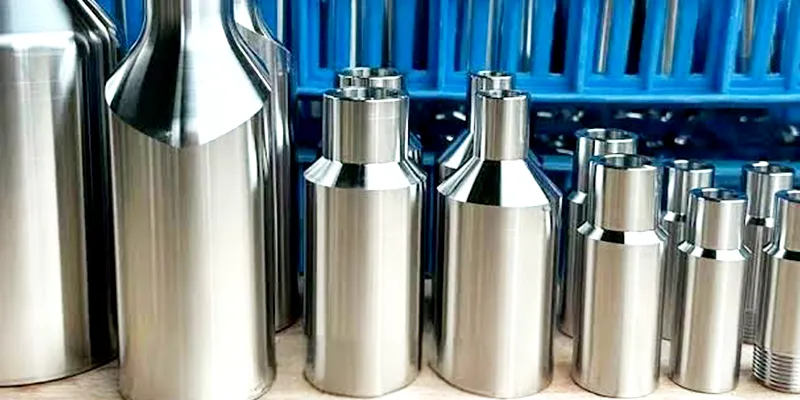

What Materials Are Reducers and Swage Nipples Made From?

Both fittings are available in carbon steel, alloy steel, stainless steel, duplex and nickel alloys. The material specification follows the manufacturing route: welded reducers use pipe-fitting specs such as A234 and A403, while swage nipples use pipe or forging specs such as A106, A105 and A182.

Common material specifications for reducers and swage nipples

Why the split? A butt-weld reducer is a wrought fitting formed from plate or pipe, so it is covered by fitting specifications — A234 for carbon and alloy steel, A403 for stainless, B366 for nickel alloys. A swage nipple starts as seamless pipe or bar and is swaged and machined, so its material is normally a pipe or forging specification — A106 or A105 for carbon steel, A182 for stainless and alloy forgings, and the corresponding B-specifications for nickel alloys.

For sour service containing hydrogen sulfide (H2S), both fittings must comply with NACE MR0175 / ISO 15156. Always check the material test report (MTR) and, for alloy service, a positive material identification (PMI) record before installation. If your project is in oil and gas, chemical or marine service, the material grade drives the choice — see our oil and gas, chemical equipment and marine engineering industry pages for the alloy families we supply.

Which Standards Apply to Reducers and Swage Nipples?

Five standards govern nearly every steel reducer and swage nipple: ASME B16.9 for butt-weld reducers, MSS SP-43 for light-wall stainless reducers, MSS SP-95 for swage nipples and bull plugs, ASME B16.11 for threaded and socket-weld fittings, and the material specification plus thread/bevel standards for the ends.

Standards that govern steel reducers and swage nipples

A common point of confusion is that ASME B16.11 forged fittings stop at 4 inches, while MSS SP-95 swage nipple tables run to 12 inches. In practice, swage nipples above about 4 inches are made to order, so treat 4 inches as the practical off-the-shelf limit and ask the manufacturer for larger sizes. For the full background on forged vs butt-weld families, see our forged pipe fittings and butt-weld pipe fittings hubs.

How Do You Install a Steel Reducer or a Swage Nipple?

A butt-weld reducer is installed by welding it into the line with full preparation and a qualified procedure; a swage nipple is installed by screwing or socket-welding it onto the connection. The reducer demands alignment and weld control; the swage nipple demands correct thread sealing and torque.

The installation method usually follows from the connection type you already chose — welded lines take reducers, threaded or socket-weld small-bore lines take swage nipples. The steps below summarise good field practice for each.

Installing a Butt-Weld Steel Reducer

1. Confirm the fit. The reducer NPS and schedule must match both adjoining pipes, and the material grade must match the line (verify the MTR and heat number).

2. Prepare the ends. Bevel the pipe and the reducer ends to the joint design (typically per ASME B16.25), and clean oil, moisture and scale from a zone around the weld.

3. Set alignment. Concentric reducers are aligned on the centre line; eccentric reducers are rotated so the flat side faces up or down as the isometric requires. Support the pipe so the reducer is not pulled out of alignment.

4. Tack and weld. Weld with a qualified procedure (ASME Section IX WPS/PQR). Control heat input on stainless and nickel alloys to limit distortion, and follow any preheat and interpass limits for chrome-moly grades.

5. Examine the weld. Radiography, dye penetrant or ultrasonic examination as the service requires. Confirm the internal surface is smooth — a sharp internal step at the reducer creates turbulence and a future erosion site.

6. Mark and record. Stamp or record the heat number and the weld procedure, and file the examination report with the MTR.

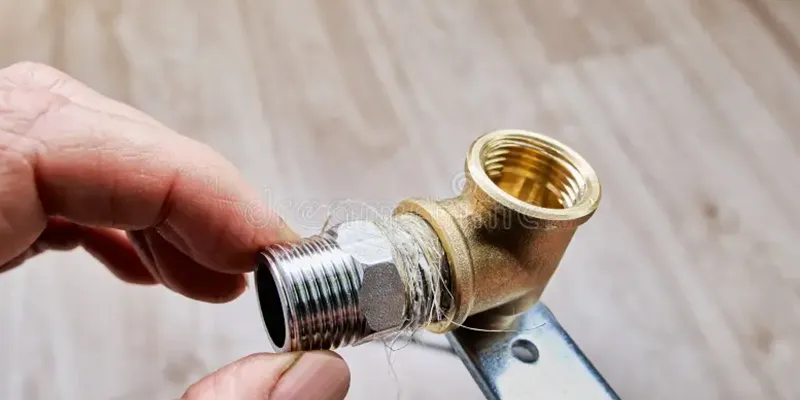

Installing a Threaded or Socket-Weld Swage Nipple

1. Check the thread standard. NPT is a tapered thread that seals by interference — confirm the male and female threads are both NPT (or both BSPT) and never mix the two.

2. Clean and prepare. Remove burrs and chips, and clean the threads. Apply a compatible thread sealant or PTFE tape — for alloy and high-pressure service, use a sealant rated for the fluid and temperature.

3. Run the nipple in by hand first. A tapered NPT connection should start easily by hand for roughly two to three turns; forcing it indicates mismatched or damaged threads.

4. Make up with a wrench. Tighten to the engagement called for by the size — typically about two to three and a half turns past hand-tight for NPT. Do not over-torque: the swage nipple body is stronger than the fitting it enters, and the female connection can crack first.

5. For socket-weld ends, insert the plain end into the socket to the required depth (leave the recommended gap), then fillet-weld around the socket per the WPS.

6. Pressure-test the joint as the system requires, and re-tighten if the connection loosens after thermal cycling.

Common Installation Errors to Avoid

• Mixing NPT and BSP threads — visually similar but not interchangeable; the joint leaks and galls.

• Using a reducer on a small threaded line and a swage nipple on a large welded line — both are out of their standard size range.

• Forgetting the eccentric reducer orientation rule and trapping an air pocket at a pump suction.

• Welding a swage nipple that was specified with plain ends into a butt-weld system without confirming the bevel geometry.

• Over-torquing small threaded nipples and cracking the mating valve or instrument body.

• Installing a carbon steel fitting in a stainless line without checking the grade — galvanic corrosion and a possible code violation.

Steel Reducer vs Swage Nipple: Typical Installation Scenarios

Five scenarios cover most real projects: large welded distribution lines, pump suction and discharge transitions, small-bore high-pressure take-offs, prefabricated pipe spools, and corrosive-alloy process piping. Each one points to a clear first choice between reducer and swage nipple.

Scenario 1: Large-Diameter Mains and Welded Distribution Lines

Water mains, gas mains and large HVAC or process headers step down at branches, pumps and equipment nozzles. Above about 4 inches nominal size these transitions are almost always butt-weld steel reducers to ASME B16.9, because the joint is a full-strength butt weld that can be radiographed and because a swage nipple is simply not a standard product at that size. Where the line must drain, an eccentric reducer is set flat-side down so the bottom of the pipe stays level.

Scenario 2: Pump Suction and Discharge Transitions

Pumps are where reducer orientation matters most. On the discharge, a concentric reducer keeps the flow symmetric and avoids an eccentric side load on the nozzle. On the suction, an eccentric reducer is normally used on horizontal runs so the top of the pipe stays flat and vapour cannot collect in a pocket at the pump inlet — a trapped air pocket reduces the effective flow area, raises local velocity and can push the pump into cavitation. Follow the pump manufacturer's instruction and the hydraulic design guidance in ANSI/HI 9.6.5 for the specific service.

Scenario 3: Small-Bore, High-Pressure Take-Offs

Instrument connections, gauge and transmitter take-offs, drains, vents, sample points and chemical-injection points are the natural home of the swage nipple. These lines are small (typically 1/4 to 2 inches), threaded, and frequently at high pressure, so the swage nipple's thick forged wall and threaded ends are exactly what is needed — no welding near instruments, no flame permit, and a compact joint that fits in crowded piping racks. This is the classic refinery, petrochemical and power-station application for MSS SP-95 hardware.

Scenario 4: Prefabricated Pipe Spools (Shop vs Field)

When a piping system is built as prefabricated spools, the reducers and swage nipples are installed in the fabrication shop rather than in the field. Shop welding is done under controlled conditions with qualified welders, proper fit-up and full NDE, which removes most of the quality risk from the project and shortens the on-site schedule. JN Alloy's prefabricated pipe spool solution covers drawing validation, cutting and beveling, qualified welding, non-destructive examination, hydrostatic testing and documentation, so the size transitions discussed in this article arrive in the field already installed and tested. For the cost argument and the full process, see our guides on pipe spool prefabrication vs field welding and what is pipe spool fabrication.

Scenario 5: Corrosive and High-Alloy Process Lines

Chemical, petrochemical and offshore services often run duplex, super duplex or nickel alloys such as Inconel 625, Hastelloy C276 or Alloy 20. Both fitting families are available in these grades, but the installation differs: an alloy reducer needs a qualified alloy butt-weld procedure and careful heat-input control, while an alloy swage nipple is simply threaded into place and avoids the weld entirely. When hot-work is the problem — for example near an operating unit or in a gas-exposure area — a threaded swage nipple can be the safer and cheaper transition even where a welded reducer would otherwise fit.

What Are the Pros and Cons of Each Fitting?

Reducers win on size range, weld integrity and cost at large diameters. Swage nipples win on wall thickness, compactness and installation speed at small diameters. Choose the fitting whose strengths match your pipe size and connection method.

Advantages and disadvantages of steel reducers

Advantages and disadvantages of swage nipples

Note that the two lists describe different size worlds. A 24-inch butt-weld reducer and a 1-inch swage nipple are not competing for the same job — the crossover zone is roughly 1/2 to 4 inches, and inside that zone the end connection (weld vs thread) usually decides the winner.

How Do You Choose Between a Reducer and a Swage Nipple?

Ask five questions in order — size, connection, pressure, space, and material. The answers select the fitting nine times out of ten without a detailed calculation.

1. What is the pipe size? Above ~4 inches, use a reducer. Below ~2 inches, a swage nipple is usually available and economical. In between, continue to the next question.

2. Is the system welded or threaded? Butt-welded lines take reducers; threaded or socket-weld take-offs take swage nipples (or couplings and bushings).

3. How high is the pressure? If the design calls for XS, Sch 160 or XXS walls on a small bore, a swage nipple supplies that wall off the shelf; a threaded reducer to B16.11 is rated by class rather than by a heavy pipe wall.

4. Is space tight or is hot work a problem? If you cannot weld near instruments, or flame permits are costly, the threaded swage nipple wins.

5. What material does the line need? Both families come in the same alloy range, so match the grade to the wetted service and confirm the specification (A234/A403 vs A105/A182) matches the manufacturing route.

For a complete table of reducer sizes and prices, see pipe reducer dimensions and price; for swage nipple end styles, dimensions and schedules, see swage nipple types and dimensions. If you still are not sure, send the size pair, the schedule and the end connections to our engineering team and we will recommend the fitting.

Frequently Asked Questions

What is the main difference between a steel reducer and a swage nipple?

The main difference is size range and connection method. A steel reducer is a conical fitting, usually butt-welded into the line, that connects two different pipe sizes from about 1/2 inch up to 48 inches and beyond. A swage nipple is a short, thick-walled fitting, usually threaded or socket-welded, that connects small sizes from about 1/4 to 4 inches. Roughly speaking: welded and large-bore means reducer; threaded, high-pressure and small-bore means swage nipple.

Can a swage nipple replace a reducer?

Only in the small size range. Below about 2–4 inches, a swage nipple can often replace a reducer when the connection is threaded, because it supplies the same size reduction with a thicker wall. Above 4 inches, a swage nipple is not a standard product and only a butt-weld reducer provides the correct geometry, weld preparation and full-strength joint for a large pipeline.

Which fitting has a higher pressure rating — a reducer or a swage nipple?

For the same nominal size, a swage nipple generally has the higher pressure rating, because its forged or swaged wall is supplied in XS (Sch 80), Sch 160 or XXS thickness, which resists deformation far better than a schedule-matched reducer body. But the comparison only matters in the small-bore overlap zone (roughly 1/2–4 inches). A large butt-weld reducer carries high pressure through the pipe schedule and a qualified full-penetration weld, not through an inherently heavy fitting wall.

What does concentric vs eccentric mean for reducers?

Concentric reducers keep both ends on the same centre line, so the pipe steps down evenly; they are used in vertical runs and at pump discharges. Eccentric reducers have one flat side, so either the top or the bottom of the pipe stays level across the transition; they are used on horizontal runs to keep a line self-draining or to stop vapour collecting at a pump suction.

Is a reducing coupling the same as a swage nipple?

No. A reducing coupling has two female ends and fits over two male pipe threads. A swage nipple has at least one male end and screws into a coupling, valve or fitting. They are different components that often work together — for example a swage nipple feeding into a reducing coupling — but they are not interchangeable.

What sizes do swage nipples come in?

Off-the-shelf swage nipples run from about 1/4 inch to 4 inches on the large end, reducing to any smaller standard size (for example 2 in × 1/2 in). The MSS SP-95 standard tables extend to 12 inches, and larger sizes or special bore combinations are made to order, but treat 4 inches as the practical stock limit for most suppliers.

What standards cover steel reducers and swage nipples?

Butt-weld steel reducers are covered by ASME B16.9 (and MSS SP-43 for light-wall stainless), while threaded and socket-weld reducers follow ASME B16.11. Swage nipples are covered by MSS SP-95 and ASME B16.11, with threaded ends to ASME B1.20.1 (NPT) and beveled ends to ASME B16.25. Materials follow ASTM specifications such as A234, A403, A105, A106 and A182.

Can a swage nipple be welded instead of threaded?

Yes. A swage nipple with plain ends (PE × PE) can be socket-welded into a fitting, and one with beveled ends (BE × BE) can be butt-welded into a line. A very common combination is a beveled large end welded into a header and a threaded small end screwed into an instrument or valve — one fitting joins a welded system to a threaded connection.

What wall thicknesses are available for swage nipples?

Swage nipples are typically supplied in STD/Sch 40, XS/Sch 80, Sch 160 and XXS walls. Each end can carry a different wall thickness, so you can match the large end to the header schedule and the small end to the pressure at the instrument, instead of over-specifying the whole fitting.

How is a swage nipple made?

A swage nipple is made from seamless pipe or bar. The large-diameter stock is hot- or cold-swaged — pressed down — to form the smaller end and the tapered transition, then both ends are machined to the required wall and finished plain, beveled to ASME B16.25, or threaded to ASME B1.20.1. The piece is heat-treated as the grade requires, then inspected, hardness- and PMI-checked, and stamped per MSS SP-25. That is why the wall is dense and stronger than a machined-from-pipe fitting of the same size.

Which is better for high-pressure small-bore instrument lines?

A swage nipple. Instrument, gauge, drain, vent and chemical-injection lines are typically 1/4 to 2 inches, threaded and high-pressure, which is exactly the swage nipple's design envelope: thick forged wall, compact body, and no welding near instruments. A reducer is the wrong tool for that job.

Can steel reducers be threaded?

Yes, but only in small sizes. Threaded and socket-weld reducers follow ASME B16.11, which covers forged fittings from 1/2 to 4 inches. Above that range reducers are butt-weld fittings to ASME B16.9 or MSS SP-43. If you need a large threaded transition, the normal solution is a threaded flange or a combination of fittings rather than a single large threaded reducer.

Do swage nipples use NPT or BSP threads?

North American and most international projects use NPT tapered threads to ASME B1.20.1. BSPT threads to ISO 7-1 are available on request for British-standard projects. Never mix NPT and BSP — the thread angles and pitches differ and the joint will leak.

Which way should an eccentric reducer face on a pump suction line?

For a clean-liquid pump suction on a horizontal run, the eccentric reducer is normally installed with the flat side up (top-flat) so vapour cannot collect at the pump inlet and cause cavitation. Flat-side-down is used where the line must drain completely or where solids settlement at the bottom is the bigger risk. Orientation is a design decision — follow the pump manufacturer's instructions and guidance such as ANSI/HI 9.6.5 rather than a single rule.

What is a bull plug?

A bull plug is a short, closed-end fitting used to blank off a threaded or plain pipe end. It is made from the same pipe stock and grades as swage nipples and is covered by the same MSS SP-95 standard, which is why the two are almost always quoted together.

Which industries use reducers and swage nipples?

Every industry that moves fluid through pipes: oil and gas, chemical and petrochemical, power generation, marine and offshore, water treatment, HVAC and shipbuilding. Reducers dominate the large welded distribution lines; swage nipples dominate the small-bore instrument and utility connections inside the same plants.
