Views: 13 Author: Wang Publish Time: 2025-08-11 Origin: Site
Socket weld tees are manufactured using forging and machining processes. To connect, insert the pipe end into a recessed socket in the fitting. Then, apply a fillet weld around the joint.
This design leads to the name "socket." "Socket" refers to the recessed area that holds the pipe. "Weld" means the method used to join the parts. "Tee" describes the T-shaped form that allows the pipeline to branch.
Socket weld tees are made according to the ASME B16.11 standard. These fittings are made from materials that meet ASTM specifications like A182, A350, and A105.
This article provides a clear introduction to socket weld tees. It covers their definition, materials, and production standards. It also explains the manufacturing processes, common types, advantages, and how to install and select them correctly.

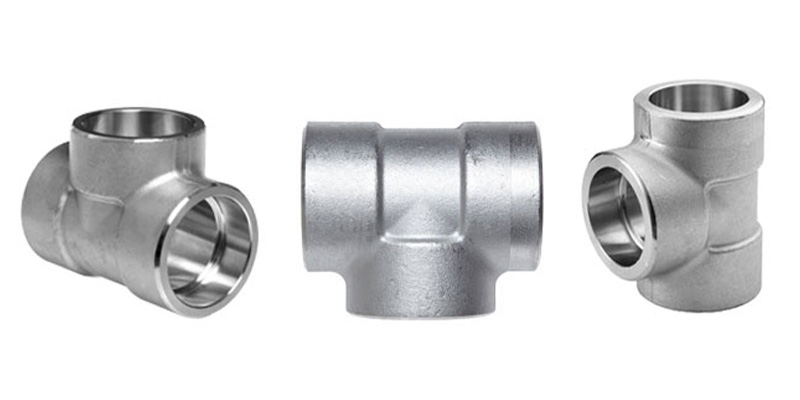

Socket weld tee is a type of pipe fitting with a T-shaped body to create a 90° branch connection from the main pipeline. It has 3 ends, each terminating in a socket. The pipe ends are inserted into these sockets, leaving a specified gap between the pipe end and the bottom of the socket.
Next, continuous fillet welding is done around the pipe end. This is where the pipe end meets the outer edge of the socket. This process fuses the pipe end to the pipe fitting body.
Socket weld tees are standardized under ASME B16.11, which defines pressure ratings and socket dimensions. They are mainly used in smaller piping systems, usually NPS 1/2" to NPS 4".
These systems are found in industries that need strong, leak-proof connections. This includes oil and gas, chemical processing, power generation, and shipbuilding. The 3 socket tee provides excellent flow characteristics with minimal turbulence at the branch junction.
The size, pressure-temperature ratings, marking, and testing needs for socket tees are mainly set by ASME B16.11. This standard covers forged fittings, socket welding, and threaded fittings. Material selection is governed by relevant ASTM specifications, ensuring chemical composition, mechanical properties, and heat treatment meet rigorous demands.
Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321, F347.
Nickel Alloys: ASTM A182 F44, F51/F53/F55, F45, ASTM B564 like UNS N06625, N08825, N10276.
Carbon and Low Alloy Steel: ASTM A105, ASTM A350 LF2/LF3, ASTM A182 F11/F22.
Socket tee manufacturers must also comply with quality management systems like ISO 9001 and often pursue specific material certifications.
Material Selection: Select certified raw materials that meet ASTM grades and have verified chemical and physical properties.

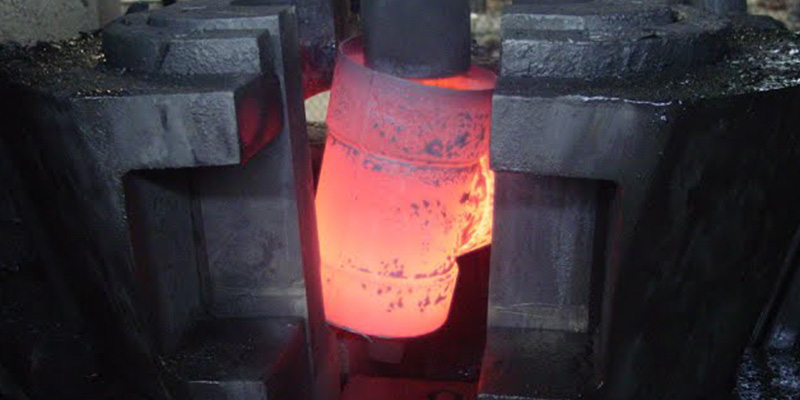

Forging: The primary manufacturing process is hot forging. The material is heated to the appropriate forging temperature and pressed/die-forged into a T-shape.
Heat Treatment: After forging, fittings go through heat treatment. This includes processes like annealing, normalizing, tempering, and solution annealing for stainless and nickel alloys. These steps help achieve the needed mechanical properties.
Machining: The forged blank is precision machined on CNC lathes and machining centers. This involves:
Creating the internal socket to exact ASME B16.11 dimensions, including depth and diameter.
Machining the outer profile and facing the end connections.
Applying the required bevel on the outer socket rim for welding.
Surface Finishing: Three stockets tees may go through processes like pickling and passivation. These processes help remove scale and restore the protective oxide layer that resists corrosion. Shot blasting may be used for carbon steel.
Quality Control and Testing: Rigorous inspection occurs throughout: dimensional checks, visual inspection, material verification, hardness testing, and often hydrostatic testing per ASME B16.11 requirements. Surface finish and absence of defects are critical.
Marking and Packaging: Three socket tees are marked according to ASME B16.11. This includes the manufacturer ID, material grade, size, schedule/class, and heat number. They are then carefully packaged to prevent damage during transit.

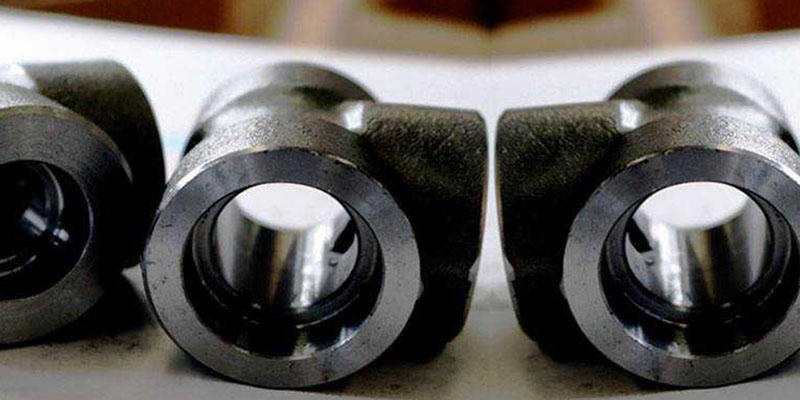

Socket tees are primarily categorized based on their bore configuration and pressure rating:
Equal/Straight Tee: The most common type. All 3 openings are the same nominal pipe size (NPS). It is also called "Socket Weld Tee."
Reducing Tee: The branch connection is a smaller size than the two run connections. It is designed by listing the run size first, followed by the branch size (e.g., 2" x 1" x 2" SW Reducing Tee).
Pressure Class Determined by ASME B16.11:
Class 3000: Suitable for moderate pressure applications.
Class 6000: Designed for high-pressure services.
Class 9000: Used for very high-pressure systems. Primarily found in instrumentation and hydraulic lines.
Note: Wall thickness and overall dimensions increase significantly with higher class ratings.
High Strength: The forged structure provides super mechanical strength compared to cast fittings or butt welds.
Great Leak Resistance: The socket shoulder acts like a built-in backing ring. The full-penetration fillet weld makes a strong, leak-tight joint. This is especially true under vibration and temperature changes.
Good Fatigue Resistance: The inherent strength and welded joint provide good resistance to fatigue failure.
Bore Alignment and Smooth Flow: The socket makes it easier to align pipes at first. This is better than butt welding and reduces internal misalignment. The machined bore ensures smooth flow transition, reducing turbulence.
Space Efficiency: The compact design takes up less space than flanged connections or larger butt-weld fittings. This is helpful in tight areas.
Ease of Installation: Socket welding needs skilled welders. However, it requires less precise edge preparation than butt welding. It can also be faster for small sizes. This method avoids the need for complex alignment clamps.
Preparation: Ensure pipes are cut square, deburred internally and externally, and cleaned thoroughly. Verify fitting and pipe material compatibility.
Insertion and Gap Setting: Insert the pipe into the socket until it bottoms out. Then pull the pipe back approximately 1.6 mm (or 1/16 inch) to create the required expansion gap. This gap is critical to prevent the pipe from bottoming out during welding and causing stress cracks in the weld root.

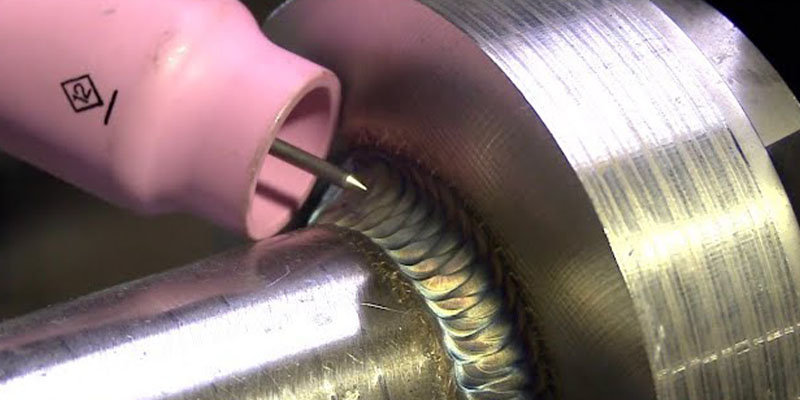

Welding: Perform the fillet weld according to qualified welding procedures (WPS). Typically, this involves:
Using the correct filler metal matching or overmatching the base metal grade.
Ensuring full fusion between the pipe, the fitting's socket rim, and the weld metal.
Making multiple passes for larger sizes as needed. The weld should be convex in profile.
Inspection: Visually inspect the weld for completeness, lack of cracks, porosity, or undercut. Dye penetrant testing is often specified for critical joints.
Post-Weld Treatment: For austenitic stainless steels and nickel alloys, clean the heat-affected zone (HAZ) after welding. This helps restore maximum corrosion resistance if there is significant discoloration.

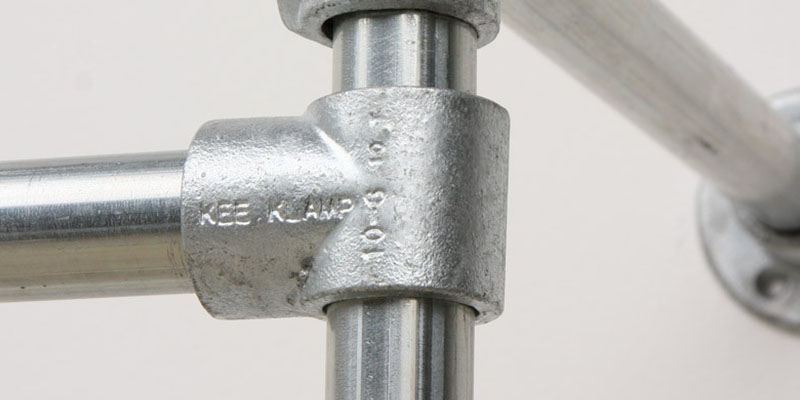

Fluid Service: Choose the material grade (304, 316, Duplex, or Nickel Alloy) based on corrosion resistance needs.
Pressure and Temperature Rating: Select the appropriate ASME B16.11 Class based on the system's maximum working pressure and temperature. Refer to ASME B31.3 or applicable code pressure-temperature tables.
Pipe Size: Please state the nominal pipe size (NPS). Also, indicate if it is an equal tee or a reducing tee. Include the specific reducing dimensions.
Material Specification: Define the exact ASTM material grade and solution annealed, HIC tested, and NACE compliant.
Certifications: Ensure the manufacturer can provide necessary certifications mandated by the project or end-user specifications.
At JN, we focus on making high-quality socket weld tees and fittings. We use stainless steel and nickel alloys. Our main materials include:
- 304/304L
- 316/316L
- 317L
- 321
- 347/347H
- Duplex 2205 (F51/F60)
- Super Duplex 2507 (F53/F55)
- Alloy 625
- Alloy 825
- Hastelloy C276
- Monel 400/K500
We source prime-grade materials exclusively, with the PMI verification standard on all alloy fittings. Our forging presses and CNC machines ensure accurate sizes. They meet ASME B16.11 Class 3000, 6000, and 9000 standards. Our certifications include ISO 9001, PED, and compliance with NACE, NORSOK, and API standards.
Trusted by leading OEMs and engineering contractors worldwide for consistent quality, on-time delivery, and technical support.
You can find these tees mainly as equal or reducing types in different pressure classes. Their strength, leak-tightness, and space efficiency make them essential in industries like oil and gas, chemicals, and power. When selecting a socket weld tee, careful consideration of service conditions, pressure ratings, material compatibility, and required certifications is vital.
