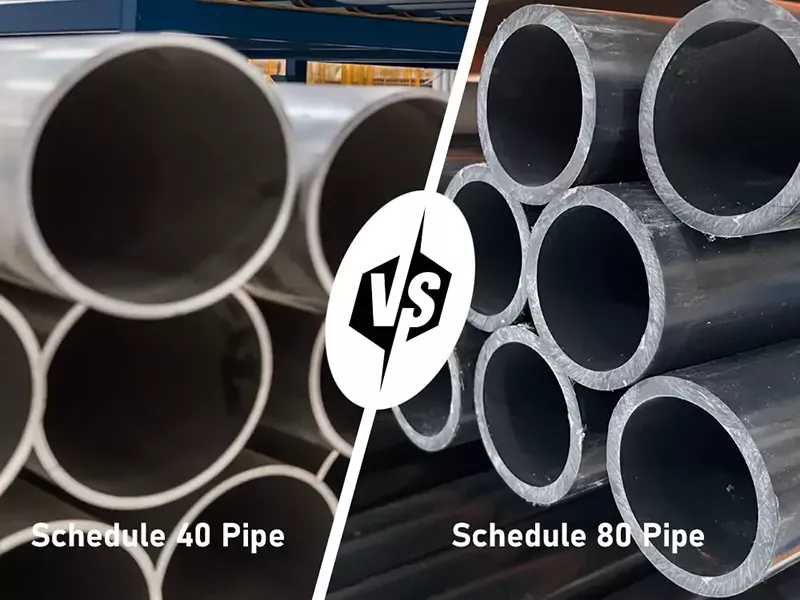

Schedule 80 is the same pipe as Schedule 40 with a ~40% thicker wall — stronger, heavier, and pricier, rated for roughly 40–44% more pressure — so Sch 40 handles general low-to-medium pressure duty while Sch 80 handles high pressure, threaded joints, and heavy service.
Pipe schedule is a standardized wall-thickness designation: the schedule number tells you how thick the pipe wall is, not how big the pipe is. For a given nominal pipe size (NPS), the outside diameter (OD) stays the same, so a higher schedule number means a thicker wall, a smaller inside diameter (ID), more weight, and a higher pressure rating.
Schedule 40 (Sch 40) and Schedule 80 (Sch 80) are the two most common wall thicknesses for stainless steel pipe. Both share the same OD for the same NPS — the only differences are wall, ID, weight, pressure capability, and price. Think of two drinking straws with the same outer size: the one with a thicker plastic wall leaves less space inside for liquid to flow. The same principle applies to steel pipe.
This guide is a complete, data-based comparison of the two schedules, with a full schedule chart for reference and a decision rule at the end. Stainless steel pipe is selected on schedule because system requirements for pressure, temperature, and corrosion allowance are all wall-thickness sensitive.
Sch 80 is the heavy-duty version of the same pipe: ~40% thicker wall, smaller inside diameter, ~38% heavier, roughly 40–44% higher pressure rating — and typically 30–50% more expensive. Sch 40 is the economical general-purpose choice; Sch 80 buys pressure, strength, threadability, and corrosion allowance.
Table 1. Schedule 40 vs Schedule 80 — quick comparison
Feature | Schedule 40 | Schedule 80 |
|---|---|---|
Wall thickness | Thinner | Thicker (~40% more for most sizes) |
Inside diameter | Larger | Smaller |
Weight per foot | Lighter | Heavier (~38% more) |
Pressure rating | Lower | Higher (~40–44% more) |
Cost | Lower | Higher (30–50% more) |
Threading | Marginal below 2" | Preferred for threaded joints ≤2" |
Common applications | General plumbing, low–medium pressure | High pressure, heavy industry, structural support |
Four numbers separate the two schedules for any given NPS: wall thickness, inside diameter, weight per foot, and pressure rating. All four follow from one root cause — Sch 80's thicker wall — and all four move in predictable proportions.
Wall Thickness
Wall thickness is the single defining difference. For a 2-inch pipe, Sch 40 has a 0.154 in (3.91 mm) wall and Sch 80 a 0.218 in (5.54 mm) wall — Sch 80 is over 40% thicker. More material means greater strength, but also more weight and cost.
Table 2. Example — 2" stainless steel pipe wall thickness (ASTM A312)
Pipe Size | Schedule | Wall Thickness (in) | Wall Thickness (mm) |
|---|---|---|---|
2" | 40 | 0.154 | 3.91 |
2" | 80 | 0.218 | 5.54 |
Inside Diameter (ID)
Because the OD is fixed by the NPS, a thicker wall shrinks the bore. For 2" pipe, Sch 40 has an ID of 2.067 in (52.5 mm) and Sch 80 an ID of 1.939 in (49.2 mm). The Sch 40 bore is about 6.6% larger in diameter, which translates to roughly 13.7% more internal cross-sectional area — meaning lower velocity and lower pressure drop at the same flow rate.
Table 3. Example — 2" stainless steel pipe inside diameter
Pipe Size | Schedule | Outside Diameter (in) | Inside Diameter (in) | Inside Diameter (mm) |
|---|---|---|---|---|
2" | 40 | 2.375 | 2.067 | 52.5 |
2" | 80 | 2.375 | 1.939 | 49.2 |
Weight per Foot
Thicker walls mean more steel. The 2" Sch 80 pipe weighs 5.02 lb/ft (7.47 kg/m) against 3.65 lb/ft (5.43 kg/m) for Sch 40 — about 38% more. Weight drives shipping cost, structural support design, and handling labour, so it matters even when the pipe price per pound is identical.
Table 4. Example — 2" stainless steel pipe weight
Schedule | Weight (lb/ft) | Weight (kg/m) |
|---|---|---|
40 | 3.65 | 5.43 |
80 | 5.02 | 7.47 |
Weight also shapes the economic comparison: at identical per-pound mill pricing, a 6" Sch 80 line weighs 28.57 lb/ft versus 18.97 lb/ft for Sch 40 — an extra ~10 lb of steel per foot of pipe. On a 100-foot run that is roughly half a tonne of additional material plus the associated freight, support steel, and erection time. This is why the schedule decision is an engineering trade-off, not a one-way upgrade: Sch 80 buys pressure and durability, and you pay for it in weight every metre of the way.
Schedule 80 pipe carries roughly 40–44% higher maximum working pressure than Schedule 40 in the same size — for example 2,220 psi vs 1,540 psi for 2" 304 stainless at ambient temperature. Pressure rating scales directly with wall thickness through Barlow's formula, which is why the thicker wall wins in hydraulic, steam, and high-pressure service.
The governing formula is Barlow's, which most codes use as the basis for internal-pressure rating:
P = (2 × S × t) / OD — where P = pressure rating, S = allowable stress of the material grade, t = wall thickness, OD = outside diameter.
Because P is proportional to t, and Sch 80 wall is ~40% thicker than Sch 40 in the same NPS, the pressure advantage is ~40–44% across the size range. The table below compares maximum working pressures for common NPS from ½" to 6" — the same data the industry quotes for 304/316 at ambient temperature.
Table 5. Pressure rating comparison — Sch 40 vs Sch 80 stainless steel pipe (304/316, ambient temperature)
NPS | Sch 40 Wall (in) | Sch 40 Pressure (psi) | Sch 40 Pressure (bar) | Sch 80 Wall (in) | Sch 80 Pressure (psi) | Sch 80 Pressure (bar) | Sch 80 Advantage |
|---|---|---|---|---|---|---|---|
½" | 0.109 | 3,200 | 221 | 0.147 | 4,400 | 303 | +38% |
¾" | 0.113 | 2,800 | 193 | 0.154 | 3,900 | 269 | +39% |
1" | 0.133 | 2,600 | 179 | 0.179 | 3,500 | 241 | +35% |
1-1/2" | 0.145 | 2,000 | 138 | 0.200 | 2,700 | 186 | +35% |
2" | 0.154 | 1,540 | 106 | 0.218 | 2,220 | 153 | +44% |
3" | 0.216 | 1,560 | 108 | 0.300 | 2,200 | 152 | +41% |
4" | 0.237 | 1,370 | 94 | 0.337 | 1,950 | 134 | +42% |
6" | 0.280 | 1,090 | 75 | 0.432 | 1,680 | 116 | +54% |
Ratings above are approximate for 304/316 stainless steel at ambient temperature. Actual ratings vary by specific grade, manufacturing method (seamless vs welded), and temperature. At elevated temperature the allowable stress falls, so always derate using the pressure-temperature tables of the governing code (e.g. ASME B31.1 or B31.3) for your exact grade — do not extrapolate ambient ratings.
This is the full dimension and pressure table for common sizes from ½" to 6", based on ASME B36.19 stainless steel pipe dimensions, with 304/316 pressure ratings at ambient temperature.
Table 6. Comprehensive Sch 40 vs Sch 80 stainless steel pipe data (ASME B36.19)
NPS | Schedule | OD (in) | Wall (in) | ID (in) | Weight (lb/ft) | Pressure Rating (psi) 304/316 |
|---|---|---|---|---|---|---|
½" | 40 | 0.840 | 0.109 | 0.622 | 0.85 | 3,200 |
½" | 80 | 0.840 | 0.147 | 0.546 | 1.09 | 4,400 |
¾" | 40 | 1.050 | 0.113 | 0.824 | 1.13 | 2,800 |
¾" | 80 | 1.050 | 0.154 | 0.742 | 1.48 | 3,900 |
1" | 40 | 1.315 | 0.133 | 1.049 | 1.68 | 2,600 |
1" | 80 | 1.315 | 0.179 | 0.957 | 2.17 | 3,500 |
1-1/2" | 40 | 1.900 | 0.145 | 1.610 | 2.72 | 2,000 |
1-1/2" | 80 | 1.900 | 0.200 | 1.500 | 3.63 | 2,700 |
2" | 40 | 2.375 | 0.154 | 2.067 | 3.65 | 1,540 |
2" | 80 | 2.375 | 0.218 | 1.939 | 5.02 | 2,220 |
3" | 40 | 3.500 | 0.216 | 3.068 | 7.58 | 1,560 |
3" | 80 | 3.500 | 0.300 | 2.900 | 10.25 | 2,200 |
4" | 40 | 4.500 | 0.237 | 4.026 | 10.79 | 1,370 |
4" | 80 | 4.500 | 0.337 | 3.826 | 14.98 | 1,950 |
6" | 40 | 6.625 | 0.280 | 6.065 | 18.97 | 1,090 |
6" | 80 | 6.625 | 0.432 | 5.761 | 28.57 | 1,680 |
Pressure ratings are approximate for 304/316 stainless steel at ambient temperature. Actual ratings vary by specific grade and temperature — see the pressure-rating section above. For additional sizes and wall schedules, see the Sch 40 pipe dimensions and weight and Schedule 80 pipe dimensions and weight references.
Sch 40 and Sch 80 stainless steel pipe are dimensioned to ASME B36.19 and manufactured to ASTM A312 (seamless and welded) or ASTM A358 (electric-fusion-welded). When ordering, you must specify grade, NPS, schedule, and manufacturing method.
ASTM A312 — seamless and welded austenitic stainless steel pipe (the workhorse spec).
ASTM A358 — electric-fusion-welded austenitic stainless steel pipe for larger diameters and higher-duty lines.
ASME B36.19 — stainless steel pipe dimensions (wall thicknesses, OD, weights).
ASME B36.10 — carbon and alloy steel pipe dimensions; applies when the pipe is not stainless.
When ordering, always specify: material grade (304, 304L, 316, 316L, duplex, etc.), pipe size (NPS), schedule 40 or 80, and manufacturing method (seamless or welded). JN ALLOY supplies both schedules in the standard stainless grades — see 304 stainless steel, 316 stainless steel, and 316L stainless steel product pages.
Use Sch 40 for general plumbing, water distribution, low-pressure steam, handrails, and structural tubing where cost and flow matter more than pressure. Use Sch 80 for high pressure, hydraulic and steam systems, threaded joints in small sizes, corrosive environments needing corrosion allowance, and heavy structural loads.
Cost matters: Sch 40 is the cheaper pipe for the same size and material.
Maximum flow is the priority: the larger ID means less pressure drop and higher capacity at the same velocity.
Pressure is moderate: water, air, low-pressure steam within the Sch 40 rating.
Handling and support are lighter: the pipe is ~38% lighter than Sch 80, so supports, rigging, and installation labour are cheaper.
Typical duty: general plumbing, water distribution, low-pressure steam, handrails, structural tubing.
High pressure is required: hydraulic systems, high-pressure steam, process lines near the Sch 40 limit.
Greater mechanical strength is needed: impact resistance, heavy structural loads, vibration.
Corrosion allowance is required: the thicker wall gives more sacrificial metal, so service life extends in corrosive media.
Threading is required: the thicker wall allows strong threaded connections — many codes require Sch 80 for threaded sizes of 2" and smaller.
Typical duty: high-pressure process piping, hydraulic lines, chemical plants, oil and gas, heavy structural supports.
For a deeper look at mechanical limits, see How Much Weight Can a Schedule 80 Steel Pipe Support? and Schedule 80 Steel Pipe Strength.
Both schedules serve every major stainless steel market, but they split by duty: Sch 40 carries general utilities and structural work, Sch 80 carries pressure, threads, and aggressive service. The table below maps each industry to the schedule it normally specifies.
Table 7. Application guide by industry
Industry | Typical Schedule 40 use | Typical Schedule 80 use |
|---|---|---|
Water treatment & utilities | Water distribution, air lines, low-pressure service | High-pressure pump discharge, aeration headers, chemical dosing lines |
Chemical & petrochemical | Non-critical process lines, cooling water | Acid and solvent transfer, high-pressure process piping, reactor circuits |
Oil & gas | Utility air, firewater, instrumentation tubing support | High-pressure gathering, hydraulic control lines, sour-service piping |
Marine & offshore | Handrails, walkways, non-critical seawater lines | High-pressure hydraulic systems, thruster and ballast lines |
Food & beverage / pharma | Sanitary process lines, low-pressure product transfer | High-pressure CIP (clean-in-place) circuits, steam lines |
Construction & structural | Handrails, railings, scaffolding, structural tubing | Heavy structural supports, crash barriers, impact-resistant framing |
Market-specific guidance is available on the water treatment, chemical equipment, marine engineering, and construction pages. For the full stainless pipe range and processing services, see Steel Pipe and Tube.
Sch 40 and Sch 80 sit in the middle of the schedule family. Thinner walls (Sch 5S, 10S) exist for low pressure and light weight; thicker walls (Sch 160, XXS) exist for extreme pressure. For stainless steel, ASME B36.19 covers 5S–80S; carbon and alloy pipe follow ASME B36.10 with STD, XS, 160 and XXS designations.
Table 8. Stainless steel schedule family (ASME B36.19 stainless / B36.10 carbon)
Schedule | Wall relative to Sch 40 | Typical pressure duty | Common uses |
|---|---|---|---|
5S / 10S | Thinner | Low pressure, vacuum, light weight | Instrument lines, sanitary lines, structural tubing |
40 (STD) | Baseline | Low–medium pressure | General plumbing, water, air, handrails |
80 (XS) | ~40% thicker | High pressure, threaded joints | Hydraulics, steam, process piping, heavy structural |
160 | Much thicker | Very high pressure | High-pressure hydraulics, extreme service |
XXS (double extra strong) | Thickest | Extreme high pressure | Highest-pressure piping, special process duty |
Note that Sch 40 ≈ STD and Sch 80 ≈ XS in most sizes — the two naming systems describe the same walls. For a full wall-by-wall listing, see the stainless steel pipe schedule chart and the ASME B36.10 schedule charts.
Sch 80 threads reliably in small sizes where Sch 40 is marginal; both schedules weld with standard TIG/MIG processes, but Sch 80 needs more heat input and weld passes; Sch 40 bends more easily.
Threading: Sch 80's thicker wall gives sufficient thread engagement for a strong joint. Thin-walled Sch 40 below 2" may not carry a full-strength thread, which is why many codes require Sch 80 for threaded sizes of 2" and smaller.
Welding: both schedules weld with standard TIG, MIG, or stick processes. The thicker Sch 80 wall requires more heat input and often multiple passes; welded stainless pipe should follow ASTM A312/A358 and, where specified, pickling or passivation of the weld zone.
Bending: Sch 40 is easier to bend with its thinner wall; Sch 80 needs more force and is more prone to wall thinning on the outer radius of the bend.
Fittings and flanges: every schedule needs matching fittings — see pipe fittings and flanges for schedule-matched components.
Schedule 80 typically costs 30–50% more than Schedule 40 for the same size and material — the premium reflects roughly 38% more raw material, more processing, and heavier shipping.
Three components drive the difference: raw material (thicker walls use ~38% more steel), manufacturing complexity (more passes, more processing), and shipping (weight raises freight cost). The exact premium varies with size, grade, and market, so compare quotes per foot on the same grade, NPS, and spec. For pricing guidance on the 40 schedule specifically, see SCH 40 Steel Pipe: Dimension, Weight, Pressure Rating and Price.
A practical way to think about the premium: if the design code allows Sch 40 for your pressure and temperature, choosing Sch 80 anyway spends 30–50% more per foot to buy corrosion allowance, threading margin, or future flexibility. If the code requires Sch 80, there is no choice — but you can save money by specifying the lightest schedule that satisfies the governing code, and by consolidating orders to full lengths to reduce cutting waste.
JN ALLOY supplies Sch 40 and Sch 80 stainless steel pipe in 304, 304L, 316, 316L and specialty grades, seamless or welded, with material certificates — send your NPS, schedule, grade, and quantity for a quotation.
As a steel pipe manufacturer, JN ALLOY covers the full pipe product family — stainless, duplex, and nickel alloys — plus matching fittings and flanges. Contact our sales team for expert guidance on selecting the right schedule for your pressure, temperature, and corrosion requirements.
Can I mix Schedule 40 and 80 pipes in the same system?
Technically yes, but you must use the appropriate fittings for each schedule. Fittings are schedule-specific. Never connect a Sch 40 pipe to a Sch 80 fitting without proper transition methods.
Is Schedule 80 stronger than Schedule 40?
Yes. The thicker wall gives Sch 80 higher pressure ratings and greater mechanical strength. In the same nominal size, Sch 80 is typically rated for roughly 40–44% higher internal pressure than Sch 40.
Does Schedule 80 pipe have a smaller inside diameter?
Yes. For the same nominal pipe size, the outside diameter is identical, so Sch 80's thicker wall leaves a smaller ID than Sch 40. The Sch 80 bore is about 6.6% smaller in diameter, or roughly 13% less internal cross-sectional area, which raises velocity and pressure drop at the same flow rate.
Which schedule is better for outdoor applications?
Both require corrosion protection. For stainless steel, either schedule works, but Sch 80 provides additional corrosion allowance if surface pitting occurs over time.
Which schedule should I use for threaded connections?
Use Schedule 80 for sizes of 2 inches and smaller when threads are required. The thicker wall provides enough thread engagement for a strong joint, while thin-walled Sch 40 in small sizes can strip under wrenching or service loads. Many codes therefore require Sch 80 for threaded pipe of 2" and smaller.
What about Schedule 10, 160, or XXS?
These are other wall thickness classifications. Schedule 10 is thinner than Sch 40 and used for low-pressure applications. Schedule 160 and XXS are thicker than Sch 80 for extreme high-pressure service.
What should I specify when ordering stainless steel pipe?
Specify four things: material grade (304, 304L, 316, 316L, etc.), nominal pipe size (NPS), schedule (40 or 80), and manufacturing method (seamless or welded). Reference the governing standard (e.g. ASTM A312) so the mill and your inspector agree on the requirement.
