ASME B16.9 Reducing Outlet Tee And Crosses Size Chart

Views: 7 Author: Monica Publish Time: 2025-12-17 Origin: Site

In this blog, we delve into the dimension of reducing outlet tees and crosses under the ASME B16.9 standard.

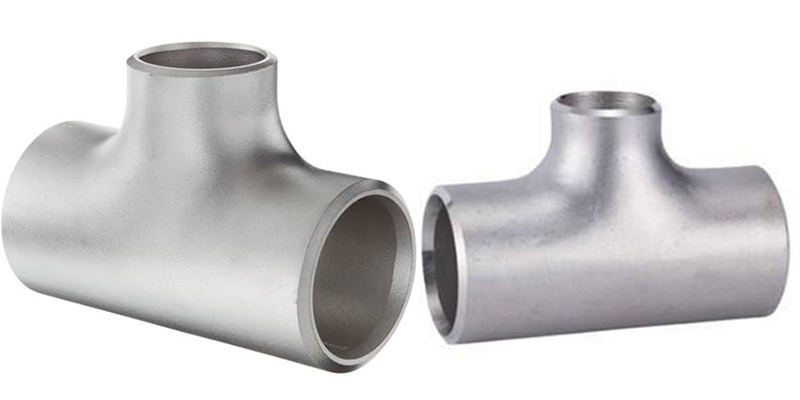

Reducing Outlet Tee (RFT)

Reducing Outlet Tee, often called a "reducing tee," is a three-way pipe fitting shaped like the letter "T." Its key characteristic is that the branch outlet has a nominal pipe size smaller than the two run outlets. The run is typically sized for the main pipeline, while the smaller branch is used to tap off a secondary line.

Function: To efficiently divert or combine flow from a main line into a smaller auxiliary line while maintaining the primary header size. This avoids unnecessary reductions in the main line, saving space, weight, and cost.

Common Applications:

Branch connections for instrumentation (gauges, sensors).

Tapping off a smaller process line from a large supply header.

Connecting equipment with different inlet/outlet sizes.

Drain or vent connections on larger pipes.

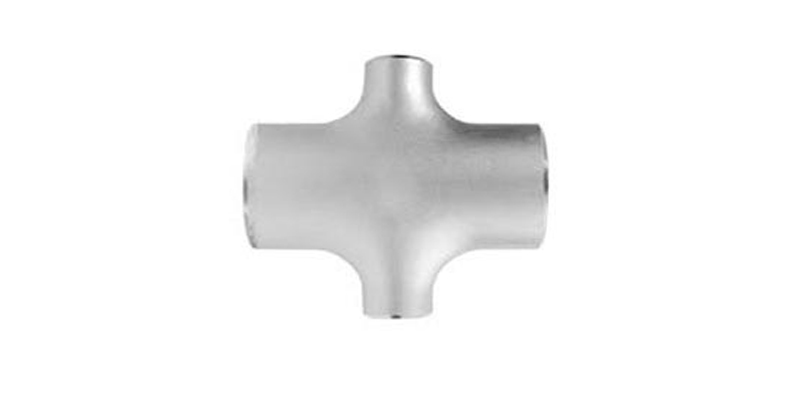

Reducing Outlet Cross (RFC)

Reducing Outlet Cross (or "reducing cross") is a four-way fitting shaped like a plus sign (+). In this configuration, one or more of the four outlets has a different (smaller) NPS than the main run. The most common types are:

One Reducing Outlet: The branch on one axis is smaller.

Two Reducing Outlets on the Same Axis: Both ends of the branch run are smaller, while the main run is full-size.

Two Reducing Outlets on Opposite Axis: More complex flow division.

Function: To interconnect four pipes, facilitating flow in multiple directions, where at least one stream requires a change in pipe diameter. They are used in systems requiring more complex distribution than a tee can provide.

Common Applications:

Complex distribution manifolds in chemical processing.

Fire protection sprinkler system headers.

Intersections in dual-process lines.

Specialty applications in shipbuilding and power generation.

Both tees and crosses are butt-weld fittings. They are welded directly to the pipe, creating a permanent, strong, and leak-proof connection that minimizes turbulence and pressure drop compared to threaded or socket-weld alternatives.

Overview of ASME B16.9 Standard

ASME B16.9 standard, titled "Factory-Made Wrought Buttwelding Fittings," establishes the pressure-temperature ratings, sizes, markings, materials, dimensions, tolerances, and testing requirements for butt weld fittings.

First published in 1951 and regularly updated, it covers fittings from NPS 1/2 through NPS 48, including tees, crosses, elbows, caps, and reducers. The standard ensures compatibility with pipes conforming to ASME B36.10M and ASME B36.19M.

For reducing outlet tees and crosses, the standard specifies outside diameters at the bevel, center-to-end dimensions for both the run (C) and outlet (M), and tolerances. Materials typically include carbon steel, alloy steel, and stainless steel grades like 304, 316, and duplex variants, which we specialize in supplying.

It's important to note that for crosses, dimensions are applicable to NPS 24 and smaller, with larger sizes requiring custom engineering. Tolerances include ±1.6 mm for dimensions up to NPS 4 and increase for larger sizes, ensuring precise fits.

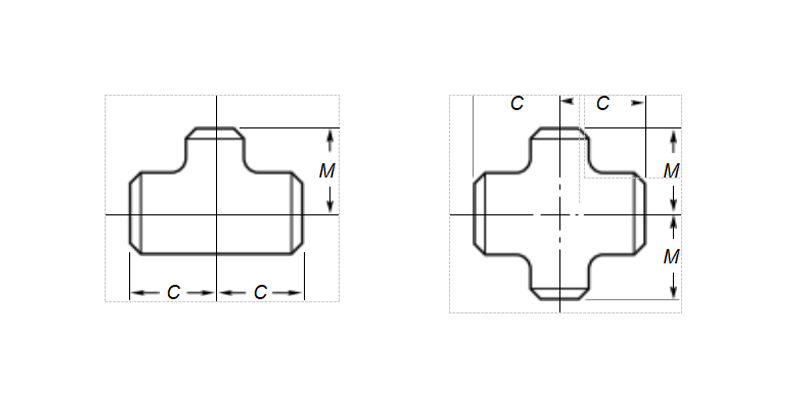

ASME B16.9 Reducing Outlet Tee and Crosses Size Chart

Below is a detailed size chart for ASME B16.9 reducing outlet tees and crosses.

ASME B16.9 Reducing Outlet Tee and Crosses

Nominal Pipe Size (NPS)	DN	Outside Diameter at Bevel Run Outlet		Center-to-End
Nominal Pipe Size (NPS)	DN	Outside Diameter at Bevel Run Outlet		Run, C	Outlet, M [Note (1)]
1/2 x 1/2 x 3/8	15 × 15 × 10	21.3	17.3	25	25
1/2 x1/2 x 1/4	15 × 15 × 8	21.3	13.7	25	25
3/4 x 3/4 x1/2	20 × 20 × 15	26.7	21.3	29	29
3/4 x 3/4 x 3/8	20 × 20 × 10	26.7	17.3	29	29
1 × 1 x 3/4	25 × 25 × 20	33.4	26.7	38	38
1 × 1 x 1/2	25 × 25 × 15	33.4	21.3	38	38
1 1/4 x 1 1/4 × 1	32 × 32 × 25	42.2	33.4	48	48
1 1/4 × 1 1/4 × 3/4	32 × 32 × 20	42.2	26.7	48	48
1 1/4 x 1 1/4 x 1/2	32 × 32 × 15	42.2	21.3	48	48
1 1/2 x 1 1/2 x 1/4	40 × 40 × 32	48.3	42.2	57	57
1 1/2 x 1 1/2 × 1	40 × 40 × 25	48.3	33.4	57	57
1 1/2 x 1 1/2 x 3/4	40 × 40 × 20	48.3	26.7	57	57
1 1/2 x 1 1/2x 1/2	40 × 40 × 15	48.3	21.3	57	57
2 × 2 × 1 1/2	50 × 50 × 40	60.3	48.3	64	60
2 × 2 × 1 1/4	50 × 50 × 32	60.3	42.2	64	57
2 × 2 × 1	50 × 50 × 25	60.3	33.4	64	51
2 × 2 × 3/4	50 × 50 × 20	60.3	26.7	64	44
2 1/2 x 2 1/2 × 2	65 × 65 × 50	73	60.3	76	70
2 1/2 x 2 1/2 x 1 1/2	65 × 65 × 40	73	48.3	76	67
2 1/2 × 2 1/2 × 1 1/4	65 × 65 × 32	73	42.2	76	64
2 1/2 × 2 1/2 × 1	65 × 65 × 25	73	33.4	76	57
3 × 3 × 2 1/2	80 × 80 × 65	88.9	73	86	83
3 × 3 × 2	80 × 80 × 50	88.9	60.3	86	76
3 × 3 × 1 1/2	80 × 80 × 40	88.9	48.3	86	73
3 × 3 × 1 1/4	80 × 80 × 32	88.9	42.2	86	70
3 1/2 x 3 1/2 × 3	90 × 90 × 80	101.6	88.9	95	92
3 1/2 × 3 1/2 × 2 1/2	90 × 90 × 65	101.6	73	95	89
3 1/2 × 3 1/2 × 2	90 × 90 × 50	101.6	60.3	95	83
3 1/2 × 3 1/2 × 1 1/2	90 × 90 × 40	101.6	48.3	95	79
4 × 4 × 3 1/2	100 × 100 × 90	114.3	101.6	105	102
4 × 4 × 3	100 × 100 × 80	114.3	88.9	105	98
4 × 4 × 2 1/2	100 × 100 × 65	113.3	73	105	95
4 × 4 × 2	100 × 100 × 50	114.3	60.3	105	89
4 × 4 × 1 1/2	100 × 100 × 40	114.3	48.3	105	86
5 × 5 × 4	125 × 125 × 100	141.3	114.3	125	117
5 × 5 × 3 1/2	125 × 125 × 90	141.3	101.6	124	114
5 × 5 × 3	125 × 125 × 80	141.3	88.9	124	111
5 × 5 × 2 1/2	125 × 125 × 65	141.3	73	124	108
5 × 5 × 2	125 × 125 × 50	141.3	60.3	124	105
6 × 6 × 5	150 × 150 × 125	168.3	141.3	143	137
6 × 6 × 4	150 × 150 × 100	168.3	114.3	143	130
6 × 6 × 3 1/2	150 × 150 × 90	168.3	101.6	143	127
6 × 6 × 3	150 × 150 × 80	168.3	88.9	143	124
6 × 6 × 2 1/2	150 × 150 × 65	168.3	73	143	121
8 × 8 × 6	200 × 200 × 150	219.1	168.3	178	168
8 × 8 × 5	200 × 200 × 125	219.1	141.3	178	162
8 × 8 × 4	200 × 200 × 100	219.1	114.3	178	156
8 × 8 × 3 1/2	200 × 200 × 90	219.1	101.6	178	152
10 × 10 × 8	250 × 250 × 200	273	219.1	216	203
10 × 10 × 6	250 × 250 × 150	273	168.3	216	194
10 × 10 × 5	250 × 250 × 125	273	141.3	216	191
10 × 10 × 4	250 × 250 × 100	273	114.3	216	184
12 × 12 × 10	300 × 300 × 250	323.8	273	254	241
12 × 12 × 8	300 × 300 × 200	323.8	219.1	254	229
12 × 12 × 6	300 × 300 × 150	323.8	168.3	254	219
12 × 12 × 5	300 × 300 × 125	323.8	141.3	254	216
14 × 14 × 12	350 × 350 × 300	355.6	323.8	279	270
14 × 14 × 10	350 × 350 × 250	355.6	273	279	257
14 × 14 × 8	350 × 350 × 200	355.6	219.1	279	248
14 × 14 × 6	350 × 350 × 150	355.6	168.3	279	238
16 × 16 × 14	400 × 400 × 350	406.4	355.6	305	305
16 × 16 × 12	400 × 400 × 300	406.4	323.8	305	295
16 × 16 × 10	400 × 400 × 250	406.4	273	305	283
16 × 16 × 8	400 × 400 × 200	406.4	219.1	305	273
16 × 16 × 6	400 × 400 × 150	406.4	168.3	305	264
18 × 18 × 16	450 × 450 × 400	457	406.4	343	330
18 × 18 × 14	450 × 450 × 350	457	355.6	343	330
18 × 18 × 12	450 × 450 × 300	457	323.8	343	321
18 × 18 × 10	450 × 450 × 250	457	273	343	308
18 × 18 × 8	450 × 450 × 200	457	219.1	343	298
20 × 20 × 18	500 × 500 × 450	508	457	381	368
20 × 20 × 16	500 × 500 × 400	508	406.4	381	356
20 × 20 × 14	500 × 500 × 350	508	355.6	381	356
20 × 20 × 12	500 × 500 × 300	508	323.8	381	346
20 × 20 × 10	500 × 500 × 250	508	273	381	333
20 × 20 × 8	500 × 500 × 200	508	219.1	381	324
22 × 22 × 20	550 × 550 × 500	559	508	419	406
22 × 22 × 18	550 × 550 × 450	559	457	419	394
22 × 22 × 16	550 × 550 × 400	559	406.4	419	381
22 × 22 × 14	550 × 550 × 350	559	355.6	419	381
22 × 22 × 12	550 × 550 × 300	559	323.8	419	371
22 × 22 × 10	550 × 550 × 250	559	273	419	359
24 × 24 × 22	600 × 600 × 550	610	559	432	432
24 × 24 × 20	600 × 600 × 500	610	508	432	432
24 × 24 × 18	600 × 600 × 450	610	457	432	419
24 × 24 × 16	600 × 600 × 400	610	406.4	432	406
24 × 24 × 14	600 × 600 × 350	610	355.6	432	406
24 × 24 × 12	600 × 600 × 300	610	323.8	432	397
24 × 24 × 10	600 × 600 × 250	610	273	432	384
26 × 26 × 24	650 × 650 × 600	660	610	495	483
26 × 26 × 22	650 × 650 × 550	660	559	495	470
26 × 26 × 20	650 × 650 × 550	660	508	495	457
26 × 26 × 18	650 × 650 × 450	660	457	495	444
26 × 26 × 16	650 × 650 × 400	660	406.4	495	432
26 × 26 × 14	650 × 650 × 350	660	355.6	495	432
26 × 26 × 12	650 × 650 × 300	660	323.8	495	422
28 × 28 × 26	700 × 700 × 650	711	660	521	521
28 × 28 × 24	700 × 700 × 600	711	610	521	508
28 × 28 × 22	700 × 700 × 550	711	559	521	495
28 × 28 × 20	700 × 700 × 500	711	508	521	483
28 × 28 × 18	700 × 700 × 450	711	457	521	470
28 × 28 × 16	700 × 700 × 400	711	406.4	521	457
28 × 28 × 14	700 × 700 × 350	711	355.6	521	457
28 × 28 × 12	700 × 700 × 300	711	323.8	521	448
30 × 30 × 28	750 × 750 × 700	762	711	559	546
30 × 30 × 26	750 × 750 × 650	762	660	559	546
30 × 30 × 24	750 × 750 × 600	762	610	559	533
30 × 30 × 22	750 × 750 × 550	762	559	559	521
30 × 30 × 20	750 × 750 × 500	762	508	559	508
30 × 30 × 18	750 × 750 × 450	762	457	559	495
30 × 30 × 16	750 × 750 × 400	762	406.4	559	483
30 × 30 × 14	750 × 750 × 350	762	355.6	559	483
30 × 30 × 12	750 × 750 × 300	762	323.8	559	473
30 × 30 × 10	750 × 750 × 250	762	273	559	460
32 × 32 × 30	800 × 800 × 750	813	762	597	584
32 × 32 × 28	800 × 800 × 700	813	711	597	572
32 × 32 × 26	800 × 800 × 650	813	660	597	572
32 × 32 × 24	800 × 800 × 600	813	610	597	559
32 × 32 × 22	800 × 800 × 550	813	559	597	546
32 × 32 × 20	800 × 800 × 500	813	508	597	533
32 × 32 × 18	800 × 800 × 450	813	457	597	521
32 × 32 × 16	800 × 800 × 400	813	406.4	597	508
32 × 32 × 14	800 × 800 × 350	813	355.6	597	508
34 × 34 × 32	850 × 850 × 800	864	813	635	622
34 × 34 × 30	850 × 850 × 750	864	762	635	610
34 × 34 × 28	850 × 850 × 700	864	711	635	597
34 × 34 × 26	850 × 850 × 650	864	600	635	597
34 × 34 × 24	850 × 850 × 600	864	610	635	584
34 × 34 × 22	850 × 850 × 550	864	559	635	572
34 × 34 × 20	850 × 850 × 500	864	508	635	559
34 × 34 × 18	850 × 850 × 450	864	457	635	546
34 × 34 × 16	850 × 850 × 400	864	406.4	635	533
36 × 36 × 34	900 × 900 × 850	914	864	673	660
36 × 36 × 32	900× 900 × 800	914	813	673	648
36 × 36 × 30	900× 900 × 750	914	762	673	635
36 × 36 × 28	900× 900 × 700	914	711	673	622
36 × 36 × 26	900× 900 × 650	914	660	673	622
36 × 36 × 24	900× 900 × 600	914	610	673	610
36 × 36 × 22	900× 900 × 550	914	559	673	597
36 × 36 × 20	900× 900 × 500	914	508	673	584
36 × 36 × 18	900× 900 × 450	914	457	673	572
36 × 36 × 16	900× 900 × 400	914	406.4	673	559
38 × 38 × 36	950 × 950 × 900	965	914	711	711
38 × 38 × 34	950 × 950 × 850	965	864	711	698
38 × 38 × 32	950 × 950 × 800	965	813	711	686
38 × 38 × 30	950 × 950 × 750	965	762	711	673
38 × 38 × 28	950 × 950 × 700	965	711	711	648
38 × 38 × 26	950 × 950 × 650	965	660	711	648
38 × 38 × 24	950 × 950 × 600	965	610	711	635
38 × 38 × 22	950 × 950 × 550	965	559	711	622
38 × 38 × 20	950 × 950 × 500	965	508	711	610
38 × 38 × 18	950 × 950 × 450	965	457	711	597
40 × 40 × 38	1000 × 1000 × 950	1016	965	749	749
40 × 40 × 36	1000 × 1000 × 900	1016	914	749	737
40 × 40 × 34	1000 × 1000 × 850	1016	864	749	724
40 × 40 × 32	1000 × 1000 × 800	1016	813	749	711
40 × 40 × 30	1000 × 1000 × 750	1016	762	749	698
40 × 40 × 28	1000 × 1000 × 700	1016	711	749	673
40 × 40 × 26	1000 × 1000 × 650	1016	560	749	673
40 × 40 × 24	1000 × 1000 × 600	1016	610	749	660
40 × 40 × 22	1000 × 1000 × 550	1016	559	749	648
40 × 40 × 20	1000 × 1000 × 500	1016	508	749	635
40 × 40 × 18	1000 × 1000 × 450	1016	457	749	622
42 × 42 × 40	1050 × 1050 × 1000	1067	1016	762	711
42 × 42 × 38	1050 × 1050 × 950	1067	968	762	711
42 × 42 × 36	1050 × 1050 × 900	1067	914	762	711
42 × 42 × 34	1050 × 1050 × 850	1067	864	762	711
42 × 42 × 32	1050 × 1050 × 800	1067	813	762	711
42 × 42 × 30	1050 × 1050 × 750	1067	762	762	711
42 × 42 × 28	1050 × 1050 × 700	1067	711	762	698
42 × 42 × 26	1050 × 1050 × 650	1067	660	762	698
42 × 42 × 24	1050 × 1050 × 600	1067	610	762	660
42 × 42 × 22	1050 × 1050 × 550	1067	559	762	660
42 × 42 × 20	1050 × 1050 × 500	1067	508	762	660
42 × 42 × 18	1050 × 1050 × 450	1067	457	762	648
42 × 42 × 16	1050 × 1050 × 400	1067	406.4	762	635
44 × 44 × 42	1100 × 1100 × 1050	1118	1067	813	762
44 × 44 × 40	1100 × 1100 × 1000	1118	1016	813	749
44 × 44 × 38	1100 × 1100 × 950	1118	965	813	737
44 × 44 × 36	1100 × 1100 × 900	1118	914	813	724
44 × 44 × 34	1100 × 1100 × 850	1118	864	813	724
44 × 44 × 32	1100 × 1100 × 800	1118	813	813	711
44 × 44 × 30	1100 × 1100 × 750	1118	762	813	711
44 × 44 × 28	1100 × 1100 × 700	1118	711	813	698
44 × 44 × 26	1100 × 1100 × 650	1118	660	813	698
44 × 44 × 24	1100 × 1100 × 600	1118	610	813	698
44 × 44 × 22	1100 × 1100 × 550	1118	559	813	686
44 × 44 × 20	1100 × 1100 × 500	1118	508	813	686
46 × 46 × 44	1150 × 1150 × 1100	1168	1118	851	800
46 × 46 × 42	1150 × 1150 × 1050	1168	1067	851	787
46 × 46 × 40	1150 × 1150 × 1000	1168	1016	851	775
46 × 46 × 38	1150 × 1150 × 950	1168	965	851	762
46 × 46 × 36	1150 × 1150 × 900	1168	914	851	762
46 × 46 × 34	1150 × 1150 × 850	1168	864	851	749
46 × 46 × 32	1150 × 1150 × 800	1168	813	851	749
46 × 46 × 30	1150 × 1150 × 750	1168	762	851	737
46 × 46 × 28	1150 × 1150 × 700	1168	711	851	737
46 × 46 × 26	1150 × 1150 × 650	1168	660	851	737
46 × 46 × 24	1150 × 1150 × 600	1168	610	851	724
46 × 46 × 22	1150 × 1150 × 550	1168	559	851	724
48 × 48 × 46	1200 × 1200 × 1150	1219	1168	889	838
48 × 48 × 44	1200 × 1200 × 1100	1219	1118	889	838
48 × 48 × 42	1200 × 1200 × 1050	1219	1067	889	813
48 × 48 × 40	1200 × 1200 × 1000	1219	1016	889	813
48 × 48 × 38	1200 × 1200 × 950	1219	965	889	813
48 × 48 × 36	1200 × 1200 × 900	1219	914	889	787
48 × 48 × 34	1200 × 1200 × 850	1219	864	889	787
48 × 48 × 32	1200 × 1200 × 800	1219	813	889	787
48 × 48 × 30	1200 × 1200 × 750	1219	762	889	762
48 × 48 × 28	1200 × 1200 × 700	1219	711	889	762
48 × 48 × 26	1200 × 1200 × 650	1219	660	889	762
48 × 48 × 24	1200 × 1200 × 600	1219	610	889	737
48 × 48 × 22	1200 × 1200 × 550	1219	559	889	737

GENERAL NOTE: All dimensions are in millimeters.

NOTE:

(1) Outlet dimension M for run sizes NPS 14 (DN 350) and larger is recommended but not required.

How to Use the Size Chart and Specify Correctly

Identify Line Sizes: Determine the NPS of your main pipeline (run) and the required NPS of your branch line(s).

Determine Schedule/Wall Thickness: Match the fitting schedule to your pipe schedule. For stainless steel, it's common to specify by a standard ASME B36.19 and wall thickness designation.

Reference the Chart: Use the chart to find the critical Center-to-End (C) dimension for your run size. This is vital for piping isometric drawings and spool fabrication.

Specify Completely: A proper specification should read: "ASME B16.9 Reducing Outlet Tee, 6" NPS x 6" NPS x 4" NPS, Schedule 40, Stainless Steel 316/316L, Wrought." For a cross: "ASME B16.9 Reducing Outlet Cross, 8" NPS x 8" NPS x 6" NPS x 6" NPS..."

When in doubt, consult with your trusted supplier's technical team.

ASME B16.9 Reducing Outlet Tee And Crosses Size Chart

Reducing Outlet Tee (RFT)

Reducing Outlet Cross (RFC)

Overview of ASME B16.9 Standard

ASME B16.9 Reducing Outlet Tee and Crosses Size Chart

How to Use the Size Chart and Specify Correctly

Related Products
