Case Study: Inconel 625 Pipe Spools for LNG Facility in Malaysia

JN ALLOY supplied 127 prefabricated Inconel 625 (UNS N06625) pipe spools - 38 tonnes in total - for a 2.4 MTPA LNG liquefaction facility on the east coast of Peninsular Malaysia. The grade was the only technically viable choice because the three process sections combine cryogenic temperatures down to -162 degC with sour gas carrying up to 22 mol% H2S. Every spool passed PMI, 100% radiographic welding inspection, hardness and visual checks, and was delivered on the 18-week schedule with zero defects found during site erection.

Why Did the LNG Project Require 38 Tonnes of Inconel 625 Spools?

The Malaysian LNG supply-chain expansion required prefabricated pipe spools for three critical process areas: the feed gas pre-treatment section, the acid gas removal unit (AGRU), and the natural gas liquids (NGL) extraction section. All three operate outside the safe envelope of standard stainless or carbon steel.

Table 1. Project scope by process section (as supplied)

This project combined two of the most demanding service conditions in oil and gas: cryogenic temperatures (as low as -162 degC in the NGL section) and sour gas with high H2S (up to 22 mol% in feed gas pre-treatment). Neither condition alone is unusual, but their combination created design and fabrication challenges that required careful material selection and a disciplined fabrication sequence.

The simultaneous presence of cryogenic temperature (-162 degC), high H2S (up to 22 mol%) and high pressure (up to 100 barg) across three process sections made Inconel 625 the only material that satisfied all three sections at once. No stainless or carbon steel grade could meet both the sour and the cryogenic requirements simultaneously.

Where Is the Facility, and Why Does Malaysia's Petronas-Led LNG Sector Need Alloy 625?

Malaysia is one of the world's top LNG exporters, and Petronas (Petroliam Nasional Berhad) - the country's fully integrated national oil and gas company - operates the entire value chain, from upstream gas through liquefaction, petrochemicals and regasification. The Malaysia LNG (MLNG) complex in Bintulu, Sarawak is among the largest LNG production sites on the planet, and Petronas also runs Peninsular east-coast petrochemical hubs such as Kertih (Terengganu) and the Pengerang Integrated Complex (PIC) in Johor. Demand for nickel-alloy spools and piping is therefore structural across the country, not project-specific.

What drives the material specification is the service, not the flag. An LNG train's pre-treatment, acid-gas-removal and NGL sections handle gas that is cold, wet, sour and at pressure. Carbon and low-alloy steels lose toughness and suffer hydrogen attack at these temperatures; ordinary stainless steels lack both the cryogenic toughness and the NACE sour-service compliance needed. Nickel alloys such as Inconel 625 are the workhorse for these fronts - which is exactly why this facility's spools were built from 625.

The liquefaction process itself explains the combination. Raw wellstream enters feed gas pre-treatment to remove solids and free water, then the acid gas removal unit (AGRU) strips H2S and CO2 with amine so the gas meets sales-gas and liquefaction specifications. Only after the gas is dehydrated and chilled does it reach the NGL extraction and cryogenic train, where it is cooled to roughly -162 degC and separated into methane, ethane, propane and butane. Each step stresses the piping differently: warm-and-sour in the AGRU, cold-and-pressurized in the NGL section, and a mix of both in pre-treatment. A single alloy had to survive all three, and 625 was the grade that did. For Malaysian buyers, this is the recurring pattern across MLNG's Bintulu trains, the Pengerang Integrated Complex (RAPID) in Johor and the Kertih petrochemical cluster in Terengganu - all of which need cryogenic, sour-tolerant nickel alloys in their process fronts.

For regional buyers, the practical takeaway is that LNG and petrochemical projects in Malaysia repeatedly face the same material question - cryogenic plus sour - and the answer is usually a nickel alloy qualified to NACE MR0175. JN ALLOY supports these projects from our oil and gas portfolio and Inconel 625 for LNG processing pages.

• Petronas operates Malaysia's LNG plants and Peninsular east-coast petrochemical hubs (Kertih, Pengerang).

• LNG pre-treatment, AGRU and NGL sections run cryogenic (-162 degC) plus sour (H2S/CO2) - the 625 envelope.

• Carbon/low-alloy steels embrittle; standard stainless lacks sour compliance and cryogenic toughness.

• Nickel alloys such as 625 are specified repeatedly, so demand is structural, not one-off.

Why Was Inconel 625 the Only Viable Choice?

Material selection for this project was governed by two simultaneous constraints: NACE MR0175 / ISO 15156 compliance for sour service (H2S resistance) and adequate toughness at cryogenic temperature (-162 degC) for the NGL extraction section. The initial material study evaluated four candidate alloys before selecting Inconel 625.

Table 2. Material selection study - candidate alloys for combined cryogenic + sour service

Inconel 625 Chemical and Mechanical Properties

Inconel 625 (UNS N06625) carries at least 58% nickel, 20-23% chromium and 8-10% molybdenum, with niobium (3.15-4.15%) that precipitates as the gamma" phase for strength. The table below maps each property to why it matters for this cryogenic-plus-sour LNG duty.

Table 3. Inconel 625 chemical and mechanical properties (per ASTM B444)

The key reason 625 won is that it is fully NACE MR0175 compliant while also keeping excellent toughness at -162 degC - a combination carbon steel, 304L, 316L and even super duplex 2507 could not deliver across all three process sections. Inconel 825 was a borderline alternative but fails once H2S exceeds 15 mol%, which the feed gas pre-treatment section does.

Inconel 625 vs Hastelloy C276: Which Is Right for This LNG Duty?

A natural question is whether Hastelloy C276 (UNS N10276) - another flagship nickel alloy in the JN ALLOY catalogue - would have been the better pick. The honest answer for this service is no. C276's 15-17% molybdenum and 3-4.5% tungsten give it outstanding resistance to strong reducing and oxidizing acids (hydrochloric, hot contaminated sulfuric, phosphoric, wet chlorine), but that is not the dominant hazard here. The facility's challenge is cryogenic plus sour gas, where 625 is the established LNG-spools standard and C276 would be over-specified at a higher cost.

Table 4. Inconel 625 vs Hastelloy C276 - selection for this LNG sour + cryogenic duty

In short: choose Inconel 625 when the duty is cryogenic, sour, or marine plus high-strength; choose Hastelloy C276 when the duty is dominated by severe acid (HCl, hot H2SO4, FGD scrubbers, aggressive mixed acids). For a side-by-side engineering comparison, see our Inconel 625 vs Hastelloy C276 guide and the complete selection guide.

Two practical points decide the call in practice.

First, weldability: 625 is typically welded with matching ERNiCrMo-3 filler and tolerates the fabrication route used on spools; C276 is also very weldable with ERNiCrMo-4 but its higher alloy content makes it more expensive to buy and more costly to weld, with no payoff for a duty that is sour-plus-cryogenic rather than acid-driven.

Second, lifecycle cost: because C276 carries roughly 15-17% molybdenum and 3-4.5% tungsten versus 625's 8-10% molybdenum and no tungsten, the raw-material premium is typically 30-60% per kg. Spending that premium only pays back when the process is dominated by strong reducing or oxidizing acids - which this LNG pre-treatment and NGL duty is not. The decision rule is therefore simple: if the hazard is cold and sour, specify 625; if the hazard is aggressive acid, specify C276.

How Were the Spools Tested and Inspected?

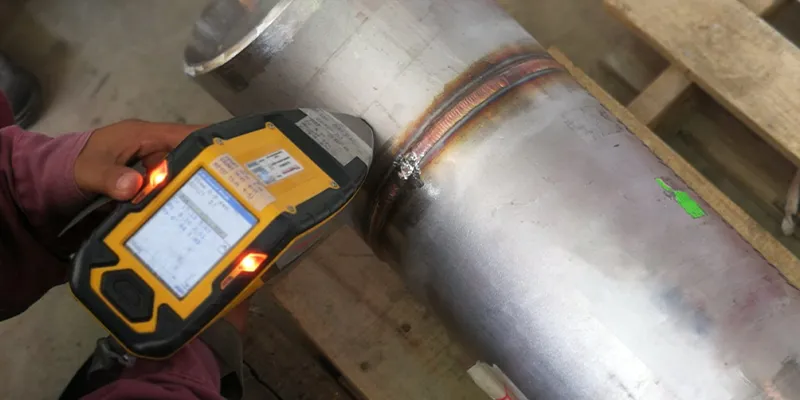

Quality control ran from incoming material to final dispatch. Every heat was verified by PMI, every weld was radiographed, and hardness was surveyed on weld and heat-affected zone to prove NACE compliance. Third-party (SGS) radiographic examination gave the EPC independent assurance.

Table 5. Inspection and test plan (as executed)

What Did the Inspection Results Show?

Across 489 weld joints and 127 spools the findings were small and fully corrected. The only out-of-spec item in the first-article hardness survey was closed by re-qualifying the welding procedure (WPS) - a good example of catching a system issue early rather than on site.

Table 6. Non-destructive examination results and defect rates

The headline result is zero material substitutions (PMI clean across all pipe, fittings and filler wire) and zero defects found during site erection. Pre-fabrication inspection, not site rework, was the most cost-effective quality strategy on this project.

What Was the Delivery Schedule?

The 127 spools were released in five batches over an 18-week window, sequenced so each process section received its spools just ahead of its installation front. All batches reached site on schedule despite supply-chain disruption.

Table 7. Fabrication and delivery schedule by batch

What Lessons Did This Procurement Teach?

The project confirmed four lessons that transfer directly to other LNG and sour-service jobs:

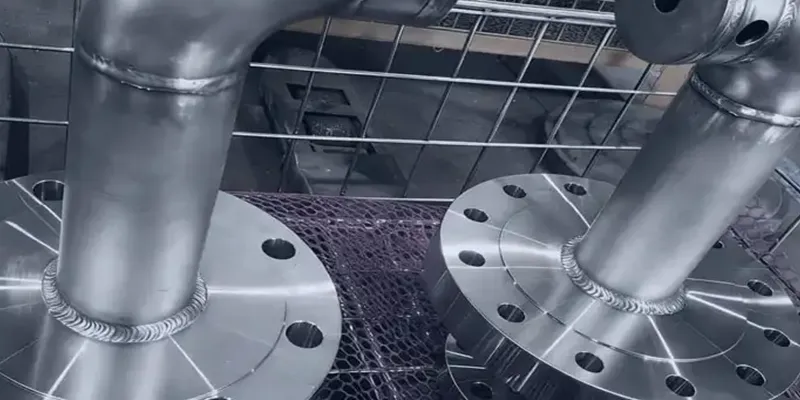

• Specify the alloy by BOTH sour-service and cryogenic limits from day one - do not optimize for one and discover the other late.

• Qualify the welding procedure (WPS) early; the first-article hardness find here was closed by WPS re-qualification, not by reworking finished spools.

• Use independent third-party RT for butt welds so the EPC has assurance that is not self-reported.

• Treat rigorous pre-fabrication inspection as the cheapest quality insurance - it prevented every defect from reaching site erection.

Why Choose JN ALLOY for LNG and Petrochemical Spools?

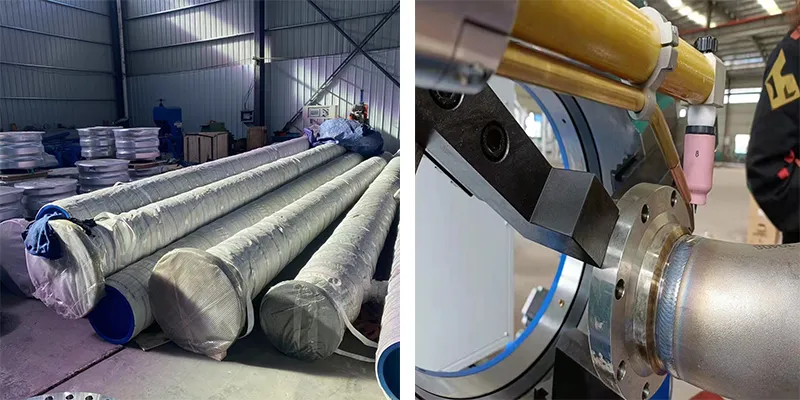

This Malaysian LNG order reflects the four reasons clients return to JN ALLOY: product performance (625 delivered the cryogenic-plus-sour capability the duty demanded), selection (a broad Inconel, Incoloy, Hastelloy and duplex portfolio so the right grade is specified, not a compromise), quality (every batch released against international standards with full traceability), and service (close work from enquiry through on-time delivery). Our Inconel 625 for offshore oil and gas and marine engineering pages show the same alloy in adjacent duties.
