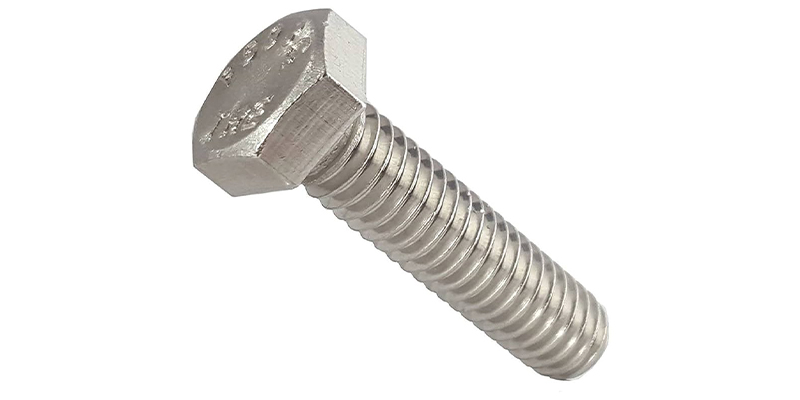

Stainless steel hex heads are threaded bolts characterized by a hexagonal head. Available in a variety of materials, including carbon steel, stainless steel, nickel alloys, and titanium alloys, stainless steel hex heads have many types, sizes, materials, and finishes to meet all your needs.
This comprehensive guide covers the essential aspects of stainless steel hex heads, highlighting their properties, installation process, grade variations, and diverse applications.

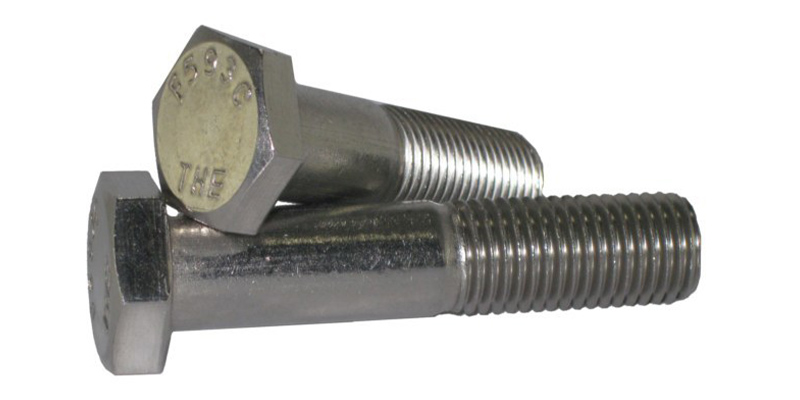

Corrosion Resistance
Stainless steel hex head has corrosion resistance, primarily due to the alloy's chromium content, which forms a passive oxide layer on the surface that protects against rust and degradation. This makes them suitable for use in harsh environments, such as marine settings, chemical plants, and coastal construction. Grades like 304 and 316 offer resistance; for instance, 316 stainless steel, often called "marine-grade," provides superior performance in chloride-rich environments like seawater.
Durability and Strength
Stainless steel hex heads have high tensile strength, durability, and resistance to deformation under stress, making them suitable for heavy-duty applications. While stainless steel may not be as strong as other steels in high-strength applications, it offers good strength and mechanical stability, especially at high temperatures.
Grades like A2-70 and A4-70 denote minimum tensile strengths of 700 MPa. The hexagonal head allows for efficient torque application during installation, reducing the risk of slippage and ensuring a secure fit. Additionally, thread design enhances their grip and load distribution capabilities. These bolts are commonly used in the construction, automotive, and aerospace industries.
Cost-Effectiveness
While stainless steel hex head bolts may have a higher initial cost compared to carbon steel, their long-term cost-effectiveness is significant due to reduced maintenance, replacement, and downtime expenses. Their corrosion resistance and durability translate to a longer lifespan, minimizing the need for frequent replacements. For example, industry reports indicate that using stainless steel fasteners can reduce maintenance costs by up to 50% in corrosive environments.

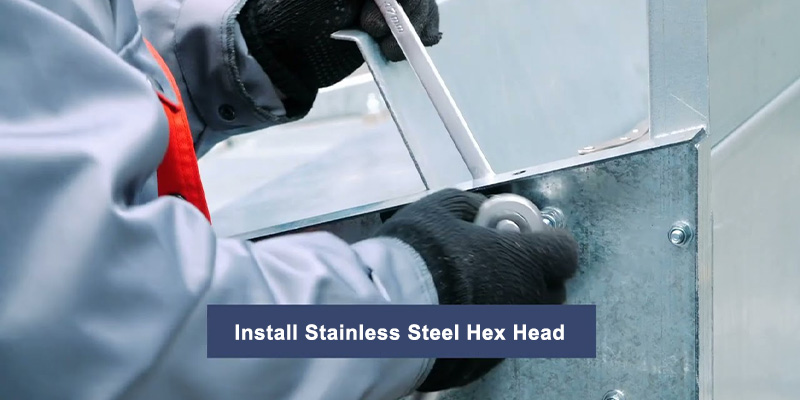

Preparation
First, select stainless steel hexagonal bolts, nuts, and washers of the correct size, grade, and material. This includes a torque wrench, spanner, or socket, and, if necessary, thread lubricant.
Cleaning Threads and Fittings
Use a brush and lint-free cloth to thoroughly clean the threads of the bolts and nuts, as well as the threaded or through-holes in the connected parts, to remove any dirt, debris, oil, or tiny metal particles. This step is crucial, as any impurities can cause inaccurate torque readings, mistaking the tightening requirements for insufficient clamping force, or lead to thread galling and difficulty in removal due to embedded impurities during subsequent use.
Applying Lubricant
To prevent galling or cold welding, a characteristic of stainless steel, it is strongly recommended to evenly apply a dedicated lubricant to the threads of the bolts and nuts. Do not use regular motor oil or grease, as these may contain chlorine, sulfur, and other substances that can damage the stainless steel's passive film over time and cause stress corrosion cracking. Specialized lubricants not only effectively prevent galling and smoothen tightening and removal, but also ensure that applied torque is efficiently converted into accurate bolt preload during final tightening, reducing the effects of frictional instability.
Manual Threading and Alignment
First, manually thread the bolt into the threaded hole or through the fitting to the nut. This step ensures that there is no cross-threading, a condition where the threads are misaligned. If resistance is encountered, do not force the thread in with a tool. Instead, remove the bolt and inspect the thread and hole for alignment, burrs, or damage. Easily threading several threads manually is crucial for proper thread engagement and effectively prevents damage and costly repairs caused by cross-threading.
Use Tools for Even Pre-Tightening
After manual threading, initially tighten the nut or bolt using a suitable fixed wrench or socket wrench. Tighten evenly in multiple, gradual, and diagonal, steps, rather than tightening all at once. This ensures even force distribution and a smooth fit between the connected parts, avoiding gaps or deformation caused by uneven force distribution.
Applying the Final Torque
After all bolts are evenly pre-tightened, use a calibrated torque wrench to tighten each bolt to the exact torque value specified in the design drawings or specifications, in the same diagonal, cross-section order. Strict adherence to the specified torque value is crucial. Undertorque will result in insufficient clamping force and loosening of the connected parts due to vibration; overtorque will cause excessive bolt elongation, even yielding and fracture, or cause gasket collapse and failure.
Final Inspection
After all bolts have been tightened to the final torque, a comprehensive final inspection should be performed. This inspection includes: confirming that all bolts have been tightened to the specified torque; visually inspecting the bolt heads and nuts for abnormal deformation or damage; and ensuring that the connected parts are fully seated with no gaps.

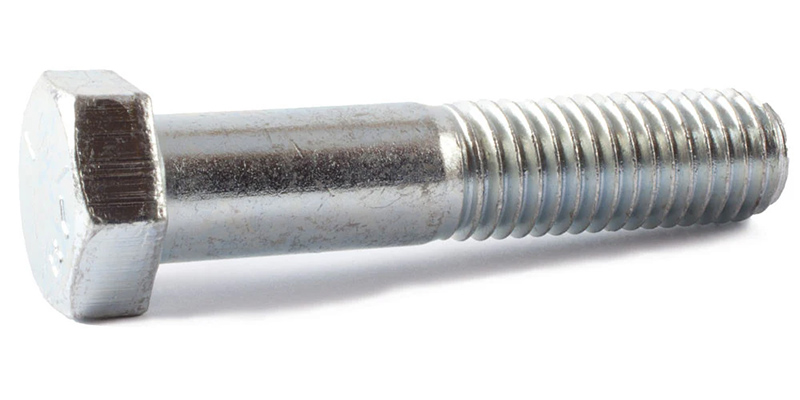

Austenitic stainless steels are the most widely used type of fasteners due to their excellent corrosion resistance and good mechanical properties. They are nonmagnetic and cannot be hardened by heat treatment.
l Grade 304 (A2, 18-8): This is the most common commercial grade, composed of approximately 18% chromium and 8% nickel. It offers good corrosion resistance in mild atmospheres, fresh water, and many organic chemicals and foods. It is widely used in general construction, household fixtures, and automotive applications. A low-carbon variant, 304L, is available for welding applications to prevent sensitization.
l Grade 316 (A4, Marine Grade): This grade contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum. The addition of molybdenum significantly enhances its resistance to pitting and crevice corrosion, particularly from chlorides. This makes it the preferred "marine grade" for use in saltwater environments, coastal areas, chemical processing plants, and highly corrosive industrial applications.
Martensitic grades are magnetic, can be heat-treated to achieve high strength and hardness, but offer lower corrosion resistance compared to austenitic grades. They are generally not recommended for welding.
l Grade 410: A basic martensitic grade containing about 11.5-13.5% chromium. It can be heat-treated to achieve high strength but has relatively lower corrosion resistance. It is often used for applications requiring high strength and moderate corrosion resistance, such as roofing screws, siding screws, and self-tapping screws.
l Grade 431: A higher-chromium martensitic grade that can be heat-treated to achieve even higher strength levels.

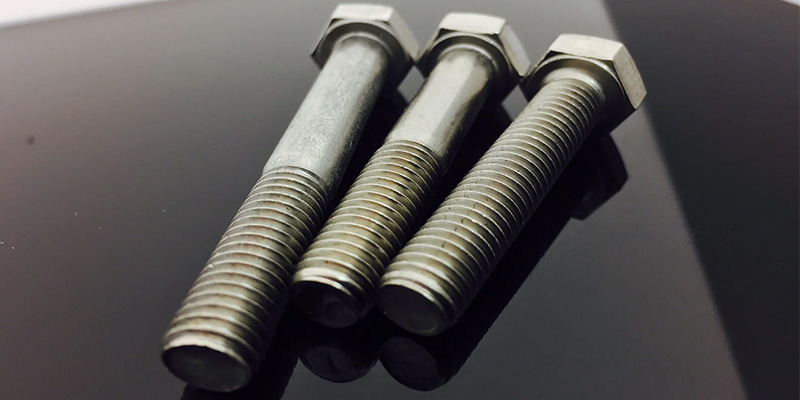

Construction: Stainless steel hex head bolts are extensively used in construction and architectural projects due to their ability to withstand harsh weather conditions and resist corrosion. They are commonly employed in structural connections, such as securing steel beams, bridges, and building frameworks.
Industrial Manufacturing: In industrial settings, these fasteners are critical for assembling and maintaining heavy machinery. Their high tensile strength and resistance to corrosion and high temperatures ensure reliability in demanding environments. For example:
l Chemical processing plants use them for reactors, storage tanks, and pipes due to their resistance to chemical corrosion.
l Manufacturing equipment relies on its ability to withstand vibrations and heavy loads, with flange hex bolts often used to prevent loosening under stress.
Marine and Shipbuilding: The marine industry heavily depends on stainless steel hex head fasteners, particularly grades like A4/316, which offer superior resistance to saltwater corrosion. Applications include:
Shipbuilding: Used in hull assemblies, deck fittings, and offshore platforms.
l Docks and harbors: Ideal for securing structures exposed to seawater and humid conditions.
Automotive and Aerospace: The automotive and aerospace sectors require hex heads that combine high strength, temperature resistance, and reliability. Stainless steel hex head bolts are used in:
l Automotive assemblies: Engine components, body panels, and braking systems.
l Aerospace applications: Critical for structural parts and interior fittings due to their ability to withstand extreme pressures and temperatures.
