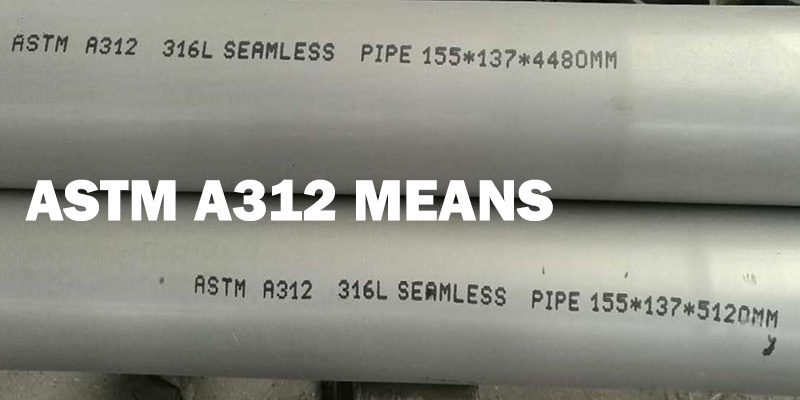

What Does ASTM A312 Mean?

ASTM A312 is a very important set of rules made by a group called ASTM International. ASTM A312 rules tell factories exactly how to make certain kinds of metal pipes and tubes designed to resist rust and chemicals. The pipes covered by A312 are usually made from special stainless steel grades (like the common types known as Grade 304, 304L, 316, or 316L) that contain metals like chromium and nickel. These steel alloys help the pipes last a long time, especially when they carry things like acids, strong chemicals, saltwater, or very hot liquids and gases under pressure.



ASTM A312 applies to pipes that are made in two main ways: seamless pipes and welded pipes. A312 gives factories very clear instructions about the exact metal mixture they must use, how strong the finished pipe needs to be, how much it can bend without breaking, how smooth the surface should be, and what size and thickness the pipes can be. Factories must also test the pipes they make to prove they follow all these rules.



You will find the ASTM A312 pipe used in places like chemical plants, oil refineries, food and medicine factories, power stations, and places near the ocean, where stopping rust and leaks is absolutely critical for safety and to keep things working properly.



Simplified explanation:



lASTM International: The standard making the rules.

lWhat it covers: Standards for making specific stainless steel pipes/tubes.

lKey property: Resists rust and chemical corrosion.

lMaterials: Steel grades like 304 and 316 with chromium/nickel.

lTypes: Seamless pipes and welded pipes.

lWhat the rules specify: Metal composition, strength, bending ability, size, thickness, and surface finish.

lTesting: Factories must test pipes to prove they meet the rules.

lWhere used: Chemical plants, oil refineries, food/medicine factories, power plants, and ocean areas.



This article mainly summarizes the meaning, characteristics, pipe manufacturing standards and test methods of ASTM A312 standard.

ASTM A312 Properties

ASTM A312 pipe is a general-purpose stainless steel pipe used in a variety of industries. Its diameters range from 1/2 inch to 48 inches, and its thicknesses range from SCH 5 to SCH XXS. Common material grades are TP304/304L, TP316/316L/316Ti, TP317/317L, TP321, and TP347.



ASTM A312 Chemical Composition



Grade	UNS	C≤	Mn	P≤	S≤	Si≤	Cr	Mo	Ni
TP304	S30400	0.08	2	0.045	0.03	1	18.0-20.0	-	8.0-11.0
TP304L	S30403	0.035	2	0.045	0.03	1	18.0-20.0	-	8.0-13.0
TP316	S31600	0.08	2	0.045	0.03	1	16.0-18.0	2.00-3.00	10.0-14.0
TP316L	S31603	0.035	2	0.045	0.03	1	16.0-18.0	2.00-3.00	11.0-14.0
316Ti	S31635	0.08	2	0.045	0.03	0.75	16.0-18.0	2.00-3.00	10.0-12.0
TP317	S31700	0.08	2	0.045	0.03	1	18.0-20.0	3.0-4.0	11.0-14.0
TP317L	S31703	0.035	2	0.045	0.03	1	18.0-20.0	3.0-4.0	11.0-15.0
TP321	S32100	0.08	2	0.045	0.03	1	17.0-19.0	-	9.0-12.0
321H	S32109	0.04-0.1	2	0.045	0.03	1	17.0-19.0	-	9.0-12.0
310	S31000	0.25	2	0.045	0.03	1.5	24.0-26.0	0.75	19.0-22.0
TP310S	S31008	0.08	2	0.045	0.03	1	24.0-26.0	0.75	19.0-22.0
TP347	S34700	0.08	2	0.045	0.03	1	17.0-19.0	-	9.0-13.0



ASTM A312 Mechanical Properties

Mechanical properties	Tensile, min, ksi[MPa]	Yield, min, ksi[MPa]	Elongation, %(min)	Hardness, HB（max）
TP304	75【515】	30【205】	35	192
TP304L	70【485】	25【170】	35	192
TP316	75【515】	30【205】	35	192
TP316L	70【485】	25【170】	35	192
316Ti	75【515】	30【205】	35	192
TP317	75【515】	30【205】	35	192
TP317L	75【515】	30【205】	35	192
TP321	75【515】	30【205】	35	192
321H	75【515】	30【205】	35	192
TP310	75【515】	30【205】	35	192
TP310S	75【515】	30【205】	35	192
TP347	75【515】	30【205】	35	192

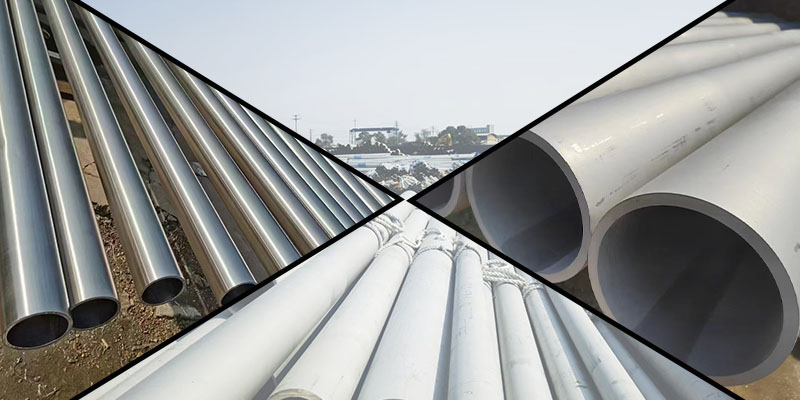

ASTM A312 Pipe Manufacturing Types

Seamless Pipe (SMLS):



ASTM A312 seamless pipe is inherently uniform in structure around its entire circumference. This seamless pipe has superior strength and pressure containment capabilities, especially important for very high-pressure applications, extreme temperatures, or highly corrosive services where any weak point could fail. Seamless pipe manufacturing is generally more complex and costly than welded methods. Finished seamless pipe undergoes rigorous testing (like hydrostatic pressure tests and non-destructive examination per ASTM A999) to ensure it meets all A312 requirements for material, dimensions, strength, and soundness.



Welded Pipe:



ASTM A312 welded pipe offers excellent dimensional consistency and is generally more cost-effective to produce than seamless pipe, especially in larger diameters and thinner walls. It is extensively used in many demanding applications covered by ASTM A312. Every welded pipe undergoes mandatory nondestructive examination (like radiographic or ultrasonic testing) of the entire weld seam, along with hydrostatic testing and other checks per ASTM A999, to guarantee weld integrity and overall quality.



ASTM A312 Testing Methods

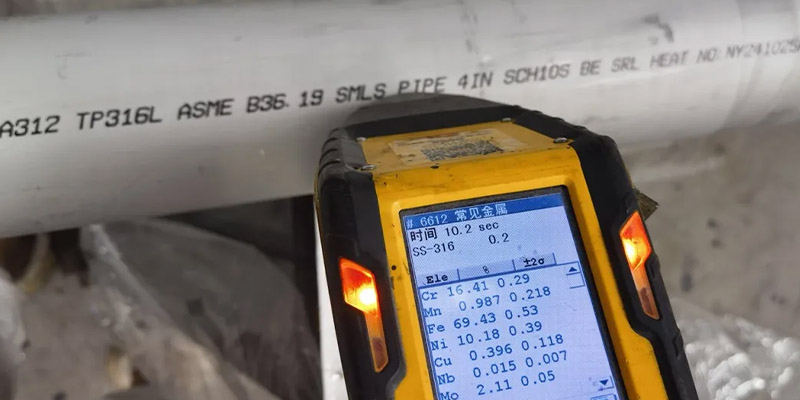

1. Chemical Analysis:

This test checks the exact composition of the stainless steel used to make the pipe. A small sample of the pipe material is taken to a laboratory. Scientists use special machines to carefully measure the amounts of important elements like Chromium (Cr), Nickel (Ni), Molybdenum (Mo), Carbon (C), and others. Each grade of stainless steel (like 304, 316, etc.) has strict rules for how much of each element must be present. This test makes sure the metal meets these specific chemical requirements. Getting the chemistry right is essential because it directly controls the pipe's ability to resist rust (corrosion), handle high temperatures, and have the correct strength and flexibility.



2. Tensile Strength Test:

This test measures how strong the pipe material is and how much it can stretch before breaking. A sample shaped like a small bar is cut from the pipe wall. This sample is placed in a powerful machine that slowly pulls it apart with increasing force. The machine records two main things: the maximum force the material can withstand before breaking (ultimate tensile strength) and the force needed to cause it to start stretching permanently (yield strength). It also measures how much the sample stretches during the test (elongation). This test proves the pipe has the necessary strength to safely hold the pressures and forces it will face when in use.



3. Flattening Test (for Welded Pipe):

This test checks the quality of the weld seam in welded pipes and the ductility (ability to bend without cracking) of the pipe material near the weld. A short ring of pipe is cut. This ring is placed between two flat plates in a press. The press slowly squashes the ring flat. The test is stopped when the distance between the plates reaches a specific measurement calculated based on the pipe's wall thickness. After flattening, inspectors closely examine the weld area and the base metal next to it. They look for any cracks, splits, or signs of the weld failing. A good flattening test shows the weld is sound and the pipe material is tough enough for forming and service stresses.



4. Hydrostatic Test:

This is a critical safety test that checks if the pipe can hold pressure and if there are any leaks. The entire length of the finished pipe is filled completely with water. All air is removed. The pipe is then sealed and the water pressure inside is increased to a very high level—significantly higher than the pipe's normal working pressure. This high pressure is held steady for at least 5 seconds. Inspectors carefully watch the pipe and the pressure gauge during the test. The pipe must hold this high pressure without bursting, leaking any water, or showing any permanent deformation. This test ensures the pipe is structurally sound and leak-proof for its intended pressure service.



5. Nondestructive Examination (NDE) of Weld Seam (for Welded Pipe):

These are special inspection methods that check the quality of the weld seam without damaging or cutting the pipe. Two common methods are used:



• Radiographic Testing (RT): X-rays or gamma rays are passed through the weld. The rays create a picture (like a medical X-ray) on film or a digital detector. This picture shows the inside of the weld, revealing hidden flaws like cracks, holes (porosity), or lack of fusion that you cannot see from the outside.



• Ultrasonic Testing (UT): High-frequency sound waves are sent into the weld using a handheld probe. The sound waves bounce back (echo) when they hit a flaw inside the weld. A machine analyzes these echoes to find the exact location and size of any hidden defects. These NDE methods guarantee the weld seam is free from harmful internal flaws.



6. Hardness Test:

This test measures how hard the surface of the pipe material is. A small, specially shaped tip (like a diamond or steel ball) is pressed firmly into the pipe's surface for a short time using a machine. The machine measures the size of the dent made by the tip or the force needed to make it. This measurement is converted into a hardness number (like Rockwell or Brinell). Hardness is important because it relates to the material's strength and toughness. The test ensures the pipe isn't too hard (which could make it brittle) or too soft (which could make it weak), especially after heat treatment.



7. Visual and Dimensional Inspection:

Every ASTM A312 pipe is carefully looked at by trained inspectors. They check the outside and inside surfaces for any problems like deep scratches, dents, cracks, pits, or rough spots. They also use precise tools like calipers, micrometers, and tape measures to check many dimensions: the outside diameter (OD), the wall thickness at several points, the length, and the straightness. The ends of the pipe are checked to make sure they are cut squarely. This inspection ensures the pipe looks good, meets the exact size requirements, and has no visible defects that could cause problems during installation or use.
