Pipe spool is a prefabricated section of piping that includes pipe, fittings (elbows, tees, reducers, flanges, valves), and supports, welded and assembled in a controlled workshop environment before being shipped to the construction site for installation.
Pipe spools come in several configurations depending on their function within the piping system:
Spool Type | Configuration | Typical Components | Common Application |
Straight Spool | Pipe + 2 flanges | Straight pipe segment with flanges at both ends | Header pipes, runs between equipment |
Elbow Spool | Pipe + 2 flanges + elbow | Pipe with a 90 or 45 degree elbow and flanges | Direction change at equipment connections |
Tee Spool | Pipe + tee + flanges | Tee fitting with branch connections | Branch take-offs from main headers |
Reducer Spool | Pipe + reducer + flanges | Pipe size reduction with flanges | Transition between pipe sizes |
Valve Spool | Pipe + valve + flanges | Pipe section with gate/globe/check valve | Control and isolation points |
Multi-Fitting Spool | Pipe + multiple fittings | Complex arrangement with 3+ fittings | Manifold headers, nozzle connections |
Header Spool | Large diameter + multiple branches | Main pipe with branch stubs or tees | Distribution headers, manifolds |
Support Spool | Pipe + support attachments | Pipe with welded support clips/brackets | Sections requiring rigid support |
Table 1: Common Pipe Spool Types and Configurations. Source: ASME B31.3-2022, PIP PN01MV01 (Process Industry Practices), AWI Spool Fabrication Standards.
Spool drawing: A detailed isometric drawing showing the spool configuration, dimensions, material specification, and welding requirements. Spool number: A unique identification code (e.g., S-001-A) stamped on each spool for traceability. Fit-up: The process of aligning pipe and fittings before welding. Welding procedure specification (WPS): The documented welding method approved for the specific material and joint.

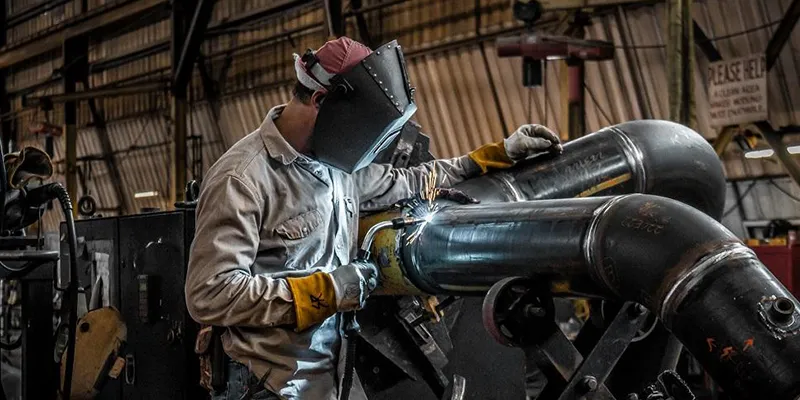

Pipe spool fabrication follows a structured workflow from design to final delivery. Each step is critical to ensure quality, dimensional accuracy, and compliance with applicable codes and standards.
Step-by-Step Fabrication
Complete Fabrication Workflow: (1) Design / Engineering >> Spool isometric drawings produced from P&ID and 3D model >> (2) Material Procurement >> Pipe, fittings, flanges sourced per specification >> (3) Cutting >> Pipe cut to length (band saw, CNC plasma, or laser) >> (4) Fit-Up >> Components aligned, tack-welded in jigs/fixtures >> (5) Welding >> Per approved WPS; GTAW (TIG) root + SMAW/GMAW fill for stainless; SMAW for carbon steel >> (6) NDE / Inspection >> RT, UT, MT, PT per code requirements >> (7) Heat Treatment >> PWHT (post-weld heat treatment) for carbon steel if required >> (8) Surface Treatment >> Pickling/passivation for stainless; painting/coating for carbon steel >> (9) Dimensional Check >> Verify length, flange alignment, face-to-face dimensions >> (10) Marking >> Spool number, material grade, heat number, orientation marks >> (11) Packaging >> Protective wrapping, end caps, wooden crates for shipping >> (12) Delivery >> Transported to site, stored on pipe racks, installed by field crew.
Fabrication Shop vs. Field Construction
Factor | Fabrication Shop (Prefabrication) | Field Construction (Stick-Building) |
Environment | Controlled: indoor, climate-stable, well-lit | Uncontrolled: outdoor, weather-dependent, limited space |
Welding Quality | High: positional welders in flat/horizontal position | Variable: overhead, vertical, restricted access welds |
Productivity | High: 3-5x faster per weld joint | Low: time lost to setup, scaffolding, weather delays |
NDE Access | Full access for RT, UT, MT, PT on every joint | Limited access; some joints cannot be fully inspected |
Material Waste | Low (1-3%): optimized nesting and cutting | Higher (5-10%): manual cutting, errors, rework |
Safety | Good: ground-level work, proper PPE, fire watch | Higher risk: scaffolding, confined space, weather exposure |
Quality Control | Systematic: in-process and final inspection | Limited: final inspection only; rework expensive |
Cost per Joint | $80-200 (carbon); $150-400 (stainless) | $200-500 (carbon); $400-1,000 (stainless) |
Lead Time | 4-8 weeks (advance fabrication) | Immediate (but longer total project duration) |
Best For | Repetitive, complex, or critical spool configurations | Minor modifications, tie-ins, repairs, small projects |
Table 2: Fabrication Shop vs. Field Construction Comparison. Source: Construction Industry Institute (CII) Research Summary 266, McKinsey Global Institute: Modular Construction Productivity Study 2023, Jinie Technology project data (2023-2026).
Shop prefabrication is 3-5 times faster per weld joint and produces 30-60% lower cost per joint compared to field welding. Welds completed in a controlled shop environment have 5-10x lower defect rates than field welds. For any project with more than 50 weld joints, prefabrication is almost always the economical choice.

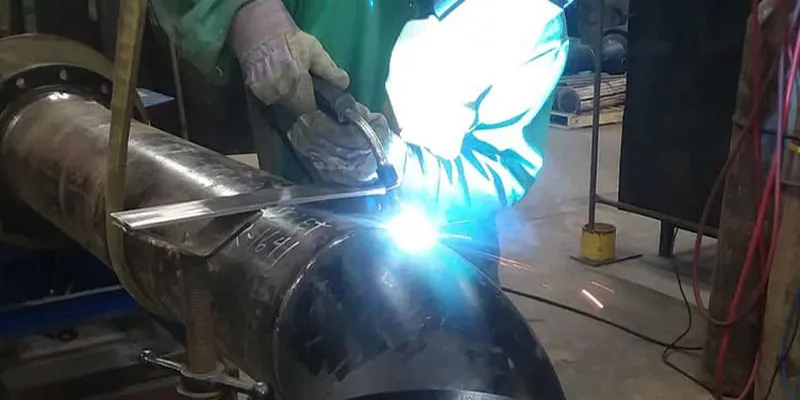

The financial advantages of prefabricated pipe spools are well-documented across the construction industry. Cost savings come from three main sources:
Cost Category | Prefabricated Spools | Field Construction | Savings | Source |
Labor cost per weld joint (carbon steel) | $80-200 | $200-500 | 50-65% | CII RS266, 2023 |
Labor cost per weld joint (stainless steel) | $150-400 | $400-1,000 | 55-65% | Jinie Technology data |
Material waste | 1-3% of total pipe length | 5-10% of total pipe length | 60-70% less waste | FMA/Welding Journal 2024 |
Rework cost (defect repair) | 0.5-1.5% of total cost | 3-8% of total cost | 80% less rework | CII Benchmarking 2023 |
Scaffolding and temporary works | Minimal (shop-based) | Significant (elevated work) | 70-90% reduction | McKinsey Modular Report |
Total project cost (large piping) | Baseline | 10-25% higher total project | 10-25% total saving | CII / ENR data |
Schedule compression | 4-8 weeks advance | Sequential (no parallel work) | 15-30% shorter schedule | IPA Project Analytics |
Table 3: Cost Savings Breakdown - Prefabricated Spools vs. Field Construction. Source: Construction Industry Institute (CII) RS266 (2023), McKinsey Global Institute Modular Construction Report (2023), Fabricators & Manufacturers Association (FMA) Welding Journal (2024), IPA Project Analytics, Jinie Technology project data (2023-2026).
Shop-fabricated spools consistently outperform field-constructed piping in quality metrics:
Quality Metric | Shop Fabrication | Field Construction | Improvement Factor |
Weld defect rate (per 100 joints) | 2-5 defects | 10-30 defects | 5-6x lower |
First-pass weld acceptance rate | 95-98% | 75-90% | 8-15% higher |
Dimensional accuracy (tolerance) | +/- 1mm typical | +/- 3-5mm typical | 3-5x tighter |
RT (radiographic) rejection rate | 1-3% | 5-12% | 4-5x lower |
Hydrotest leak rate | Near zero (<0.1%) | 1-3% require re-testing | 10-30x lower |
Traceability | 100% (heat, lot, WPS, welder ID) | 80-95% (depends on contractor) | Full vs. partial |
Code compliance | Systematic (in-process QC) | Final inspection only | Higher confidence |
Table 4: Quality Comparison - Shop Fabrication vs. Field Construction. Source: ASME B31.3 inspection data, AWS D18.1 statistics, Jinie Technology QC records (2023-2026), TWI International (The Welding Institute) Weld Defect Statistics.
Pipe spool prefabrication enables parallel work streams, dramatically shortening the overall project schedule:
· Parallel execution: Spool fabrication runs concurrently with civil/structural work at the construction site, compressing the critical path.
· Reduced field welding hours: Since 70-90% of total weld joints are completed in the shop, field welding time is drastically reduced.
· Faster commissioning: Pre-tested spools reduce hydrotest time, punch-list items, and commissioning delays.
Safety Improvements
According to OSHA data, piping installation accounts for a disproportionate share of construction injuries. Prefabrication addresses the root causes:
· Reduced working at height: Most welding and heavy lifting is done at ground level in the shop.
· Better fume control: Shop environments have proper ventilation and fume extraction systems.
· Elimination of weather-related hazards: No rain, wind, extreme heat, or lightning risks during fabrication.
Safety Metric | Shop Fabrication | Field Construction |
Lost-time incident rate (per 200,000 hours) | 0.5-1.5 | 3.0-6.0 |
Fall-related injuries | Near zero | Most common in piping work |
Fume exposure risk | Controlled (LEV systems) | Uncontrolled (wind-dependent) |
Eye injury risk (welding arc) | Fixed welding curtains/screens | Portable screens (variable quality) |
Fire risk | Dedicated fire watch, fire suppression | General site fire watch |
Ergonomic injury (overhead welding) | Minimal (horizontal position) | High (overhead/vertical positions) |
Table 5: Safety Comparison - Shop Fabrication vs. Field Construction. Source: OSHA Workplace Injury Data 2022-2024, Construction Industry Institute (CII) Safety Benchmarking, BSI Occupational Health & Safety Statistics (2023).

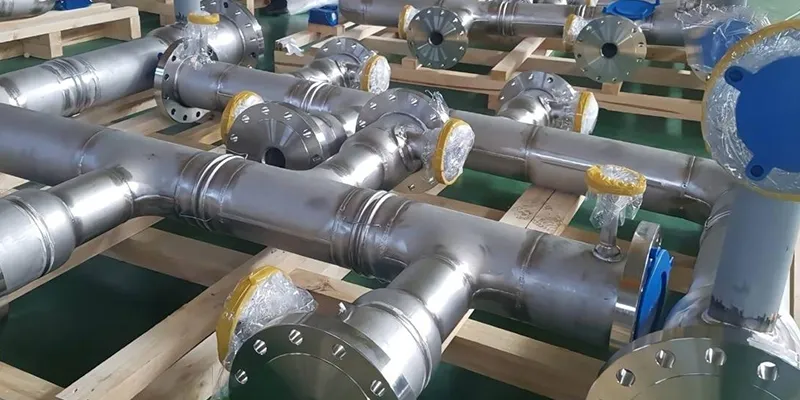

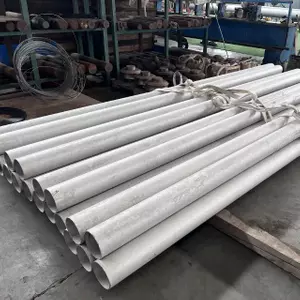

Common Materials
Material Category | Common Grades | Specification | Typical Spool Application |
Carbon Steel | A106 Gr.B, A53 Gr.B, API 5L Gr.B | ASTM A106/A53, API 5L | Water, steam, general process (non-corrosive) |
Low-Temperature Carbon | A333 Gr.6, A350 LF2 | ASTM A333/A350 | Cryogenic service, refrigeration |
Cr-Mo Alloy (High Temp) | A335 P11, P22, P91 | ASTM A335 | Power plant steam, high-temp process |
Austenitic SS (304/316) | A312 TP304/304L, TP316/316L | ASTM A312/A213 | Chemical, pharmaceutical, food processing |
Stabilized SS (321/347) | A312 TP321, TP347 | ASTM A312/A213 | Intergranular corrosion resistant service |
Duplex SS | A789 S31803 (2205), S32750 (2507) | ASTM A789/A790 | Seawater, offshore, high chloride |
Nickel Alloy (Hastelloy) | B622 N10276 (C-276), N06022 (C-22) | ASTM B622/B619 | Aggressive acid/chemical service |
Nickel Alloy (Inconel) | B444 N06625 (Inconel 625) | ASTM B444/B704 | High-temp, seawater, aerospace |
Nickel Alloy (Incoloy) | B407 N08800/8810 (800H/HT) | ASTM B407/B514 | Reformer, furnace tubing |
Copper-Nickel | B466 C70600 (90/10), C71500 (70/30) | ASTM B466/B467 | Seawater desalination, marine |
Table 6: Common Materials for Pipe Spool Fabrication. Source: ASTM A312-22, A106-22, A335-23, A789-22, B622-22, B444-22, ASME B31.3-2022 Material Group Index, Jinie Technology product catalog.
Standard/Code | Scope | Relevance to Spool Fabrication |
ASME B31.3-2022 | Process Piping Design and Construction | Primary design code; weld NDE, PWHT, pressure testing requirements |
ASME B31.1-2022 | Power Piping | Boiler and power plant piping spools; specific PWHT rules |
ASME IX-2023 | Welding and Brazing Qualifications | WPS/PQR approval; welder performance qualification |
ASME Section V | Nondestructive Examination | RT, UT, MT, PT procedures and acceptance criteria |
API 5L-2024 | Line Pipe Specification | Material specification for oil and gas transmission spools |
ASTM A312/A106/etc. | Material Specifications | Pipe, fitting, flange material requirements |
ASME B16.9/11/28 | Fitting Dimensions | Buttweld and socket weld fitting dimensional standards |
ASME B16.5 | Flange Dimensions | Flange dimensions, pressure-temperature ratings |
NACE MR0175/ISO 15156 | Sour Service Materials | SSC/HIC requirements for H2S-containing service spools |
AWS D1.1 / D18.1 | Structural/Steel Pipe Welding | Welding procedure and inspection standards |
Table 7: Key Standards and Codes for Pipe Spool Fabrication. Source: ASME B31.3-2022, B31.1-2022, Section IX-2023, API 5L-2024, NACE MR0175/ISO 15156-2023.
Cost Per Meter by Material
Material | Size Range | Fabrication Cost (USD/m) | Components Included | Market (2025-2026) |
Carbon Steel (A106 Gr.B) | NPS 1-4, Sch 40 | $35-80/m | Pipe + welding + NDE + basic coating | SE Asia FOB |
Carbon Steel (A106 Gr.B) | NPS 6-12, Sch 40 | $60-150/m | Pipe + welding + NDE + coating | SE Asia FOB |
Stainless 304/304L | NPS 1-4, Sch 10S/40 | $80-200/m | Pipe + GTAW welding + RT + passivation | SE Asia FOB |
Stainless 316/316L | NPS 1-4, Sch 10S/40 | $120-300/m | Pipe + GTAW + RT + passivation | SE Asia FOB |
Stainless 316/316L | NPS 6-12, Sch 10S/40 | $200-500/m | Pipe + GTAW + RT + passivation | SE Asia FOB |
Duplex 2205 | NPS 1-6, Sch 10S | $200-500/m | Pipe + GTAW + RT + PWHT (if req) | SE Asia FOB |
Super Duplex 2507 | NPS 1-6, Sch 10S | $350-800/m | Pipe + GTAW + RT + ferrite test | SE Asia FOB |
Hastelloy C-276 | NPS 1-3, Sch 10S | $600-1,500/m | Pipe + GTAW + RT + special handling | SE Asia FOB |
Inconel 625 | NPS 1-4, Sch 10S | $500-1,200/m | Pipe + GTAW + RT + special handling | SE Asia FOB |
Table 8: Pipe Spool Fabrication Cost Guide by Material (2025-2026 SE Asia FOB). Source: Jinie Technology quotation database (2023-2026), MEPS International steel price data, industry estimates. Note: Costs vary by project complexity, quantity, specification, and market conditions.
Cost Breakdown Structure
Cost Element | Typical % of Total Spool Cost | Details |
Raw material (pipe + fittings + flanges) | 40-60% | Largest cost component; depends on material grade and market price |
Welding labor | 15-25% | GTAW/TIG for stainless; SMAW/GMAW for carbon; complexity-dependent |
NDE / inspection | 5-10% | RT (radiographic testing) most expensive; MT/PT for surface examination |
Heat treatment (PWHT) | 2-5% | Required for carbon steel >12.7mm WT per ASME B31.3 |
Surface treatment (pickling, passivation, painting) | 3-8% | Stainless: pickling + passivation; Carbon: painting/coating |
Cutting and fit-up | 3-5% | CNC plasma/laser cutting, manual fit-up in jigs |
Quality control and documentation | 2-4% | Inspection reports, MTRs, weld maps, spool cards |
Packaging and shipping | 3-6% | Wooden crates, end caps, protective wrapping, sea freight |
Engineering / design (if included) | 3-8% | Spool isometric drawings, material take-off, WPS preparation |
Management overhead and margin | 5-10% | Project management, insurance, profit margin |
Table 9: Typical Cost Breakdown for Pipe Spool Fabrication. Source: Jinie Technology cost accounting data, CII RS266, Fabricators & Manufacturers Association (FMA) estimates.
ROI Analysis: Prefabrication vs. Field Construction
The true value of spool prefabrication is not just the direct fabrication cost, but the total installed cost including field savings:
Cost Item | Example Project: 500m, A312 TP316L, NPS 4, Sch 40 | Prefabricated Spools | Field Construction | Savings |
Pipe and fittings material | 500m + 120 fittings | $185,000 | $195,000 | $10,000 (5% less waste) |
Welding labor (est. 600 joints) | Per WPS for 316L | $72,000 | $240,000 | $168,000 (70% lower) |
NDE (RT all joints) | 600 x 2 exposures | $36,000 | $54,000 | $18,000 (33% lower) |
Field scaffolding | Elevated piping | $5,000 | $65,000 | $60,000 (92% lower) |
Field temporary power and consumables | Welding machines, gas | $8,000 | $35,000 | $27,000 (77% lower) |
PWHT (if required) | Per B31.3 requirements | $12,000 | $25,000 | $13,000 (52% lower) |
Rework and repair | Defect rate difference | $8,000 | $40,000 | $32,000 (80% lower) |
Schedule compression (indirect) | 6 weeks faster = overhead saving | $0 (included) | $0 (included) | $45,000 (est.) |
TOTAL | 500m, 316L, NPS 4 Sch 40 | $326,000 | $654,000 | $328,000 (50% total saving) |
Table 10: ROI Analysis - Prefabricated Spools vs. Field Construction (500m, A312 TP316L, NPS 4 Sch 40). Source: Jinie Technology project estimates, CII RS266 productivity data, IPA Project Analytics schedule data. Note: Actual savings vary by project complexity.
For a typical 500-meter stainless steel piping project (316L, NPS 4), prefabricated pipe spools save approximately 40-50% of total installed cost compared to field construction. The single largest saving comes from welding labor (70% reduction) because shop welding is 3-5x faster and far more productive than field welding. Even after accounting for engineering, shipping, and coordination overhead, the total saving remains substantial.

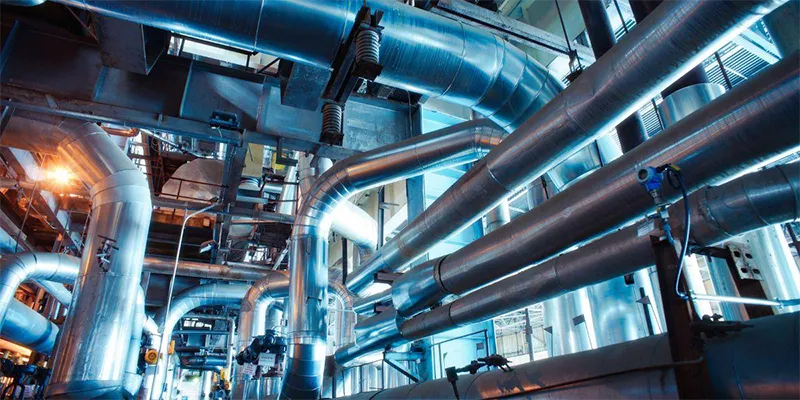

Case Study 1: Chemical Plant Piping, Middle East
Project: Ethylene Oxide Plant, UAE, 2024-2025 Scope: 3,200m of process piping, A312 TP316L and A789 S31803 (Duplex), NPS 1 to NPS 12, Class 150-300, 850 weld joints. Approach: 100% prefabrication. Spools fabricated in Jinie Technology workshop in China, shipped to UAE site in 4 batches over 6 months. Results: (1) Weld defect rate: 1.8% (vs. industry average 8-12% for field); (2) Total installed cost: $2.1M (vs. estimated $3.4M field construction = 38% saving); (3) Field welding reduced to only 25 tie-in joints; (4) Hydrotest completed in 3 days (vs. estimated 2 weeks). Key takeaway: For complex chemical plant piping with mixed materials and multiple fittings per spool, prefabrication delivered massive cost and quality advantages.
Case Study 2: Offshore Platform, Southeast Asia
Project: FPSO Topsides Revamp, Malaysia, 2025 Scope: 1,800m of piping, A312 TP316L and A106 Gr.B, NPS 1/2 to NPS 8, Class 150-600, 420 weld joints. Limited deck space and weather windows. Approach: 95% prefabrication in modular spools (max 4m length for crane access on FPSO). Results: (1) On-site installation completed in 8 weeks (vs. estimated 16 weeks for stick-building); (2) Zero safety incidents during piping installation; (3) All spools passed hydrotest on first attempt; (4) 45% cost saving on piping scope vs. original field-construct budget. Key takeaway: On offshore platforms where deck space and weather windows are limited, prefabricated spools are essential for schedule and safety.
Case Study 3: Pharmaceutical Facility, Europe
Project: WFI (Water for Injection) System, Ireland, 2024 Scope: 600m of sanitary piping, A269 TP316L, NPS 1/2 to NPS 3, ASME BPE compliant, orbital GTAW welding, electropolished ID. Approach: 100% shop prefabrication using orbital welding booths. Every joint recorded with weld data logging (current, voltage, travel speed, gas flow). Results: (1) Zero rework; 100% RT pass rate; (2) Installation in 5 days on-site (vs. estimated 3-4 weeks for field orbital welding); (3) Full ASME BPE compliance achieved. Key takeaway: For pharmaceutical piping with stringent surface finish and traceability requirements, shop prefabrication with orbital welding is the only practical approach.
Case Study 4: Power Plant, Africa
Project: 350MW Coal-Fired Power Plant, Nigeria, 2025-2026 Scope: 5,000m of piping, A335 P91 (main steam) and A106 Gr.B (feedwater), NPS 2 to NPS 24, up to 250 bar at 540 deg C. Approach: 80% prefabrication in China; 20% field (large-bore headers and final tie-ins). Results: (1) P91 spool fabrication with PWHT completed in 12 weeks; (2) All 1,200+ shop welds passed RT/UT; (3) Field welding reduced to 180 tie-in joints; (4) Estimated schedule saving: 10 weeks; (5) Estimated cost saving: $1.8M (25% of piping scope). Key takeaway: Even for high-alloy, high-temperature power plant piping, prefabrication delivers significant schedule and cost benefits.
NDE Methods for Pipe Spools
NDE Method | Abbreviation | What It Detects | When Used on Spools | Typical Acceptance Code |
Radiographic Testing | RT | Internal defects: porosity, slag, lack of fusion, cracks | All butt welds in critical service | ASME B31.3 / API 5L |
Ultrasonic Testing | UT | Internal defects, wall thickness measurement | Supplement to RT; thick-wall spools | ASME Section V |
Magnetic Particle Testing | MT | Surface and near-surface cracks | Carbon steel and ferritic welds | ASME Section V / ASTM E709 |
Liquid Penetrant Testing | PT | Surface cracks and porosity | Stainless steel and nickel alloy welds | ASME Section V / ASTM E165 |
Visual Inspection | VT | Surface appearance, weld profile, misalignment | All welds (mandatory first step) | ASME B31.3 / AWS D1.1 |
Ferrite Testing | FT | Ferrite content in duplex welds | Duplex and super duplex spools | ASTM E562 (30-65% ferrite) |
Hardness Testing | HT | Weld HAZ hardness (SSC susceptibility) | Sour service spools (H2S) | NACE MR0175 (max 22 HRC) |
Hydrostatic Testing | HT (hydro) | Leak-tightness under pressure | Final pressure test per system | ASME B31.3 (1.5x design) |
Table 11: NDE Methods for Pipe Spool Fabrication. Source: ASME Section V-2023, ASME B31.3-2022, ASTM E709, E165, E562, NACE MR0175/ISO 15156-2023.
Documentation and Traceability
Every prefabricated spool should be accompanied by a complete documentation package:
· Material Test Reports (MTRs): Certificates for pipe, fittings, flanges, and welding consumables.
· Welding Procedure Specifications (WPS) and Procedure Qualification Records (PQR): Approved welding methods.
· Welder Performance Qualification (WPQ): Certificates for each welder who worked on the spool.
· NDT Reports: RT films/reports, UT/MT/PT results for every joint.
· Heat Treatment Records: PWHT temperature, time, and cooling rate (when applicable).
· Dimensional Inspection Report: Face-to-face, centerline, and overall length measurements.
· Spool Identification Card: Unique spool number, material grade, pressure class, and orientation marks.
Scenario | Prefabricate (Yes/No) | Rationale |
Project has 50+ weld joints | YES | Cost savings become significant above 50 joints |
Multiple identical or similar spools | YES (strongly) | Repetition maximizes jig efficiency and learning curve |
Complex configurations (many fittings per spool) | YES | Shop fit-up is far more precise for multi-fitting assemblies |
Stainless steel or nickel alloy piping | YES (strongly) | GTAW/TIG welding quality is critical; shop environment superior |
High-pressure / high-temperature service | YES | Stringent NDE (RT/UT) easier in shop; PWHT controlled |
Sanitary / pharmaceutical (BPE) | YES (mandatory) | Orbital welding + electropolishing require shop conditions |
Remote site (limited skilled welders) | YES | Reduce dependence on field labor availability |
Offshore platform or ship | YES (mandatory) | Space and weather constraints make field welding impractical |
Small project (under 50 joints) | MAYBE | Engineering and logistics overhead may offset savings |
Major modifications to existing system | NO | Field welding required for tie-ins and unknown conditions |
Emergency repair or leak fix | NO | Shop fabrication lead time too long; field welding required |
Pipe routing not yet finalized | NO | Spool dimensions depend on final as-built conditions |
Material grade not weldable (e.g., some titanium) | DEPENDS | Evaluate available welding methods and shop capabilities |
Table 12: Decision Matrix - When to Use Prefabricated Pipe Spools. Source: CII RS266 (2023), ASME B31.3-2022, Jinie Technology project experience, industry best practice.
GENERAL RULE: Prefabricate whenever the project has more than 50 weld joints, involves stainless steel or higher alloys, or requires high-quality welding (RT/UT on every joint). For small projects (under 50 joints), carbon steel, and non-critical service, field construction may be more cost-effective. The breakeven point varies, but 50 joints is a reliable threshold.

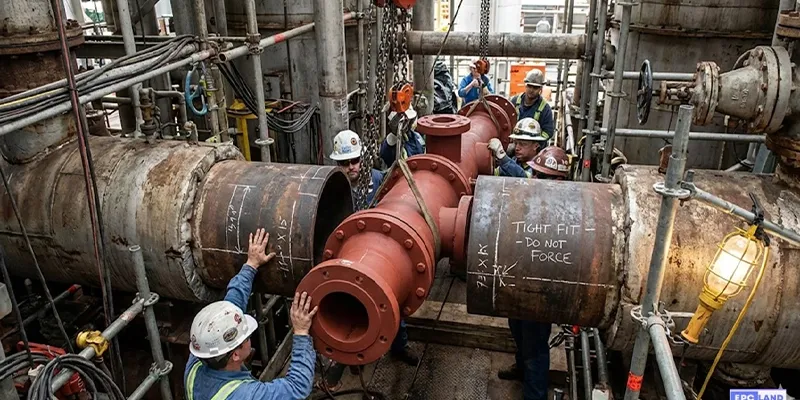

Mistake 1 - Inaccurate Isometric Drawings: Spool drawings must be dimensionally accurate and match the 3D model and field conditions. Even a 5mm error can prevent field fit-up, requiring costly rework. Always verify dimensions against as-built site conditions before fabrication begins.
Mistake 2 - Ignoring Shipping Constraints: Spools must fit in shipping containers and be transportable to the site. Maximum dimensions: typically 5.5m (L) x 2.3m (W) x 2.3m (H) for standard 20ft container. Oversize spools require special transport, significantly increasing cost.
Mistake 3 - Insufficient Material Traceability: Every pipe, fitting, and flange in a spool must be traceable to its heat number and material certificate. Missing traceability can result in code non-compliance, rejected spools, and project delays.
Mistake 4 - Skipping NDE or Using Wrong Acceptance Criteria: Each code and service class specifies different NDE requirements. Using the wrong acceptance criteria (e.g., ASME B31.1 instead of B31.3) can result in rejected spools or unsafe installations.
Mistake 5 - Poor End Protection During Shipping: Spool ends (especially flange faces and bevels) must be protected with end caps and bubble wrap during shipping. Damaged flange faces require field re-machining. Corroded bevels require field re-preparation before welding.
Q1: What is the difference between a pipe spool and a pipe segment?
A pipe segment is a simple length of cut pipe without fittings. A pipe spool is a prefabricated assembly that includes pipe plus one or more components: fittings (elbows, tees, reducers), flanges, valves, supports, or instrument connections. All components are welded together in a controlled shop environment and tested before shipping.
Q2: How long does it take to fabricate pipe spools?
Typical lead time is 4-8 weeks from approved drawings to delivery, depending on: (1) quantity and complexity of spools; (2) material availability (stainless and nickel alloys may require mill production); (3) NDE requirements (RT adds 3-5 days to the schedule); (4) PWHT requirements. Rush orders (2-3 weeks) are possible for carbon steel with available material.
Q3: Can pipe spools be fabricated from any material?
Yes, virtually any weldable piping material can be fabricated into spools: carbon steel, alloy steel, austenitic stainless steel, duplex and super duplex, nickel alloys (Hastelloy, Inconel, Incoloy), copper-nickel, and titanium. However, exotic materials may require specialized welding processes (GTAW with specific filler metals) and longer lead times.
Q4: What is the minimum order quantity for pipe spool fabrication?
There is no strict minimum. However, the engineering and setup overhead is amortized over the total order, so larger orders (50+ spools or 100+ joints) achieve lower unit costs. For very small orders (under 10 spools), the cost per meter may be comparable to or higher than field construction due to engineering overhead.
Q5: How are prefabricated spools connected on-site?
Spools are connected on-site using three primary methods: (1) Flanged connections: bolted flange joints (most common for maintenance access); (2) Field butt welds: final tie-in welds between spools (typically 10-30% of total joints); (3) Mechanical fittings: Victaulic couplings or grooved connections for non-critical service. The connection method is specified in the piping design.
Q6: Do prefabricated spools need hydrotesting?
Yes. ASME B31.3 requires a hydrostatic test at 1.5 times design pressure for the complete piping system. This is typically performed on-site after all spools are installed and connected. Some fabricators also perform individual spool hydrotesting in the shop to catch leaks before shipping (optional but recommended for critical service).
Q7: What is the difference between pipe spool and pipe module?
A pipe spool is a small prefabricated section (typically 1-6m, 2-20 joints). A pipe module (or pipe rack module) is a larger, multi-level assembly that includes pipe spools, structural steel, cable trays, and instrumentation, all pre-assembled in a fabrication yard and transported as a single unit. Modules are used for large-scale projects (LNG, refinery) where the module can be lifted by crane onto the foundation.
Q8: How do I find a reliable pipe spool fabricator?
Key selection criteria: (1) ASME certification or equivalent quality system (ISO 3834 welding quality); (2) Relevant NDE capabilities (RT, UT, MT, PT); (3) Experience with your material grades and codes; (4) Production capacity matching your schedule; (5) Quality references and track record; (6) Competitive pricing with transparent cost breakdown. Jinie Technology holds ISO 9001:2015 certification and fabricates spools in carbon steel, stainless steel, duplex, and nickel alloys for projects worldwide.
Pipe spool fabrication is a proven, cost-effective approach that delivers 30-50% lower total installed cost, 5-10x lower weld defect rates, and 15-30% shorter project schedules compared to field construction. For any project with 50+ weld joints involving stainless steel, nickel alloys, or critical service conditions, prefabrication should be the default approach, not the exception. The key to success is accurate engineering, proper material selection, rigorous quality control, and experienced fabrication partners.
Whether you are building a chemical plant in the Middle East, a pharmaceutical facility in Europe, or an offshore platform in Southeast Asia, prefabricated pipe spools from a reliable fabricator will reduce your risk, improve your quality, and save your budget. The data speaks for itself across hundreds of successful projects worldwide.
For Pipe Spool Fabrication Inquiries and Project Quotation: Market@jnalloy.com | +86 1933 990 0211 | www.jnalloys.com
