Pipe Spool Prefabrication Cost vs Field Welding: A Complete Cost Analysis

Every industrial construction project faces the same fundamental question: should pipe assemblies be welded in a controlled shop environment before they arrive on site (prefabrication), or should crews perform all welding in the field after installation?



This article delivers a comparison of pipe spool prefabrication cost versus field welding cost, covering labor rates, rework exposure, schedule risk, and total installed cost (TIC).





Understanding Pipe Spool Prefabrication and Field Welding

What Is Pipe Spool Prefabrication?

Pipe spool prefabrication is a pre-assembled segment of a piping system—think of it as a LEGO piece for industrial pipelines. It typically combines straight pipe sections, elbows, tees, reducers, flanges, and supports, all cut, fitted, and welded together in a controlled fabrication shop before being shipped to the job site.



Once on site, the crew simply aligns each pre-made spool and makes a small number of “tie-in” welds to join sections together. This is fundamentally different from traditional field welding, where individual pipe components arrive separately at the site and all the cutting, fitting, and welding happens outdoors under real-world conditions.

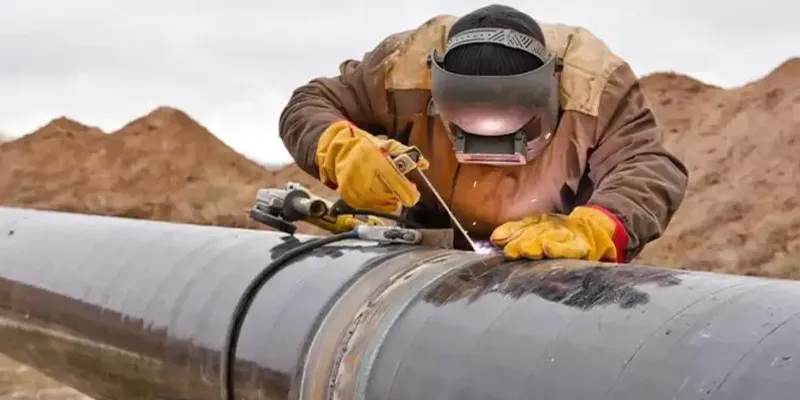

What Is Field Welding?



Field welding (also called site welding or stick welding in lay language) means that all or most welding joints are completed after the pipe has been positioned in its final location. Welders work at elevation, in confined spaces, in varying weather conditions, and often in constrained postures.



Field welding is typically unavoidable for tie-in joints, large-bore headers, and systems that must be installed around existing equipment, but it is frequently over-used on projects simply due to lack of prefabrication planning.



Pipe Spool Prefabrication and Field Welding Detailed Cost Breakdown



The tables below are based on composite data from ASPE, Dodge Construction Network, and published EPC benchmark reports, normalised to a 6-inch Schedule 40 carbon steel butt weld and adjusted for stainless and nickel alloy complexity factors.



Table 1 — Direct Cost Comparison per Inch-Diameter Weld (USD, 2024)

Sources: ASPE Piping Cost Manual (2023), Dodge Construction Network Benchmark Report (2024), proprietary EPC project data. Carbon steel baseline; SS and Ni-alloy multipliers applied separately in Table 2.



Table 2 — Material Complexity Multipliers (vs Carbon Steel Baseline)

Field complexity factors are disproportionately higher for exotic alloys because contamination control, thermal management, and NDE acceptance rates all degrade significantly in open-air environments.

Table 3 — Schedule & Productivity Impact (100-Weld Package, 6″ SS 316L)



The Hidden Costs of Field Welding



Field welding's real cost isn't just what you pay the welder — it's rework, safety overhead, and the ripple effect on every other crew on site.

Mistakes are expensive to fix. When a field weld fails inspection, the crew doesn't just re-weld it — they must re-inspect, re-heat-treat, and re-clean the joint. One single repair on a stainless steel pipe can cost up to $4,500. Because field welds fail inspection 3 to 5 times more often than shop welds, a mid-sized project can easily rack up $100,000+ in repair costs that nobody budgeted for.



Working at height costs money and carries risk. Field welders need scaffolding, safety officers, fire watches, and special permits just to do their job. These extras can add $12 to $28 to every single labor hour. On a large project, that adds up to over half a million dollars in safety-related overhead — costs that simply don't exist in pipe spool fabrication.



A crowded job site slows everyone down. When pipe welders, electricians, and instrument technicians are all fighting for the same work area at the same time, everyone gets slower. Research shows this "trade stacking" cuts productivity by up to 25%. Moving pipe fabrication off-site clears the way for all other trades to move faster — and that schedule gain is often worth more than the welding cost savings alone.



When to Prefabricate vs Field Weld

Prefabrication is not always superior in every dimension. The decision framework below captures the key decision variables.

Table 4 — Prefabrication vs Field Welding Decision Matrix



Pipe Spool Prefabrication and Field Welding Cost Case Studies

Case Study A: Pharmaceutical CIP System (SS 316L, 600 Welds)

A biopharmaceutical facility in the Mid-Atlantic US required a clean-in-place (CIP) system using 600 orbital-quality butt welds in 2-inch and 4-inch SS 316L tubing. The initial contractor proposal was for 100% field welding. A value engineering review replaced 520 of the 600 welds with prefabricated spools, retaining 80 field tie-in joints.



Case Study B: Offshore Platform Topsides (Inconel 625, 220 Welds)

An offshore oil platform upgrade in the Gulf of Mexico involved 220 Inconel 625 process welds on chemical injection lines. The remote location and harsh environment (salt spray, wind, humidity) made full field welding both technically risky and logistically costly.

Note: Offshore labor rates reflect mobilisation, offshore day rates, accommodation, and helicopter transport. The prefab scenario includes shipping, lifting, and alignment of modular spools.



Cost Comparison by Pipe Material

The table below illustrates how the cost premium for field welding escalates as material grade increases.

Table 3: Estimated cost range per weld-inch by material grade. Field premium reflects total installed cost (labor, NDE, rework, standby). Indicative figures; actual rates vary by region and project scale.



Frequently Asked Questions



Q: How much cheaper is pipe spool prefabrication compared to field welding?

A: For carbon steel pipe, shop prefabrication typically reduces installed welding costs by 30–40%. For stainless steel and nickel alloys, where rework rates and quality requirements are higher, the savings can reach 50–70% on the welding portion of the total installed cost. Overall project cost savings (including schedule compression) commonly range from 15–25%.

Q: Does prefabrication require extra transportation costs?

A: Yes. Shipping fabricated spools from shop to site adds cost, typically $50–$300 per spool depending on size, weight, and distance. However, this transportation cost is almost always far smaller than the labor, rework, and schedule savings achieved by moving the work to a controlled environment.

Q: Can prefabricated spools be used for pressure service and code compliance?

A: Absolutely. Pipe spools fabricated in certified shops are built to the same codes as field-welded pipe: ASME B31.3 (process piping), ASME B31.1 (power piping), or applicable international standards. Quality documentation (MTRs, weld travellers, NDE records, pressure test reports) is generated as part of the fabrication package.

Q: What is the typical lead time for fabricated stainless steel pipe spools?

A: Standard stainless steel spools (DN 50–DN 200, ASME B31.3) typically carry a lead time of 4–8 weeks from isometric approval to delivery, depending on fabricator workload, material availability, and NDE requirements. Complex assemblies with heavy-wall nickel alloy pipe may require 8–14 weeks.

Q: What is the difference between a pipe spool and a pipe assembly?

A: The terms are often used interchangeably. Technically, a pipe spool refers to a portion of a piping system defined by isometric drawing, while a pipe assembly is a broader term that may include valve manifolds, instrumentation take-offs, and supports. All pipe spools are pipe assemblies, but not all pipe assemblies would be called spools.
