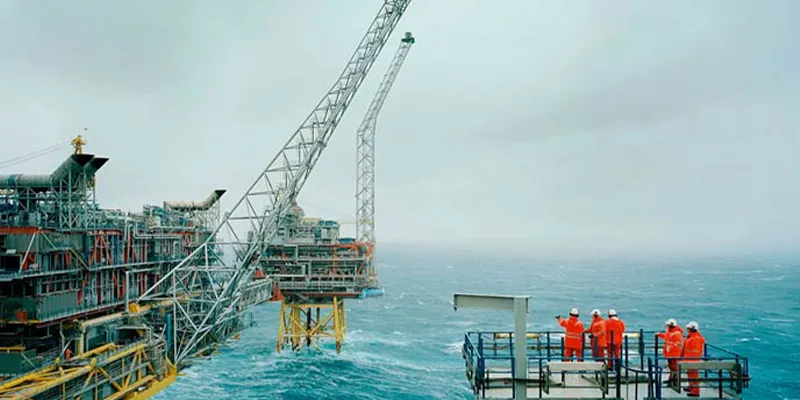

Inconel 625 for Offshore Oil & Gas: Applications, Standards, and Selection

Inconel 625 (UNS N06625, W.Nr. 2.4856) is not merely a corrosion-resistant alloy. In the offshore oil and gas industry, it is the default material of choice for the most demanding components in the most demanding environments on the planet — subsea Christmas trees operating at 3,000 metres below the North Sea, high-pressure flowlines carrying sour gas from ultra-deepwater West Africa fields, and chemical injection umbilicals on floating LNG vessels in the Gulf of Mexico.

This blog explains why Inconel 625 dominates offshore applications: the specific corrosion mechanisms, the industry standards, the applications, how it compares with alternative alloys, the welding and fabrication considerations unique to offshore, and the project case studies that validate its use.

Why Offshore Conditions Demand Inconel 625?

Offshore oil and gas production environments are uniquely aggressive. A pipeline or subsea component must simultaneously resist chloride pitting from seawater, sulphide stress cracking from H2S dissolved in produced fluids, carbonic acid attack from CO2, high mechanical stresses from pressure and thermal cycling, and galvanic coupling with dissimilar metals in the subsea infrastructure. No single mechanism defines the offshore challenge — all occur together.

The Offshore Corrosion Triad

THE THREE MECHANISMS: Offshore material degradation is driven by three simultaneous forces:

(1) Chloride pitting — from seawater ingress or produced water (~19,000 ppm Cl-) acting on passive films;

(2) H2S sour-service cracking — NACE MR0175 / ISO 15156-3 governs qualification;

(3) CO2 sweet corrosion — carbonic acid driving mesa-type attack in carbon-steel linepipe.

These mechanisms do not occur in isolation. Seawater ballast in a pipeline, H2S in the produced fluid, and CO2 from the reservoir combine to create an environment where material selection must simultaneously address all three threats. Inconel 625 is one of the very few alloys that can do this at an acceptable cost.

What Makes Inconel 625 the Offshore Default?

• PREN > 45: Inconel 625's combination of 20-23% Cr and 8-10% Mo gives a PREN typically exceeding 45 — placing it in the super-duplex / superaustenitic bracket for pitting resistance, but with far superior resistance to SCC and sour cracking. The niobium addition further stabilises the passive film and prevents sensitisation during welding.

• NACE MR0175 / ISO 15156-3 qualified: Inconel 625 is fully qualified for sour-service use under NACE MR0175 / ISO 15156-3 without special hardness restrictions in the annealed condition, making it one of the simplest materials to qualify for H2S-containing offshore service.

• No post-weld heat treatment required: Unlike precipitation-hardened alloys (e.g., Alloy 718), Inconel 625 retains its properties in the as-welded condition. This is critical for subsea fabrication, where post-weld heat treatment on the seabed is impractical.

• Exceptional fatigue resistance: The solid-solution strengthening from Nb and Mo provides outstanding fatigue resistance — essential for dynamic risers and flexible pipe end-fittings subject to vortex-induced vibration and wave loading.

• Broad temperature range: From cryogenic LNG temperatures to 650 degC+ continuous service, Inconel 625 maintains mechanical integrity without requiring heat treatment changes. This is critical for subsea to topside thermal cycling conditions.

Inconel 625 Offshore Use Industry Standards

Offshore specifications are among the most rigorous in any industry. Inconel 625 must satisfy a layered system of product, design, and qualification standards before it can be specified for a subsea or topside offshore component.

Product Form Standards

Design and Qualification Standards

1. API 6A / API 6AV1: Governs Christmas tree (Xmas tree) and wellhead material requirements. Inconel 625 is specified as a standard material for bodies, bonnets, and side outlets in sour and severe-service Xmas trees, particularly for high-pressure / high-temperature (HPHT) wells.

2. NACE MR0175 / ISO 15156-3: Defines the qualified environmental region for Inconel 625 in sour service. The alloy is approved for a wide range of H2S partial pressures, chloride concentrations, and temperatures. No special hardness restrictions apply in the solution-annealed condition. This is why Inconel 625 is the go-to sour-service nickel alloy for offshore subsea components.

3. DNV-OS-F101: The primary submarine pipeline design code used globally (Norway, UK, West Africa, GoM). DNV-OS-F101 Appendix A specifies material requirements for CRA linepipe and components. Inconel 625 is an approved material for sour-service flowlines, jumpers, and subsea piping.

4. NORSOK M-630 / M-650: Norwegian-sector material data sheets and manufacturer qualification requirements. Inconel 625 supplied to NORSOK M-630 requirements must meet specific chemical composition limits, mechanical property floors, and documentation traceability standards. NORSOK M-650 governs the qualification of the manufacturing mill.

5. DNV-RP-OE041: Subsea production systems — materials selection and performance guidelines. Provides environmental screening criteria for subsea materials including nickel alloys.

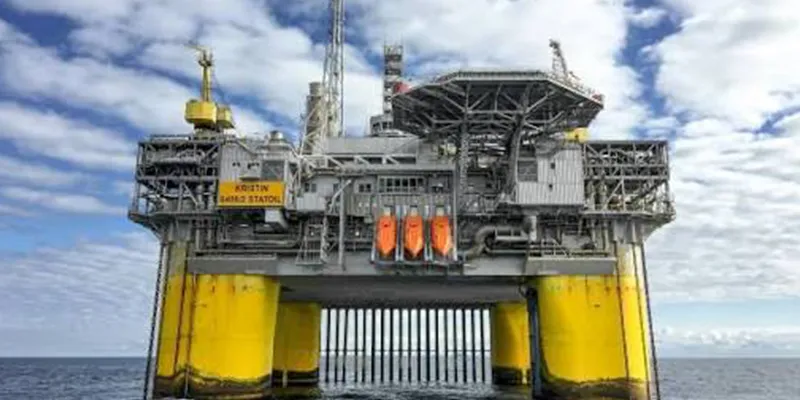

Specific Offshore Applications for Inconel 625

Inconel 625 is used across virtually every category of offshore subsea and topside equipment. The following are the highest-volume and most technically demanding applications.

Christmas Trees (Xmas Trees) and Wellheads

WHY INCONEL 25 IS USED: Christmas trees operate at the wellhead — the highest-pressure, highest-temperature point in the subsea production system — and must contain H2S and CO2 from the reservoir while resisting seawater external corrosion on the subsea side. Inconel 625 is the standard material for Xmas tree bodies, side outlets, tubing hangers, and block valves in sour-service and HPHT well applications. API 6A designates Inconel 625 as a standard material for sour-service Xmas tree components. Its combination of high yield strength (414-655 MPa annealed), NACE MR0175 sour-service qualification, and chloride SCC immunity makes it the definitive choice for the most demanding well conditions.

The wellhead environment is characterised by: produced fluid on the interior (H2S + CO2 + chloride) at pressures up to 1,000+ bar and temperatures up to 200 degC; and seawater on the exterior subsea side (19,000 ppm Cl-, potential for under-deposit corrosion and MIC). This dual-environment challenge — sour inside, seawater outside — requires a material that excels in both, making Inconel 625 irreplaceable at the wellhead.

Subsea Manifolds and Flowline Tees

Subsea manifolds collect production from multiple wells and route it through flowlines to the platform or floating production vessel. Manifold bodies, piping modules, and flowline tees in sour-service fields are routinely specified in solid Inconel 625 or as Inconel 625 weld overlay on carbon-steel ASTM A105 or F22 forgings.

• Why overlay vs. solid: Solid Inconel 625 forgings for large manifold bodies are cost-prohibitive at the scale required. The standard approach is: ASTM A182 Grade F22 or A336 carbon-steel forging as the structural body, with 3-6 mm of Inconel 625 strip-cladding or weld overlay (ERNiCrMo-3 / AWS A5.14) on all process-fluid-wetted internal surfaces.

• Hardness control: For NACE MR0175 sour-service, the carbon-steel substrate must be maintained at HRC 22 or below at the clad interface. The Inconel 625 overlay must pass bend and corrosion testing per the governing specification.

Subsea Jumpers and Inline Structures

Subsea jumpers are short, flexible or rigid pipe connections between fixed structures (manifolds, templates) and subsea equipment (subsea trees, pipeline end terminations). Operating in the splash zone and seabed environment, they are subject to combined external seawater corrosion and internal sour production fluid. Inconel 625 is the preferred solid material for short-bore, high-pressure subsea jumpers because:

• No corrosion allowance needed: Unlike carbon-steel, Inconel 625 requires no sacrificial wall thickness for corrosion — allowing thinner, lighter jumpers with lower installation costs.

• Superior fatigue: The niobium and molybdenum solid-solution strengthening provides excellent fatigue resistance under cyclic pressure and thermal loading from production start-up and shut-in events.

• No PWHT required: The as-welded Inconel 625 mechanical properties meet specification without post-weld heat treatment — critical for subsea intervention constraints.

Subsea Flowlines and CRA-Clad Linepipe

For large-bore (>6-inch) subsea flowlines in sour-service fields, solid Inconel 625 is generally uneconomical. The standard offshore solution is Inconel 625 weld overlay clad on API 5L carbon-steel linepipe (X65 or X70 substrate):

• 3.2 mm nominal clad thickness: Industry practice for sour-service Inconel 625 clad flowlines calls for a minimum 3.2 mm Inconel 625 inner layer on the carbon-steel substrate. This provides a minimum 25-year design life against internal corrosion in sour-service produced fluids.

• Strip cladding vs PTA: Strip cladding (SAW with ERNiCrMo-3 strip) and plasma transferred arc (PTA) are the two main overlay processes. Strip cladding is preferred for long runs of pipe (kilometres); PTA is used for fittings, flanges, and custom geometry.

• API 5LD: The governing standard for CRA-clad linepipe. API 5LD requires the clad bond strength, shear strength, and impact testing of the clad-to-substrate interface, plus the NACE MR0175 qualification of the CRA layer for sour service.

Chemical Injection and Hydraulic Umbilicals

Chemical injection lines carry methanol (hydrate inhibitor), scale inhibitors, corrosion inhibitors, and biocides from the platform to subsea injection points. These lines operate at high pressure (up to 690 bar / 10,000 psi), with chemical fluids that can be aggressive to carbon steel, and must maintain integrity over the 20-30 year design life of the field.

Inconel 625 seamless tubing (ASTM B444, typically 3/8" to 1" OD) is the standard material for chemical injection umbilicals in sour-service fields.

Offshore Topside Equipment

• Separators and pressure vessels: Inconel 625 plate (ASTM B443) is used in the fabrication of two-phase and three-phase separators handling sour produced fluids on offshore platforms, particularly in high-H2S fields.

• Heat exchangers: Inconel 625 tube (ASTM B444) in shell-and-tube heat exchangers condensing sour gas or heating produced fluids with seawater coolant. The tube-side process fluid is aggressive; the shell-side is seawater. Inconel 625 handles both simultaneously.

• Flare systems and pig launchers: High-temperature, sour-service flare knock-out drums and pig launchers in sour-gas offshore platforms frequently use Inconel 625 plate for the most aggressive sections.

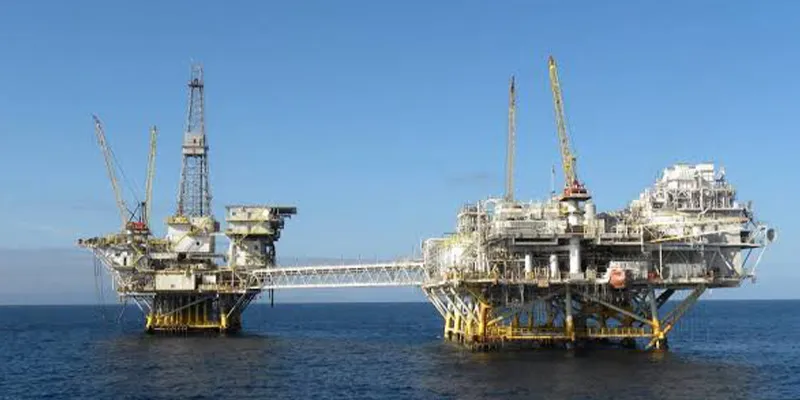

Inconel 625 vs. Alternative Offshore Alloys

The offshore materials engineer has a finite menu of nickel alloys and CRA stainless steels to choose from. Understanding when Inconel 625 is the right choice — and when an alternative is more appropriate — is one of the most consequential decisions in offshore project.

Comparison Table: Inconel 625 vs. Key Offshore Alternatives

When to Choose Inconel 625 Over Hastelloy C276

GUIDANCE: Choose Inconel 625 for standard offshore sour-service applications (Xmas trees, subsea jumpers, manifolds, clad flowlines). Reserve Hastelloy C-276 for the most extreme conditions: ultra-high H2S partial pressures (>1 bar), elemental sulphur in the wellstream, highly reducing acid conditions, and temperatures above the Inconel 625 application limit for a given environment.

The 2-3x cost premium of C276 over 625 is justified only when the environment genuinely exceeds Inconel 625's qualified range. For the vast majority of offshore subsea sour-service applications, Inconel 625 is the correct and most economical choice.

When to Choose Alloy 825 Instead of Inconel 625

GUIDANCE: Choose Alloy 825 for large-bore clad flowlines where the cost saving over Inconel 625 clad is significant (Alloy 825 clad is typically 10-20% less expensive). Alloy 825 is also used for solid tubing and piping in moderate sour-service topside applications where the lower PREN is acceptable.

Do not use Alloy 825 for subsea components requiring the highest chloro-sour-service reliability or for HPHT wellhead applications, where Inconel 625's superior PREN, strength, and fatigue resistance are required.

Case Studies: Inconel 625 in Offshore Projects

Case 1 — North Sea HPHT Sour Gas Development

A central North Sea HPHT gas condensate field (reservoir pressure ~900 bar, temperature ~180 degC, H2S 10-15 mol%, CO2 8-10 mol%) required subsea Christmas trees and flowline jumpers for a 12-well subsea tie-back to a floating production vessel. Given the combined severity of H2S partial pressure, CO2, and chloride from formation water, carbon steel with corrosion allowance was ruled out and duplex stainless steel was inadequate for the sour-service temperature range.

Inconel 625 was specified for all subsea tree components, jumpers, and the clad section of the export flowline. The use of ERNiCrMo-3 strip cladding on API 5L X65 substrate for the 10-inch export line achieved a 40% cost saving versus solid Inconel 625 clad, while meeting all NACE MR0175 / DNV-OS-F101 requirements. The project has operated without integrity incidents related to CRA material performance since commissioning.

Case 2 — West Africa Deepwater Pre-salt Development

A West African ultra-deepwater pre-salt development encountered reservoirs with high CO2 (up to 40 mol%) and moderate H2S (up to 5 mol%), with formation water chloride levels of 80,000-120,000 ppm — significantly above seawater chloride. The subsea production system (manifolds, flowlines, and umbilicals) was specified in Inconel 625, with solid 625 used for the chemical injection umbilicals and jumpers, and Inconel 625 strip-clad carbon-steel linepipe for the large-bore production flowlines.

The clad linepipe (3.2 mm 625 on X70 substrate) was qualified per API 5LD and DNV-OS-F101, with four-point bend SSC testing confirming sour-service compliance at the simulated field environment. The project achieved first oil within schedule, with Inconel 625 material supply and fabrication on the critical path for only 8 weeks of the 4-year development timeline — a testament to the material's relative ease of specification and fabrication compared to Hastelloy C276.

Case 3 — Gulf of Mexico Floating LNG (FLNG) Vessel

An FLNG vessel operating in the Gulf of Mexico required Inconel 625 seamless tubing (ASTM B444, 3/4-inch OD, 0.109-inch wall) for the methanol and scale inhibitor chemical injection systems. The injection points were located on subsea flowlines at water depths of 1,500 metres, requiring the tubing to withstand 690 bar (10,000 psi) hydraulic pressure, seawater external corrosion at 4 degC, and intermittent exposure to sour produced fluids at the injection point.

Inconel 625 seamless tubing was selected over Alloy 825 because the project specification required PREN-equivalent resistance to pitting at the injection mandrel, where sour fluid mixing could create localised high-chloride conditions. The tubing was supplied in the solution-annealed condition with orbital GTAW (ERNiCrMo-3 filler) joints and was pre-fabricated into reels for rapid installation by the ROV vessel.

Frequently Asked Questions

Q1: Why is Inconel 625 the standard material for offshore Christmas trees in sour service?

Inconel 625 (UNS N06625) is the standard because it is the only alloy that simultaneously satisfies the three key requirements for sour-service Xmas tree service: (1) PREN > 45 — resisting chloride pitting from formation water and seawater external corrosion; (2) NACE MR0175 / ISO 15156-3 full sour-service qualification without hardness restrictions in the annealed condition; and (3) high yield strength (414-655 MPa annealed) combined with excellent fatigue resistance for HPHT well integrity. API 6A designates Inconel 625 as a standard material for sour-service Xmas tree bodies, tubing hangers, and side outlets. For more detail on the alloy's chemistry and mechanical properties, see the Inconel 625 Ultimate Guide at jnalloy.com/inconel-625-guide.html.

Q2: What is the difference between Inconel 625 and Hastelloy C-276 for offshore subsea use?

Inconel 625 and Hastelloy C-276 are both fully NACE MR0175-qualified for sour-service use, and both are essentially immune to pitting and crevice corrosion in natural seawater. The primary differences are: (1) C-276 has higher molybdenum (15-17% vs 8-10%) and tungsten (3-4.5% vs 0%), giving it higher PREN (~74 vs ~52) and superior resistance in the most extreme reducing acid and elemental sulphur environments; (2) Inconel 625 is more readily fabricated (more ductile, less tendency to crack during forming), requires no special PWHT, and is the standard choice for general offshore sour-service applications; (3) Hastelloy C-276 costs 2-3x more and is reserved for ultra-severe conditions. For standard offshore subsea sour service, Inconel 625 is the correct and most economical choice.

Q3: Can Inconel 625 be welded without post-weld heat treatment (PWHT)?

Yes — Inconel 625 in the solution-annealed condition does not require post-weld heat treatment. This is one of its key advantages for offshore fabrication, where subsea components may be welded in place or in fabrication yards with limited heat treatment capability. However, interpass temperature must be controlled to a maximum of 150 degC to prevent precipitation of topologically close-packed (TCP) phases (sigma, mu) in the HAZ, which would degrade corrosion resistance and sour-service qualification. The weld procedure qualification (WPS / PQR) must include interpass temperature monitoring and hardness survey (max 350 HV in HAZ for sour-service acceptance).

Q4: What is the PREN of Inconel 625 and why does it matter for offshore selection?

Inconel 625 has a PREN (Pitting Resistance Equivalent Number) of approximately 45-52, calculated as %Cr + 3.3 x %Mo + 16 x %N = 21.5% + 3.3 x 9% + 16 x 0% = ~51. A PREN of approximately 50 places Inconel 625 well above the widely-accepted offshore seawater threshold of PREN 40, making it essentially immune to pitting and crevice corrosion in natural seawater at all temperatures encountered in offshore subsea service. For comparison: 316L has PREN ~23; duplex 2205 has PREN ~35; super duplex 2507 has PREN ~43. For a full PREN primer, see the JN Alloy PREN Guide at jnalloy.com.

Q5: How is Inconel 625 used in large-bore subsea flowlines without solid CRA cost?

For large-bore (>6-inch) subsea flowlines in sour-service fields, the standard approach is Inconel 625 weld overlay clad on API 5L carbon-steel linepipe (X65 or X70 substrate). A 3-4 mm nominal thickness of Inconel 625 is strip-cladded or PTA-deposited onto the internal bore of the carbon-steel pipe, then the pipe is finished, hydro-tested, and certified per API 5LD. This delivers Inconel 625's corrosion resistance at approximately 40-55% of the cost of solid Inconel 625 linepipe, while retaining the carbon-steel mechanical strength and familiar weldability for offshore tie-in welding. The clad bond and shear strength are verified per API 5LD requirements. ERNiCrMo-3 (AWS A5.14) is the standard strip-cladding consumable.

Q6: Is Inconel 625 qualified for sour service under NACE MR0175?

Yes — Inconel 625 (UNS N06625) is fully qualified under NACE MR0175 / ISO 15156-3 (Sulphide Stress Cracking Resistant Metallic Materials for Oil and Gas Production Equipment) for a wide range of H2S partial pressures, pH levels, chloride concentrations, and temperatures. In the solution-annealed condition, no special hardness restriction applies — the maximum allowable hardness is the standard HRC 40 (for sour service, typically specified at HRC 35 or below to provide margin). Project-specific sour-service qualification testing (NACE TM0177 four-point bend or TM0198 slow-strain-rate) should be performed to confirm suitability for the specific field environment.

Q7: What is the temperature limit for Inconel 625 in offshore subsea service?

Inconel 625 retains its mechanical properties and corrosion resistance up to approximately 650 degC for continuous service in non-sour oxidising environments. For offshore sour-service applications, the practical temperature limit is governed by the NACE MR0175 / ISO 15156-3 qualified environmental region for the specific field conditions. In practice, offshore subsea production temperatures typically range from 4 degC (seabed) to 180-200 degC (HPHT wellhead), well within Inconel 625's qualified range. At the cryogenic end, Inconel 625 remains ductile and tough at LNG temperatures (-196 degC), making it suitable for FLNG and LNG offtake piping as well as production service.

Q8: What third-party inspection and certification is required for offshore Inconel 625?

Offshore Inconel 625 components typically require: (1) Certified Mill Test Report (CMTR) documenting heat chemistry, mechanical properties, and heat treatment per ASTM B443/B444/B446 or ASME SB-443/444/446; (2) EN 10204 Type 3.1 or 3.2 certification with third-party verification of test results; (3) Third-Party Inspection Agency (TPIA) — DNV, Bureau Veritas, Lloyd's Register, or ABS — witnessing material acceptance testing and pre-shipment inspections for critical subsea components; (4) For NORSOK M-630 supply, manufacturer qualification per NORSOK M-650 and material data sheet compliance. JN Alloy supplies Inconel 625 with full CMTR traceability and can facilitate TPIA services for offshore project requirements.

Q9: How does Inconel 625 compare to super duplex 2507 for offshore subsea applications?

Super duplex 2507 (UNS S32750) and Inconel 625 are both used extensively in offshore subsea service but serve different niches: (1) 2507 has PREN ~43, which meets the seawater-immersed threshold but is lower than Inconel 625's ~52. In ultra-high-chloride environments (>50,000 ppm Cl-, such as formation water in some West Africa fields), 2507 may be marginal. (2) Inconel 625 is NACE MR0175 fully qualified for sour service; 2507 is qualified for moderate sour service only, with stricter environmental limits. (3) 2507 is significantly less expensive (cost index ~55-65 vs 100 for Inconel 625) and is preferred for large tonnage applications such as seawater piping and moderate-sour flowlines. (4) Inconel 625 is preferred for the most severe sour, HPHT, and subsea tree applications where its superior PREN, NACE qualification range, and fatigue resistance are non-negotiable. See also the JN Alloy Super Duplex 2507 product page for full specifications.
