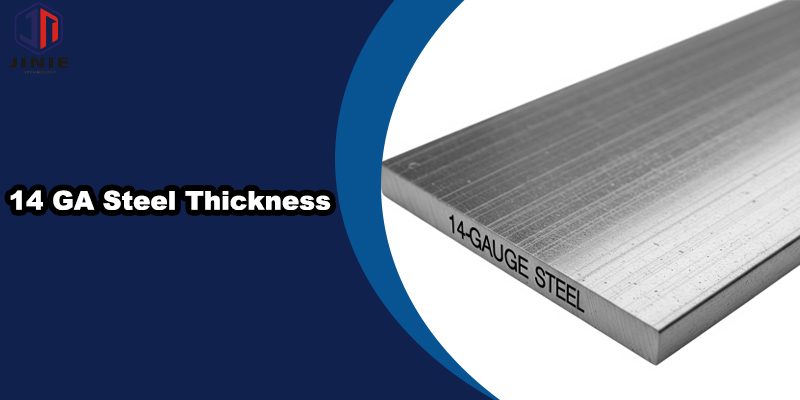

14 ga steel thickness is 0.0747 inches/1.9 mm.
Gauge, or Ga, is a unit of measurement for the thickness of metal sheet. The gauge number corresponds to the thickness of the sheet: the larger the gauge number, the thinner the sheet; the smaller the gauge number, the thicker the sheet.
For example, 12 gauge steel is thicker than 14 gauge steel.
Besides, different materials, such as carbon steel, stainless steel, and aluminum, have their own separate thickness gauge standards. This means that 14 ga carbon steel will have a completely different thickness than 14 ga aluminum.
14 ga is a standard thickness unit. Different metal plates have their own gauge chart. Gauge thickness is related to the metal material.
14 gauge steel, carbon steel and galvanized steel have different thicknesses.
Material | Thickness (inch) | Thickness (mm) |
14 ga stainless steel sheet | 0.07812 | 1.984 |
14 ga carton steel sheet | 0.0747 | 1.897 |
14 ga galvanized steel sheet | 0.0785 | 1.9939 |
12 gauge steel is 0.1046 inches thick; 14 gauge steel is 0.0747 inches thick. Therefore, 12 gauge steel is thicker, stronger, and heavier than 14 gauge steel.
12 gauge steel offers greater strength and load-bearing capacity, making it suitable for high-load-bearing structures. Furthermore, 12 gauge steel costs less than 14 gauge steel.
Weight is directly related to material density and thickness. Different steels have different chemical compositions and densities, resulting in different weights for the same 14 ga thickness.
Steel
Types | Inch
Thickness | Millimeter
Thickness | Weight
Pounds Per Square Foot | Weight
Kilograms Per Square Meter |
Carton Steel | 0.0747 | 1.897 | 3.047 | 14.879 |
Stainless Steel | 0.0781 | 1.984 | 3.250 | 15.869 |
Galvanized Steel | 0.0785 | 1.994 | 3.202 | 15.636 |
Note: This table is for reference only. The actual weight is based on the weight provided by your steel sheet supplier.
Density directly determines the weight of 14 gauge steel. The chemical composition of stainless steel, carbon steel, and galvanized steel affects density.
Material | Density (g/cm3) | Density (kg/m3) | Density (lb/in3) | Density (lb/ft3) |
Carton Steel | 7.85 | 7850 | 0.283 | 490 |
304/304L Stainless Steel | 7.93 | 7930 | 0.286 | - |
316/316L Stainless Steel | 7.98 | 7980 | 0.288 | - |
Galvanized Steel | 7.85 | 7850 | - | 490 |
Gauge Steel | 12 ga | 14 ga | 16 ga |
Standard Thickness | 0.105 inch | 0.075 inch | 0.060 inch |
Strength and Loading | Highest strength for heavy-duty applications. | Medium strength for medium applications. | The lowest strength is suitable for light-duty applications. |
Weight | Heaviest | Medium Weight | Lightest |
Cost | Lowest | Medium Cost | High Costs |
Machinability | Large bending radius. | Good plasticity and easy to shape. | Easy to bend, punch and form. |
Applications | Structural columns, equipment frames, large garages. | Automobile brackets, industrial enclosures, commercial sinks. | Residential sinks, cabinets, panels. |
The global steel market remains depressed through the first half of 2025, putting downward pressure on 14 gauge steel plate prices, which are expected to continue to decline.
For global steel plate buyers, purchasing 14 gauge steel plate in bulk from online or Chinese suppliers can be significantly cheaper than purchasing locally.
The mechanical properties of 14 gauge steel are well-suited for a variety of industrial applications. For example, 14 ga 304 stainless steel has a yield strength of approximately 30,000 psi and a tensile strength of 75,000 psi. This demonstrates that 14-gauge steel is a robust material capable of withstanding the pressures of extensive industrial use.
The price of 14 gauge steel depends on the material, production process, and processing costs. The following factors specifically determine its price:
1. 14 gauge hot-rolled steel is generally the most cost-effective option. A 48 inch x 96 inch sheet of 14-gauge hot-rolled steel costs $165.36. Smaller pre-cut pieces have varying prices, such as a 12 inch x 12 inch sheet for $16.00 and a 24 inch x 72 inch sheet for $61.00. The price per square foot of 14 gauge hot-rolled steel is approximately $4.04.
2. 14 gauge cold-rolled steel costs more than hot-rolled steel. A 12 inch x 24 inch sheet of 14-gauge cold-rolled steel costs $25.79, while a full 48 inch x 120 inch sheet costs a whopping $319.48.
3. 14 gauge galvanized steel is more expensive than carbon steel, with a 48 inch x 120 inch sheet costing $262.04. When comparing price per pound, galvanized steel is also more expensive than carbon steel.
4. Stainless steel, while the most specialized and durable of all steel materials, is also the most expensive. The purchase price of 14 gauge 304 grade stainless steel ranges from $20.40 for a 6 inch x 6 inch block to $595.64 for a 48 inch x 48 inch plate. 316 grade stainless steel, due to its superior corrosion resistance, commands a higher price, with a consistent purchase price of $12.25 per pound across all sizes.
The cost of 14 ga steel sheet depends not only on the material but also on the supplier.
Global steel plate distributors are often large-scale and hold extensive inventory, offering more competitive pricing and minimizing your costs. Local metal suppliers are often better positioned for urgent deliveries and smaller orders, and they also offer a variety of value-added services.

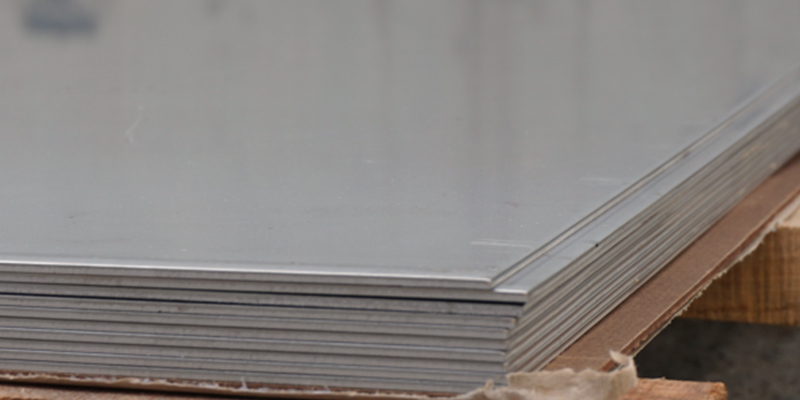

14 Gauge Steel Sheet Purchase Price Chart
| Material Type | Grade | Dimensions (inches) | Price per piece | Price per pound | Price per square foot |
| Carton Steel | Hot Rolled（HR） | 48 x 96 | 165.36 USD | - | 4.30 USD |
| Carton Steel | Hot Rolled (HR) A36 | 12 x 24 | 21.00 USD | - | 10.50 USD |
| Carton Steel | Hot Rolled (HR) A36 | 24 x 48 | 52.00 USD | - | 6.50 USD |
| Carton Steel | Cold Rolled（CR） | 12 x 24 | 25.79 USD | 4.21 USD | 12.90 USD |
| Carton Steel | Cold Rolled（CR） | 48 x 120 | 319.48 USD | 2.61 USD | 7.99 USD |
| Galvanized Steel | - | 3.1680 pounds | 13.48 USD | 4.26 USD | - |
| Galvanized Steel | - | 48 x 120 | 262.04 USD | - | 6.55 USD |
| Stainless Steel | 304 | 12 x 24 | 83.35 USD | - | 41.68 USD |
| Stainless Steel | 304 | 48 x 48 | 595.64 USD | - | 37.23 USD |
| Stainless Steel | 316 | 3.1680 pounds | 38.81 USD | 12.25 USD | - |
