Hastelloy C276 for Acid Service: Performance by Acid

Hastelloy C276 (UNS N10276) is the alloy engineers reach for when the acid is hot, concentrated, mixed, or chloride-laden - and especially when more than one acid is present. Its nickel-molybdenum-chromium-tungsten chemistry shrugs off hydrochloric, sulfuric, and phosphoric acids, wet chlorine, and chloride-laden process streams that destroy 316L, 904L, and even Alloy 20.

This guide breaks down C276's resistance acid by acid, compares it with 316L, 904L, Alloy 20, and C22, and shows how to specify pipe, plate, and fittings so acid-handling equipment lasts for decades instead of months.

Why Is Hastelloy C276 Used for Acid Service?

C276 is specified for acid service because real acid streams are rarely pure, mild, and ambient - they are usually hot, concentrated, mixed, and chloride-laden, and C276 resists that whole envelope in a single, weldable grade where stainless steels fail.

A pickling line carries hydrochloric acid; an acid-recovery unit handles hot, contaminated sulfuric acid; a phosphate plant processes impure phosphoric acid laden with fluorides and chlorides. 316L depends on a chromium-oxide film that collapses in hot acid and pits/crevices/cracks in chlorides. C276 does not rely on that film alone - its roughly 15-17% molybdenum plus tungsten give it intrinsic resistance to both reducing acids (HCl, H2SO4) and oxidizing species (wet Cl2, Fe3+/Cu2+) at once. That breadth lets a plant standardize on one alloy for its most aggressive acid duties. For the broader equipment picture, see the Hastelloy C276 for chemical plants article and the chemical-equipment overview.

How Does Hastelloy C276 Perform in Each Acid?

C276 is excellent in hydrochloric, sulfuric, phosphoric, organic, and mixed acids, good in hydrofluoric acid, and only moderate in strongly oxidizing concentrated nitric acid - which is better served by C4, G30, or C22.

The table below maps each acid to C276's rating and the concentration/temperature window where it shines. The standout is hydrochloric acid, where C276 is among the few alloys usable across essentially the full range. Equally important is what is NOT a weakness: pitting and crevice corrosion from chlorides, the usual killers of stainless in acid cooling and wash sections. For oxidizing nitric acid, more chromium-rich grades such as C4 or G30 are often preferred - a useful cross-check when a stream is strongly oxidizing. The corrosion-resistance guide gives the underlying data.

How Hastelloy C276 Performs in Common Acids

Hastelloy C276 vs 316L, 904L, Alloy 20, and C22 for Acid Service

316L suits only mild, ambient, low-chloride acid; 904L and Alloy 20 extend into sulfuric acid at moderate severity; C276 is the broadest option; C22 edges it in strongly oxidizing acids.

The ordering is driven by alloying. 316L's 2-3% molybdenum is the floor. 904L roughly doubles molybdenum and adds copper. Alloy 20 adds large nickel and copper and is the sulfuric-acid specialist. C276 jumps molybdenum to 15-17% and adds tungsten, which delivers resistance to hydrochloric acid, hot mixed acids, and chlorides the others lack. C22 raises chromium and refines the mix for oxidizing media. Cost rises with capability, so the selection rule is: pick the cheapest grade that covers the whole envelope - and when the envelope is aggressive or uncertain, C276 (or C22) is the safe answer. The nickel-alloy pipe selection guide by acid type applies this logic to piping.

Hastelloy C276 vs 316L, 904L, Alloy 20 and C22 for Acid Service

Which Alloy Should You Choose for Your Acid?

Match the alloy to the dominant hazard - 904L/Alloy 20 for straightforward sulfuric, C276 for hydrochloric/mixed/chloride-laden acid, and C22/C4 for strongly oxidizing nitric or wet-chlorine duty.

Selection is a decision table, not a reflex. If the stream is dilute sulfuric at ambient with no chloride, 904L or Alloy 20 is enough and cheaper. If it is hydrochloric, hot mixed acid, or chloride-laden, C276 is the answer. If the dominant hazard is strong oxidizing nitric or wet chlorine, step up to C22 or C4/G30. The table below turns this into a fast lookup; confirm against corrosion data before finalizing. The C22 vs C276 guide helps when oxidizing species dominate.

Which Alloy for Which Acid - Quick Selection

How to Specify Hastelloy C276 for Acid Service

Specify C276 by identifying the exact acid environment, confirming corrosion data, testing cheaper alternatives, choosing C22 only if oxidizing species dominate, selecting the product form, citing the correct ASTM spec with a corrosion allowance, welding with ERNiCrMo-4, and requiring PMI and test certification.

Corrosion is a system property, not a single number, so the first step is documenting every acid, concentration, temperature, chloride level, and impurity. Only then can you justify C276 versus a cheaper grade. The standards below make the purchase unambiguous for mills and inspectors; pair them with ASME B31.3 or Section VIII for design. The eight-step checklist that follows turns this into an actionable procedure.

ASTM / Welding Standards for C276 Acid-Service Equipment

Quick-start: SPEC CHECKLIST: (1) List acids, conc., temp, Cl-/F-/oxidizers. (2) Check C276 corrosion data. (3) Test 316L/904L/Alloy 20 first. (4) Consider C22 for oxidizing acids. (5) Pick form: plate, pipe, bar, forgings. (6) Cite ASTM B575/B574/B622/B366/B564 + corrosion allowance. (7) Weld with ERNiCrMo-4, qualified WPS. (8) Require PMI + NDE + EN 10204 3.1 cert.

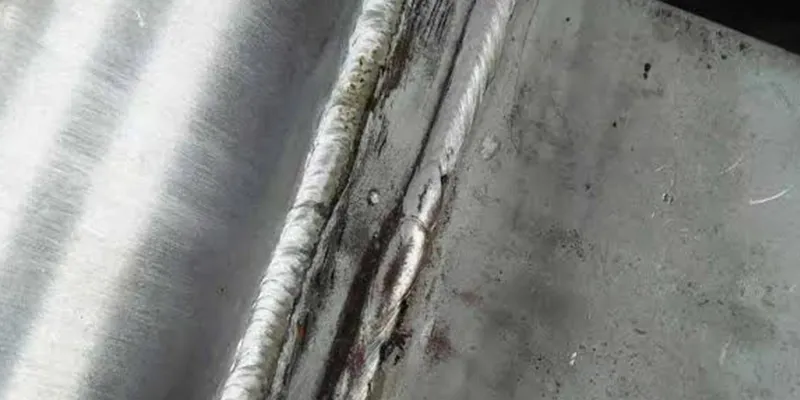

Hastelloy C276 Welding for Acid-Service Equipment

C276 is straightforward to weld and fabricate for acid service because its very low carbon avoids sensitization, so no post-weld heat treatment is needed and field repairs are routine.

Many high-performance alloys demand careful heat-treatment to avoid intergranular attack; C276's carbon is capped at 0.01%, eliminating that risk and making shop and field welding predictable. Use ERNiCrMo-4 filler, keep the joint clean and purged, and follow a qualified WPS. Good fabrication discipline protects the corrosion margin you paid for - see the Hastelloy C276 welding guide for parameters and joint prep.

What Are the Cost and Lifecycle Benefits in Acid Service?

Although C276 costs several times more than stainless by the kilogram, it is usually the lowest lifecycle cost where corrosion dominates, because it prevents leakage, unplanned downtime, and emergency replacement.

The purchase price is a small fraction of a shutdown. A 316L part that fails in hot mixed acid after a few months can trigger a plant stoppage worth far more than the alloy premium, plus safety and environmental exposure. C276 typically serves for decades, so the total cost of ownership - capital plus maintenance plus lost production avoided - favors it for aggressive acid duties. Treat the decision as risk-and-lifecycle, not unit price; the current C276 price guide helps quantify the premium.

When Should You NOT Use Hastelloy C276 for Acid?

Avoid C276 when the acid is strongly oxidizing concentrated nitric (prefer C4/G30/C22), when it is very high-temperature high-concentration caustic (prefer nickel 200/201), or when a cheaper grade already covers a mild, well-defined stream.

Specifying C276 everywhere is wasteful. Its chemistry is optimized for reducing and mixed acids plus chlorides; concentrated oxidizing nitric acid rewards chromium-rich grades, and high-temperature caustic can embrittle nickel-molybdenum alloys. And for dilute, ambient, low-chloride acid, 316L or 904L delivers the needed life at a fraction of the cost. The discipline is to match the alloy to the hazard, not to reach for the most expensive option by default. For a hydrochloric-specific deep dive, see the Hastelloy C276 hydrochloric acid service guide.

How Does C276 Fit the Hastelloy C276 Content Cluster?

This article is one spoke in the Hastelloy C276 hub-and-spoke cluster - it links up to the ultimate guide (hub), across to the comparison and property spokes, and down to product and FAQ pages, building topical authority for both Google and AI search engines.

Search engines and answer engines reward tightly interlinked, topically complete clusters. From here a reader can go to the what-is-C276 introduction, the chemical composition, the mechanical properties, and the comparisons such as Inconel 625 vs C276 and C22 vs C276, while product pages close the Hub - Blog - Product - Case Study - FAQ loop that the cluster is built around. The FAQ list answers common buyer questions.

Conclusion

Hastelloy C276 earns its place in acid service wherever the acid is hot, concentrated, mixed, or chloride-laden - hydrochloric, sulfuric, and phosphoric acids, organic acids, and especially combined reducing-plus-oxidizing streams that defeat stainless steels. It outperforms 316L by a wide margin and beats Alloy 20 and 904L in breadth and temperature ceiling, with C22 as the close sibling for strongly oxidizing duty. Specify it with the correct ASTM grade, a corrosion allowance, and ERNiCrMo-4 welding, and it will serve for decades. For the complete picture, start at the Hastelloy C276 ultimate guide.

Related Products and Further Reading

• Hastelloy C276 plate, pipe and bar

• Hastelloy C276 round bars

• Hastelloy C276 plate

• Hastelloy C276 flanges

• Hastelloy C276 pipe fittings

• Alloy 20 (sulfuric-acid specialist)

• Stainless Steel 904L

• Chemical equipment solutions

• Hastelloy C276 ultimate guide (hub)

Frequently Asked Questions

Is Hastelloy C276 good for acid service?

Yes - it is one of the most versatile acid-resistant alloys available. C276 resists hydrochloric acid across essentially the full concentration and temperature range, performs excellently in sulfuric and phosphoric acids (including impure grades), and is unique in handling mixed reducing-plus-oxidizing acid streams with chlorides in a single grade. For most aggressive acid duties it is the default choice. The Hastelloy C276 ultimate guide covers the full property set.

Which acid is Hastelloy C276 best at resisting?

Hydrochloric acid is its standout. C276 is among the few commercial alloys usable across nearly the entire concentration and temperature range of HCl, where 316L, 904L, and even Alloy 20 are quickly attacked. It is also excellent in sulfuric and phosphoric acids, especially when hot, contaminated, or chloride-laden. Its nickel-molybdenum-tungsten matrix gives it this rare breadth.

How does C276 compare to 316L stainless in acid service?

Decisively better in aggressive acid. 316L relies on a chromium-oxide film that breaks down in hot acid and especially in chloride-bearing streams, where it pits and stress-corrosion cracks. C276 has roughly 15-17% molybdenum plus tungsten and a PREN of about 65-70, so it resists HCl, hot sulfuric/phosphoric acid, and chloride-laden acid that destroy 316L. 316L is the economical choice only for mild, ambient, low-chloride acid.

Is Hastelloy C276 better than Alloy 20 for acid service?

For breadth, yes. Alloy 20 (N08020) is the sulfuric-acid specialist and is cheaper, so it is often the first upgrade from stainless for straight H2SO4. C276 adds far more molybdenum and tungsten, tolerates hydrochloric acid, mixed acids, much higher chloride levels, and higher temperatures. Rule of thumb: specify Alloy 20 for well-defined sulfuric-acid duty, and C276 when the stream is mixed, hot, chloride-rich, or includes HCl. Our Alloy 20 page details its envelope, and the C276 for chemical plants article shows plant context.

Can Hastelloy C276 handle hydrochloric acid?

Yes, and this is one of its signature capabilities. C276 resists hydrochloric acid across essentially the full concentration range and to high temperatures, which is exactly why it is used in HCl synthesis, pickling, and acid-regeneration equipment. Few other alloys match that breadth; most stainless and even Alloy 20 are rapidly attacked by HCl. See the dedicated Hastelloy C276 hydrochloric acid service guide for selection detail.

Is C276 suitable for sulfuric acid service?

Yes. C276 resists sulfuric acid across a very wide concentration and temperature range, including hot and contaminated acid that defeats 316L and even 904L. For straight, well-defined concentrated H2SO4, Alloy 20 is a common, lower-cost choice, but C276 is preferred when the acid is hot, impure, or part of a mixed-acid stream. Plant acid-recovery and alkylation units frequently use C276. Our analysis of 316H pipe in 98% sulfuric acid shows why stainless fails where C276 succeeds.

Does C276 resist phosphoric acid?

Yes, excellently. C276 withstands phosphoric acid including impure wet-process acid that carries fluorides and chlorides - a duty that challenges many grades. Alloy 20 can cover clean phosphoric acid at lower cost, but when the acid is crude or the stream is mixed, C276 is the safer specification.

Can C276 be used in nitric acid?

With a caveat. C276 performs well in dilute to moderate nitric acid, but strongly oxidizing concentrated HNO3 is better served by higher-chromium grades such as Hastelloy C4 or G30. The reason is chemistry: C276's strength is reducing and mixed acids, while concentrated nitric acid rewards chromium-rich, oxidizing-resistant alloys. Always check corrosion data for your specific concentration and temperature before specifying.

How does C276 resist mixed acids and chlorides together?

That is its sweet spot. Single-acid charts can mislead because real streams mix sulfuric, hydrochloric, and phosphoric acids with chlorides and oxidizers. C276's high molybdenum plus tungsten gives it the rare ability to resist both reducing (HCl, H2SO4) and oxidizing (wet Cl2, Fe3+/Cu2+) species at once - which is precisely why it is the default for mixed-acid and chloride-laden duties that defeat every stainless grade.

Is Hastelloy C22 better than C276 for acid service?

Comparable, with C22 (UNS N06022) holding an edge in strongly oxidizing acids. C22 has higher chromium (20-22.5% vs 14.5-16.5%) and slightly different molybdenum, giving it better resistance to strong nitric acid, wet chlorine, and superior pitting/crevice resistance. For most HCl, sulfuric, phosphoric, and mixed-acid duties the two are interchangeable; choose C22 when oxidizing species dominate. The C22 vs C276 guide walks through the decision.

Does C276 resist pitting and crevice corrosion in acid with chlorides?

Yes. With roughly 15-17% molybdenum plus tungsten and a PREN around 65-70, C276 is highly resistant to pitting, crevice corrosion, and chloride stress-corrosion cracking - the failure modes that limit 316L and even 904L in cooling water, brine, and seawater-cooled acid exchangers. That chloride immunity is a major reason plants choose it for acid wash and cooling sections.

Can C276 be used for hydrofluoric acid?

In many services, yes, with verification. C276 resists a broad range of hydrofluoric acid duties better than stainless steels, though for some HF concentrations nickel-copper alloys such as Monel are preferred. Because HF behavior is concentration- and temperature-specific, always confirm with corrosion data and the relevant standard before specifying C276 for HF.

Is C276 weldable for acid-service fabrication and repairs?

Yes. C276's very low carbon (<=0.01%) avoids sensitization, so it is weldable without post-weld heat treatment using ERNiCrMo-4 filler and a qualified WPS. Field repairs and additions to existing C276 acid equipment are routine. Follow the Hastelloy C276 welding guide for joint prep, parameters, and purge practice.

What are the main limitations of C276 in acid service?

Three: (1) Strong oxidizing nitric acid favors C4/G30/C22; (2) very high-temperature, high-concentration caustic can cause embrittlement where nickel 200/201 is preferred; and (3) cost - C276 runs roughly 6-8x 316L. It is therefore specified where corrosion dominates, not for mild duty where a cheaper grade suffices.

How do lifecycle costs compare with cheaper acid-resistant alloys?

C276 costs several times more than stainless by the kilogram, but it is usually the lowest lifecycle cost where corrosion dominates, because it prevents leakage, unplanned downtime, and emergency replacement. A 316L part in hot mixed acid may fail in months, triggering a shutdown worth far more than the alloy premium. Treat the decision as total cost of ownership - not unit price. The C276 pipe price guide quantifies the premium.

What ASTM standards cover C276 for acid-service equipment?

Plate/sheet/strip to ASTM B575, rod/bar/forging to ASTM B574, seamless pipe/tube to ASTM B622, welded pipe/tube to ASTM B619/B626, fittings to ASTM B366, and forgings/flanges to ASTM B564. Welding uses ERNiCrMo-4 filler (AWS A5.14). Design and fabrication follow ASME B31.3 (piping) and ASME Section VIII (vessels). For more on resisting specific acids, the chemical-equipment overview is a useful companion.

What product forms does JN Alloy supply in C276?

Plate and sheet, seamless and welded pipe and tube, round bar and forgings, flanges, and butt-weld fittings - all to the relevant ASTM specs. Dedicated pages cover C276 plate/pipe, C276 bars, C276 plate, C276 flanges, and C276 pipe fittings.

How do I choose between C276 and a cheaper grade for my acid?

Start from the acid, its concentration, temperature, and impurities. Use 316L only for mild, ambient, low-chloride acid; 904L or Alloy 20 for dilute-to-concentrated sulfuric; C276 for HCl, hot/mixed/impure acids, and any chloride-laden stream; and C22 for strongly oxidizing acids. The eight-step checklist in this article and the chemical-composition guide give the details buyers need. For deeper comparison, see Inconel 625 vs C276.
