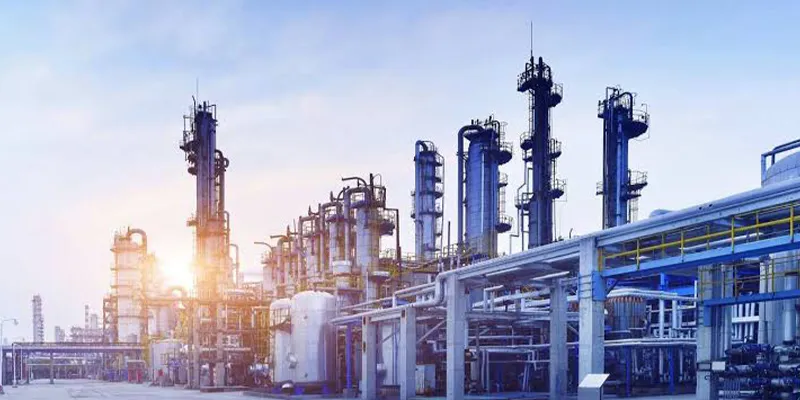

Hastelloy C276 for Chemical Plants: Uses and Alloy Choice

Hastelloy C276 (UNS N10276) is the alloy chemical plants reach for when the stream is hot, concentrated, or mixed - and especially when chlorides are present. Its nickel-molybdenum-chromium-tungsten chemistry shrugs off sulfuric, hydrochloric, and phosphoric acids, wet chlorine, and chloride-laden process water that destroy 316L and even 904L. This guide shows where plants use it, how it compares with Alloy 20, 904L, 825, and 625, and how to specify pipe, plate, and fittings so the equipment lasts for decades instead of months.

Why Do Chemical Plants Rely on Hastelloy C276?

Chemical plants choose C276 because real process streams combine hot, concentrated, and mixed acids with chlorides and oxidizers - exactly the combination that defeats stainless steels - and C276 resists that whole envelope in a single, weldable grade.

A plant rarely handles one clean chemical. A reactor might see sulfuric acid with dissolved chlorides and traces of oxidizer; a cooler might see seawater-laden process water; an FGD scrubber sees SO2, chlorides, fluorides, and abrasive slurry together. 316L depends on a chromium-oxide film that collapses in hot acid and pits/crevices/cracks in chlorides. C276 does not rely on that film alone - its roughly 15-17% molybdenum plus tungsten give it intrinsic resistance to both reducing acids (HCl, H2SO4) and oxidizing species (wet Cl2, Fe3+/Cu2+) at once. That breadth lets a plant standardize on one alloy for its most aggressive duties, which simplifies spares, welding procedure, and inspection.

Which Chemical-Plant Systems Use Hastelloy C276?

C276 appears wherever wetted surfaces meet aggressive, chloride-laden, or mixed-acid service - reactors, agitators, exchangers, columns, transfer piping, FGD internals, pumps, and wet ductwork.

The table below maps equipment to the failure mode C276 prevents. In each case the alternative (carbon steel, 316L, or even 904L) would corrode too fast or suffer localized attack that leaks before uniform loss is noticeable. Specifying C276 moves the risk from 'will it survive the campaign?' to 'how many decades of service?'. For the broader equipment context, see the chemical-equipment overview.

Chemical-Plant Equipment Commonly Built from Hastelloy C276

Hastelloy C276 vs Alloy 20, 904L, 825, and 316L for Chemical Plants

316L suits only mild, ambient, low-chloride duty; 904L and Alloy 20 extend into acid service at moderate severity; C276 is the broadest and highest-temperature option, chosen when the stream is hot, mixed, or chloride-rich.

The ordering is driven by alloying. 316L's 2-3% molybdenum is the floor. 904L roughly doubles molybdenum and adds copper for better acid range. Alloy 20 adds large nickel and copper and is the sulfuric-acid specialist. C276 jumps molybdenum to 15-17% and adds tungsten, which is what delivers resistance to hydrochloric acid, hot mixed acids, and chlorides that the others lack. Cost rises with capability, so the selection rule is: pick the cheapest grade that covers the whole envelope - and when the envelope is aggressive or uncertain, C276 is the safe answer. The nickel-alloy pipe selection guide by acid type applies this logic to piping.

Hastelloy C276 vs Alloy 20, 904L, 825 and 316L for Chemical Plants

What Chemical Environments Does C276 Resist Best?

C276 is at its best in sulfuric, hydrochloric, and phosphoric acids (including impure grades), chloride-bearing streams, wet chlorine/hypochlorite, and FGD - and merely 'good' (not best) in strong nitric acid and very high-temperature caustic.

The table summarizes the envelope. The standout is hydrochloric acid, where C276 is among the few alloys usable across essentially the full concentration and temperature range. Equally important is what is NOT listed as a weakness: pitting and crevice corrosion from chlorides, the usual killers of stainless in plant cooling and wash sections. For oxidizing nitric acid, more chromium-rich grades such as C4 or G30 are often preferred - a useful cross-check when a stream is strongly oxidizing. The corrosion-resistance guide gives the underlying data.

Environments Where Hastelloy C276 Excels in Chemical Plants

How to Specify Hastelloy C276 for Chemical Plant Equipment

Specify C276 by defining the service envelope, confirming the grade against Alloy 20/904L/825, choosing the product form, calling out the correct ASTM spec, adding a corrosion allowance, and requiring matching ERNiCrMo-4 welding with PMI and NDE.

Corrosion is a system property, not a single number, so the first step is documenting every species, concentration, temperature, chloride level, and velocity. Only then can you justify C276 versus a cheaper grade. The standards below make the purchase unambiguous for mills and inspectors; pair them with ASME B31.3 or Section VIII for design. The eight-step checklist that follows turns this into an actionable procedure.

ASTM / Welding Standards for C276 Chemical-Plant Equipment

Quick-start: SPEC CHECKLIST: (1) Document the service envelope (acids, conc., temp, Cl-, velocity). (2) Confirm C276 vs Alloy 20/904L/825. (3) Pick form: plate, pipe, bar, forgings. (4) Cite ASTM B575/B574/B622/B366/B564. (5) Add corrosion allowance to wall. (6) Weld with ERNiCrMo-4, qualified WPS. (7) Require PMI + hydrostatic + NDE. (8) Stock spares and schedule thickness survey.

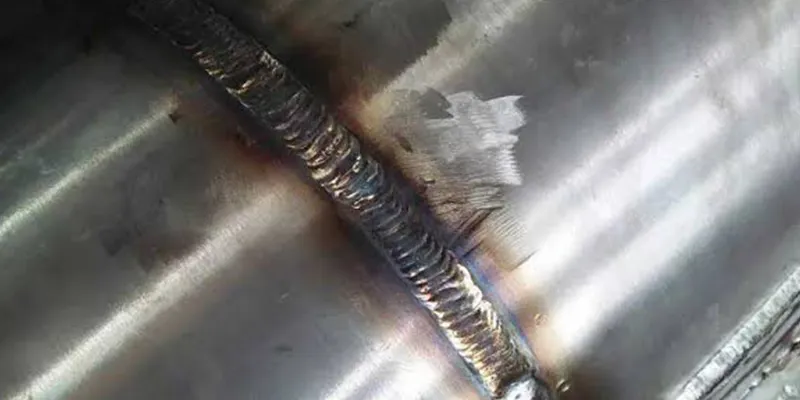

Hastelloy C276 Welding and Fabrication in Chemical Service

C276 is straightforward to weld and fabricate for chemical service because its very low carbon avoids sensitization, so no post-weld heat treatment is needed and field repairs are routine.

Many high-performance alloys demand careful heat-treatment to avoid intergranular attack; C276's carbon is capped at 0.01%, eliminating that risk and making shop and field welding predictable. Use ERNiCrMo-4 filler, keep the joint clean and purged, and follow a qualified WPS. Good fabrication discipline protects the corrosion margin you paid for - see the Hastelloy C276 welding guide for parameters and joint prep.

What Are the Cost and Lifecycle Benefits in Chemical Plants?

Although C276 costs several times more than stainless by the kilogram, it is usually the lowest lifecycle cost where corrosion dominates, because it prevents leakage, unplanned downtime, and emergency replacement.

The purchase price is a small fraction of a shutdown. A 316L part that fails in a hot mixed acid after a few months can trigger a plant stoppage worth far more than the alloy premium, plus safety and environmental exposure. C276 typically serves for decades, so the total cost of ownership - capital plus maintenance plus lost production avoided - favors it for aggressive duties. Treat the decision as risk-and-lifecycle, not unit price; the current C276 price guide helps quantify the premium.

Common Chemical-Plant Failures Hastelloy C276 Prevents

C276 most often prevents the failures that disable plants - chloride pitting/crevice and SCC of stainless, rapid uniform attack of stainless in hot acid, sensitization cracking, and FGD corrosion of carbon steel.

Each failure mode maps to a C276 advantage. Chloride pitting and SCC are blocked by its high molybdenum and PREN ~65-70. Hot sulfuric/hydrochloric uniform attack is blocked by the Ni-Mo-W matrix. Sensitization is blocked by ultra-low carbon. FGD corrosion is blocked by resistance to SO2, chlorides, fluorides, and slurry abrasion together. In other words, C276 is specified precisely where the cheaper 'obvious' alloy would have failed - which is why plants keep it in stock for the worst duties. Our project work, such as alloy piping spools for major facilities (see the LNG facility case study), shows the same logic applied across nickel alloys.

How Does C276 Fit the Hastelloy C276 Content Cluster?

This article is one spoke in the Hastelloy C276 hub-and-spoke cluster - it links up to the ultimate guide (hub), across to the comparison and property spokes, and down to product and FAQ pages, building topical authority for both Google and AI search engines.

Rationale: Search engines and answer engines reward tightly interlinked, topically complete clusters. From here a reader can go to the what-is-C276 introduction, the chemical composition, the mechanical properties, and the comparisons such as Inconel 625 vs C276 and C22 vs C276, while product pages close the Hub - Blog - Product - Case Study - FAQ loop that the cluster is built around. The FAQ list answers common buyer questions.

Conclusion

Hastelloy C276 earns its place in chemical plants wherever the process is hot, concentrated, mixed, or chloride-laden - reactors, exchangers, columns, piping, FGD, and pumps that would quickly destroy stainless steels. It outperforms 316L by a wide margin and beats Alloy 20, 904L, and 825 in breadth and temperature ceiling, at a higher but usually justified lifecycle cost. Specify it with the correct ASTM grade, a corrosion allowance, and ERNiCrMo-4 welding, and it will serve for decades. For the complete picture, start at the Hastelloy C276 ultimate guide.

Related Products and Further Reading

• Hastelloy C276 plate, pipe and bar

• Hastelloy C276 round bars

• Hastelloy C276 plate

• Hastelloy C276 flanges

• Hastelloy C276 pipe fittings

• Chemical equipment solutions

• Nickel-alloy pipe selection by acid type

• Hastelloy C276 ultimate guide (hub)

Frequently Asked Questions

Why is Hastelloy C276 used in chemical plants?

Because chemical-plant streams are rarely one benign chemical - they are hot, concentrated, and mixed, often carrying chlorides, fluorides, and oxidizers together. C276's nickel-molybdenum-chromium-tungsten chemistry resists that combination in a single grade, so plants use it for reactors, exchangers, columns, piping, and FGD where stainless steels would fail quickly. The Hastelloy C276 ultimate guide covers the full property set.

Is Hastelloy C276 better than 316L stainless in chemical plants?

In aggressive plant duty, yes - decisively. 316L relies on a chromium-oxide film that breaks down in hot acid and especially in chloride-bearing streams, where it pits, crevices, and stress-corrosion cracks. C276 has a PREN of about 65-70 and resists chlorides, hot sulfuric and hydrochloric acid, and mixed oxidizer/reducer streams that destroy 316L. For mild, ambient, low-chloride service 316L is the economical choice; for anything corrosive, C276 is in a different league.

How does C276 compare to Alloy 20 for chemical service?

Alloy 20 (N08020) is the sulfuric-acid specialist and is cheaper than C276, so it is often the first upgrade from stainless. C276 is broader: it adds far more molybdenum and tungsten, tolerates hydrochloric and mixed acids, much higher chloride levels, and higher temperatures. Rule of thumb: specify Alloy 20 for well-defined sulfuric-acid duty, and C276 when the stream is mixed, hot, chloride-rich, or includes HCl. Our Alloy 20 page details its envelope.

Can C276 handle hydrochloric acid in a chemical plant?

Yes, and it is one of the best commercial alloys for HCl. C276 resists hydrochloric acid across essentially the full concentration range and to high temperatures, which is exactly why it appears in HCl synthesis, pickling, and regeneration equipment. Few other alloys match that breadth; most stainless and even Alloy 20 are quickly attacked by HCl.

Is C276 suitable for sulfuric acid plants?

Yes. C276 resists sulfuric acid across a very wide concentration and temperature range, including hot and contaminated acid that defeats 316L and even 904L. For straight, well-defined concentrated H2SO4, Alloy 20 is a common, lower-cost choice, but C276 is preferred when the acid is hot, impure, or part of a mixed-acid stream. Plant acid-recovery and alkylation units frequently use C276.

What chemical plant equipment is made from C276?

Reactors and kettles, agitators/impellers/baffles, heat exchangers and condensers, distillation and absorber columns, acid-transfer piping and spools, FGD absorber shells and internals, pump bodies and valve trim, acid storage and loading arms, and wet stack liners. Essentially any wetted part exposed to aggressive, chloride-laden, or mixed-acid service is a candidate. See the equipment table in this article and the chemical-equipment overview.

Does C276 resist chlorides and pitting in plant streams?

Yes. With roughly 15-17% molybdenum plus tungsten and a PREN around 65-70, C276 is highly resistant to pitting, crevice corrosion, and chloride stress-corrosion cracking - the failure modes that limit 316L and even 904L in cooling water, brine, and seawater-cooled exchangers. That chloride immunity is a major reason plants choose it for cooling and wash sections.

What ASTM standards cover C276 for chemical plant equipment?

Plate/sheet/strip to ASTM B575, rod/bar/forging to ASTM B574, seamless pipe/tube to ASTM B622, welded pipe/tube to ASTM B619/B626, fittings to ASTM B366, and forgings/flanges to ASTM B564. Welding uses ERNiCrMo-4 filler (AWS A5.14). Design and fabrication follow ASME B31.3 (piping) and ASME Section VIII (vessels).

Can C276 be used in FGD / flue-gas scrubbers?

Absolutely - FGD is a flagship C276 application. Wet scrubbers expose steel to SO2/SO3, chlorides, fluorides, abrasive slurry, and acidic condensate, a combination that destroys carbon steel and most stainless. C276 liners and internals survive for decades; many plants also use C276 in the absorber shell, mist eliminators, and outlet ducts. This pairs with the broader chemical-equipment program.

How does C276 perform in acidic chloride mixtures?

That is its sweet spot. Single-acid charts can mislead because real plant streams mix sulfuric, hydrochloric, and phosphoric acids with chlorides and oxidizers. C276's high molybdenum plus tungsten gives it the rare ability to resist both reducing (HCl, H2SO4) and oxidizing (wet Cl2, Fe3+/Cu2+) species at once - which is precisely why it is the default for mixed-acid and chloride-laden duties.

Is C276 weldable for field fabrication and repairs?

Yes. C276's very low carbon (<=0.01%) avoids sensitization, so it is weldable without post-weld heat treatment using ERNiCrMo-4 filler and a qualified WPS. Field repairs and additions to existing C276 equipment are routine. Follow the Hastelloy C276 welding guide for joint prep, parameters, and purge practice.

How do lifecycle costs compare with cheaper alloys?

C276 costs roughly 6-8x 316L and 2-3x Alloy 20 by material, but it is usually the lowest lifecycle cost where corrosion dominates. A 316L part in hot mixed acid may fail in months, causing leakage, lost production, and emergency replacement; C276 typically serves for decades. The right question is total cost of ownership - downtime and safety - not the initial tag. The C276 pipe price guide gives current levels.

Can C276 replace Inconel 625 or Incoloy 825 in plants?

Often, yes, with caveats. C276 generally beats 625 and 825 in strongly reducing, chloride-rich, and mixed-acid plant environments, while 625 has an edge in very high-strength or seawater mechanical duty and 825 in moderately oxidizing/sour service. The choice depends on the exact stream; compare them in the Inconel 625 vs Hastelloy C276 guide and the Incoloy 825 vs C276 guide.

What product forms does JN Alloy supply in C276?

Plate and sheet, seamless and welded pipe and tube, round bar and forgings, flanges, and butt-weld fittings - all to the relevant ASTM specs. Dedicated pages cover C276 plate/pipe, C276 bars, C276 plate, C276 flanges, and C276 pipe fittings.

How do I specify C276 pipe and fittings for a plant?

State the ASTM grade (B622 seamless or B619/B626 welded pipe, B366 fittings), the schedule/wall with a corrosion allowance, the end-prep, and any NDE/PMI requirements, plus the design code (ASME B31.3). For aggressive lines, prefer seamless. The eight-step checklist in this article and the chemical-composition guide give the details buyers need.

Does C276 resist phosphoric and nitric acid?

C276 resists phosphoric acid excellently, including impure wet-process acid that carries fluorides and chlorides - a duty that challenges many grades. For nitric acid the picture is mixed: C276 is good in moderate nitric acid, but strongly oxidizing concentrated HNO3 is better served by alloys such as Hastelloy C4 or G30. Always check corrosion data for the specific concentration and temperature.

What temperature range applies for C276 in chemical service?

C276 is approved for ASME Section VIII construction from cryogenic temperatures up to about 427 deg C (800 deg F), with useful strength to roughly 650 deg C in many services. In chemical duty the real limit is the corrosion rate of your specific stream rather than strength; use the temperature-limits guide to confirm the window for your acids.

Can C276 be used for caustic (NaOH) service?

With caution. C276 resists caustic well at low to moderate temperatures and concentrations, but very high-temperature, high-concentration sodium hydroxide can cause caustic embrittlement and accelerated attack, where nickel 200/201 or specific alloys are preferred. For most plant caustic wash and neutralization duties at moderate temperature, C276 performs reliably.
