Inconel 625 for Heat Exchangers

Heat exchangers are the workhorses of process industry—they transfer thermal energy between fluids that are often hot, corrosive, pressurized, and laden with chlorides or acids. When the service environment pushes beyond what stainless steel can survive, engineers turn to nickel alloys. Inconel 625 (UNS N06625) has become the default choice for severe-service heat exchangers because it combines high strength, exceptional corrosion resistance, and fabricability in one material.

Heat exchanger failure is expensive. A single tube leak in a refinery condenser can shut down a unit for days; a seawater-cooled exchanger that pits through in two years instead of twenty destroys the project economics. Inconel 625 is not the cheapest option, but in the services where it belongs, it is the lowest lifecycle-cost option.

Why Is Inconel 625 Preferred for Heat Exchanger Applications?

Inconel 625 is preferred because it is chloride pitting, chloride stress-corrosion cracking, sour gas (H₂S) attack, and high-temperature oxidation—while retaining yield strength above 400 MPa in the annealed condition.

Why the combination matters: Heat exchangers rarely face a single corrosion mechanism. A seawater-cooled offshore gas cooler sees chlorides on the water side and wet H₂S on the gas side at the same time. A refinery overhead condenser sees chlorides, ammonia, and naphthenic acid together. An alloy that excels at one threat but fails at another is useless in these mixed services. Inconel 625's nickel-chromium-molybdenum-niobium chemistry gives it balanced resistance across the full spectrum.

• Nickel base (≥ 58%): Provides overall ductility, toughness, and resistance to chloride stress-corrosion cracking—the failure mode that destroys 300-series stainless exchangers in warm chloride service.

• Chromium (20–23%): Forms the passive oxide film that resists oxidizing acids and high-temperature oxidation up to 980°C.

• Molybdenum (8–10%): The key element for pitting and crevice corrosion resistance in chlorides; pushes the PREN (Pitting Resistance Equivalent Number) above 51.

• Niobium + Tantalum (3.15–4.15%): Stabilizes against sensitization during welding and heat-affected-zone exposure, so tube-to-tubesheet welds do not suffer intergranular attack in service.

The result is an alloy qualified for the most demanding pressure-containing heat transfer equipment. Inconel 625 appears on virtually every shortlist when the service environment would cause 316L, 904L, or even duplex stainless to fail prematurely.

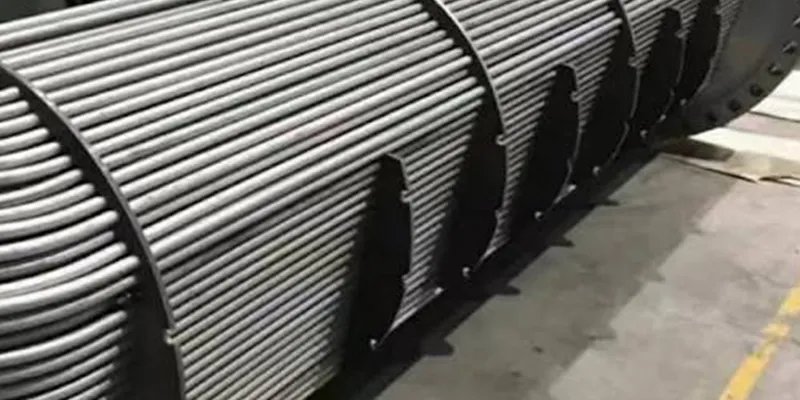

How Does Inconel 625 Perform Under Heat Exchanger Operating Conditions?

Inconel 625 performs exceptionally from cryogenic -196°C to oxidizing temperatures near 980°C, in chloride-laden seawater, sour oil and gas streams, reducing and oxidizing acids, and under cyclic thermal loading that causes thermal fatigue in lesser alloys.

• Thermal conductivity: At roughly 9.8 W/m·K (100°C), Inconel 625 conducts heat less readily than carbon steel (~50) or 316L (~16). This lower thermal conductivity means a 625 exchanger needs a slightly larger heat-transfer area than a stainless equivalent—typically 5–15% more surface area, depending on the fouling factor and film coefficients.

• Temperature range: Retains useful strength to 980°C in oxidizing atmospheres and to roughly 650°C for sustained stressed service. At the cold end, Charpy impact energy remains above 70 J at -196°C, qualifying it for LNG and cryogenic exchangers.

• Thermal fatigue: The combination of low thermal expansion (roughly 1.5× steel is still modest for a nickel alloy) and high ductility resists the crack initiation that plagues exchangers subjected to frequent start-stop cycles.

• Creep resistance: Solid-solution strengthening by molybdenum and niobium holds creep rupture strength above 70 MPa at 650°C for 100,000 hours—sufficient for high-temperature reformer and furnace convection exchangers.

• Corrosion under insulation (CUI): Inconel 625 is effectively immune to the chloride CUI that attacks stainless exchangers under wet insulation, a major source of unplanned shutdowns.

What Types of Heat Exchangers Use Inconel 625?

Inconel 625 is used across all major heat exchanger types—shell-and-tube, plate-and-frame, plate-fin, air-cooled, and printed-circuit—wherever the service environment justifies its cost. Shell-and-tube is by far the most common application, where 625 is specified for tubes, tubesheets, and baffles exposed to the most aggressive fluid.

• Shell-and-tube: The dominant type. Inconel 625 tubes (ASTM B163/B163M) are expanded and welded into 625- or clad-steel tubesheets. Used in refinery overhead condensers, sour gas coolers, and seawater exchangers where retubing access is difficult and reliability is paramount.

• Plate-and-frame: 625 plates handle aggressive cooling duties in chemical plants where gasket compatibility and rapid disassembly are needed. The alloy's ductility allows the deep pressing of plate corrugations without cracking.

• Plate-fin (brazed): Aluminum-brazed plate-fin cores for cryogenic LNG and air separation units increasingly use 625 core bars where stainless would embrittle at -196°C.

• Air-cooled (fin-fan): 625 tubes with aluminum or steel fins serve in desert and coastal refineries where the cooling air carries salt spray or the process side is sour.

• Printed-circuit (PCHE): The emerging diffusion-bonded PCHE technology, used in supercritical CO₂ power cycles and hydrogen refueling, favors 625 for its compatibility with additive/diffusion bonding and its strength at high pressure.

Within a shell-and-tube exchanger, the material strategy is often hybrid: Inconel 625 for the tubes and tubesheet cladding, carbon steel for the shell and channel covers where corrosion is not a concern.

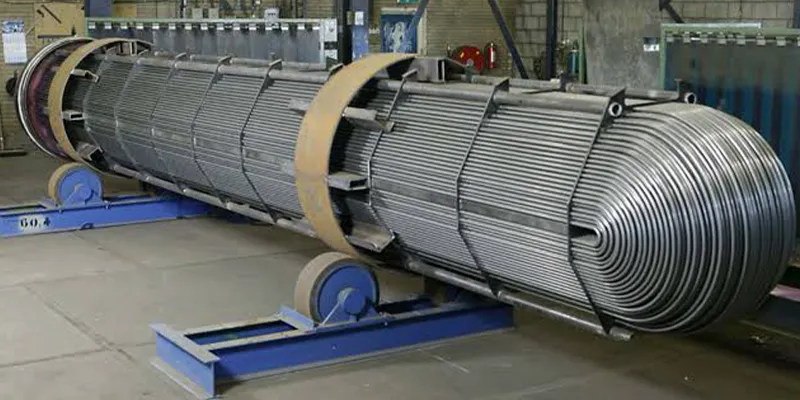

How Does Inconel 625 Compare to Other Alloys in Heat Exchanger Service?

Inconel 625 occupies the sweet spot between cost and performance for chloride and sour service. It outperforms 316L and duplex stainless by a wide margin in warm chloride and H₂S environments, and it is significantly cheaper than Hastelloy C276 while delivering comparable performance in most heat exchanger services—making 625 the rational default unless C276 is explicitly required by a reducing-acid specification.

The comparison below summarizes the trade-offs:

•vs 316L stainless: 316L fails by chloride pitting and stress-corrosion cracking above 60°C in seawater or brine. A 316L seawater cooler may last 2–5 years; a 625 unit lasts 20+ years. The lifecycle cost favors 625 whenever retubing downtime is costly.

•vs Duplex 2205 / 2507: Duplex grades resist chlorides better than 316L but are vulnerable to hydrogen-induced stress cracking (HISC) in cathodically protected seawater systems and to sigma-phase embrittlement above 300°C. Inconel 625 avoids both failure modes.

•vs Hastelloy C-276: C-276 has marginally higher PREN and is preferred for hot concentrated reducing acids (HCl, H₂SO₄). For chloride and sour service—the majority of heat exchanger duty—the two are functionally equivalent, and 625 is typically 20–30% cheaper.

•vs Titanium: Titanium excels in clean seawater but is unsuitable for sour gas (H₂S causes hydriding and embrittlement) and for caustic service. Inconel 625 handles both, plus higher temperatures.

•vs Carbon steel: Carbon steel is cheaper but corrodes in nearly every aggressive heat exchanger service and requires corrosion allowance that thickens walls and reduces heat transfer. It is reserved for non-corrosive duties such as lube oil cooling.

How Is Inconel 625 Fabricated into Heat Exchanger Components?

Inconel 625 is fabricated by conventional tube drawing, plate forming, and welding. Welding is the critical operation: tube-to-tubesheet and longitudinal seam welds must use qualified procedures with ERNiCrMo-3 filler, controlled heat input (0.5–1.5 kJ/mm), and interpass temperature below 150°C to prevent microfissuring. Full procedure details are in the Inconel 625 Welding Guide section of this hub.

• Tube manufacture: Seamless 625 heat exchanger tubes are produced to ASTM B163/B163M by extrusion and cold drawing, then solution-annealed at 1095–1205°C and water-quenched to restore the corrosion-resistant microstructure.

• Forming: Plates (ASTM B443) are hot-formed above 950°C and cold-formed with generous radii. Work hardening is significant—intermediate annealing may be needed for deep draws or tight bends.

• Welding processes: GTAW (TIG) is preferred for tube-to-tubesheet joints and thin-wall seams. GMAW and SAW are used for heavier structural welds. Autogenous welding is possible on thin sections but filler (ERNiCrMo-3) is standard for exchanger fabrication.

• Heat input control: Excessive heat input (> 1.5 kJ/mm) coarsens the solidification structure and promotes niobium-rich eutectic segregation that reduces ductility. Stringent WPS control keeps heat input in the qualified window.

• Post-weld treatment: 625 generally requires no PWHT for corrosion performance in most exchanger services—a major advantage over carbon steel and low-alloy exchangers. For sour service per NACE MR0175, a stress-relief at 650°C may be specified, but the alloy remains fully compliant in the as-welded condition for most oilfield applications.

• NDT: 100% dye-penetrant testing of tube-to-tubesheet welds is standard. Radiography or phased-array ultrasonic testing is applied to seam welds and nozzles per ASME Section VIII, Division 1.

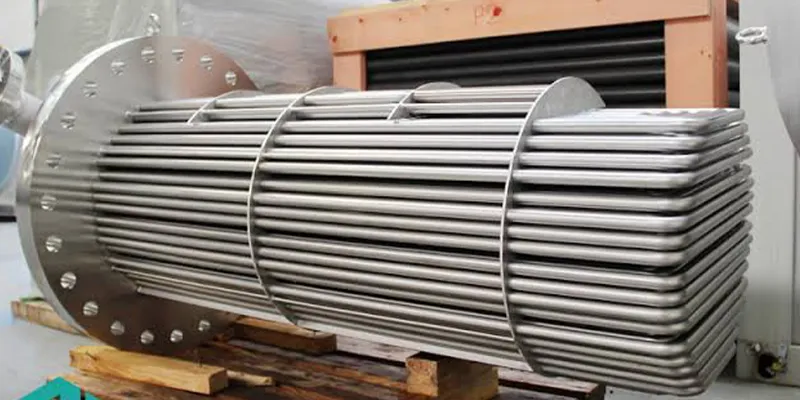

What Industries Use Inconel 625 Heat Exchangers?

Inconel 625 heat exchangers are concentrated in industries where chloride, sour gas, high temperature, or mixed-acid service makes stainless steel and carbon steel unviable. The largest users are oil and gas, chemical processing, marine and offshore, power generation, nuclear, and LNG/cryogenic facilities.

•Oil and gas: The single largest market. Seawater-cooled production coolers, sour gas after-coolers, and refinery overhead condensers all depend on 625 to resist H₂S, chlorides, and naphthenic acid simultaneously. NACE MR0175 / ISO 15156 lists 625 as qualified for sour service.

•Chemical processing: Aggressive mixed-acid duties—nitric plus hydrochloric, oxidizing plus reducing—where no single stainless grade survives. Plate-and-frame 625 exchangers handle rapid inspection and cleaning.

•Marine and offshore: Seawater is the universal heat-transfer medium at sea, and it destroys 316L and even duplex in warm service. 625 is the default for offshore cooling water exchangers and LNG vaporizers.

•Power generation: Feedwater heaters in chloride-laden cooling water, flue gas coolers in waste-to-energy and biomass plants (where chlorides in the flue gas cause high-temperature corrosion), and supercritical CO₂ cycle recuperators.

•Nuclear: Steam generator tubing where irradiation-assisted stress-corrosion cracking (IASCC) resistance and long design life (60+ years) are mandatory.

•LNG and cryogenic: LNG heat exchangers operate at -162°C; 625 retains toughness and is used in plate-fin cores and core-in-kettle exchangers where aluminum is insufficient for the pressure rating.

Frequently Asked Questions

Is Inconel 625 suitable for seawater-cooled heat exchangers?

Yes, and it's one of the best choices available. With a PREN ≥45 and a critical pitting temperature above 85°C, 625 essentially resists pitting and crevice corrosion in seawater. Titanium Gr.2 is cheaper for pure cold-seawater duty, but 625 wins when the process side has reducing acids or H₂S, or when seawater temperatures can spike.

What TEMA class should an Inconel 625 heat exchanger use?

TEMA Class R for oil & gas/petrochemical, or Class B for milder chemical service. For critical service (offshore, nuclear, high-pressure sour gas), use Class R with ASME VIII Div. 1 U-stamp, plus PED 2014/68/EU for Europe.

Can Inconel 625 tubes be welded directly to a carbon steel tubesheet?

Not directly—carbon steel dilution creates a brittle, corrosion-prone HAZ. Instead, overlay the tubesheet face with at least 3 mm of ERNiCrMo-3 (via GTAW hot-wire or PTAW), machine it flat, then weld the 625 tubes to that surface. JN Alloy supplies both the tubes and the ERNiCrMo-3 wire.

How does Inconel 625 compare to duplex 2205 in heat exchangers?

625 offers much higher corrosion resistance (PREN ≥45 vs. 34–36), a higher max service temperature (540°C vs. 300°C), and unrestricted NACE MR0175 qualification. 2205 conducts heat better and costs 50–60% less. Choose 2205 if chlorides stay under 2,000 ppm, there's no H₂S, and temps stay below 120°C; choose 625 if you exceed those limits or expect process variability over the exchanger's life. See our <a href="/inconel-625-guide.html">Inconel 625 Hub Page</a> for the full comparison.

What's the maximum design temperature for Inconel 625 in heat exchangers?

ASME Section II Part D lists allowable stresses up to 649°C for Grade 1 material, but a practical limit of 538°C is common for tubular service due to thermal cycling and creep. Grade 2 (aged) material shouldn't exceed 650°C continuously, or it loses strength from γ″ coarsening.

Is Inconel 625 resistant to microbiologically influenced corrosion (MIC)?

Largely yes — its high nickel content doesn't feed sulfate-reducing or iron-oxidizing bacteria, so MIC attack is rare. But heavy biofouling in stagnant seawater can create localized acidic conditions that damage the passive film. Prevent this with ≥1.0 m/s tube-side velocity, biocide dosing, and periodic mechanical cleaning.

Can Inconel 625 tubes be mechanically expanded?

Yes, but within tighter limits than stainless steel. 625 work-hardens quickly, so keep roller expansion to 5–8% wall reduction (vs. 8–12% for 316L), or use hydraulic expansion at 4–6% for more uniform results. Always inspect tube ends at 10× magnification afterward — that transition zone is the top spot for SCC initiation.

What filler metal should I use for welding Inconel 625?

ERNiCrMo-3 (AWS A5.14) for GTAW/GMAW, or ENiCrMo-3 (AWS A5.11) for SMAW. It also works well for dissimilar joints (625 to 316L, carbon steel, or duplex) since its high-Ni, high-Mo chemistry buffers dilution even at 15–25% ratios. JN Alloy stocks it in TIG rod, MIG spool, and SMAW electrode forms, ready to ship with heat certificates.

Should heat exchanger tubes be seamless or welded?

Welded tube (ASTM B704/SB-704) works fine below 100 bar in non-cyclic service and costs 20–30% less — but the seam must be fully solution-annealed and eddy-current tested per ASTM E426. Above 100 bar, in cyclic service, or for sour gas, go with seamless tube (ASTM B163/B444) to avoid weld-seam corrosion and get uniform properties.

How do I specify replacement Inconel 625 tubes without original drawings?

Send your supplier: a sample tube (300 mm), tube count/length, original design temperature and pressure if known, failure photos, and the ASME U-1/U-1A data report if available. JN Alloy can reverse-engineer the spec from the sample (OD, wall thickness, composition via OES, microstructure) and quote a match within 48 hours. Contact Market@jnalloy.com.
