Inconel 625 for Marine Engineering: Seawater-Resistant Alloy for Offshore, Shipbuilding & Subsea

Inconel 625 is the most widely specified nickel alloy in marine engineering for one reason: it resists every major corrosion mechanism found in seawater -- pitting, crevice corrosion, chloride stress-corrosion cracking, and microbiologically influenced corrosion -- without requiring cathodic protection, coatings, or post-weld heat treatment. With a PREN (Pitting Resistance Equivalent Number) of at least 45, it operates where 316L (PREN ~24) fails within months and duplex 2205 (PREN ~35) shows unacceptable crevice attack within 2--5 years.

This guide covers 625 alloy's performance across offshore platforms, subsea equipment, shipbuilding, and naval applications -- with quantitative comparisons, real case studies, and product-form guidance.

What Is Inconel 625?

Inconel 625 is a nickel-chromium-molybdenum-niobium alloy whose high nickel and molybdenum content make it exceptionally resistant to seawater corrosion — including pitting, crevice corrosion, and chloride stress-cracking.

Inconel 625 is a nickel-base superalloy. Its nominal makeup is about 58%+ nickel, 20–23% chromium, 8–10% molybdenum, and 3.15–4.15% niobium plus tantalum, with iron kept low (≤ 5%). That chemistry is the reason it survives the ocean:

•Nickel (the majority element) gives immunity to chloride stress-corrosion cracking — the failure mode that plagues austenitic stainless in hot, salty water.

•Molybdenum sharply raises pitting and crevice-corrosion resistance.

•Niobium (columbium) plus the nickel matrix provides strength without needing much carbon, so it stays tough and weldable.

•Chromium forms the self-healing oxide skin that resists general corrosion and oxidation.

Pitting Resistance Equivalent Number (PREN): a formula that estimates pitting resistance from an alloy’s chromium, molybdenum, and nitrogen/niobium. 316L lands near 25; Inconel 625 typically sits in the mid-40s to 50s — roughly double.

Higher PREN means far better resistance to the tiny holes chloride attack creates.

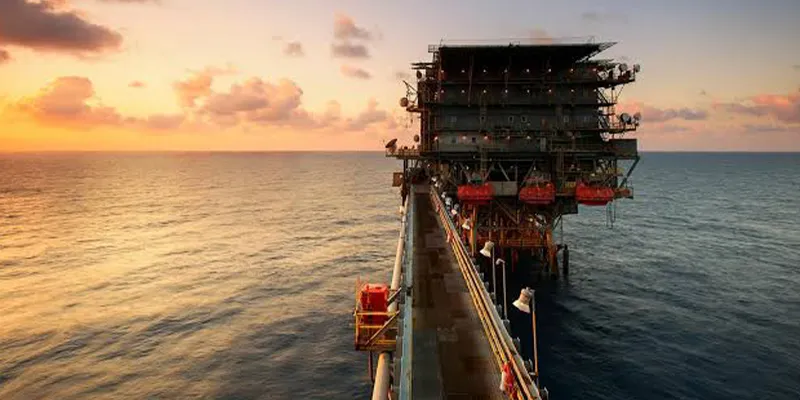

Which Marine Engineering Applications Use Inconel 625?

It is used wherever seawater, high pressure, or fatigue meet metal — seawater piping, propeller shafts, subsea equipment, offshore risers, desalination, ship exhaust scrubbers, and marine fasteners.

Plain check: if the part lives in seawater and its failure would be costly, dangerous, or hard to repair (think subsea), Inconel 625 is a leading candidate.

How Does Inconel 625 Resist Seawater Corrosion?

Three mechanisms protect it: a stable chromium oxide skin, molybdenum that blocks pitting, and high nickel that prevents chloride stress-corrosion cracking.

Corrosion in the sea is mostly three enemies — general attack, pitting/crevice attack, and stress-cracking. Inconel 625 answers all three:

• Chromium’s protective film: chromium forms an invisible, self-healing oxide layer on the surface. As long as it stays intact, the metal underneath does not corrode — even in salt spray and immersion.

• Molybdenum’s pit-blocker: chlorides try to punch tiny holes (pits) and hide in crevices (under gaskets, in joints). Molybdenum makes the alloy chemically reject that attack, which is why its PREN is so high.

• Nickel’s crack-stopper: when metal is both stretched (under stress) and soaked in chlorides, ordinary stainless can split without warning — chloride stress-corrosion cracking. Because nickel is the majority element, 625 simply does not crack this way, even in hot seawater.

Plain terms: chromium builds the shield, molybdenum patches the holes, and nickel keeps the whole part from splitting under load. Together they make the alloy at home in the ocean.

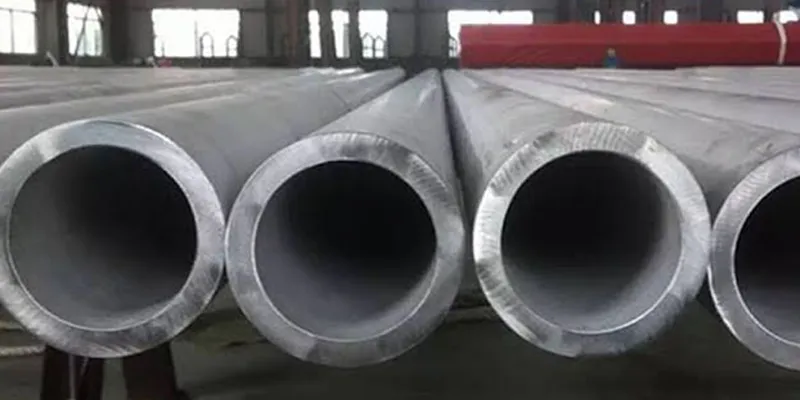

Inconel 625 vs. 316L Stainless and Super Duplex — Which for Marine?

Choose 625 when corrosion is extreme or failure is unacceptable; 316L for mild, low-temperature duty; super duplex for a strong, cheaper middle ground. 625 is the safe premium choice.

Can Inconel 625 Be Welded for Marine Fabrication?

Yes — 625 welds well by GTAW/SMAW and similar processes; thin sections can even be welded autogenously (without filler), which is ideal for clean seawater lines.

Weldability is a key reason 625 is favored offshore:

• It is welded routinely by Gas Tungsten Arc Welding (GTAW/TIG), Shielded Metal Arc Welding (SMAW), and others, usually with matching 625 filler (ERNiCrMo-3).

• Thin-wall 625 tube and pipe can be welded autogenously — fusing the base metal alone, no filler — giving a smooth, crevice-free bore that resists biofouling and is easy to inspect. (See our companion guide on autogenous tube welding.)

• Post-weld heat treatment is normally not required, which saves cost and schedule.

• Avoid prolonged exposure in the 650–870 °C (1200–1600 °F) range, where detrimental intermetallic phases can form; in typical marine service this is not a concern, but qualified procedures should respect it.

• Every procedure should be qualified — for example, to ASME BPVC Section IX — before production.

Inconel 625 Product Forms for Marine Engineering

Frequently Asked Questions

Q: Is Inconel 625 better than Monel 400 for marine applications?

Inconel 625 is superior for high-temperature seawater service (above ~40 °C) and for applications requiring high strength. Monel 400 (UNS N04400) has excellent seawater corrosion resistance at ambient temperatures and is significantly cheaper (~40--50% of 625 cost), but its yield strength (170--345 MPa) is lower and it is susceptible to stress-corrosion cracking in the presence of mercury or in aerated hydrofluoric acid environments. For structural components, high-pressure piping, and elevated-temperature seawater service, Inconel 625 is the clear choice. For low-stress, ambient-temperature seawater handling (e.g., seawater intake screens, pump casings), Monel 400 can be an economical alternative.

Q: Can Inconel 625 be used without cathodic protection in seawater?

Yes -- this is one of its primary advantages. Inconel 625 does not require impressed-current or sacrificial-anode cathodic protection (CP) when exposed to seawater at ambient to moderately elevated temperatures. However, if 625 components are electrically connected to less-noble metals (carbon steel, aluminum, copper alloys), the 625 will act as a cathode and accelerate corrosion of the anodic metal. In such cases, either electrically isolate the 625 or provide CP for the less-noble material -- but never apply CP to the 625 itself, as overprotection could cause hydrogen embrittlement (though 625 is far less susceptible to this than high-strength steels).

Q: What is the maximum seawater temperature for Inconel 625?

Inconel 625 maintains full seawater corrosion resistance up to approximately 80--100 °C in stagnant conditions and to 120 °C under flowing conditions (2--5 m/s). Beyond 120 °C, the passive film begins to lose stability, and localized corrosion may initiate. For desalination brine (2x seawater concentration), limit service to 100--110 °C. For subsea applications with H₂S/CO₂, consult NACE MR0175 for specific temperature/pH/pressure envelopes.

Q: Is Inconel 625 magnetic? Does it affect naval stealth requirements?

Inconel 625 in the annealed condition is non-magnetic (relative permeability <1.001). This is essential for naval vessels where magnetic signature affects mine-detection vulnerability and submarine stealth. Note that cold working can introduce trace amounts of martensite (weakly magnetic), but this is negligible for standard marine fabrication. For the most stringent magnetic requirements (e.g., mine countermeasure vessels), a post-fabrication solution anneal may be specified to eliminate any cold-work-induced magnetic response.

Q: How does Inconel 625 compare to titanium for seawater service?

Titanium (Grade 2 or Grade 5/Ti-6Al-4V) is completely immune to seawater corrosion and is lighter (4.51 vs. 8.44 g/cm³). However, titanium is: (a) significantly weaker (Grade 2 yield 275 MPa vs. 625 yield 414 MPa minimum); (b) difficult to weld (requires full inert atmosphere); (c) highly cathodic -- any contact with less-noble metals (steel, aluminum, copper) will cause severe galvanic corrosion of the partner metal; and (d) susceptible to crevice corrosion above ~80 °C in seawater (though less so than stainless). For high-strength, high-reliability applications where field welding is required, Inconel 625 is the better choice. For low-stress, ambient-temperature seawater piping and heat exchanger tubing, titanium is often more cost-effective.

Q: What is Inconel 625 used for in marine engineering?

Seawater piping, ship exhaust scrubbers, subsea and ROV equipment, propeller shafts, offshore risers and umbilicals, desalination tubes, and corrosion-prone fasteners — anywhere seawater and stress attack metal.

Q: Why is Inconel 625 good in seawater?

Its high nickel stops chloride stress-cracking, molybdenum blocks pitting and crevice corrosion, and chromium forms a stable protective film — even in hot, salty, or acidic conditions.

Q: Is Inconel 625 better than 316 stainless underwater?

For harsh or critical marine service, yes: 316L can suffer chloride stress-cracking in hot chlorides, while 625 resists it. 316L remains fine for milder, low-temperature duty.

Q: Can Inconel 625 be welded?

Yes. It welds well by GTAW/SMAW; thin sections can even be welded autogenously (without filler), which is ideal for clean seawater lines.

Q: What ASTM specs cover marine 625?

Plate/sheet B443, seamless pipe/tube B444, bar B446, forgings B564, fittings B366, welded pipe B704/B705; the grade is UNS N06625.

Q: Is Inconel 625 worth the cost for marine use?

When corrosion, fatigue, or failure cost outweigh material price — common offshore and subsea — its long, low-maintenance life makes it cost-effective.
