Subsea and deepwater oil and gas developments operate in some of the harshest conditions on Earth: water depths exceeding 3,000 m, seabed temperatures near 4 °C, internal fluids laden with H₂S, CO₂, and chlorides, and external hydrostatic pressures surpassing 300 bar. In these environments, flanged connections are among the highest-risk components.
This article compares the five nickel alloy flange materials — Inconel 625, Incoloy 825, Hastelloy C276, Monel K500, and Inconel 718 — across chemistry, mechanical properties, corrosion resistance, NACE MR0175 compliance, fabrication, and total cost.
Subsea flanges must resist simultaneous attack from internal sour fluids and external seawater corrosion, while maintaining mechanical integrity under extreme hydrostatic pressure and low temperature. Carbon steel and standard austenitic stainless steels fail under one or more of these conditions. Nickel alloys are the only material class that satisfies all four requirements simultaneously: corrosion resistance, sour-service compliance, high-pressure structural strength, and cryogenic toughness.
A subsea flange sits at the interface between a high-pressure internal fluid stream and the cold, corrosive seawater environment. The key environmental stressors are:
Internal H₂S partial pressure (pH₂S): 0.05–1.0 bar (moderate to extreme sour service)
Internal CO₂ partial pressure (pCO₂): 0.5–10 bar (sweet corrosion driver)
Produced water chlorides: 10,000–150,000 mg/L (pitting and crevice corrosion risk)
Seabed temperature: 2–4 °C at depths > 1,000 m (brittle fracture risk for ferritic steels)
External hydrostatic pressure: 100–350 bar at 1,000–3,500 m water depth
Cathodic protection (CP) potential: –0.80 to –1.10 V vs. Ag/AgCl (hydrogen embrittlement risk)
Design life: 20–30 years with zero planned maintenance access
The five nickel alloys most commonly specified for subsea flanges are Inconel 625 (UNS N06625), Incoloy 825 (UNS N08825), Hastelloy C-276 (UNS N10276), Monel K-500 (UNS N05500), and Inconel 718 (UNS N07718). Each occupies a distinct niche defined by its balance of corrosion resistance, strength, cost, and sour-service qualification.
Alloy | UNS | Family | Key Strength | Key Limitation | Typical Subsea Use |
Inconel 625 | N06625 | Ni-Cr-Mo-Nb | Best all-round corrosion resistance; seawater immune | Highest cost (~5–7× 316L) | Hub connectors, tree connectors, clamp hubs |
Incoloy 825 | N08825 | Ni-Fe-Cr-Mo-Cu | Sour-service qualified; Ti-stabilised weldability | Lower strength than 625/718 | Pipeline flanges, flowline connectors |
Hastelloy C276 | N10276 | Ni-Cr-Mo-W | Ultimate chemical resistance; seawater crevice immune | Very high cost (~8–10× 316L); limited forging sizes | Chemical injection flanges, HPHT connectors |
Monel K500 | N05500 | Ni-Cu-Al (PH) | High strength (PH); excellent seawater resistance | Not ISO 15156-3 listed; susceptible to H₂S SSC | Non-sour subsea bolting and fasteners; seawater piping |
Inconel 718 | N07718 | Ni-Cr-Fe-Nb-Mo (PH) | Highest strength (PH); NACE MR0175 qualified (hardness ≤ 40 HRC) | PH condition requires strict thermal control; limited corrosion data vs. 625 | Subsea tree connectors, wellhead flanges, high-pressure hubs |
Source: Special Metals Corporation 'Inconel Alloy 625 Product Data Sheet' SMC-063 (2019); Special Metals 'Incoloy Alloy 825 Data Sheet' SMC-051 (2019); Haynes International 'Hastelloy C-276 Alloy Data Sheet' H-2032 (2020); Special Metals 'Monel K-500 Data Sheet' SMC-047 (2018); Special Metals 'Inconel Alloy 718 Data Sheet' SMC-066 (2020).
The five alloys differ most significantly in nickel, chromium, molybdenum, and copper content. Inconel 625 and Hastelloy C276 have the highest Cr+Mo totals (corrosion resistance drivers); Monel K500 is Cu-rich and Cr-free; Inconel 718 adds Nb and Al for precipitation hardening.
Element | Inconel 625 | Incoloy 825 | Hastelloy C-276 | Monel K-500 | Inconel 718 | Std. |
Ni | ≥ 58 | 38–46 | Balance | 63–70 | 50–55 | ASTM |
Cr | 20–23 | 19.5–23.5 | 14.5–16.5 | — | 17–21 | ASTM |
Fe | ≤ 5.0 | ≥ 22 | 4–7 | ≤ 2.0 | Balance | ASTM |
Mo | 8–10 | 2.5–3.5 | 15–17 | — | 2.8–3.3 | ASTM |
Cu | — | 1.5–3.0 | — | Remainder | ≤ 0.30 | ASTM |
Nb+Ta | 3.15–4.15 | — | — | — | 4.75–5.50 | ASTM |
Ti | ≤ 0.40 | 0.6–1.2 | — | 0.35–0.85 | 0.65–1.15 | ASTM |
Al | ≤ 0.40 | ≤ 0.20 | — | 2.30–3.30 | 0.20–0.80 | ASTM |
W | — | — | 3–4.5 | — | — | ASTM |
C | ≤ 0.10 | ≤ 0.05 | ≤ 0.01 | ≤ 0.25 | ≤ 0.08 | ASTM |
P | ≤ 0.015 | ≤ 0.020 | ≤ 0.025 | — | ≤ 0.015 | ASTM |
S | ≤ 0.015 | ≤ 0.015 | ≤ 0.010 | ≤ 0.010 | ≤ 0.015 | ASTM |
Product Spec | B564 / B443 | B564 / B423 | B564 / B575 | B564 / B865 | B564 / B637 | ASTM |
Source: ASTM B564-22 'Standard Specification for Nickel Alloy Forgings'; ASTM B443/B423/B575/B865/B637 — respective product specifications for plate/pipe/bar; Special Metals and Haynes International product data sheets (2018–2020).
Note: 'Balance' indicates the element is the remainder of the composition. The PREN (Pitting Resistance Equivalent Number) for each alloy is: Inconel 625 ≈ 53; Incoloy 825 ≈ 32; Hastelloy C-276 ≈ 70; Monel K-500 ≈ 0 (Cu-based, no Cr/Mo); Inconel 718 ≈ 27. A PREN ≥ 40 is considered seawater-crevice-immune. Inconel 625 and Hastelloy C-276 both exceed this threshold.
Inconel 718 delivers the highest yield strength (1,035 MPa in PH condition), followed by Monel K500 (690 MPa PH). Inconel 625 and Hastelloy C-276 offer moderate strength (414 MPa and 283 MPa YS respectively) in the solution-annealed condition. Incoloy 825 has the lowest yield strength (241 MPa SA) but the highest ductility (30 % elongation).
For subsea flanges, the PH alloys (718, K-500) are used where bolting or hub strength dominates; the SA alloys (625, 825, C-276) are used where corrosion resistance and weldability are paramount.
Property | Inconel 625 | Incoloy 825 | Hastelloy C-276 | Monel K-500 | Inconel 718 |
Min. UTS (MPa) | 827 | 586 | 690 | 965 | 1,240 |
Min. YS 0.2 % (MPa) | 414 | 241 | 283 | 690 | 1,035 |
Elongation 50 mm (%) | 30 | 30 | 40 | 20 | 12 |
Hardness (max) | 200 HB | 201 HB | 210 HB | 300 HB | 40 HRC |
Charpy V-Notch at –40 °C (J, typical) | ~120 | ~120 | ~150 | ~80 | ~50 |
Condition | SA | SA | SA | PH (aged) | PH (aged) |
Source: ASTM B564-22 'Nickel Alloy Forgings'; ASTM B443 (625), B423 (825), B575 (C-276), B865 (K-500), B637 (718); Special Metals product data sheets SMC-063, SMC-051, SMC-047, SMC-066; Haynes International H-2032.
SA = Solution Annealed; PH = Precipitation Hardened (aged). Subsea flanges that require welding must be in the SA condition before welding; PH alloys (718, K-500) are typically aged after welding or used for non-welded hub/fastener components.
Hastelloy C276 provides the highest overall corrosion resistance (PREN ≈ 70; immune to seawater crevice corrosion), followed by Inconel 625 (PREN ≈ 53; seawater immune). Incoloy 825 resists sour internal fluids but is marginally susceptible to seawater crevice attack at elevated temperatures. Monel K500 has excellent seawater resistance but is not rated for sour service. Inconel 718 has moderate pitting resistance (PREN ≈ 27) and is typically used for internal, non-exposed components.
Seawater and Chloride-Induced Corrosion
Corrosion Mode | Inconel 625 | Incoloy 825 | Hastelloy C276 | Monel K500 | Inconel 718 |
Seawater uniform corrosion | Excellent (< 0.01 mm/yr) | Good (< 0.05 mm/yr) | Excellent (< 0.01 mm/yr) | Excellent (< 0.025 mm/yr) | Good (< 0.05 mm/yr) |
Seawater pitting (ASTM G48) | No pitting up to 85 °C | Pitting possible > 25 °C | No pitting up to 95 °C | No pitting up to 40 °C | Pitting possible > 25 °C |
Seawater crevice corrosion | Immune up to 75 °C | Susceptible > 20 °C | Immune up to 85 °C | Resistant up to 30 °C | Susceptible > 20 °C |
PREN | 53 | 32 | 70 | 0 (Cu-based) | 27 |
CPT (Critical Pitting Temp., ASTM G48, °C) | > 85 | 25–35 | > 95 | 40–50 | 25–30 |
CCT (Critical Crevice Temp., ASTM G48, °C) | > 75 | < 20 | > 85 | 30–40 | < 20 |
Source: ASTM G48-11(2020) 'Standard Test Methods for Pitting and Crevice Corrosion Resistance of Stainless Steels and Related Alloys'; Special Metals SMC-063, SMC-051; Haynes International H-2032; NACE CORCON 2021 paper 'Seawater Corrosion of Nickel Alloys for Subsea Applications.'
Sour Service (H₂S/CO₂) Corrosion Resistance
Corrosion Mode | Inconel 625 | Incoloy 825 | Hastelloy C276 | Monel K-500 | Inconel 718 |
SSC (sulfide stress cracking) | Immune (SA, PH) | Immune (SA) | Immune (SA) | Susceptible (PH condition) | Immune (PH ≤ 40 HRC) |
HIC (hydrogen-induced cracking) | Not susceptible | Not susceptible | Not susceptible | Low susceptibility | Low susceptibility |
CO₂ uniform corrosion | Negligible (< 0.01 mm/yr) | Low (< 0.05 mm/yr) | Negligible (< 0.01 mm/yr) | Low (< 0.05 mm/yr) | Low (< 0.05 mm/yr) |
Cl-SCC (chloride stress corrosion cracking) | Immune up to 250 °C | Resistant up to 150 °C | Immune up to 250 °C | Resistant up to 150 °C | Resistant up to 150 °C |
NACE TM0177 (SSC test) | Pass (all conditions) | Pass (SA condition) | Pass (SA condition) | Fail (PH condition) | Pass (PH ≤ 40 HRC) |
Max sour-service temp. (ISO 15156) | 230 °C (Table C.4) | 190 °C (Table C.3) | 230 °C (Table C.4) | Not listed | 200 °C (Table C.5) |
Source: NACE TM0177-2016 'Laboratory Testing of Metals for Resistance to SSC and SCC in H₂S Environments'; ISO 15156-3:2015 + Amd 1:2017 Tables C.3–C.5; Special Metals SMC-063, SMC-051, SMC-066; Haynes International H-2032.
Galvanic Corrosion Considerations
Nickel alloy flanges are frequently coupled to carbon steel or duplex stainless steel pipework in subsea systems. The large area ratio (cathodic nickel alloy flange vs. anodic carbon steel pipe) accelerates galvanic corrosion of the steel. Mitigation strategies include:
Insulating gasket kits (PTFE-coated, with insulating sleeves on bolts) to break the galvanic circuit
Cathodic protection (CP) design: Al/Zn/In sacrificial anodes or impressed current to polarise the steel to a protective potential (–0.80 V vs. Ag/AgCl)
Overlay welding: Inconel 625 or 825 weld overlay on carbon steel flange faces to provide a corrosion barrier while retaining carbon steel structural body
Transition pieces: factory-welded nickel alloy / carbon steel transition spools with PWHT-qualified procedures
For subsea flanges directly exposed to seawater, Inconel 625 is the preferred material because it is fully immune to seawater crevice corrosion and does not require additional CP protection on the flange body (CP is still required for connected carbon steel components).

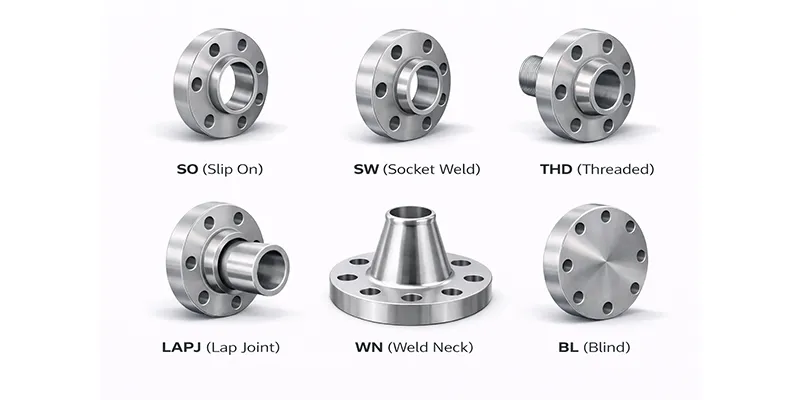

Subsea nickel alloy flanges are predominantly manufactured to ASME B16.5 / B16.47 or API 6A / 17D specifications, in pressure classes from Class 300 to Class 2500 (API 5K to 20K). For deepwater high-pressure applications, API 6A PSL 3/3G with material and impact testing requirements is the standard specification.
Flange Type | Application | Typical Alloy |
Weld Neck (WNRF) | Pipeline-to-pipeline; pipeline-to-manifold; primary structural connection | Incoloy 825 or Inconel 625 |
Blind (BLRF) | Pipeline end closure; pressure cap; test point | Inconel 625 or Hastelloy C-276 |
Ring Type Joint (RTJ) | High-pressure metal-to-metal seal; API 6A type; critical sour service | Inconel 718 (hub) / Inconel 625 (ring) |
Hub / Clamp Connector | Subsea tree connector; compact high-pressure joint; no bolt tensioning required | Inconel 718 (hub) / Inconel 625 (clamp) |
Overlay Flange (CS body + Ni-alloy facing) | Cost-effective: carbon steel body with Inconel 625 or 825 weld overlay on gasket face | ASTM A105 body + Inconel 625 overlay |
Swivel Flange | Subsea riser connection; allows angular misalignment | Inconel 625 (body) / Inconel 718 (fasteners) |
Source: ASME B16.5-2023 'Pipe Flanges and Flanged Fittings'; ASME B16.47-2023 'Large-Diameter Steel Flanges'; API 6A (21st Ed., 2024) 'Wellhead and Tree Equipment'; API 17D (3rd Ed., 2021) 'Design and Operation of Subsea Production Systems — Subsea Wellhead and Tree Equipment.'
The following table shows the maximum allowable working pressure (MAWP) at 38 °C for standard ASME B16.5 flange classes in nickel alloy forgings (ASTM B564):
Class | 150 | 300 | 600 | 900 | 1500 | 2500 |
MAWP (bar, Group 2.1) | 19.6 | 51.1 | 102.1 | 153.2 | 255.3 | 425.5 |
Typical Subsea Use | Utility lines | Low-pressure flowlines | Medium-pressure manifolds | HP manifolds | HPHT trees | Ultra-HP connectors |
Source: ASME B16.5-2023 Table 2-2.1 'Pressure-Temperature Ratings for Group 2.1 Materials (Nickel Alloys)'; ASME BPVC Section VIII Division 1 Appendix 2.
Inconel 625 and Incoloy 825 are the most weldable of the five alloys (SA condition, no PWHT required for most wall thicknesses). Hastelloy C-276 requires careful heat input control. Inconel 718 and Monel K500 (PH alloys) are not recommended for welding in the aged condition; they are used for forged hub components and fasteners. All subsea flanges require 100 % NDE (RT or UT + MT/PT) per API 6A PSL 3/3G.
Alloy | Filler Metal (GTAW) | Preheat | PWHT | Weldability Rating | NDE (API 6A PSL 3) |
Inconel 625 | ERNiCrMo-3 (Inconel 625) | 10–25 °C (ambient OK) | Not required (SA) | Excellent | 100 % RT/UT + MT/PT |
Incoloy 825 | ERNiCr-3 (Inconel 82) or ERNiCrMo-3 | 10–25 °C | Not required (SA) | Good | 100 % RT/UT + MT/PT |
Hastelloy C-276 | ERNiCrMo-4 (Hastelloy C-276) | 10–25 °C | Not required (SA, thin wall) | Moderate (heat input < 1.5 kJ/mm) | 100 % RT/UT + MT/PT |
Monel K-500 | ERNiCu-7 (Monel 60) | 10–25 °C | Aging after weld: 580–620 °C / 8 h | Moderate (not for PH service welds) | 100 % RT/UT + MT/PT |
Inconel 718 | ERNiFeCr-2 (Inconel 718) — rarely welded in subsea | Not recommended for PH welds | Aging: 720 °C / 8 h (if welded) | Difficult (PH condition); use SA for welds | 100 % RT/UT + MT/PT + hardness survey |
Source: ASME BPVC Section IX (2023 Edition) 'Welding, Brazing, and Fusing Qualifications'; AWS A5.14/A5.11 'Specification for Nickel and Nickel-Alloy Bare/Welding Electrodes and Rods'; API 6A (21st Ed., 2024) PSL 3 and PSL 3G requirements; Special Metals welding guides for Inconel 625, 718, and Incoloy 825.
Subsea flanges must meet the most stringent QA requirements in the oil and gas industry. The following mandatory QA steps apply to all nickel alloy subsea flanges:
· Heat chemistry verification: Certificate of Conformity (EN 10204 Type 3.1 or 3.2) with full chemistry per ASTM B564
· Mechanical testing: Tensile + Charpy at –40 °C (or design minimum temperature) on each heat per ASTM A370
· Hardness survey: Brinell or Vickers on forging body and on each flange face; SA ≤ 100 HRB; PH ≤ 40 HRC
· Non-destructive examination: 100 % RT or UT (per ASME B16.5 and API 6A PSL 3); 100 % MT or PT on all surfaces
· Dimensional inspection: All critical dimensions per ASME B16.5 or API 6A with full dimensional report
· Traceability: Heat number, forging lot, and serial number permanently marked on each flange
· Third-party inspection: Lloyds Register, DNV, or ABS witness of mechanical tests for critical subsea applications
Incoloy 825 is the most cost-effective nickel alloy flange material (~3.5–4.5× 316L baseline). Inconel 625 costs ~5–7× baseline. Hastelloy C76 is the most expensive (~8–10×) due to high Mo/W content and limited forging availability. Inconel 718 is moderate (~5–6×) but used primarily for smaller hub/fastener components. On a total installed cost basis, Incoloy 825 flanges are 30–40 % cheaper than Inconel 625 for equivalent size and pressure class.
Alloy | Relative Material Cost | Forging Availability | Lead Time | Total Installed Cost | Most Cost-Effective For |
Incoloy 825 | 3.5–4.5× | Good (standard sizes) | 10–14 weeks | 1.0× (baseline) | Sour internal service; non-exposed flanges; pipeline connections |
Inconel 625 | 5.0–7.0× | Good (standard sizes) | 12–16 weeks | 1.35× | Seawater-exposed hubs; tree connectors; all-round subsea use |
Hastelloy C276 | 8.0–10.0× | Limited (special order) | 16–24 weeks | 1.80× | Chemical injection; HPHT extreme chloride; rare specification |
Monel K500 | 4.0–5.0× | Good (fastener/hub sizes) | 10–14 weeks | 1.15× | Non-sour seawater fasteners; NOT for H₂S service |
Inconel 718 | 5.0–6.0× | Good (hub/fastener sizes) | 12–16 weeks | 1.40× | High-strength hubs; PH fasteners; tree connector bodies |
Source: S&P Global Commodity Insights 'Platts Metals Daily — Nickel Alloy Forgings Price Index' Q1 2025; industry price surveys from DNV and Lloyd's Register approved forging suppliers (2024); JN Alloys internal quotation database (2024–2025). * Total installed cost includes material, forging, machining, NDE, documentation, and logistics.
