Inconel 625 for Chemical Processing Plants

Why Inconel 625 Dominates Chemical Processing Plants?

Inconel 625 is the single alloy that eliminates chloride pitting, chloride SCC, and mixed-acid attack simultaneously — the three corrosion modes that cause 70–90% of stainless steel failures in chemical plants.

Chemical processing plants face a triple threat: chloride-induced pitting and crevice corrosion, chloride stress-corrosion cracking (SCC), and mixed oxidizing-reducing acid attack. Standard 316L stainless steel fails under these combined conditions within months to a few years, driving unplanned shutdowns costing $50,000–$500,000 per event.

Inconel 625, a nickel-chromium-molybdenum-niobium solid-solution strengthened alloy, resolves all three simultaneously through its ≥58% nickel matrix, 20–23% chromium (oxidation defense), and 8–10% molybdenum (pitting/crevice resistance). Its PREN of ~49 places it in the highest tier of weldable corrosion-resistant alloys, and its niobium stabilization eliminates sensitization during welding.

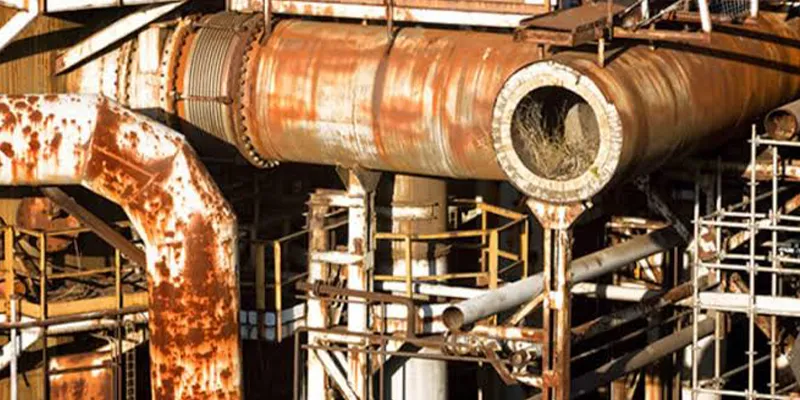

Corrosion Resistance in Chemical Plants

Over 70% of chemical plant equipment failures originate from localized corrosion not uniform wall loss, and these mechanisms accelerate exponentially with temperature and chloride concentration.

Unlike uniform corrosion, which progresses slowly and predictably, localized corrosion attacks tiny areas at devastating speed. A pit that initiates in a 316L heat exchanger tube at 80°C in 500 ppm chloride water can penetrate a 2 mm wall in under 6 months — while the surrounding metal shows negligible weight loss.

Crevice corrosion under gaskets, flange faces, and deposit accumulations is even more aggressive because the confined geometry creates an acidified micro-environment that accelerates dissolution. Chloride SCC, the third mechanism, requires no wall penetration at all — a single crack propagating through a stressed tube can cause catastrophic leakage in hours.

Inconel 625 for Chemical Processing Plants

Inconel 625 is the default specification for heat exchangers, evaporators, reactor vessels, FGD systems, and process piping in chemical plants where chlorides, mixed acids, or temperatures above 200°C make stainless steel unreliable.

The following sections detail the five application categories in chemical processing plants, explaining why Inconel 625 is specified and what failure modes it prevents.

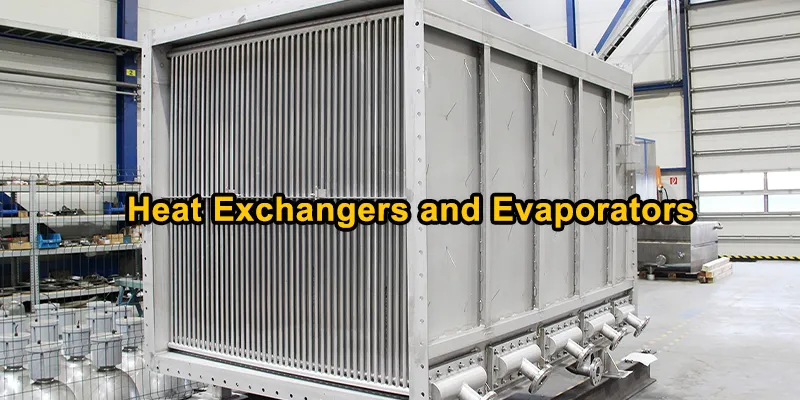

Heat Exchangers and Evaporators

Inconel 625 heat exchanger tubing eliminates pitting perforation and SCC cracking in chloride-containing process streams — the two failure modes responsible for >80% of stainless steel tube bundle replacements.

Shell-and-tube heat exchangers are the most corrosion-critical equipment in any chemical plant. The tube side handles the process fluid — often containing chlorides, acids, or both at elevated temperatures — while the shell side may use cooling water with its own chloride content. This creates a double-sided corrosion challenge where tube-wall perforation causes cross-contamination and process upset.

Phosphoric Acid Evaporators (Wet-Process)

• Wet-process phosphoric acid contains fluoride and chloride impurities from the phosphate rock that pit 316L within months. Inconel 625 evaporator tubes have documented service lives exceeding 10–15 years in these streams, making them the industry standard for phosphoric acid concentration circuits.

Sulfuric Acid Coolers

• In dilute-to-moderate sulfuric acid (up to ~50% at temperatures below ~60°C), Inconel 625 provides reliable service where 316L exhibits unacceptable general and pitting corrosion. For hot concentrated sulfuric acid (>70% at >80°C), Hastelloy C-276 or silicon iron is required — Inconel 625 is not the correct choice in that regime.

MVR (Mechanical Vapor Recompression) Evaporators

• MVR evaporators in chemical and desalination plants concentrate brines at high temperature under pressure. The chloride loading and cyclic thermal stress make 316L tubes crack via SCC within 1–3 years. Inconel 625 tubes, immune to chloride SCC, survive the full 15–20 year design life.

Organic Acid Heat Exchangers

• Acetic acid, formic acid, and other organic acid heat exchangers in pharmaceutical and fine chemical plants routinely use Inconel 625 where product purity requires zero metal-ion contamination and where mixed organic/aqueous/chloride streams exceed 316L’s capability.

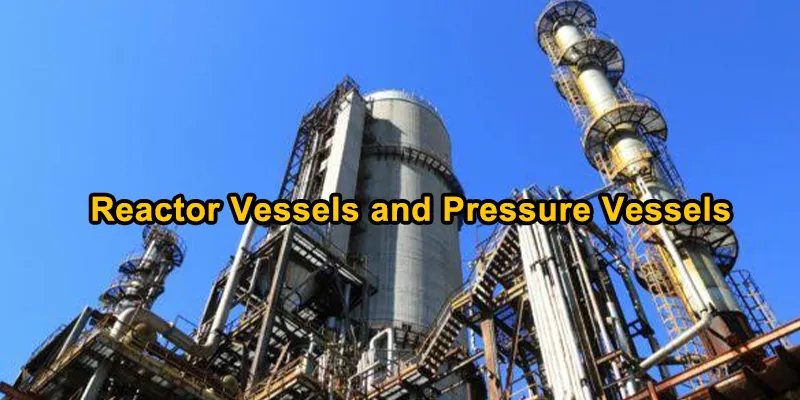

Reactor Vessels and Pressure Vessels

Solid Inconel 625 reactor vessels are specified for batch processes with fluctuating oxidizing/reducing conditions; clad vessels (625 on carbon steel) are the cost-effective solution for large continuous reactors where full-wall alloy is unnecessary.

Chemical reactors face the most complex corrosion environment in any plant: batch operations swing between oxidizing and reducing conditions during different reaction phases, temperature cycles from ambient to 300–400°C, and catalyst residues introduce chloride or fluoride contamination. No single stainless grade can handle these swings reliably.

Solid-Wall vs. Clad Construction

• For small-to-medium reactors (up to ~3 m diameter), solid Inconel 625 plate construction (ASTM B443) provides full corrosion resistance with no cladding defect risk. For large reactors (>3 m), Inconel 625 weld-overlay cladding on carbon steel (typically 3–5 mm overlay thickness) reduces material cost by 60–70% while providing identical corrosion protection on the internal surface. The carbon steel shell provides structural strength at a fraction of the cost of full-wall nickel alloy.

Batch Organic Acid Reactors

• Acetic acid/acetic anhydride reaction generators, PTA production reactors, and pharmaceutical batch reactors use Inconel 625 where the process stream alternates between acidic, chloride-containing, and caustic cleaning phases — conditions that would sensitize and crack 316L.

NACE MR0175 Sour Service Reactors

• Reactors handling sour gas in gas-treating and amine regeneration units require NACE MR0175/ISO 15156 qualified materials. Inconel 625 is listed for all sour service conditions at any temperature, making it the universal specification for sour-environment reactor internals, catalyst baskets, and injection piping.

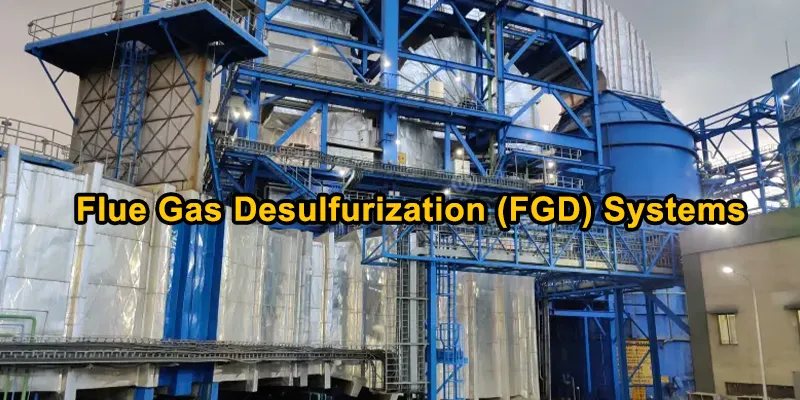

Flue Gas Desulfurization (FGD) Systems

Inconel 625 is the standard material for FGD absorber tower spray zone liners, outlet duct panels, and slurry pump impellers — where sulfuric acid, hydrochloric acid, and abrasive limestone slurry combine to destroy stainless steel within 2–5 years.

Wet FGD systems in coal-fired and heavy-fuel power plants represent one of the most corrosive industrial environments on earth. Inside the absorber tower, SO₂ is oxidized to sulfuric acid, chlorides from the fuel form hydrochloric acid, and the limestone slurry provides mechanical abrasion. This tri-fold attack — acid + chloride + erosion — defeats every stainless grade and most coatings. Inconel 625, in solid form or as weld-overlay/clad panels, is the proven solution.

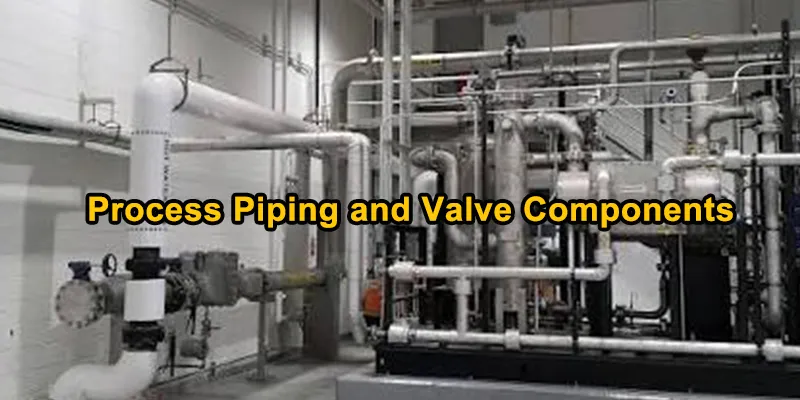

Process Piping and Valve Components

Inconel 625 seamless pipe (ASTM B444) and weld-overlay clad pipe are specified for process lines carrying hot chloride-containing or sour fluids — where 316L would fail by SCC and carbon steel by uniform corrosion.

Process piping in chemical plants differs from heat exchangers and reactors in one critical way: it is installed in long runs with hundreds of welds, flanges, and fittings, making both fabrication cost and weld integrity dominant selection factors. Inconel 625’s excellent weldability (no PWHT required, ERNiCrMo-3 filler metal standard) and niobium stabilization make it uniquely suited for large piping systems.

Seamless vs. Welded Pipe Selection

• ASTM B444 seamless pipe is mandatory for ASME Section VIII pressure boundary service and high-pressure/cyclic applications. ASTM B705 welded pipe extends to larger diameters (up to 24" NB) at 30–40% lower cost, acceptable for moderate-pressure, non-cyclic service. Both follow ASME B36.19 dimensional schedules (5S, 10S, 40S, 80S).

Weld Overlay Clad Pipe

• For large-diameter piping (>12" NB) in FGD, seawater, or sour service, Inconel 625 weld-overlay clad carbon steel pipe provides the corrosion resistance of full alloy at 40–50% of the material cost. The 3–5 mm overlay is applied by FCAW using ERNiCrMo-3 wire, tested per ASTM A262 Practice E for intergranular corrosion resistance. Over 50,000 meters of clad pipe are installed in FGD systems worldwide.

Valves and Pump Components

• Valve bodies, trim, seats, and pump impellers in aggressive chemical service are manufactured from Inconel 625 bar or forgings. The alloy’s combination of corrosion resistance, high yield strength, and galling resistance against itself makes it superior to 316L for rotating and sliding contact components.

Inconel 625 vs 316L vs Hastelloy C276

316L wins in mild, low-chloride, ambient-temperature service; Inconel 625 wins when chlorides, SCC risk, or temperatures above 200°C enter the specification; Hastelloy C276 wins when strong reducing acids dominate — there is no universal winner, only environment-specific selection.

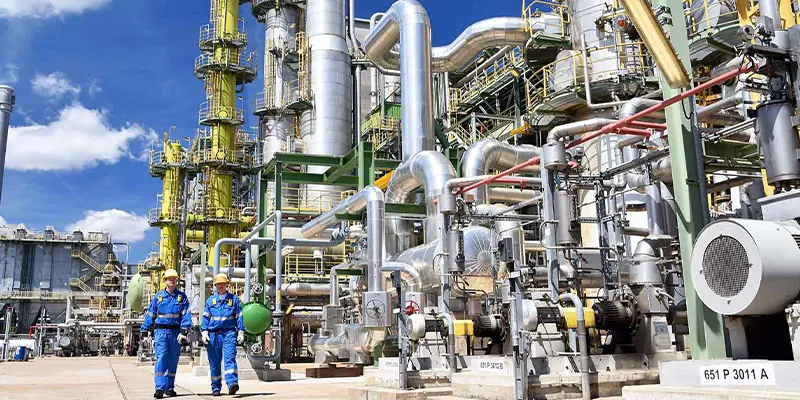

Product Forms and Standards for Chemical Plant Procurement

Inconel 625 is available in every wrought product form required for chemical plant construction — pipe, tube, plate, bar, forgings, fittings, and welding consumables — all under UNS N06625 with full ASME/ASTM coverage.

FAQ: Inconel 625 for Chemical Processing

Q: Can Inconel 625 replace 316L in every chemical plant application?

No. Inconel 625 replaces 316L only where chlorides, SCC risk, or temperatures above 200°C make 316L unreliable — in mild service, 316L remains the correct economic choice.

Q: Is Inconel 625 suitable for hydrochloric acid service?

Inconel 625 is suitable for dilute HCl (up to ~10%) at ambient temperature; for concentrated or hot HCl, Hastelloy C-276 is required.

Q: Can Inconel 625 be used for weld overlay on existing carbon steel equipment?

Yes. Inconel 625 weld overlay (ERNiCrMo-3) on existing carbon steel equipment is a proven retrofit strategy that extends service life by 10–15+ years without replacing the entire component.

Q: Does Inconel 625 require post-weld heat treatment (PWHT)?

No. Inconel 625’s niobium stabilization prevents sensitization during welding, so PWHT is not required for corrosion resistance — a major advantage over unstabilized stainless grades.

Q: What is the maximum continuous service temperature for Inconel 625 in chemical plants?

Inconel 625 is rated for continuous oxidizing service up to 980°C and reducing/sulfidizing service up to 815°C — but for pressure-boundary chemical plant equipment, the practical limit is ~650°C where creep becomes the governing design consideration.

Q: How does Inconel 625 compare to 6Mo super austenitic stainless (254 SMO) in chemical plants?

254 SMO bridges the gap between 316L and Inconel 625 for moderate chloride service (≤5000 ppm Cl⁹, ≤100°C) at ~3× the cost of 316L; Inconel 625 extends coverage to unlimited chloride concentration, SCC immunity, and temperatures up to 980°C — but at 5–8× the cost of 316L.
