Inconel 625 vs Incoloy 825: Which Nickel Alloy Is Right for Your Application?

Inconel 625 (UNS N06625) and Incoloy 825 (UNS N08825) are both nickel alloys designed for corrosive industrial environments, yet they were different. Inconel 625 is a high-strength, high-temperature nickel-chromium-molybdenum-niobium alloy. Incoloy 825 is a cost-effective nickel-iron-chromium alloy with copper and titanium additions.

The confusion between these two alloys is understandable — both contain nickel, chromium, and molybdenum, and both resist corrosion better than stainless steel. But the performance gap is substantial: Inconel 625 has roughly double the nickel, nearly triple the molybdenum, and 72% higher yield strength. Incoloy 825 contains 1.5–3% copper, which Inconel 625 lacks entirely.

This guide provides the composition, corrosion, mechanical, welding, cost, and application data to make the correct selection every time.

For a comprehensive overview of Inconel 625 properties, applications, and product forms, see our Ultimate Guide to Inconel 625 hub page. This article is part of that blog series, focusing specifically on the head-to-head comparison with Incoloy 825.

What Are Inconel 625 and Incoloy 825?

Inconel 625 is a nickel-chromium-molybdenum-niobium alloy (58% Ni min) engineered for high strength and broad corrosion resistance from cryogenic to 980°C. Incoloy 825 is a nickel-iron-chromium alloy (38–46% Ni) with copper and titanium, engineered for cost-effective resistance to sulfuric and phosphoric acids at moderate temperatures up to 540°C. They share the Ni-Cr-Mo system but prioritize different performance attributes.

Inconel 625 (UNS N06625 / W.Nr. 2.4856)

Developed in the 1960s, Inconel 625 was initially created for steam-line piping in ultra-supercritical power plants. Its key innovation was the addition of niobium (3.15–4.15%) alongside molybdenum (8–10%), which provides solid-solution strengthening without requiring precipitation hardening. The result is an alloy with outstanding strength from cryogenic temperatures up to 980°C, excellent fatigue resistance, and superior weldability.

Today, Inconel 625 is the world's most versatile nickel-chromium-molybdenum alloy. It is listed in more NACE, ASME, ASTM, and API specifications than almost any other single grade. Applications span aerospace (turbine components, exhaust systems), oil and gas (downhole tubing, subsea risers, wellhead components), marine (propeller blades, seawater valves), nuclear (reactor core components), and chemical processing (heat exchangers, reactors).

Incoloy 825 (UNS N08825 / W.Nr. 2.4856)

Developed in the 1950s by the International Nickel Company (INCO), Incoloy 825 was specifically designed to resist sulfuric and phosphoric acids — two of the most destructive chemicals in industrial use. Its design philosophy was pragmatic: achieve excellent corrosion resistance in a broad range of aggressive environments while keeping the nickel content (and therefore the cost) as low as possible.

The addition of titanium (0.6–1.2%) stabilizes the microstructure against sensitization during welding, a critical feature for fabricated equipment. The copper addition (1.5–3%) is the defining feature — it enables stable passivation in reducing acid environments where Inconel 625's chemistry offers no equivalent advantage. Incoloy 825 is widely used in chemical processing equipment, acid production units, pickling equipment, FGD systems, oil and gas sour service piping, and heat exchangers.

How Do Their Chemical Compositions Differ?

Three compositional differences drive most performance divergence: nickel (58% min in 625 vs 38–46% in 825 — controls strength and SCC resistance), molybdenum (8–10% in 625 vs 2.5–3.5% in 825 — controls chloride pitting resistance), and copper (zero in 625 vs 1.5–3% in 825 — controls reducing acid resistance). The niobium in 625 (3.15–4.15%) and titanium in 825 (0.6–1.2%) serve different stabilization roles.

Which Alloy Has Better Corrosion Resistance?

Inconel 625 has dramatically better resistance to chloride pitting, crevice corrosion, and seawater (PREN ~51 vs ~32).

PREN and Chloride Performance



Corrosion Resistance by Environment



The pattern is clear: Incoloy 825 wins in reducing acid environments (sulfuric, phosphoric) where copper is the critical element. Inconel 625 wins in chloride, seawater, and high-temperature environments where its higher molybdenum and nickel content provide superior localized corrosion resistance and oxidation resistance.

Which Alloy Is Stronger?

Inconel 625 is dramatically stronger than Incoloy 825 at all temperatures.

At room temperature, 625 has 35% higher tensile strength and 72% higher yield strength. This strength advantage is the direct result of niobium solid-solution strengthening, which 825 does not have.

For subsea risers and flowlines operating at high pressure, 625's strength advantage is often the deciding factor.

Incoloy 825's strength is comparable to corrosion-resistant stainless steels like 316L and 904L. It is adequate for moderate-pressure chemical equipment, storage tanks, and heat exchangers, but it is not a structural alloy.

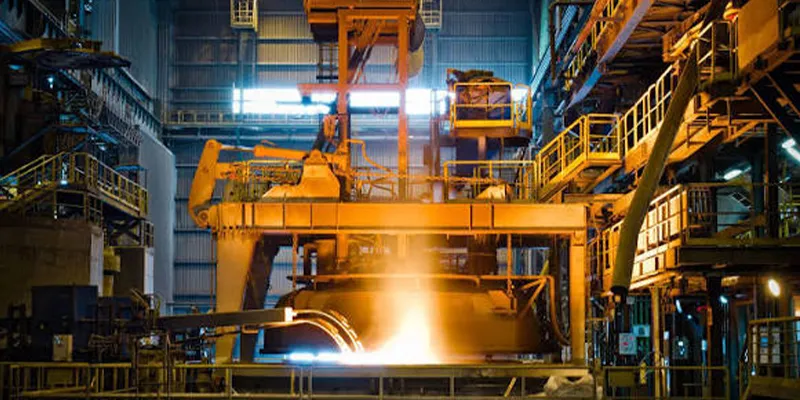

How Do They Compare in High-Temperature Service?

Inconel 625 is vastly superior for high-temperature service. It can operate continuously up to 980°C for oxidation-limited service and 815°C for structural/creep-limited applications. Incoloy 825 is not a high-temperature alloy — its maximum continuous service temperature is approximately 540°C, above which its oxidation resistance and creep strength drop sharply.

For any application with sustained service temperatures above 540°C — furnace components, turbine parts, exhaust systems, catalytic reactors — Inconel 625 is effectively mandatory. Incoloy 825's higher iron content and absence of niobium strengthening make it unsuitable for these duties.

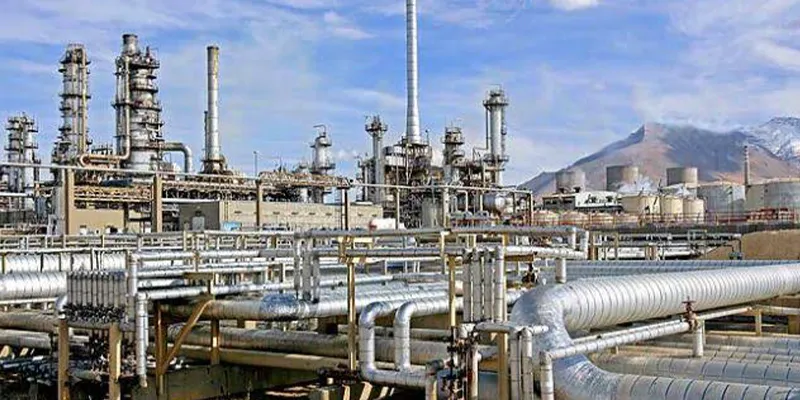

Which Alloy Is Better for Acid Service?

Incoloy 825 is the better choice for sulfuric acid and phosphoric acid service due to its 1.5–3% copper content, which enables stable passivation in reducing acid environments. Inconel 625 is better for hydrochloric acid, mixed acids, and environments combining chlorides with acids. For nitric acid (oxidizing), both perform well.

Sulfuric Acid (H₂SO₄)

Incoloy 825 is the standard material for sulfuric acid plant equipment. It handles dilute to moderate concentrations (20–50%) at temperatures up to 80°C with corrosion rates below 0.1 mm/year. The copper addition forms protective sulfate films that inhibit further attack. Inconel 625 can handle sulfuric acid but is not as effective in the dilute-to-moderate range where 825 excels. For concentrated sulfuric acid (>70%), Inconel 625 has a slight edge.

Phosphoric Acid (H₃PO₄)

Incoloy 825 is the preferred material for wet-process phosphoric acid (WPA) production — evaporators, digestion reactors, pump casings, and piping. The combination of copper (for the acid) and molybdenum (for fluoride and chloride contamination in WPA) makes 825 the cost-effective standard. Inconel 625 is overkill for most WPA service but may be specified for the most aggressive high-fluoride environments.

How Do They Compare in Sour Gas (H₂S) Service?

Both alloys are qualified under NACE MR0175 / ISO 15156-3 for sour oil and gas service, but Inconel 625 has significantly broader qualification.

625 is approved for all H₂S partial pressures and unlimited chlorides. 825 is approved for moderate sour service with a 35 HRC hardness limit and defined chloride concentration limits. For HPHT (high-pressure, high-temperature) sour wells, 625 is the default choice.

For moderate sour service where conditions are within 825's qualification envelope, 825 offers a cost-effective path to NACE compliance. For severe sour service — HPHT wells, high H₂S concentrations, high chlorides, subsea production systems — Inconel 625 is the industry standard and often the only qualified material.

Which Alloy Is Easier to Weld and Fabricate?

Both alloys have excellent weldability. Incoloy 825 is easier to machine and form due to its lower strength and lower work-hardening rate. Inconel 625 is more difficult to machine because of its high strength and rapid work hardening, but offers superior weldability for dissimilar metal joints. Neither requires post-weld heat treatment in most applications.

A key practical difference: Inconel 625's filler metal (ERNiCrMo-3) is one of the most widely used filler metals in the world for welding dissimilar metals. It is routinely used to weld stainless steel to carbon steel, nickel alloys to stainless, and overlay cladding on carbon steel. This makes 625 filler more readily available than 825 filler.

How Much Does Each Alloy Cost?

Incoloy 825 is significantly less expensive than Inconel 625 — typically 40–50% cheaper. The price difference is driven by 625's much higher nickel content and niobium addition.

Note: Prices fluctuate with nickel, molybdenum, and niobium commodity markets. The 40–50% premium for 625 is relatively stable.

Frequently Asked Questions

Is Inconel 625 stronger than Incoloy 825?

Yes, significantly. Inconel 625 has 35% higher tensile strength (827–1,034 MPa vs 586–690 MPa) and 72% higher yield strength (414–655 MPa vs 241–310 MPa) compared to Incoloy 825. This strength advantage comes from niobium solid-solution strengthening in 625, which 825 does not have. For pressure-retaining or load-bearing applications, 625 is the correct choice.

Which alloy is better for sulfuric acid service?

Incoloy 825 is the standard material for sulfuric acid service, particularly in the dilute-to-moderate concentration range (20–50%) at temperatures up to 80°C. Its 1.5–3% copper content enables stable passivation in reducing acid environments. Inconel 625 can handle sulfuric acid but is not as effective in this range and costs 40–50% more. For concentrated sulfuric acid (>70%), 625 has a slight edge.

Which alloy is better for phosphoric acid service?

Incoloy 825 is the preferred material for wet-process phosphoric acid (WPA) production. The combination of copper (for the acid) and molybdenum (for fluoride and chloride contamination) makes 825 the cost-effective standard for evaporators, reactors, and pump casings. Inconel 625 may be specified for the most aggressive high-fluoride environments but is typically overkill for standard WPA service.

Which alloy is better for seawater service?

Inconel 625 is dramatically superior in seawater. Its PREN of ~51 makes it virtually pitting-immune in seawater up to 80°C, while Incoloy 825 (PREN ~32) begins pitting in warm seawater above 30°C. For subsea flowlines, desalination plants, marine splash zones, and offshore seawater cooling systems, Inconel 625 is the standard specification.

Can Incoloy 825 be used at high temperatures?

No. Incoloy 825 is not a high-temperature alloy. Its maximum continuous service temperature is approximately 540°C, above which oxidation resistance and creep strength decline sharply. For service above 540°C, Inconel 625 (rated to 980°C) is the correct choice.

Are both alloys qualified for NACE sour service?

Yes, both are qualified under NACE MR0175 / ISO 15156-3, but with different scopes. Inconel 625 is approved for all H₂S partial pressures and unlimited chlorides. Incoloy 825 is approved for moderate sour service with a 35 HRC hardness limit and defined chloride concentration limits. For HPHT (high-pressure, high-temperature) sour wells, 625 is the default.

What is the PREN difference between Inconel 625 and Incoloy 825?

Inconel 625 has a PREN of approximately 51 (21.5% Cr + 3.3 × 9% Mo). Incoloy 825 has a PREN of approximately 32 (21.5% Cr + 3.3 × 3% Mo). The 19-point difference means 625 provides significantly higher resistance to chloride pitting and crevice corrosion.

Which alloy is more cost-effective?

Incoloy 825 is typically 40–50% cheaper than Inconel 625 due to its lower nickel content (38–46% vs 58% min) and absence of niobium. For moderate-corrosion environments at temperatures below 540°C where reducing acid resistance is the primary requirement, 825 is the more cost-effective choice. For high-strength, high-temperature, or severe chloride/sour service, the premium for 625 is justified.

Are both alloys non-magnetic?

Yes, both are fully austenitic and non-magnetic in the annealed condition. Inconel 625 has a relative permeability of approximately 1.001; Incoloy 825 is similarly non-magnetic. Neither will attract a permanent magnet at room temperature.

What filler metals should I use for welding each alloy?

Use ERNiCrMo-3 (Alloy 625 filler, AWS A5.14) for welding Inconel 625. Use ERNiFeCr-1 (Alloy 825 filler) for welding Incoloy 825, or ERNiCrMo-3 for higher corrosion resistance in dissimilar joints. Both alloys can be welded without post-weld heat treatment in most applications.
